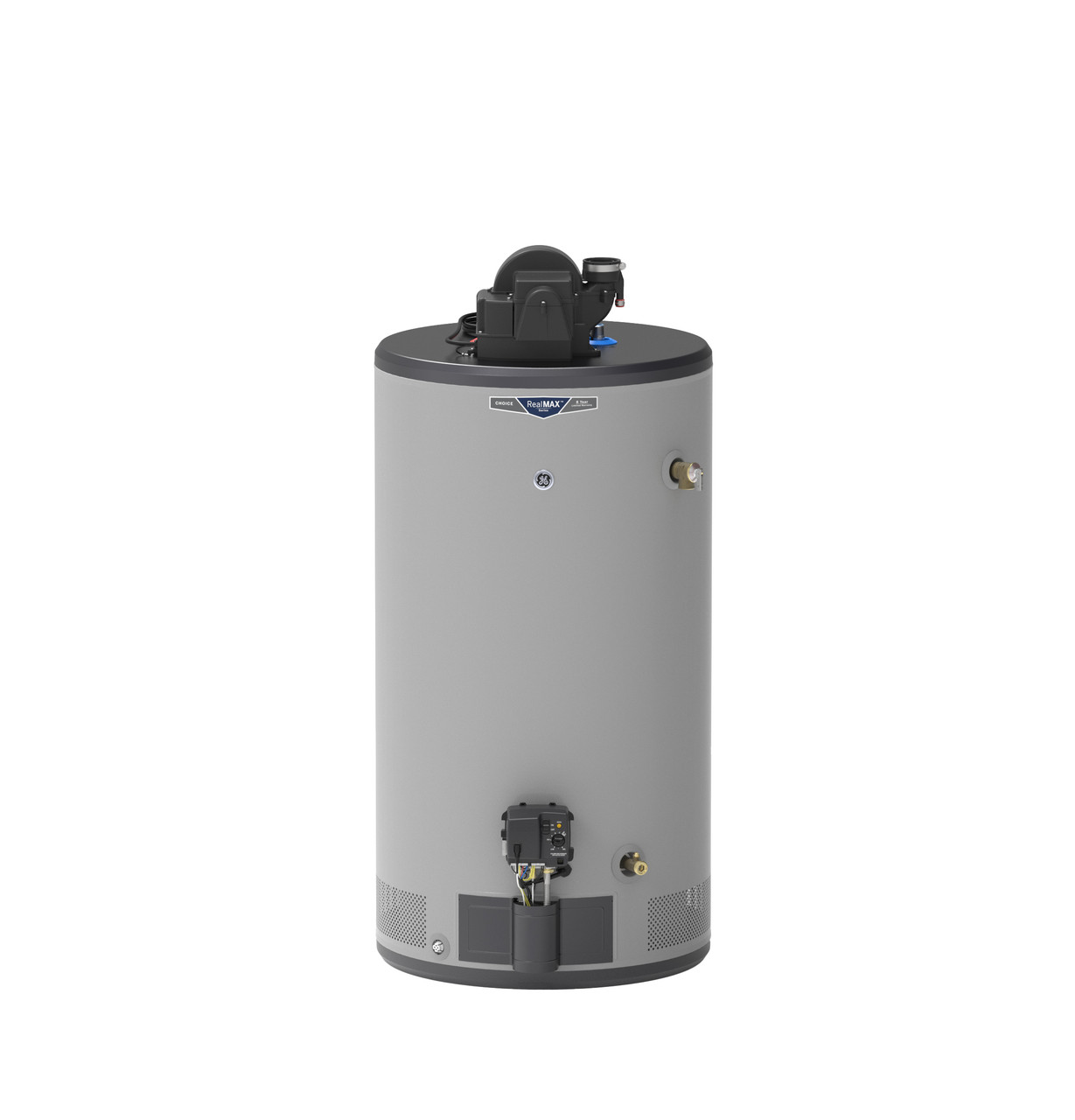

RealMAX Choice 50-Gallon Short Natural Gas Power Vent Low-NOx Water Heater - GG50S08AYV
RealMAX Choice 50-Gallon Short Natural Gas Power Vent Low-NOx Water Heater
Model: GG50S08AYV
RealMAX Choice 50-Gallon Short Natural Gas Power Vent Low-NOx Water Heater
Model: GG50S08AYV
Color : Gray
Key Features
Power Vent
Household Size
Real Capacity
Maximum Performance
Brass Drain Valve
Leading Warranty
SmartShield™ Safety System
Self-Diagnostic
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features

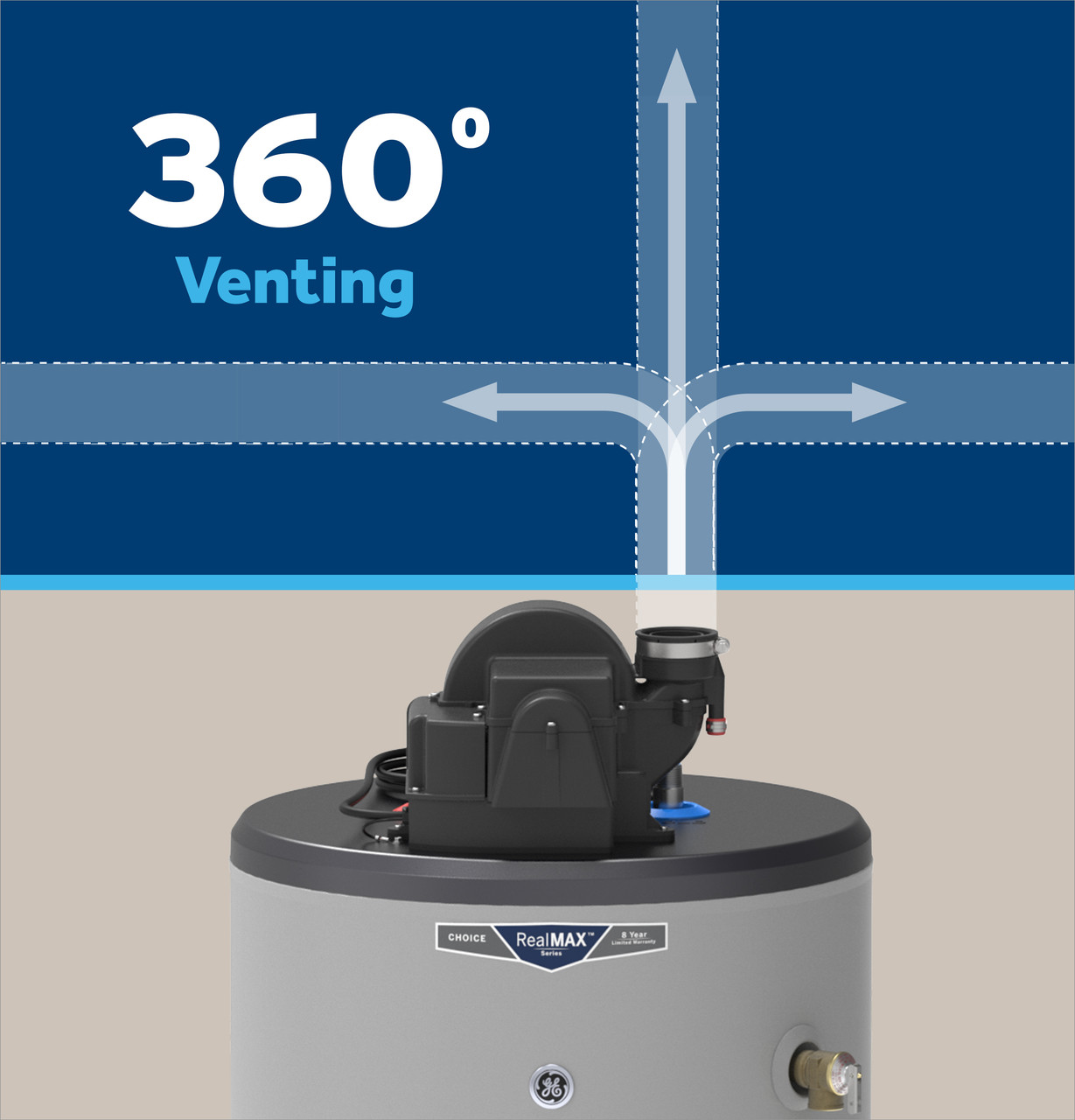

Power Vent
Get easy, anywhere venting. Gas power vent water heaters offer flexible venting options with lengths up to 150 feet and either vertical or horizontal termination.
Household Size
With its 50-gallon water tank, this unit provides plenty of hot water for a family of up to five people.

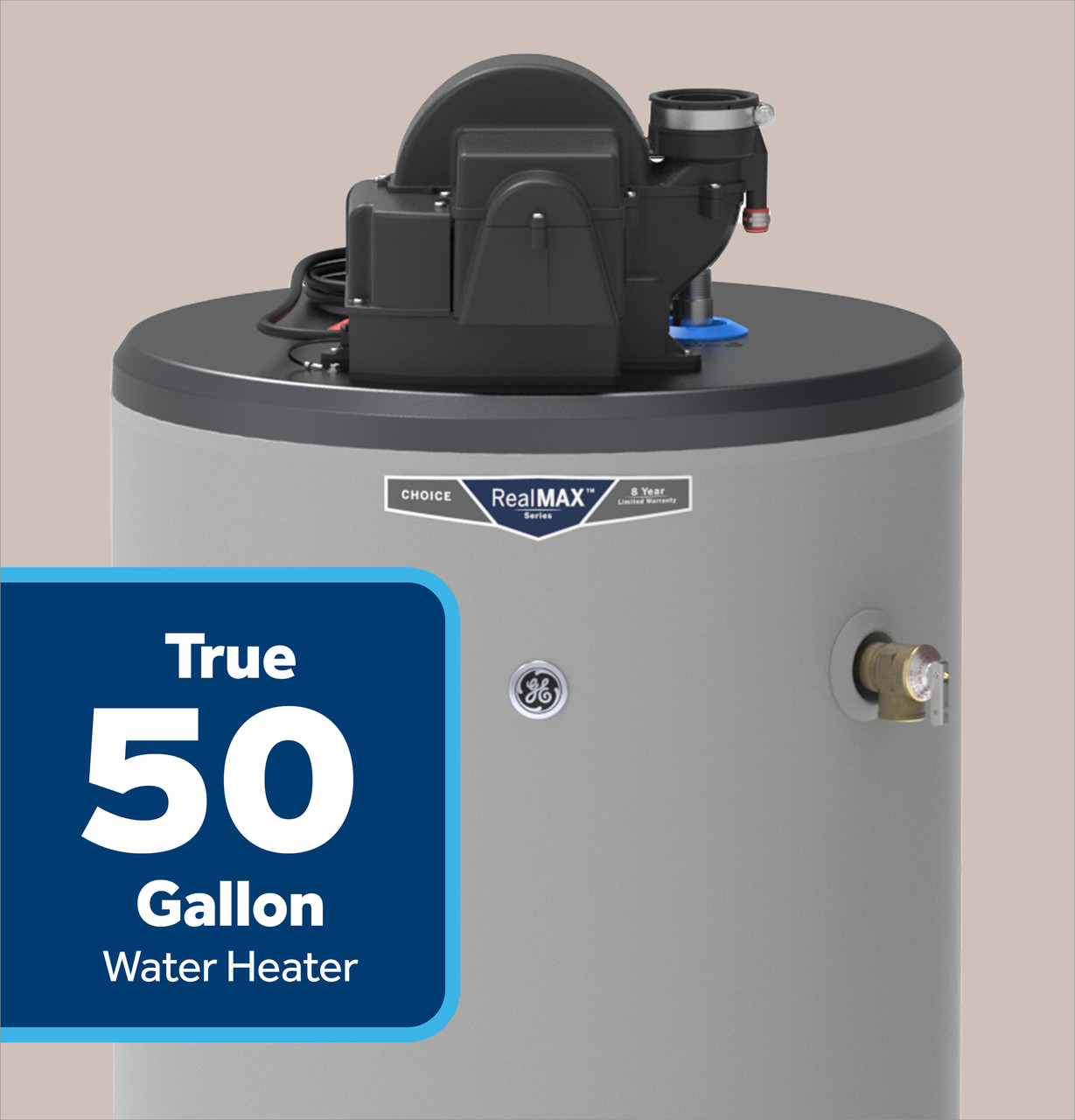

Real Capacity
Get the most hot showers from the only water heater that holds a true 50 gallons of water. (Compared to steel tank water heaters per DOE -rated gallon capacity.)
Maximum Performance
Live comfortably with this best-in-class gas water heater with a first-hour delivery of 73 gallons of hot water usage. (50-gallon model as measured through DOE first-hour rating.)

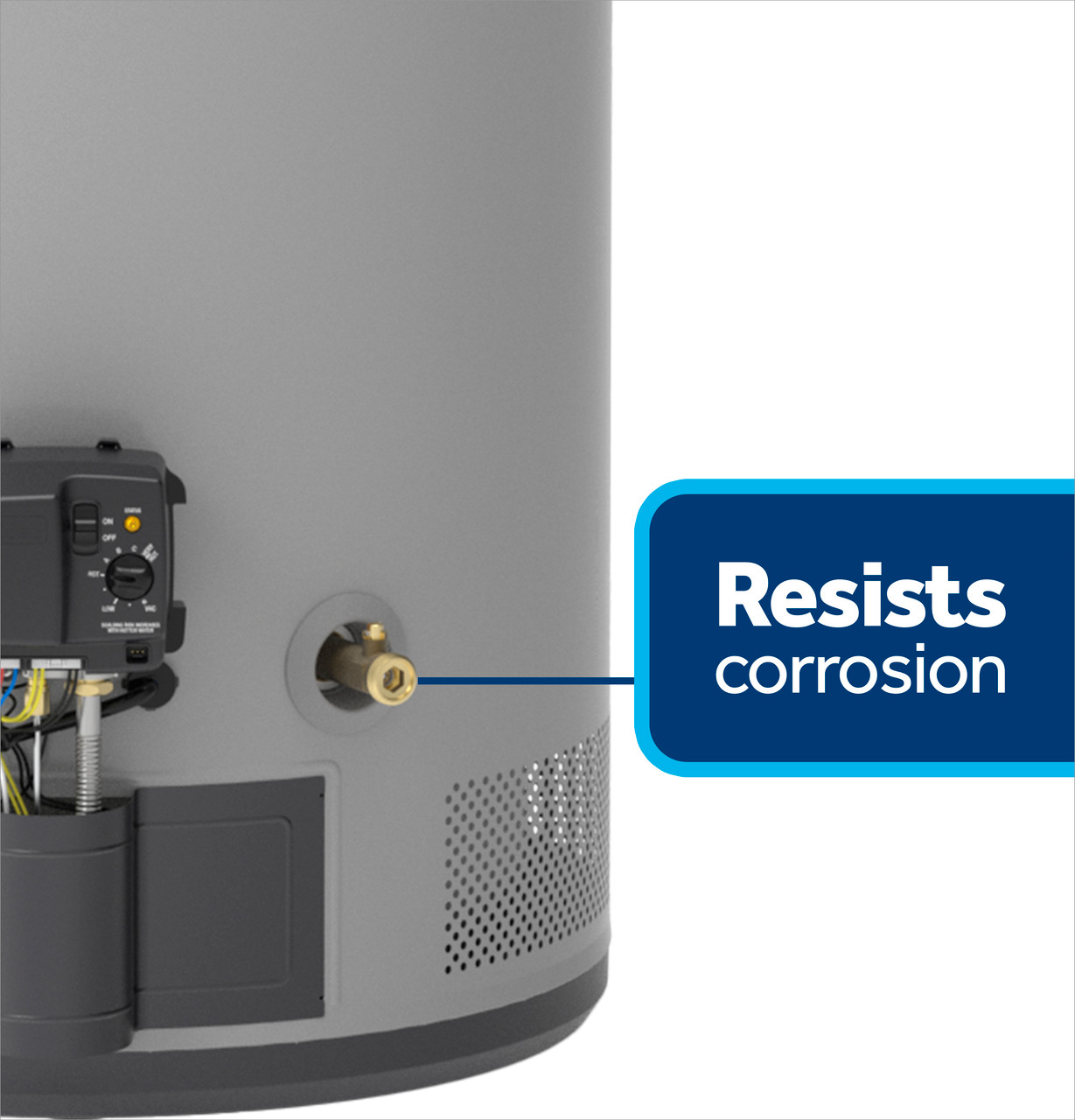

Brass Drain Valve
Get the lasting durability of a corrosion-resistant, rust-proof full port brass drain valve.

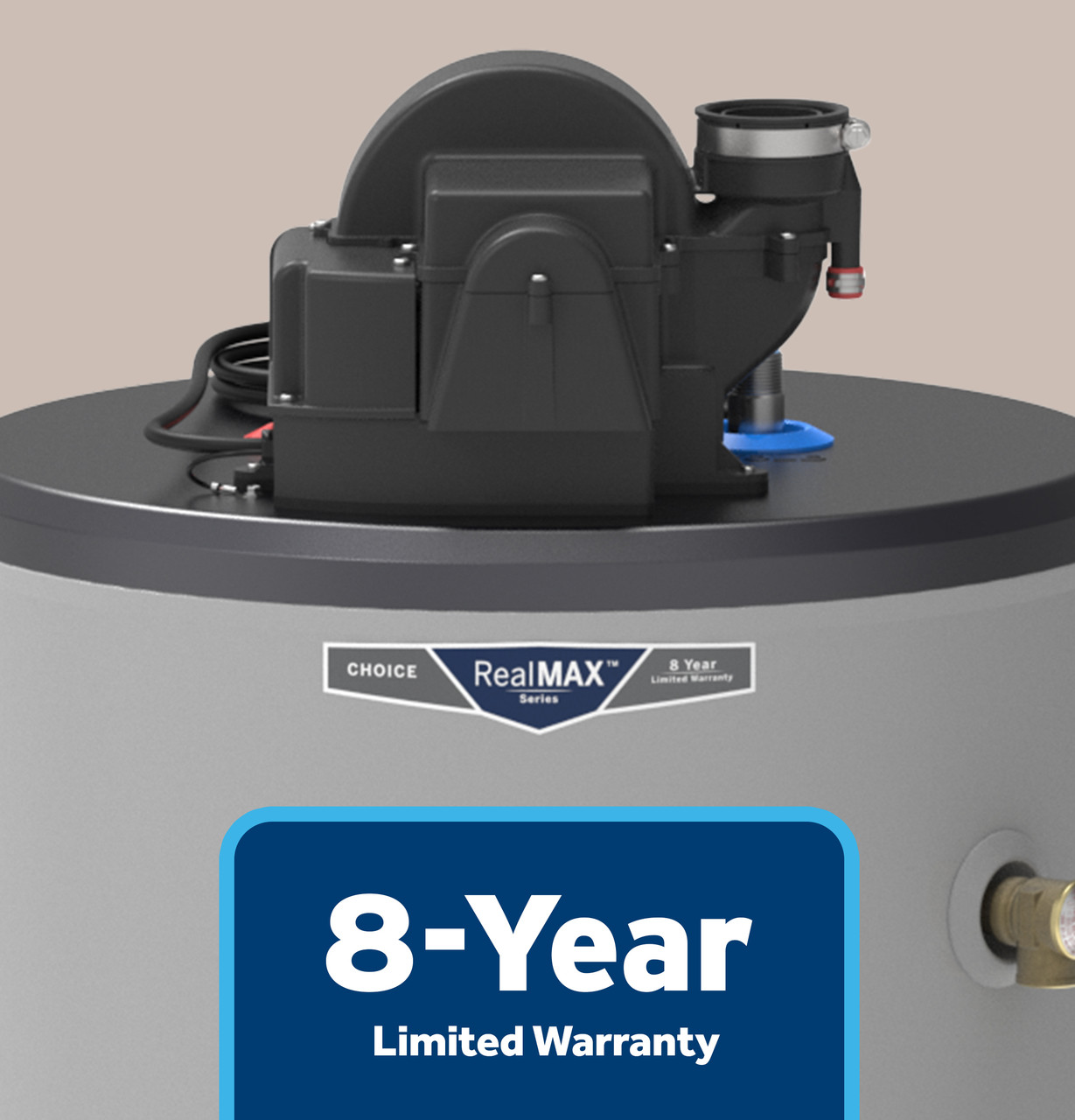

Leading Warranty
RealMAX™ Choice water heaters carry an 8-year tank and parts limited warranty

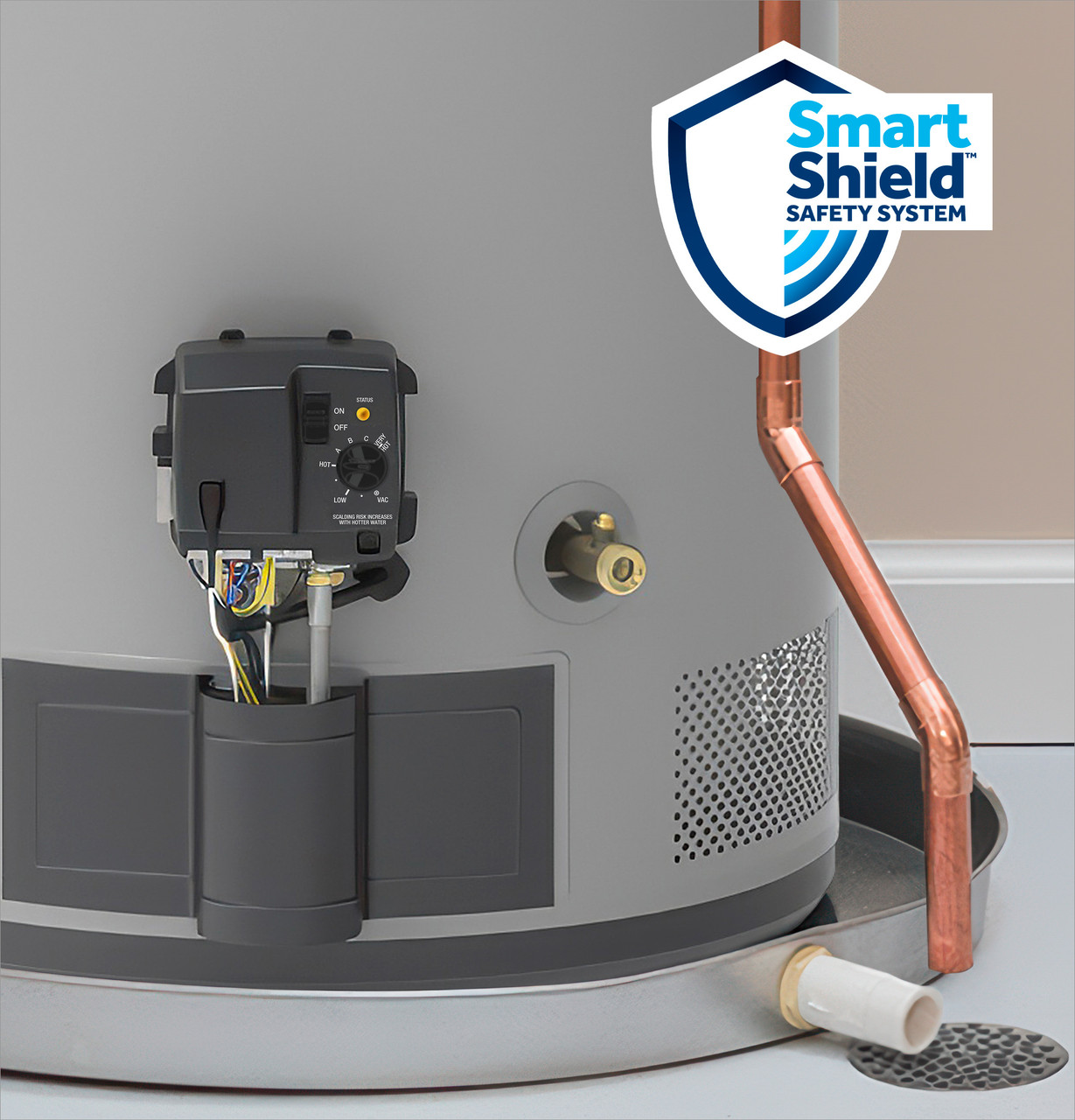

SmartShield™ Safety System
For added safety, the SmartShield™ Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or the presence of flammable vapors are detected.

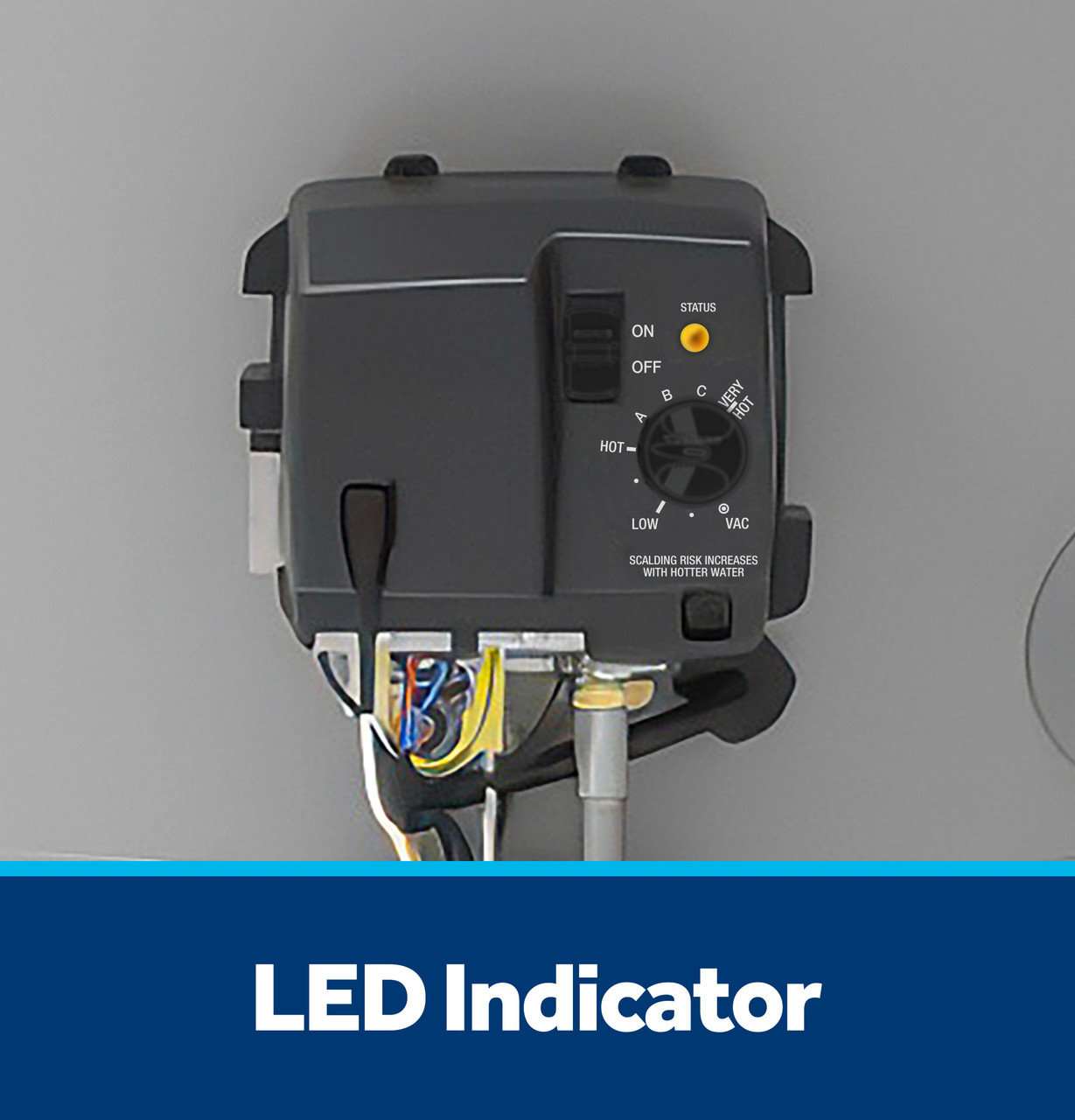

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator.

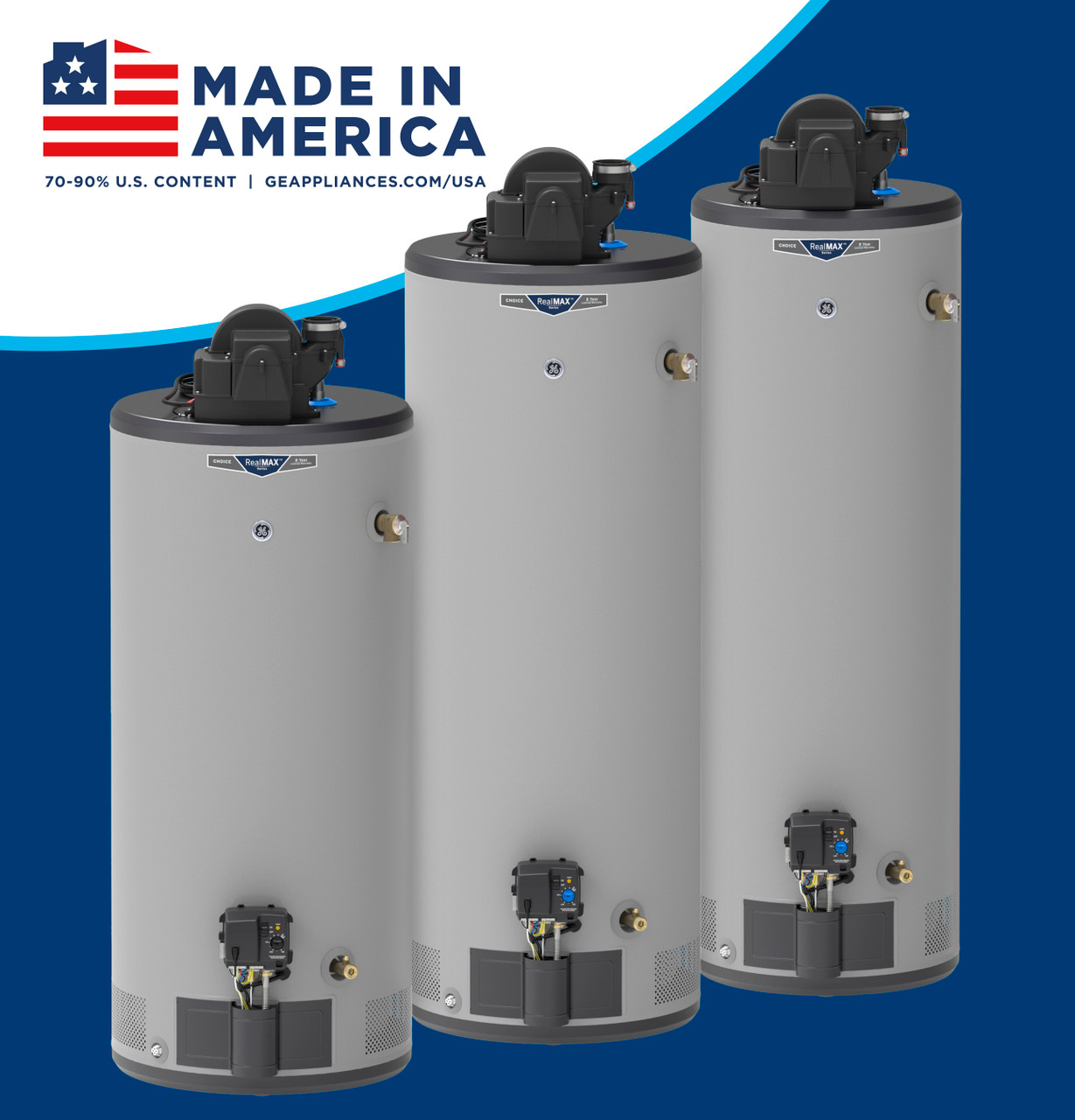

Made in America
Get the added confidence of an American-made water heater.
Specifications
Dimensions & Weight
| Width | 25 in. |
| Height | 54 in. |
| Length | 25 in. |
| Weight | 173 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 30 in. |
| Shipping Height | 59 in. |
| Shipping Length | 30 in. |
| Shipping Weight | 213 lbs. |
| Total of Shipping Weight | 213 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 19.53 ft³ |
| Dimensional Weight | 242.81 lbs. |
| Total of Cubes | 19.53 ft³ |
| Total of Dimensional Weight | 242.81 lbs. |
WEIGHTS & DIMENSIONS
| Overall Width | 25 in |
| Overall Height | 54 in |
| Product Height (to top of unit) | 46.5 in |
| Overall Depth | 25 in |
| Product Height (to top of water inlet/outlet connections) | 48 in |
| Height to Gas Control | 11.5 in |
| Approximate Shipping Weight | 187 lb |
| Net Weight | 173 lb |
| Product Diameter | 25 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
FEATURES
| FVIR Safety System | Prevents accidental ignition of flammable vapors |
| Vent | Power Vent |
| Controls | LED Indicator |
| UEF | 0.61 |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Short |
| Fuel Type | Natural Gas |
| Pilot Light Window / Button | Yes |
| Configuration | Short |
| Drain Valve Type | Brass |
| Product Type | Power Vent Gas |
| Family Size | 3-5 or more People |
| Bin Testing | High |
| Water Connection Location | Top |
| Overheat Protection | Dry Burning Protection |
| Gas Valve | Self Powered |
| Anode Rod | Magnesium |
| Temperature Setting | 45-160° F Range |
| Altitude Rating | 10,100 ft |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Burner BTU Size (k) | 40 |
| First Hour Delivery GPH | 73 gal/h |
CAPACITY
| Unit Capacity | 50 Gallons |
APPEARANCE
| Color Appearance | Gray |
