Deluxe 230/208 Volt Room Air Conditioner - ASM24DC

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

Deluxe 230/208 Volt Room Air Conditioner

Model: ASM24DC

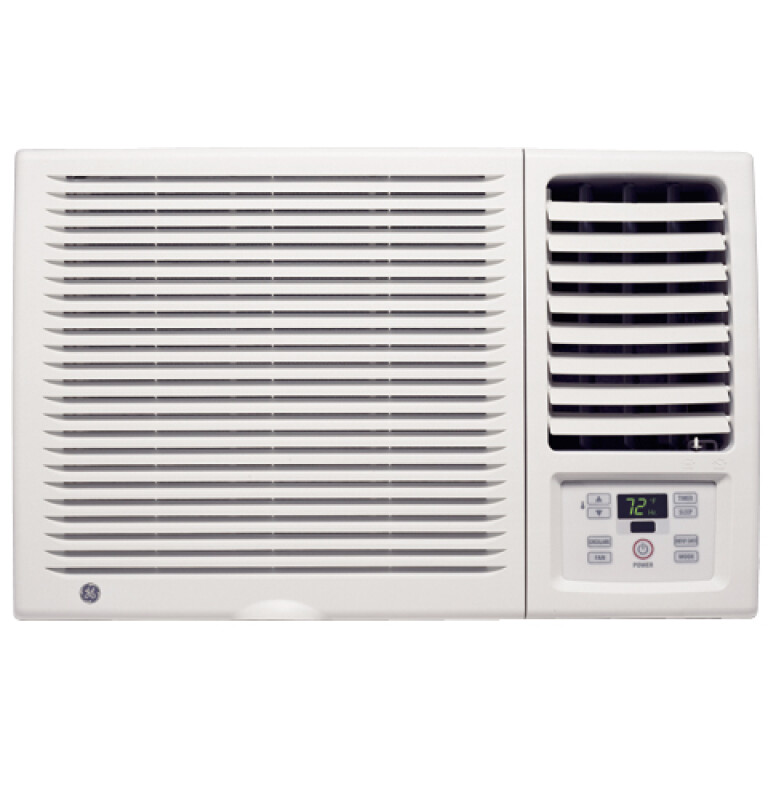

Deluxe 230/208 Volt Room Air Conditioner ASM24DC
Deluxe 230/208 Volt Room Air Conditioner ASM24DC

Color : Other

Deluxe 230/208 Volt Room Air Conditioner ASM24DC
Other

Key Features

  • 23,700 / 23,100 BTU, 9.4 / 9.4 EER, 230 / 208 Volts

  • ENERGY STAR® qualified

  • Electronic remote control

  • 3 cooling / 3 fan speeds

  • 510 CFM (high)

  • Plug type - perpendicular

  • Lift-out filter for easy cleaning

  • 7.2 dehumidification (pints/hr)

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

23,700 / 23,100 BTU, 9.4 / 9.4 EER, 230 / 208 Volts

ENERGY STAR® qualified

Electronic remote control

3 cooling / 3 fan speeds

510 CFM (high)

Plug type - perpendicular

Lift-out filter for easy cleaning

7.2 dehumidification (pints/hr)

Slide-out chassis

EZ Mount window installation

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight163 lb
Min./Max. Window Opening Width (in.)30/41
Depth to Louvers9.25 in
Net Weight147 lb
Minimum Window Opening Height (in.)17.375 in
Overall Depth27 3/16 in
Overall Height16 3/4 in

Dimensions & Weight

Width26 in.
Height16.75 in.
Length27.19 in.
Weight147 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height21.75 in.
Shipping Length32.19 in.
Shipping Weight187 lbs.
Total of Shipping Weight187 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement6.85 ft³
Dimensional Weight85.18 lbs.
Total of Cubes6.85 ft³
Total of Dimensional Weight85.18 lbs.

FEATURES

Fan Speed Selections3 Fan Only
Filter TypeQuick Clean
Chassis TypeSlide-Out
Vent/Air Exchange ExhaustExhaust
Plug TypePerpendicular
Mounting TypeEZ Mount
Thermostat TypeElectronic
Unit TypeCool Only
Airflow (cfm) Roomside510
Fan Speed Selections3 Cooling
Filter TypeOne Touch Lift-Out

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM11.3/12.3
Cooling - Watts2530/2470
Voltage (MIN)208 V
Voltage (MAX)230 V

ECONOMICAL / QUIET

Energy SaverYes

APPEARANCE

InstallationEZ Mount

CAPACITY

Cooling EER (BTUH / Watt)9.4/9.4
Dehumidification (pts./hr.)7.2
Cooling BTUH (MAX)23,700 Btu
Cooling BTUH (MIN)23,100 Btu
