230 Volt Electronic Room Air Conditioner - AEQ24DN

This product has been discontinued by the manufacture and is no longer available.

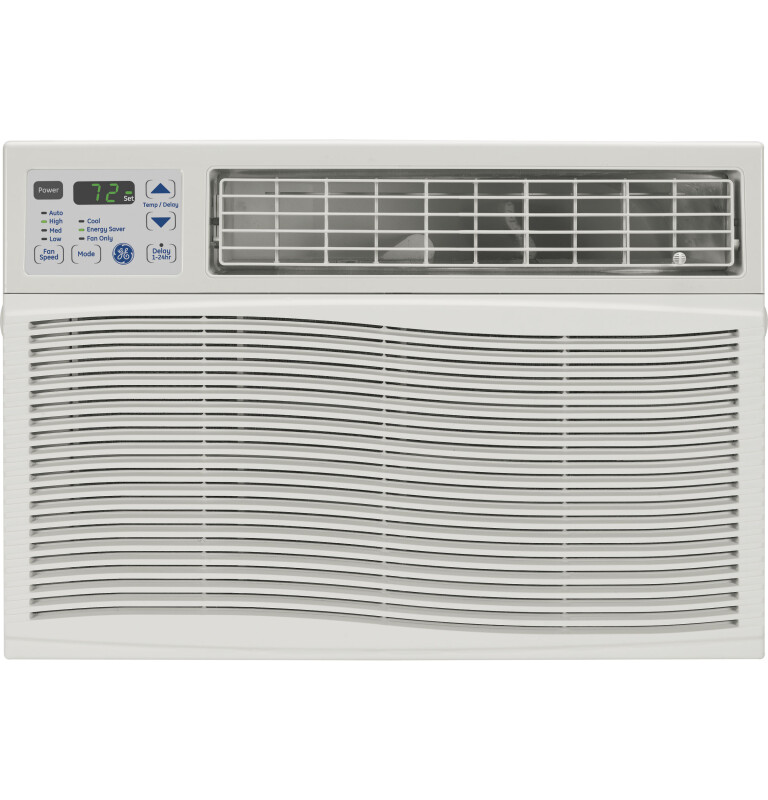

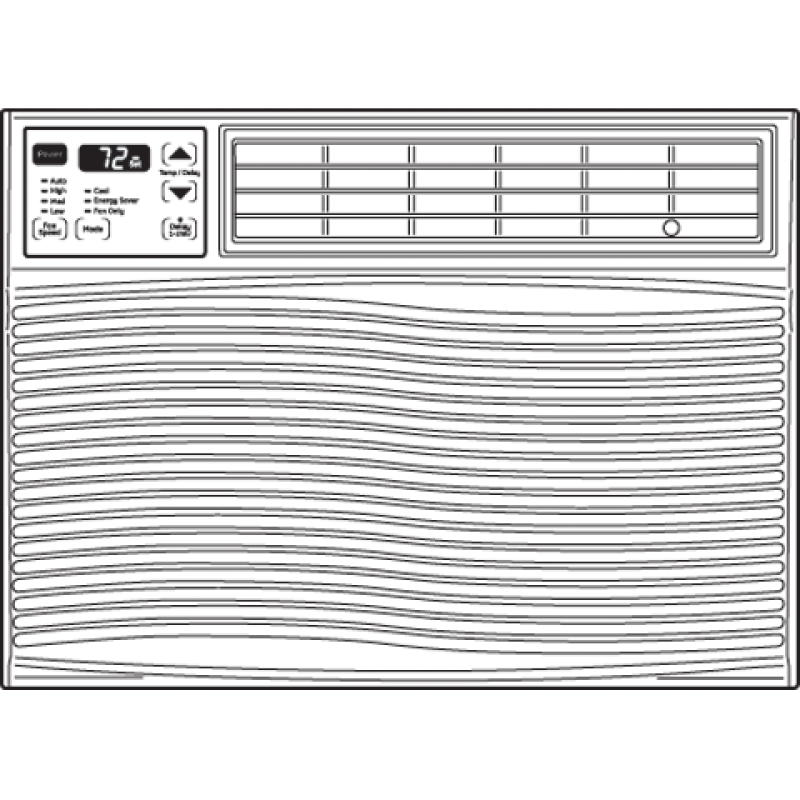

230 Volt Electronic Room Air Conditioner

Model: AEQ24DN

230 Volt Electronic Room Air Conditioner AEQ24DN230 Volt Electronic Room Air Conditioner AEQ24DN
230 Volt Electronic Room Air Conditioner AEQ24DN
230 Volt Electronic Room Air Conditioner AEQ24DN

Color : Gray

230 Volt Electronic Room Air Conditioner AEQ24DN
Gray

Key Features

  • 23,700/23,200 BTU / 8.5 EER / 230/208 Volts

  • R-410A refrigerant

  • Electronic thermostat with remote

  • Energy Saver feature

  • 24 hour on/off timer

  • 3 cooling / 3 fan speeds

  • Power interruption restart

  • Slide-out chassis

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

23,700/23,200 BTU / 8.5 EER / 230/208 Volts

R-410A refrigerant

Electronic thermostat with remote

Energy Saver feature

24 hour on/off timer

3 cooling / 3 fan speeds

Power interruption restart

Slide-out chassis

EZ Mount window installation kit included

Certifications

AHAM certification

AHAM

CUL certification

CUL

California Prop 65 certification

California Prop 65

EEV certification

EEV

UL certification

UL

Specifications

Dimensions & Weight

Width26.53 in.
Height18.63 in.
Length26.31 in.
Weight130 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31.53 in.
Shipping Height23.63 in.
Shipping Length31.31 in.
Shipping Weight170 lbs.
Total of Shipping Weight170 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement7.52 ft³
Dimensional Weight93.54 lbs.
Total of Cubes7.52 ft³
Total of Dimensional Weight93.54 lbs.

FEATURES

Louver Style4-Way Adjustable
Fan Speed Selections3 Fan Only
Refrigerant TypeR410A
Filter TypeOne Touch Lift-Out
Chassis TypeSlide-Out
Vent/Air Exchange ExhaustTop Discharge
Plug TypePerpendicular/NEMA 6-20
Delay Timer24-Hour On/Off
Remote ControlYes
Thermostat TypeElectronic
Rotary CompressorYes
Unit TypeCool Only
Airflow (cfm) Roomside490/400
Fan Speed Selections3 Cooling

WARRANTY

Warranty NotesSee written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight154 lb
Min./Max. Window Opening Width (in.)29/41
Depth to Louvers11.53125 in
Grille Depth2 in
Net Weight130 lb
Minimum Window Opening Height (in.)19.25 in
Overall Depth26 5/16 in
Overall Height18 5/8 in
Overall Width26 17/32 in

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM13.0/14.0
Cooling - Watts2790/2730
Voltage (MIN)208 V
Voltage (MAX)230 V

ECONOMICAL / QUIET

Energy SaverYes

APPEARANCE

InstallationEZ Mount
Color AppearanceLight Cool Gray

CAPACITY

Cooling EER (BTUH / Watt)8.5/8.5
Dehumidification (pts./hr.)8.0
Cooling BTUH (MAX)24,000 Btu
Cooling BTUH (MIN)23,700 Btu
