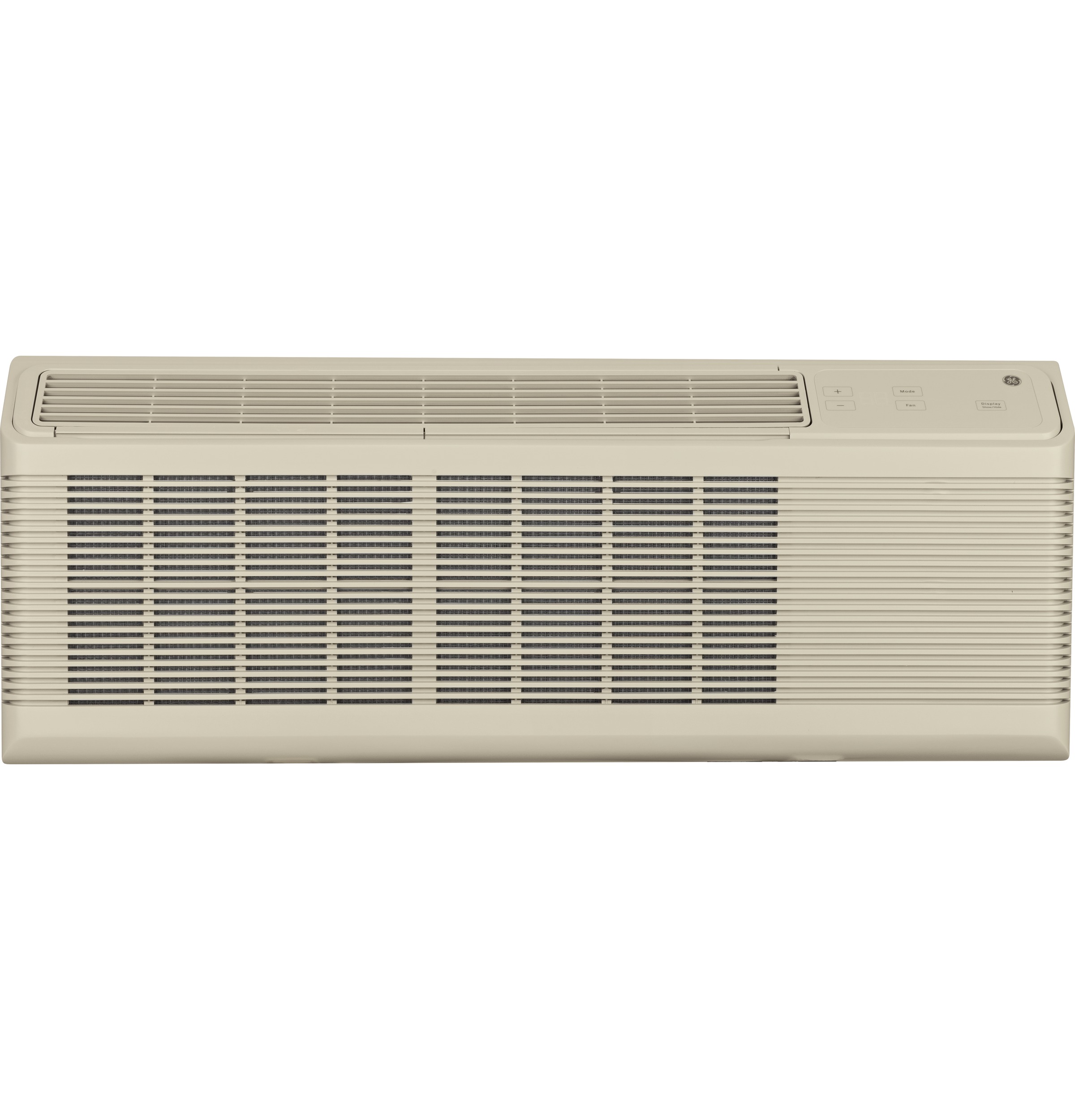

Zoneline Heat Pump Unit with ICR, 230/208 Volt - AZ65H15DAD

This product has been discontinued by the manufacture and is no longer available.

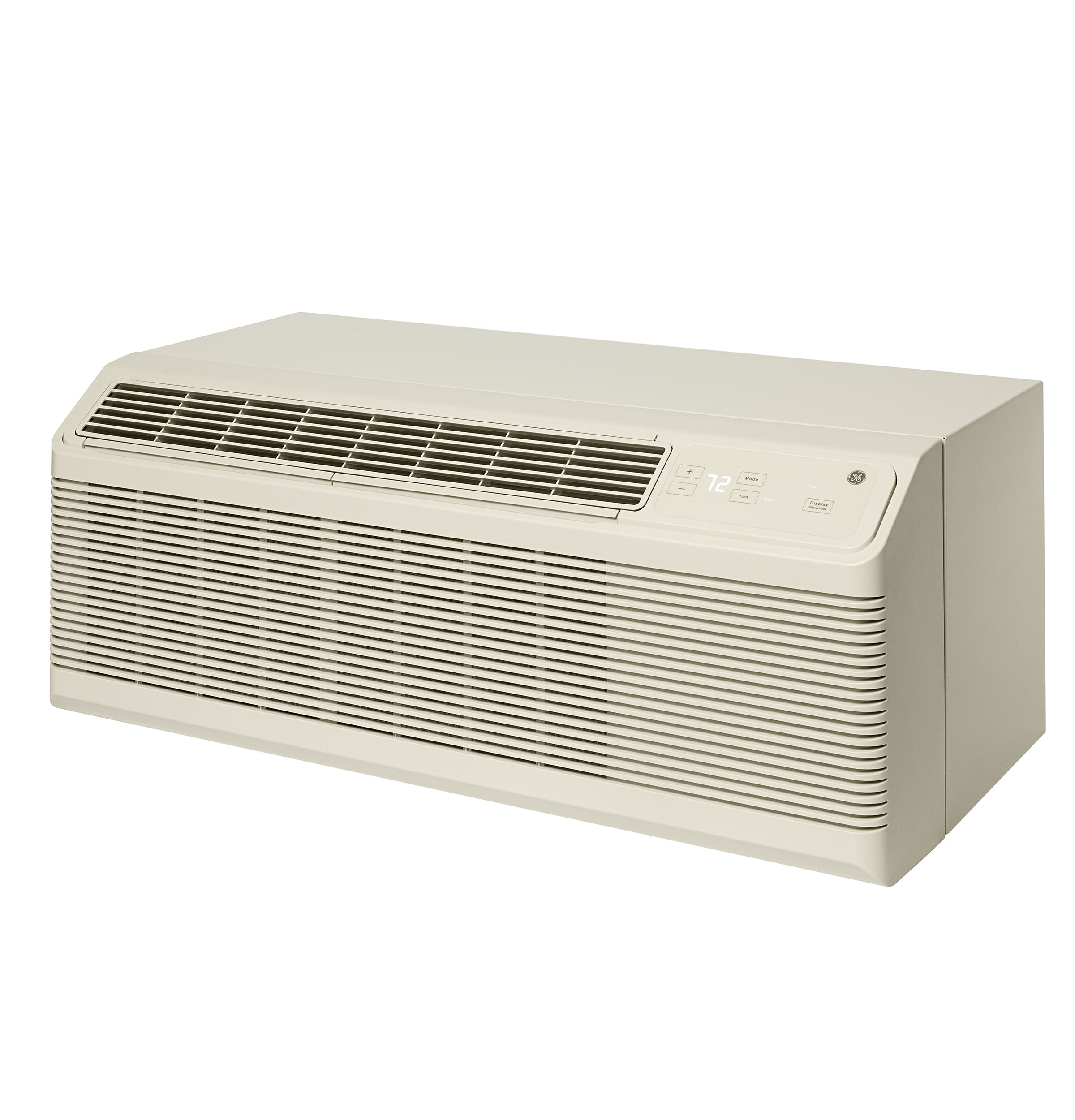

Zoneline Heat Pump Unit with ICR, 230/208 Volt

Model: AZ65H15DAD

Zoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DADZoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DAD
Zoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DAD
Zoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DAD
Zoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DAD
Zoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DAD
Zoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DAD
+29more

Color : Other

Zoneline Heat Pump Unit with ICR, 230/208 Volt AZ65H15DAD
Other

Key Features

  • Cooling capacity

  • Energy efficiency

  • Dehumidification

  • Reverse cycle heat

  • Heat pump efficiency

  • Indoor fan CFM (high/low)

  • Fresh air vent CFM (fully open high fan)

  • Quiet operation

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

Cooling capacity

14,300/14,100 BTU

Energy efficiency

10.3/10.3 EER

Dehumidification

4.8 pints/hour

Reverse cycle heat

13,500/13,400 BTU

Heat pump efficiency

3.2/3.2 COP

Indoor fan CFM (high/low)

449/290

Fresh air vent CFM (fully open high fan)

44

Quiet operation

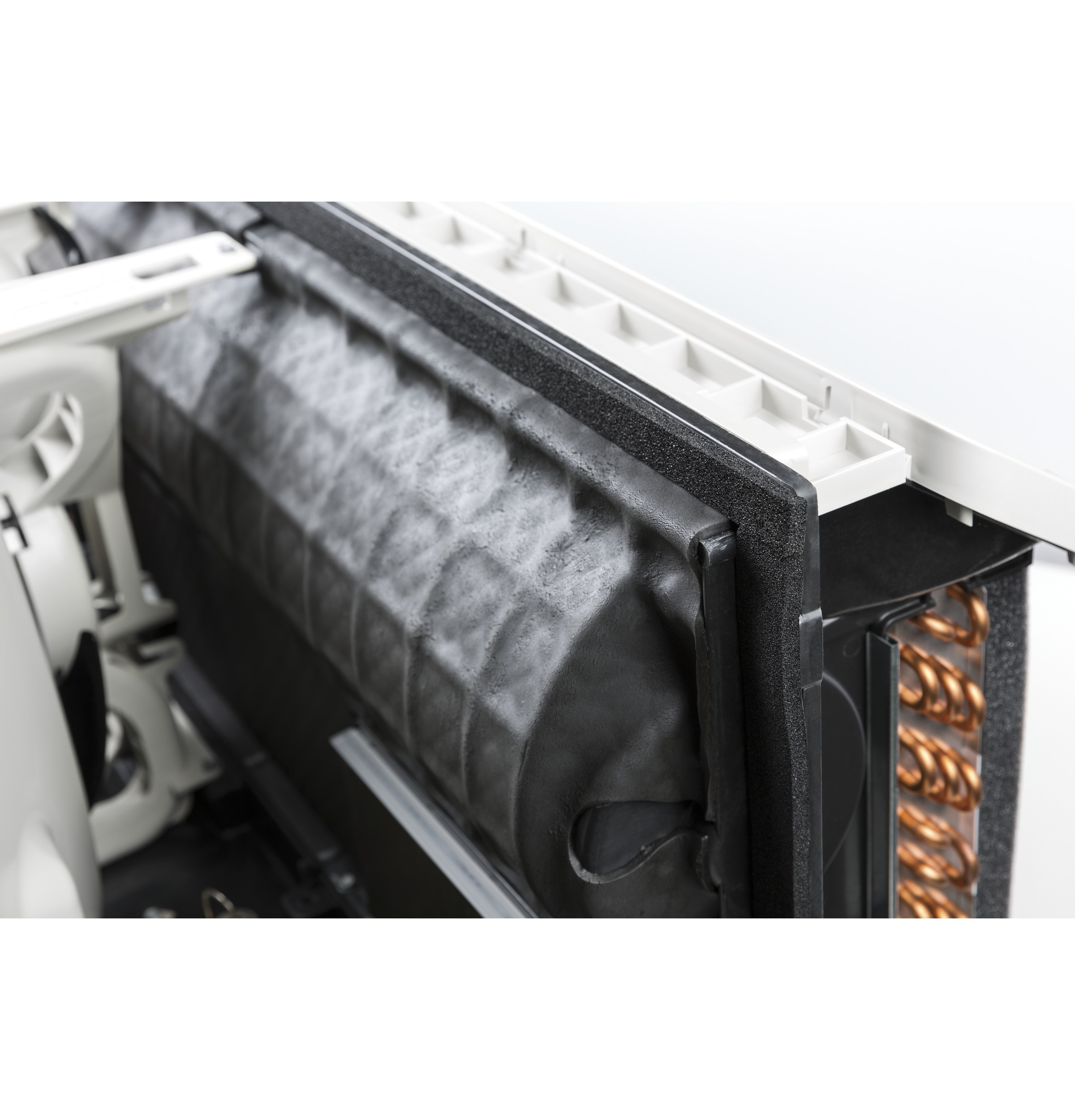

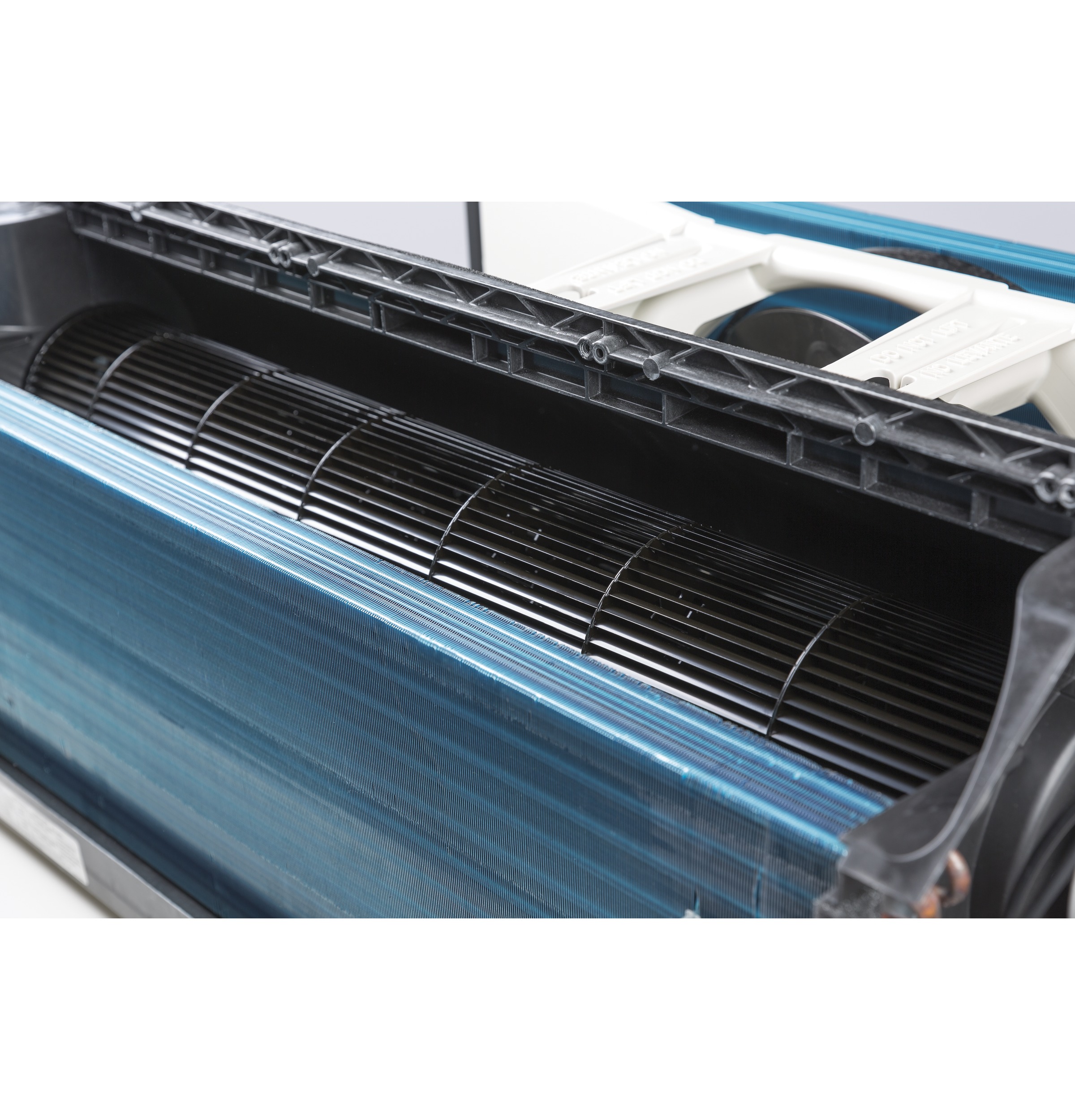

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

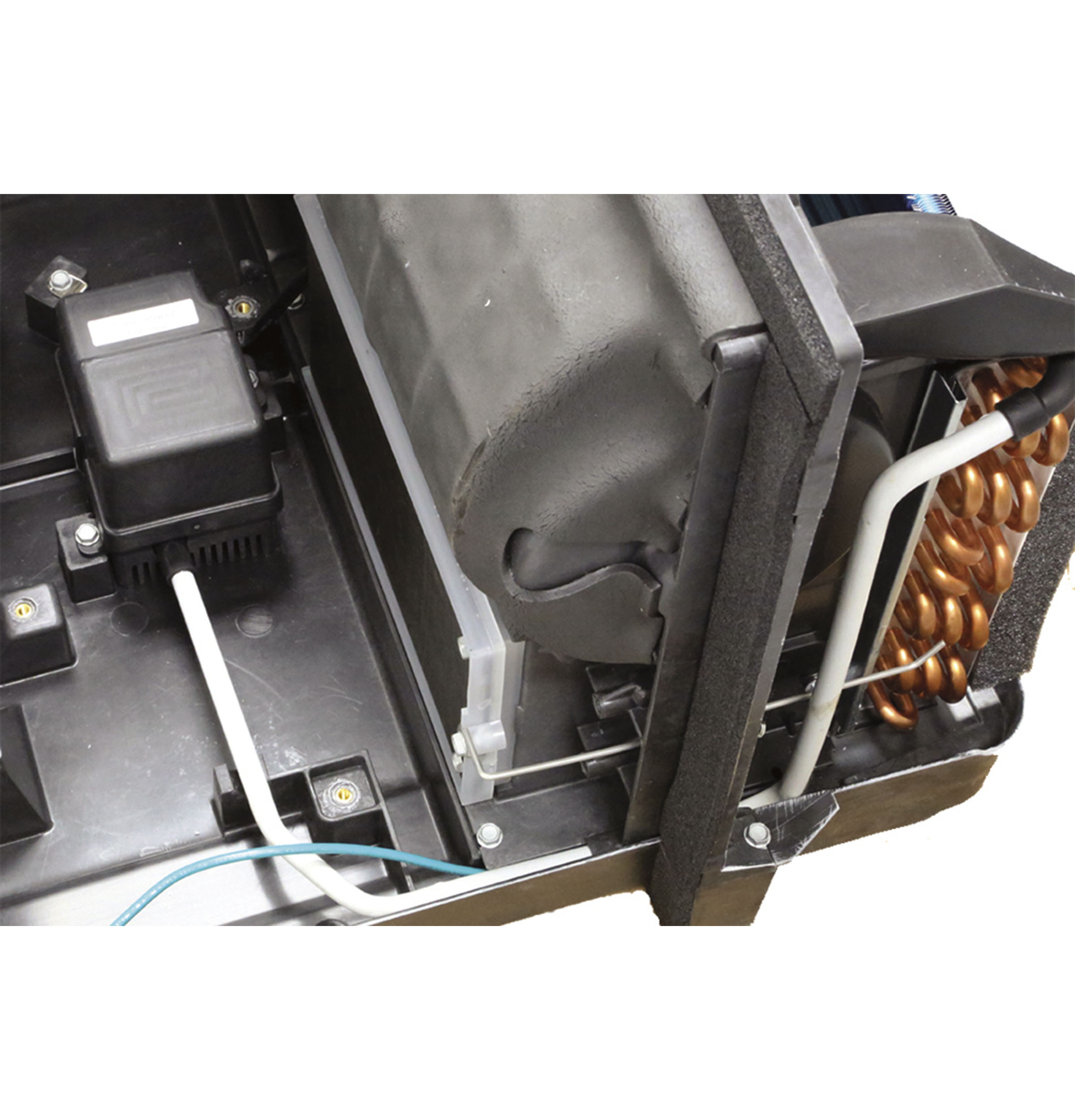

Internal condensate removal

Minimizes condensate draining from the unit during heat pump operation

Heat & Freeze Sentinels

Keeps the room from overheating or freezing

Boost heat option

Provides supplemental resistance heat in heat pump mode

Electronic temperature limiting

Prevents expensive over-cooling or over-heating of the room

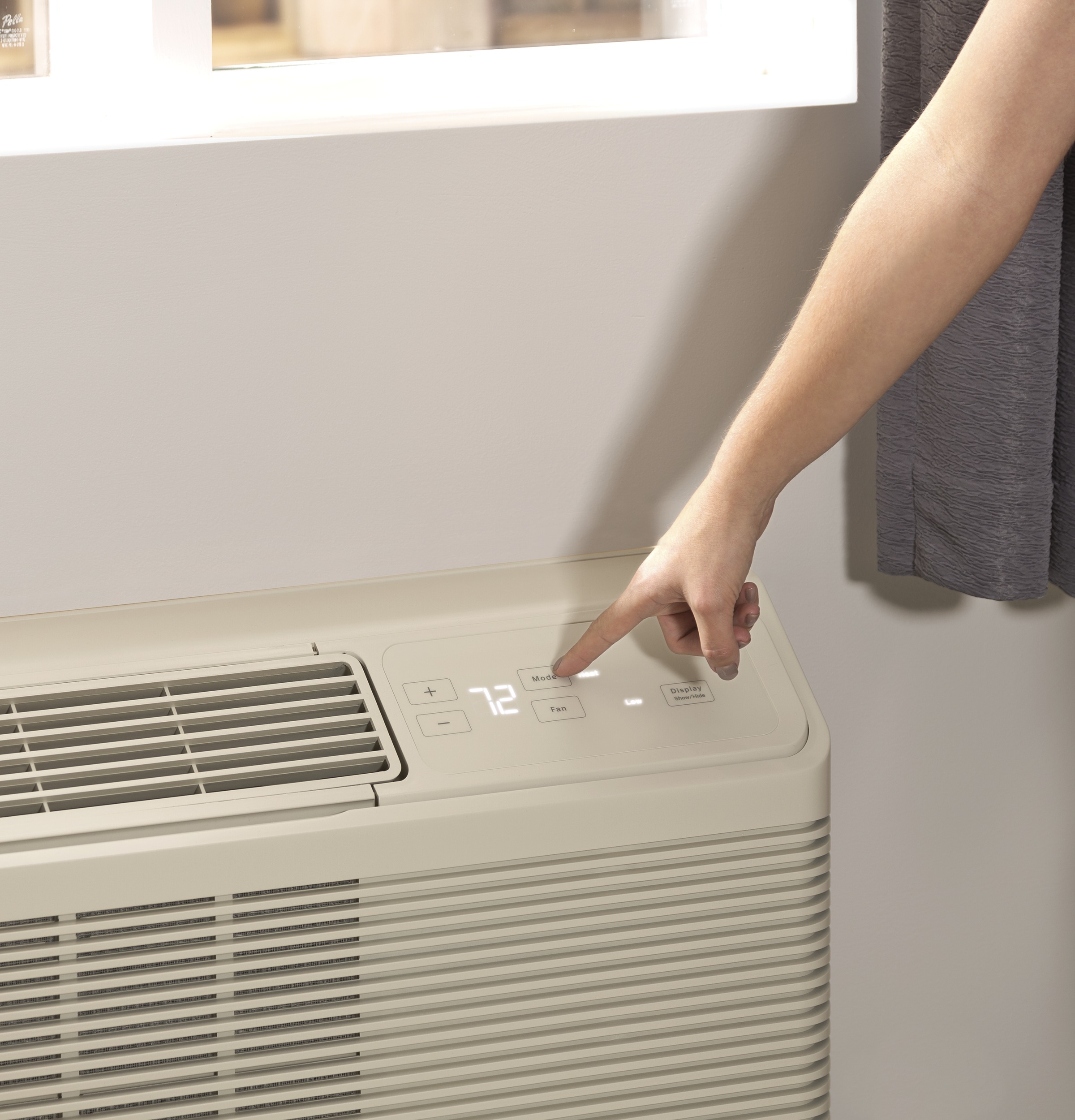

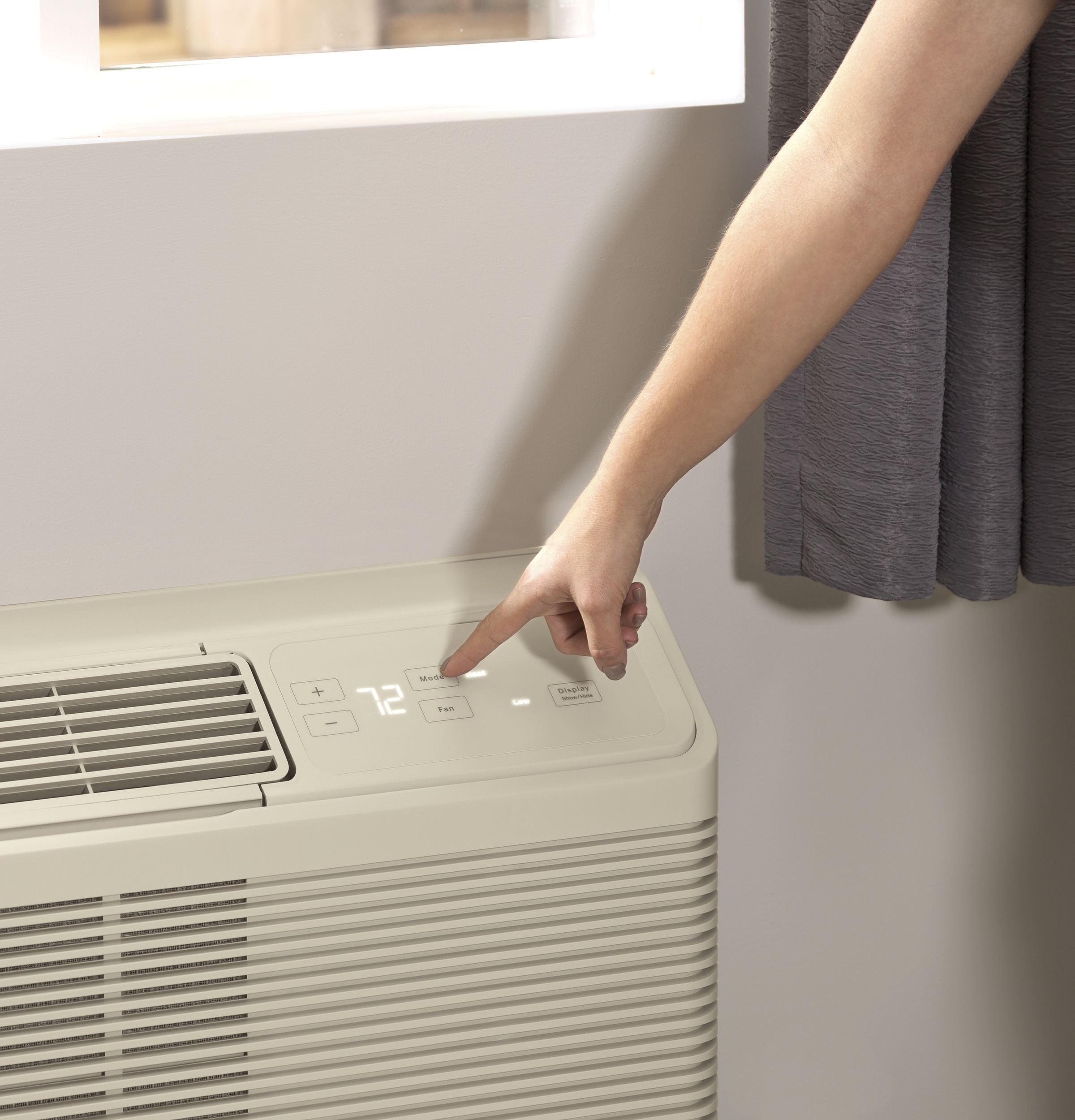

Electronic touch controls with LED display

R-410A refrigerant

Designed & Assembled in America

Certifications

California Prop 65 certification

California Prop 65

MADE IN AMERICA:  70 to 90% U.S. Content certification

MADE IN AMERICA: 70 to 90% U.S. Content

Specifications

CAPACITY

Vent CFM (high fan at zero ESP)44
Dehumidification (pts./hr.)4.8
CFM Indoor Fan High400
CFM Indoor Fan Low290
Cooling EER (BTUH / Watt)10.3/10.3
Heating - Reverse Cycle - BTUH13500/13400
Cooling BTUH (MAX)14,100 Btu
Cooling BTUH (MIN)14,100 Btu

FEATURES

Fan Cycle SwitchYes
Discharge Grille2-position
Heat - CoolYes
Rotary CompressorYes
Fan Motor2
Temperature LimitingElectronic 7-Step
Heating - Reverse Cycle - COP3.2/3.2
Power Factor97
Vent Control3-position
Manual Vent ControlHidden
Heating SystemHeat Pump
Internal Condensate Removal (ICR)Yes
Louver StyleReversible
Fan Speed ControlYes

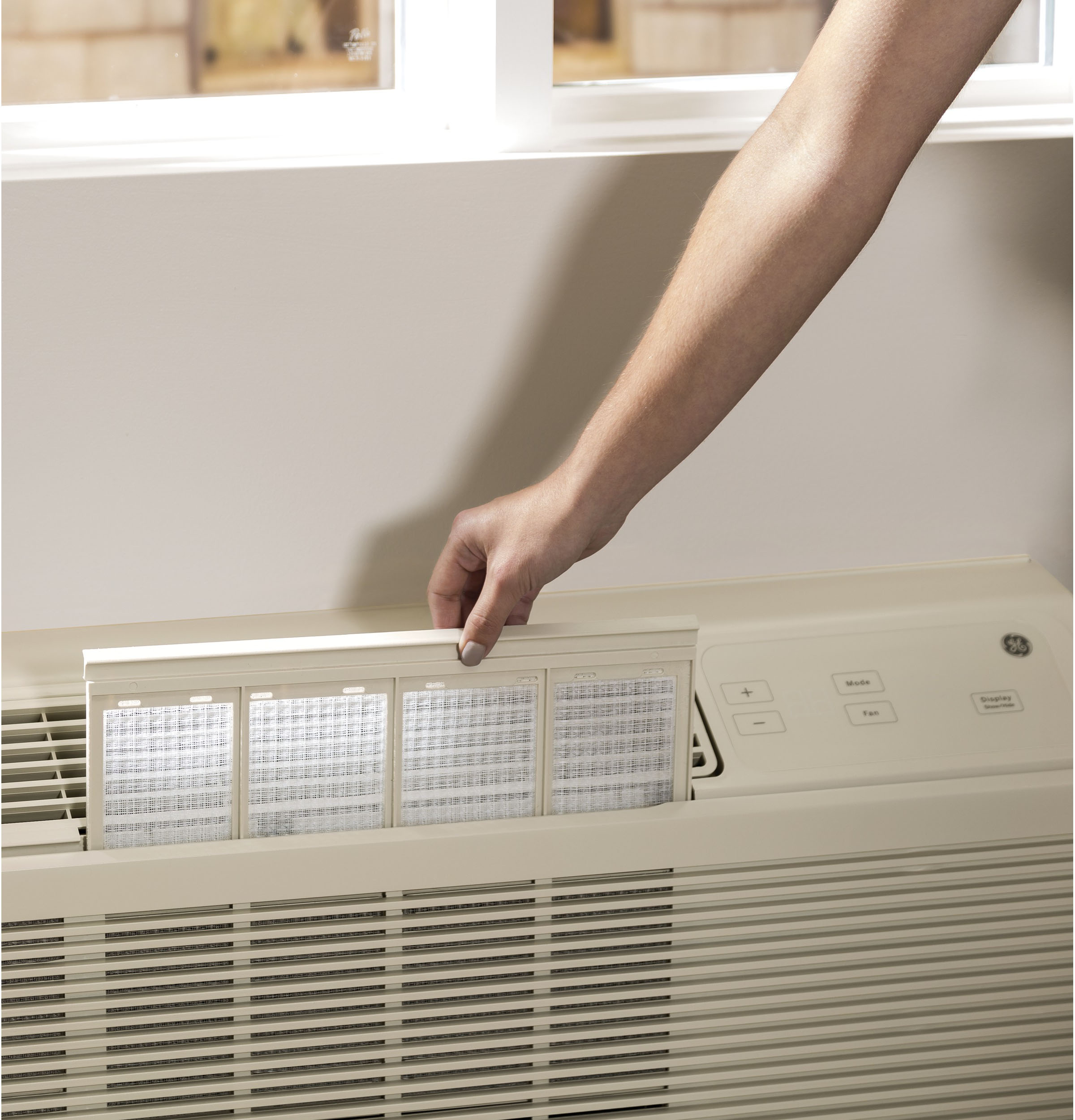

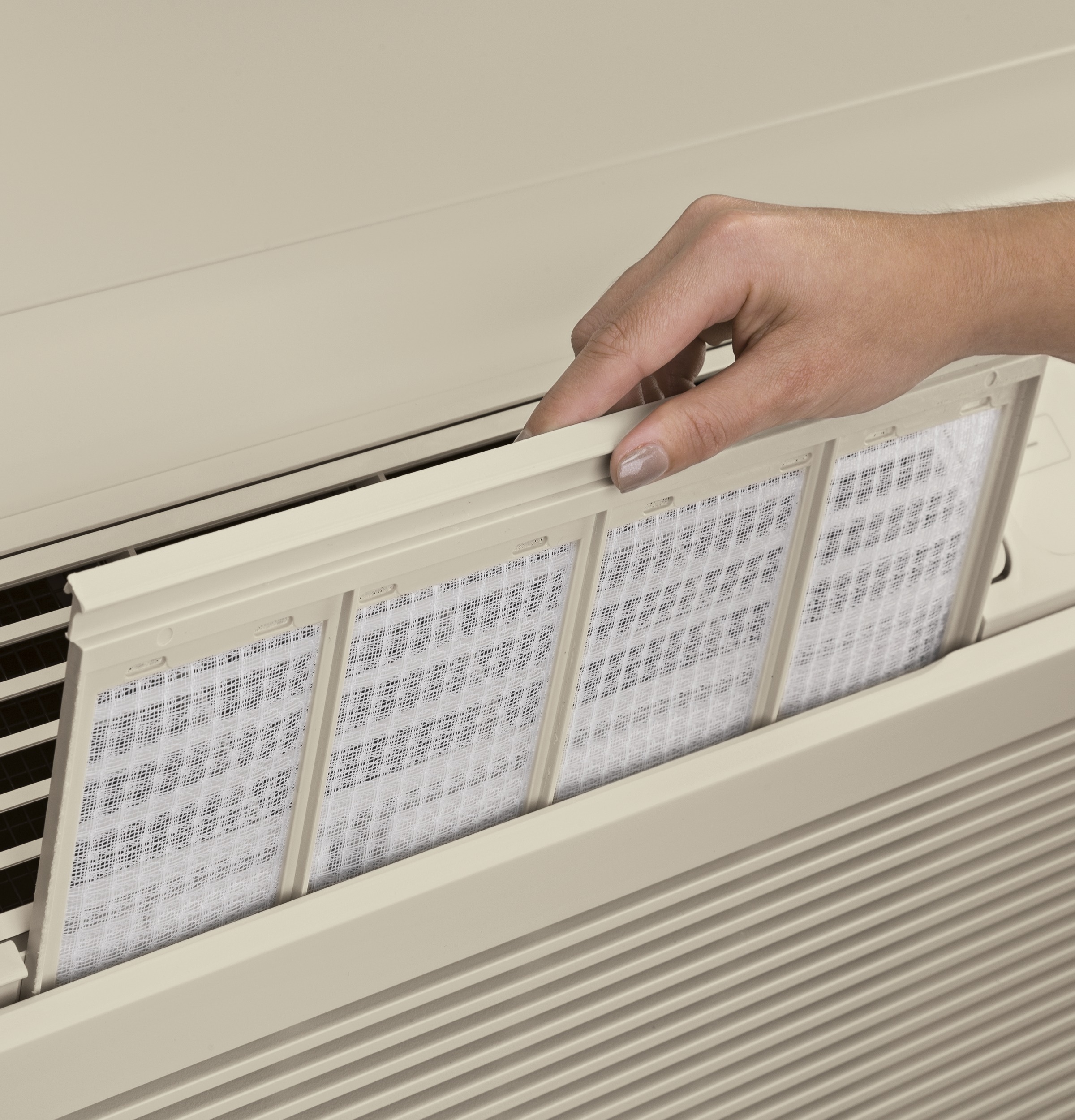

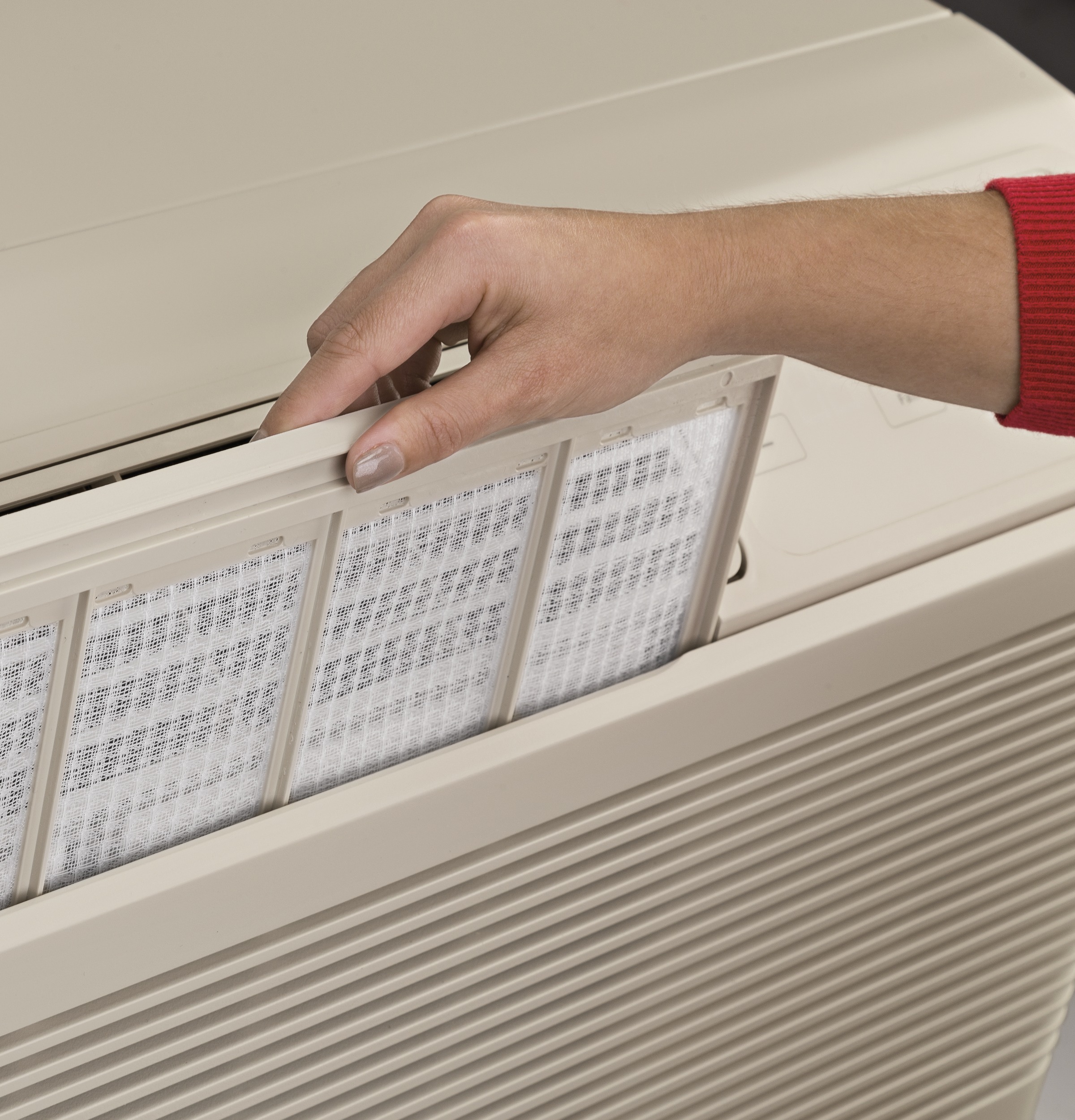

Filter TypeRigid Frame

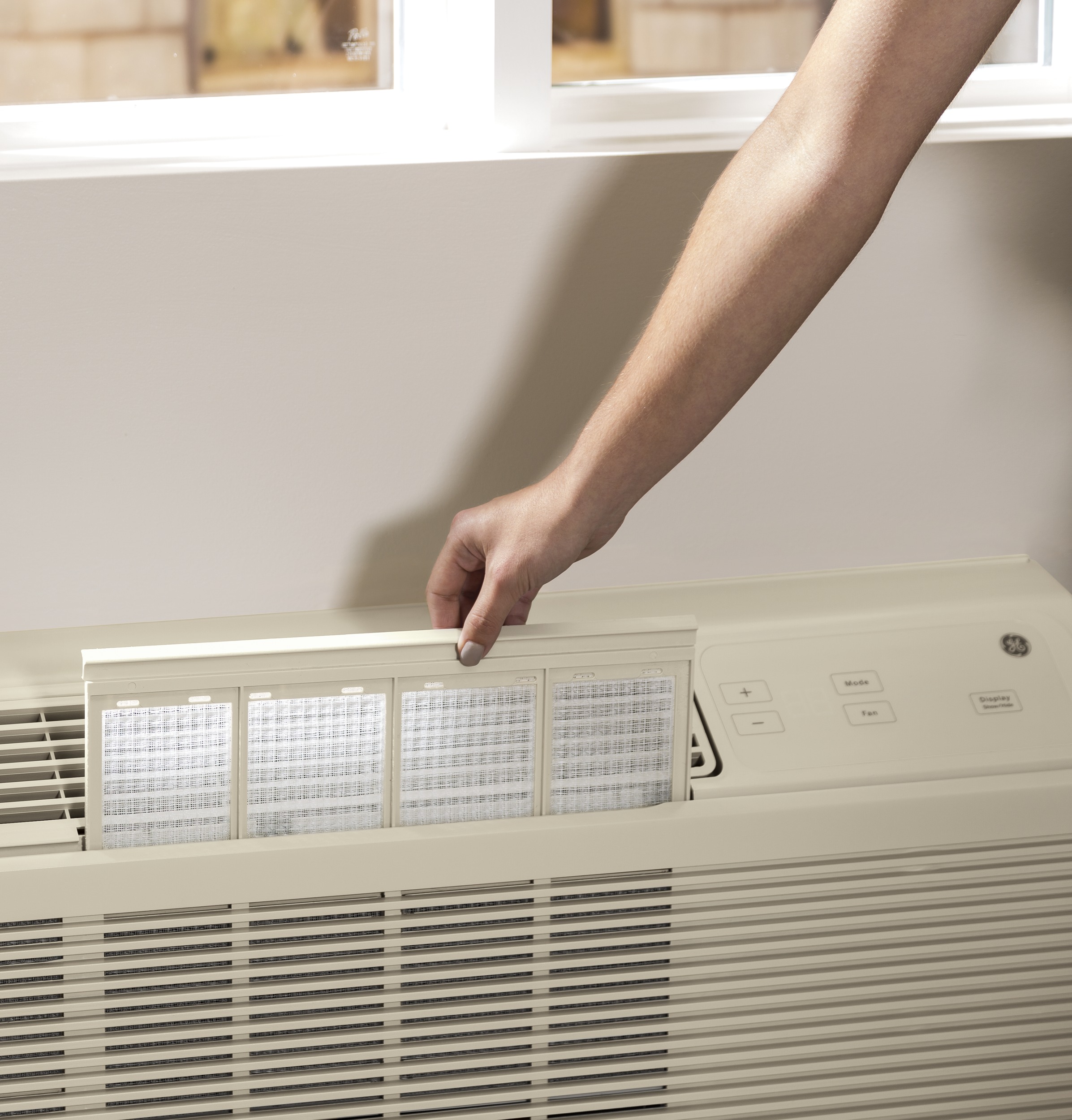

Filter TypeSlide-Out
Temperature Range60 - 85 F
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR410A
Electronic Micro Computer ControlYes
Zoneline Features"Sleep" Mode
Zoneline Features"Smart Fan" Fan Cycle Control
Zoneline Features3-Stage Heating Design
Zoneline FeaturesAuto Power Recovery
Zoneline FeaturesAutomatic Emergency Heat
Zoneline FeaturesAutomatic Indoor Frost Control
Zoneline FeaturesCentral Desk Control Compatibility
Zoneline FeaturesFreeze Sentinel
Zoneline FeaturesHeat Pump with Resistance Heat Backup
Zoneline FeaturesHeat Pump with Supplemental Resistance Heat
Zoneline FeaturesHeat Sentinel
Zoneline FeaturesProportional - Integral ID Airflow
Zoneline FeaturesQuick Heat Recovery
Zoneline FeaturesRandom Twist/Length Segment Tangential Blower
Zoneline FeaturesRemote Thermostat Compatibility
Zoneline FeaturesReverse Cycle Defrost
Zoneline FeaturesUniversal Heaters
Zoneline FeaturesWeather Protected Electrical Components
Sensible Heat Ratio60%

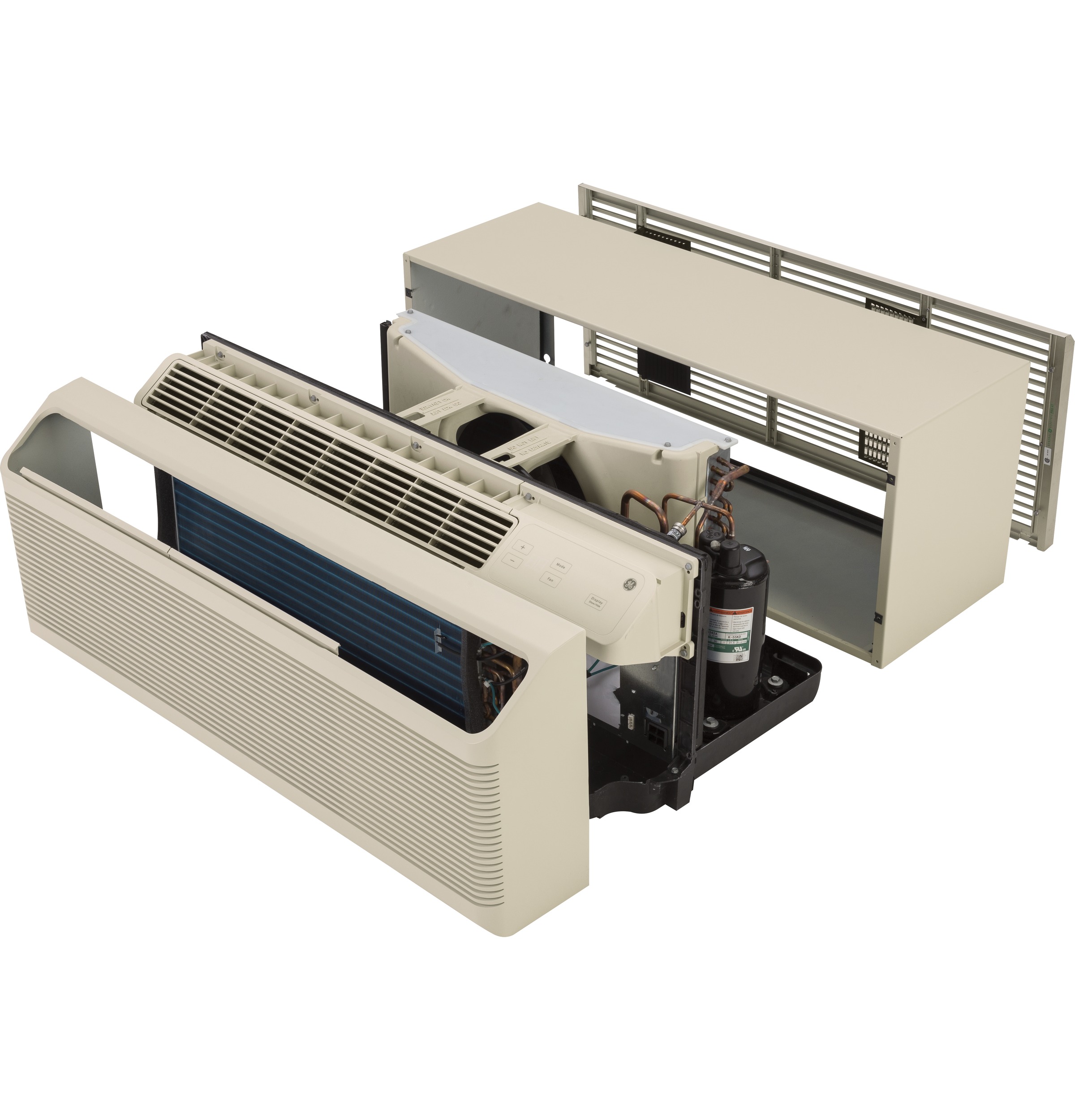

Chassis TypeSlide-In
Control TypeStandard Microcomputer

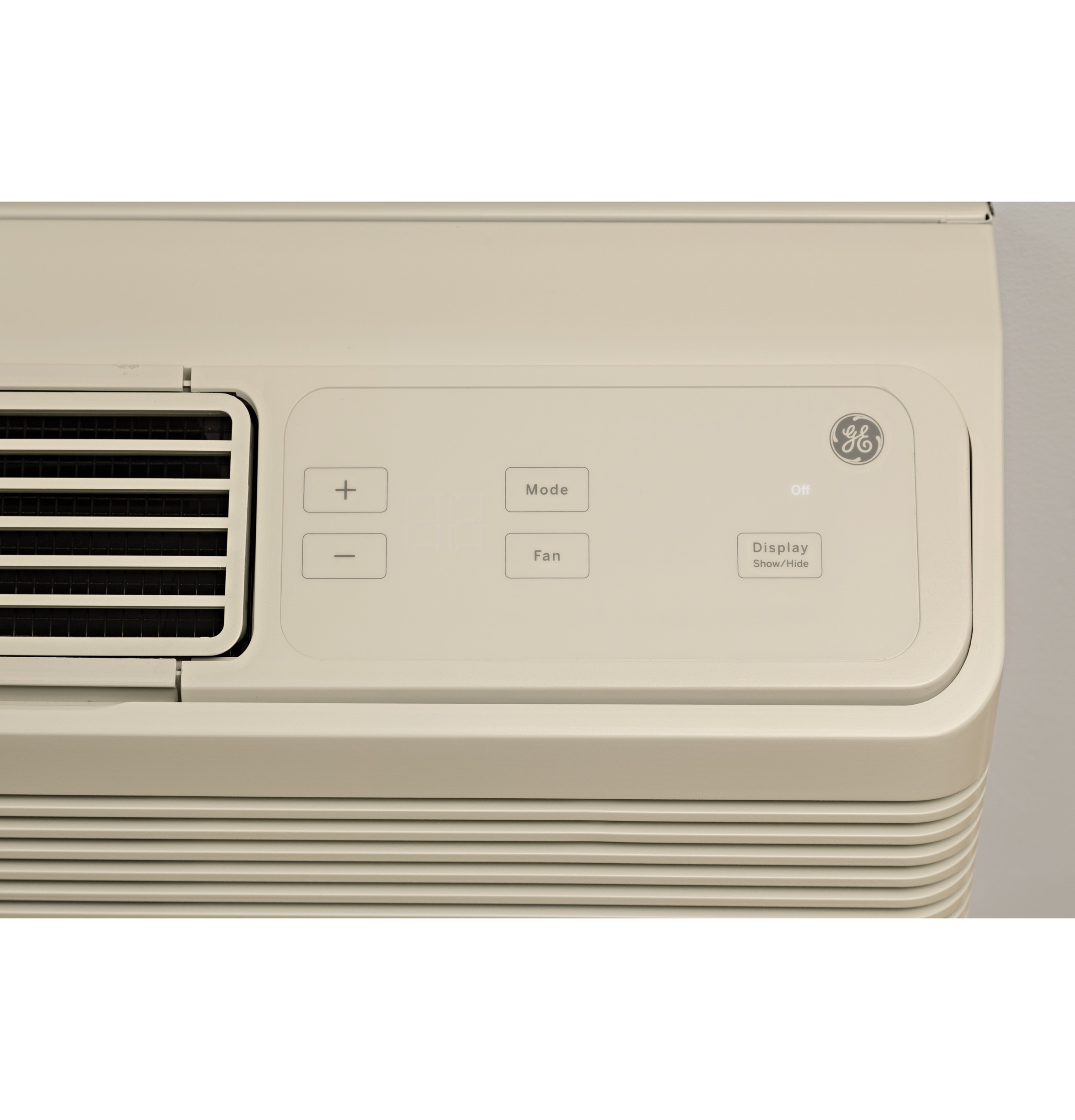

Control TypeTactile touch pad with LED Display
Fan Speed SelectionsHi/Low Cooling
Fan Speed SelectionsHi/Low Fan Only
Fan Speed SelectionsHi/Low Heating
Venting FeaturesConcealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions
Heat PumpYes

POWER / RATINGS

Cooling - Amperes; F.L. - Cooling6.1/6.6
Cooling - Amperes6.1/6.6
Cooling - Watts1385/1360
Heating - Reverse Cycle - Watts1235/1225
Heating - Reverse Cycle - Amps5.3/5.6
Cooling - Amperes; L.R.31.5
Voltage (MAX)230 V
Voltage (MIN)208 V

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 5-year sealed system
Parts Warranty5 year limited parts warranty

APPEARANCE

Color AppearanceGray

Dimensions & Weight

Width42 in.
Height16 in.
Length20.81 in.
Weight110 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47 in.
Shipping Height21 in.
Shipping Length25.81 in.
Shipping Weight150 lbs.
Total of Shipping Weight150 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.09 ft³
Dimensional Weight100.62 lbs.
Total of Cubes8.09 ft³
Total of Dimensional Weight100.62 lbs.

WEIGHTS & DIMENSIONS

Approximate Shipping Weight110 lb
Net Weight110 lb
Overall Depth20.8125 in
Overall Height16 in
Overall Width42 in
