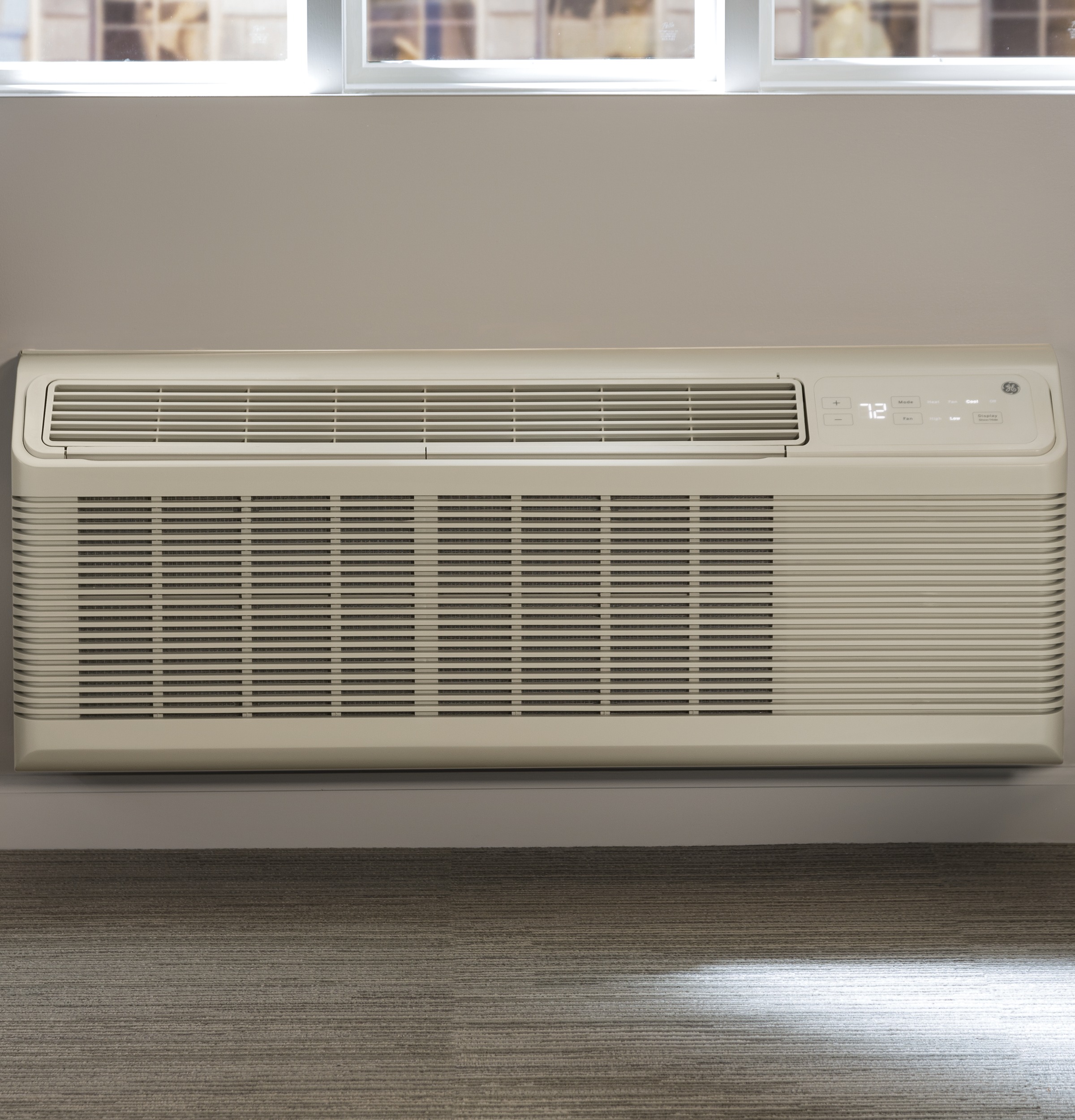

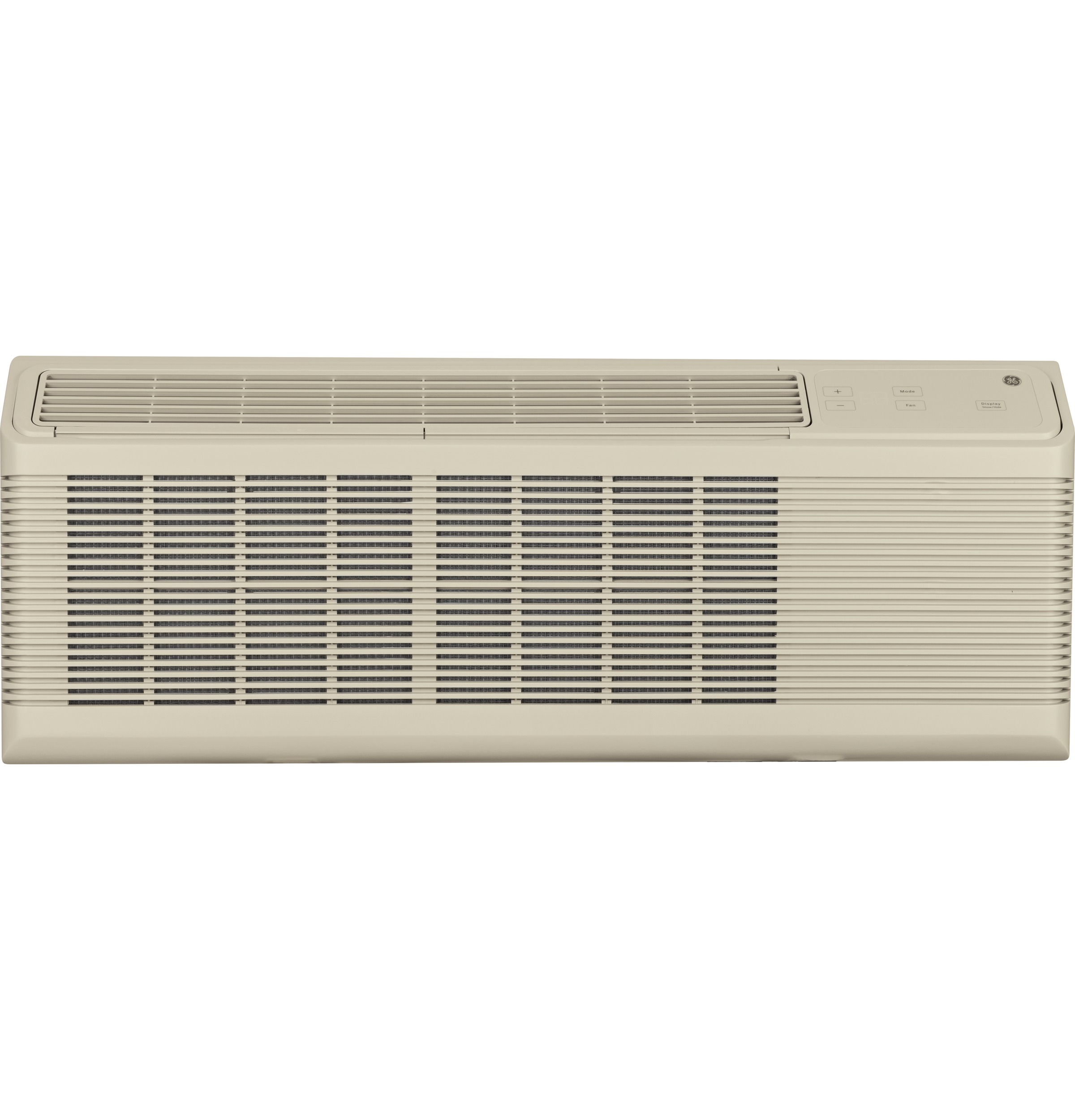

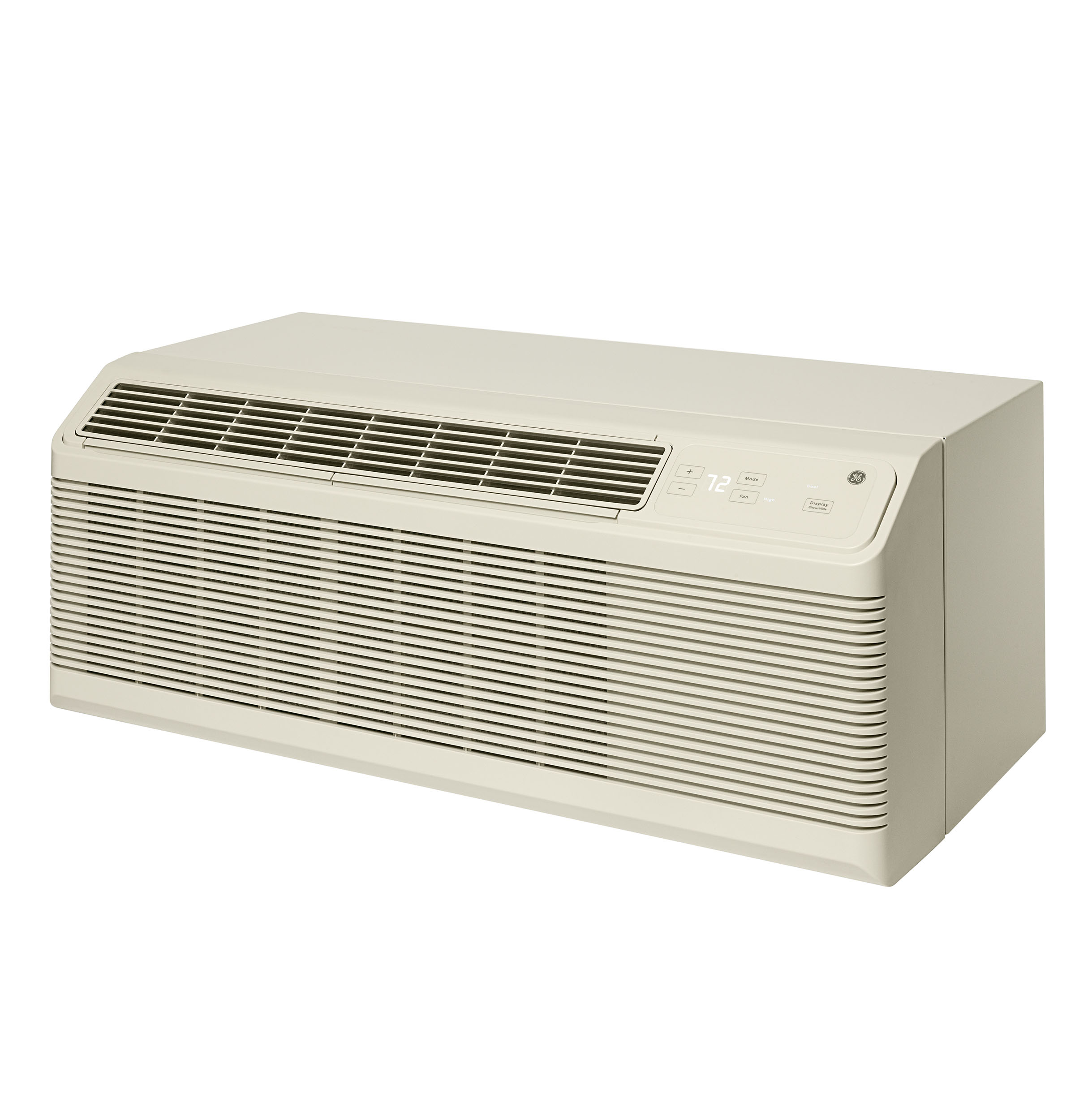

Zoneline Heat Pump Unit with Corrosion Protection, 230/208 Volt - AZ65H15DAC
Zoneline Heat Pump Unit with Corrosion Protection, 230/208 Volt
Model: AZ65H15DAC
Zoneline Heat Pump Unit with Corrosion Protection, 230/208 Volt
Model: AZ65H15DAC
Color : Other
Key Features
Cooling capacity
Energy efficiency
Dehumidification
Reverse cycle heat
Heat pump efficiency
Indoor fan CFM (high/low)
Fresh air vent CFM (fully open high fan)
Quiet operation
Documents
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
Cooling capacity
14,500/14,200 BTU
Energy efficiency
10.4/10.4 EER
Dehumidification
4.8 pints/hour
Reverse cycle heat
13,500/13,300 BTU
Heat pump efficiency
3.3/3.3 COP
Indoor fan CFM (high/low)
449/290
Fresh air vent CFM (fully open high fan)
44
Quiet operation

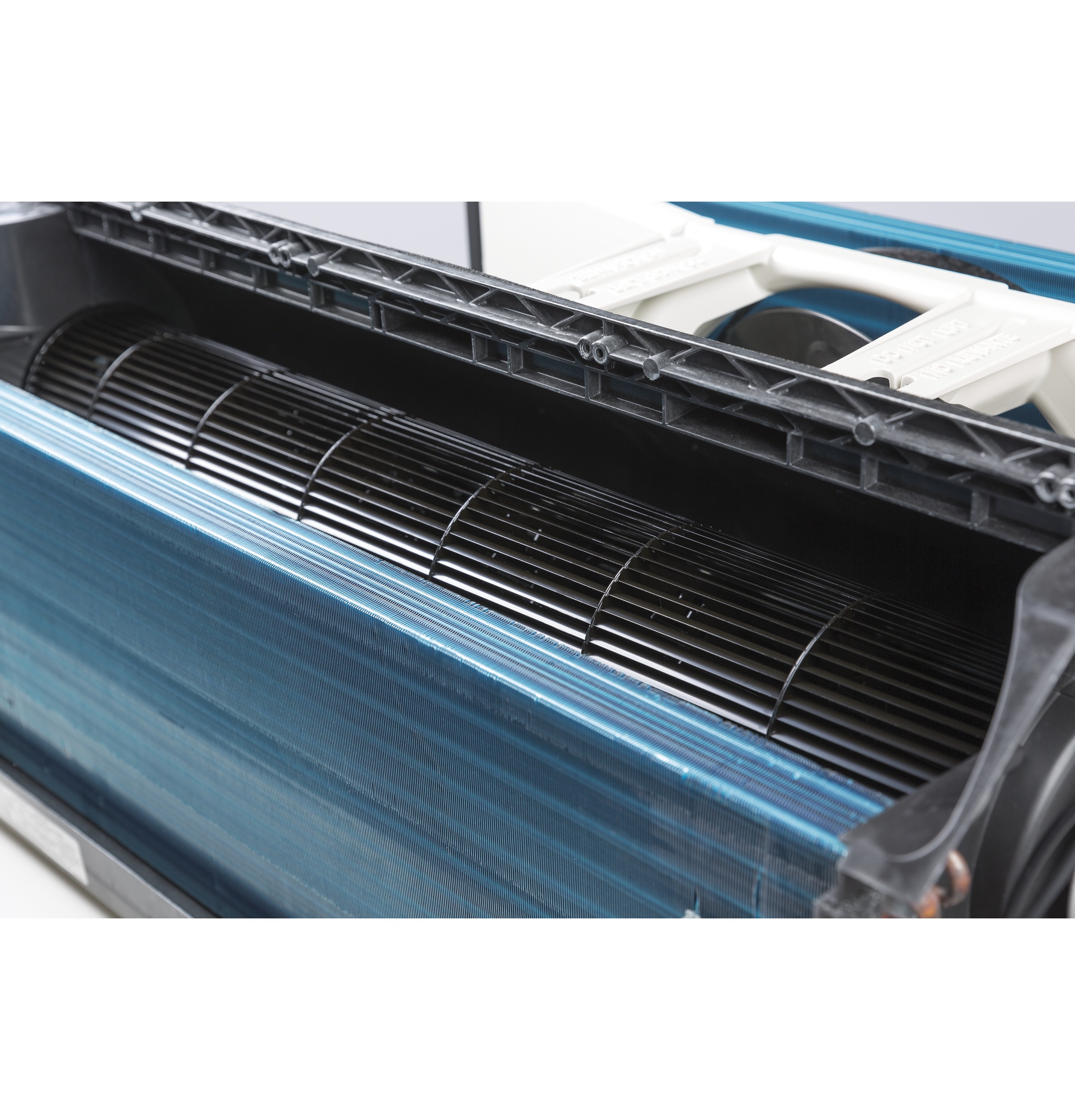

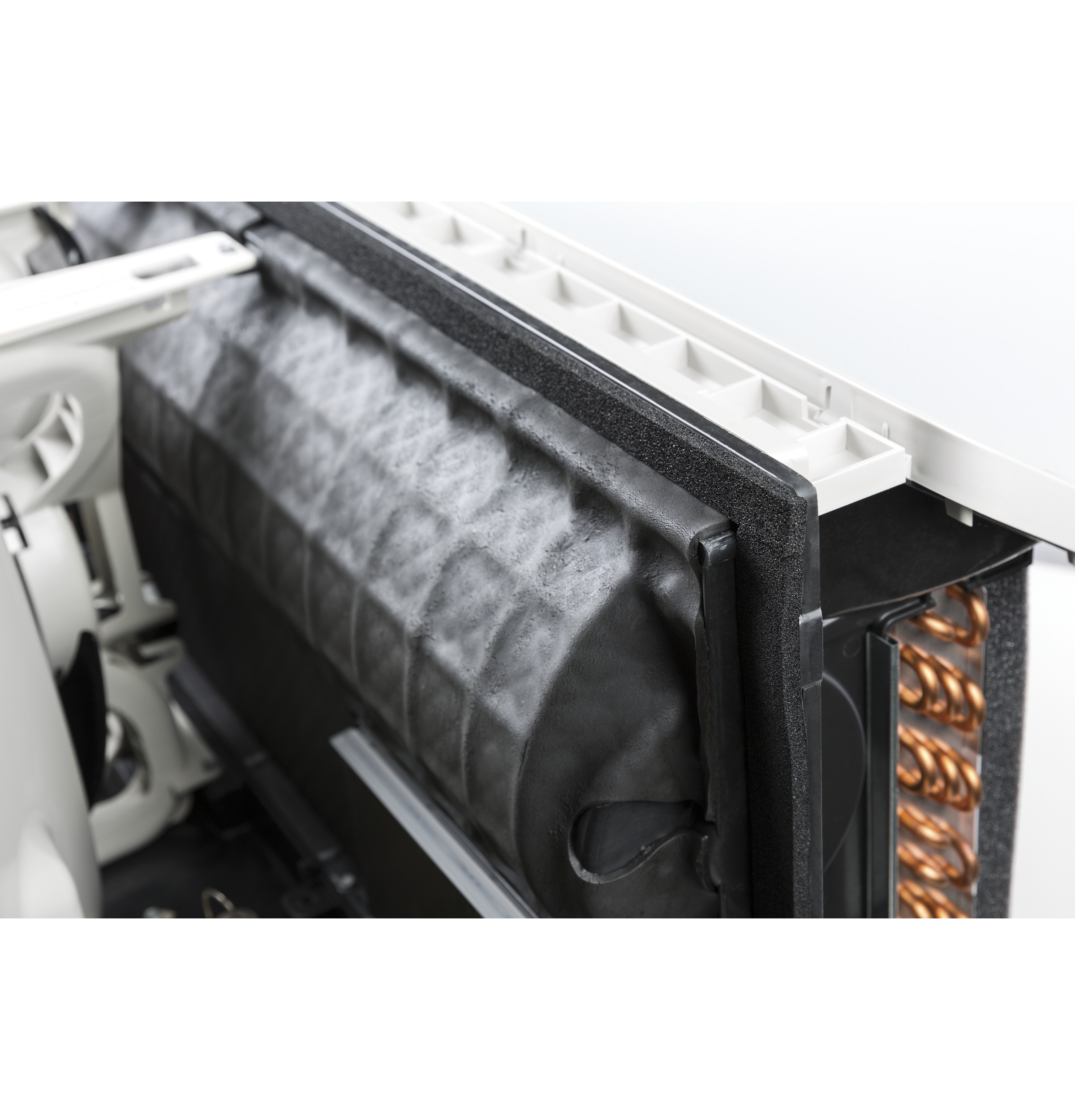

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

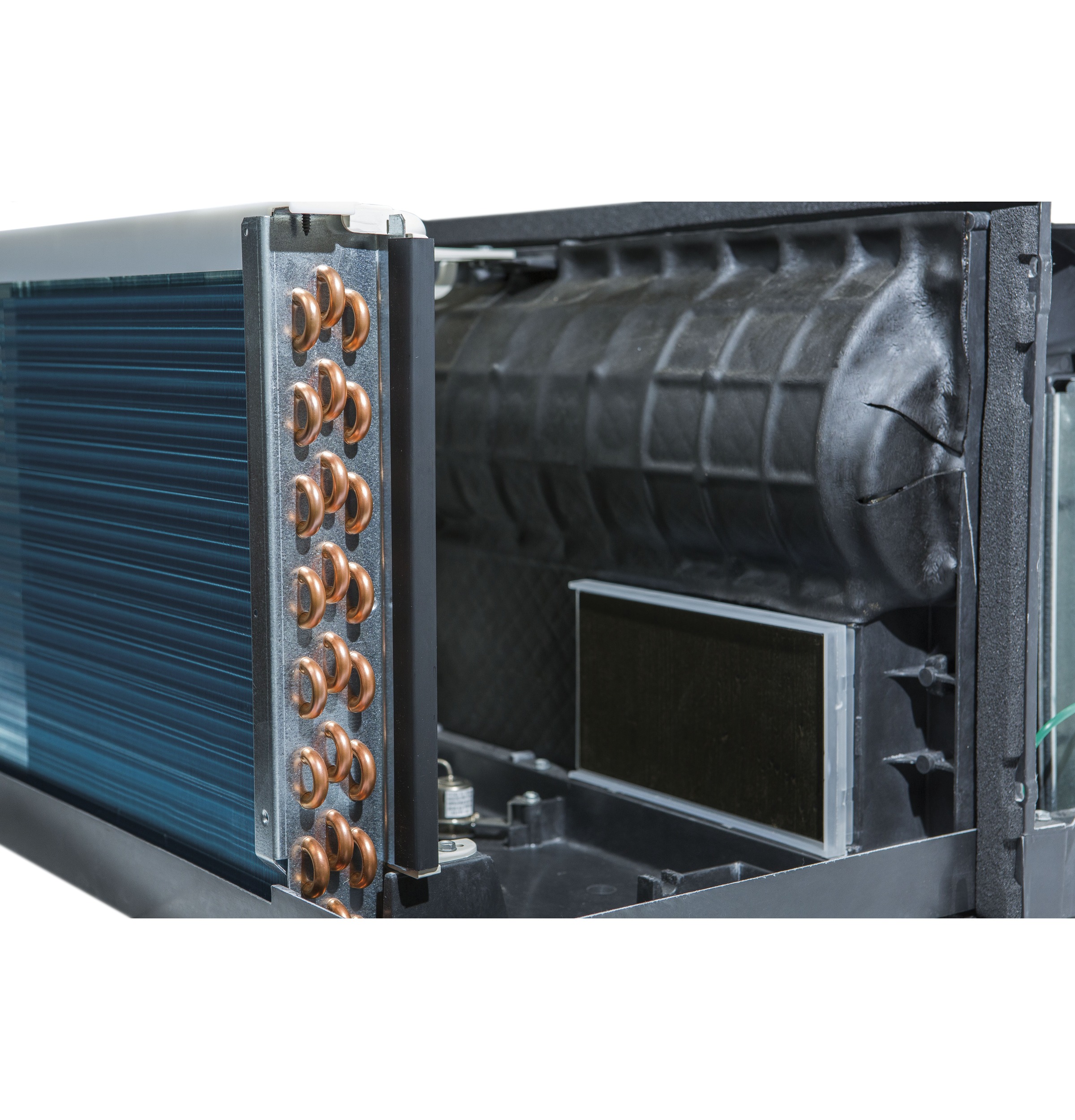

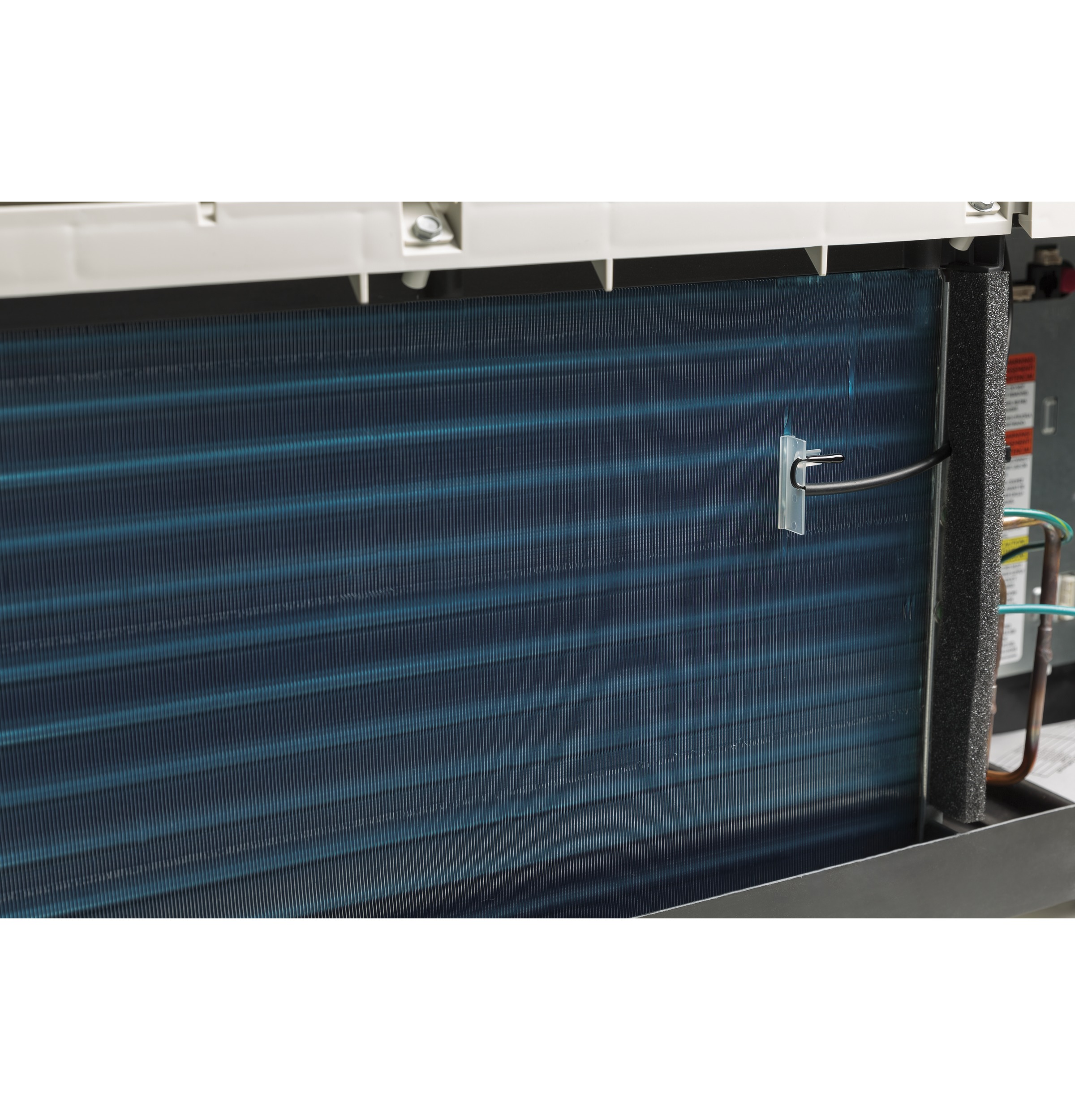

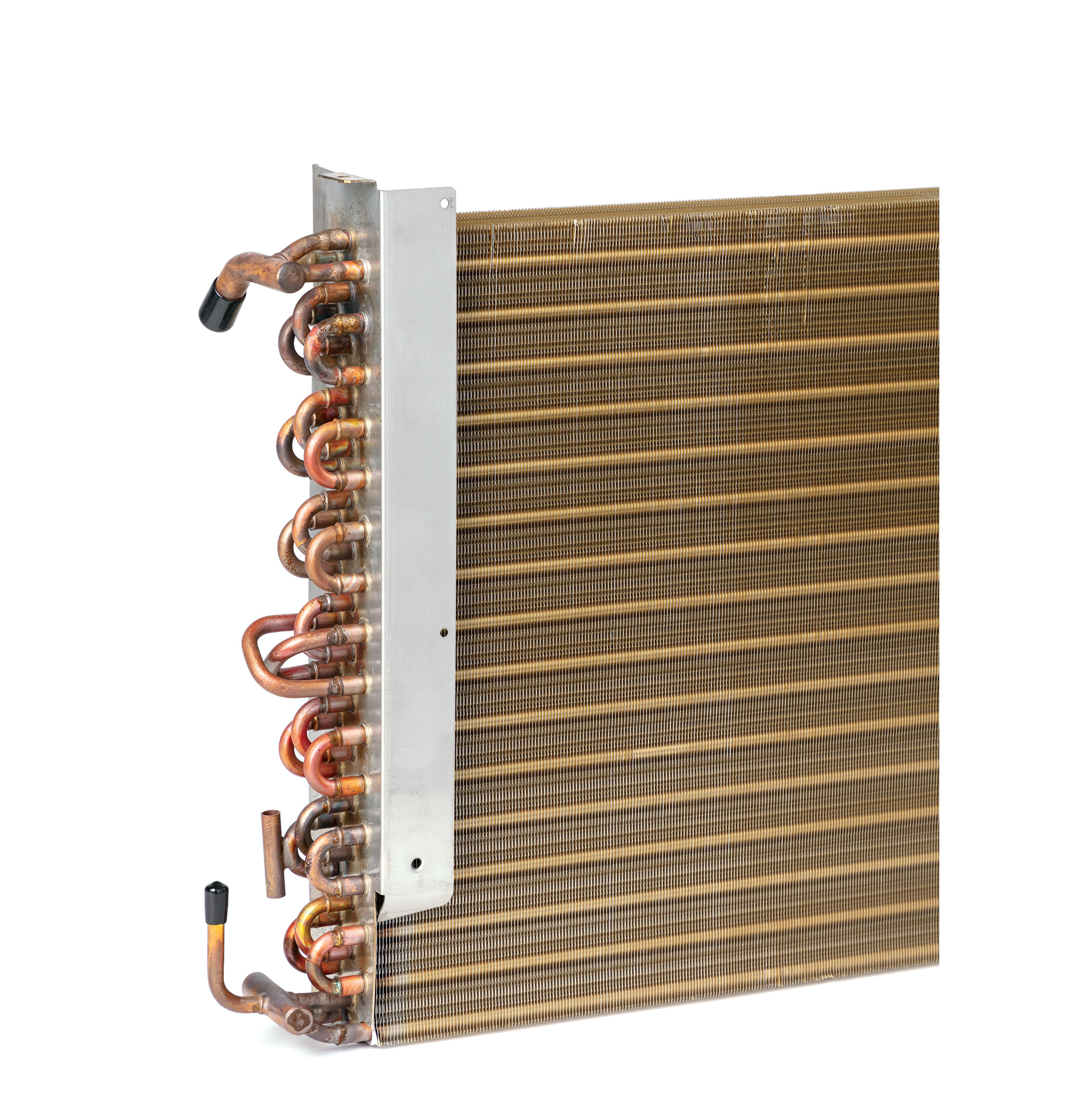

Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Boost heat option
Provides supplemental resistance heat in heat pump mode
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room

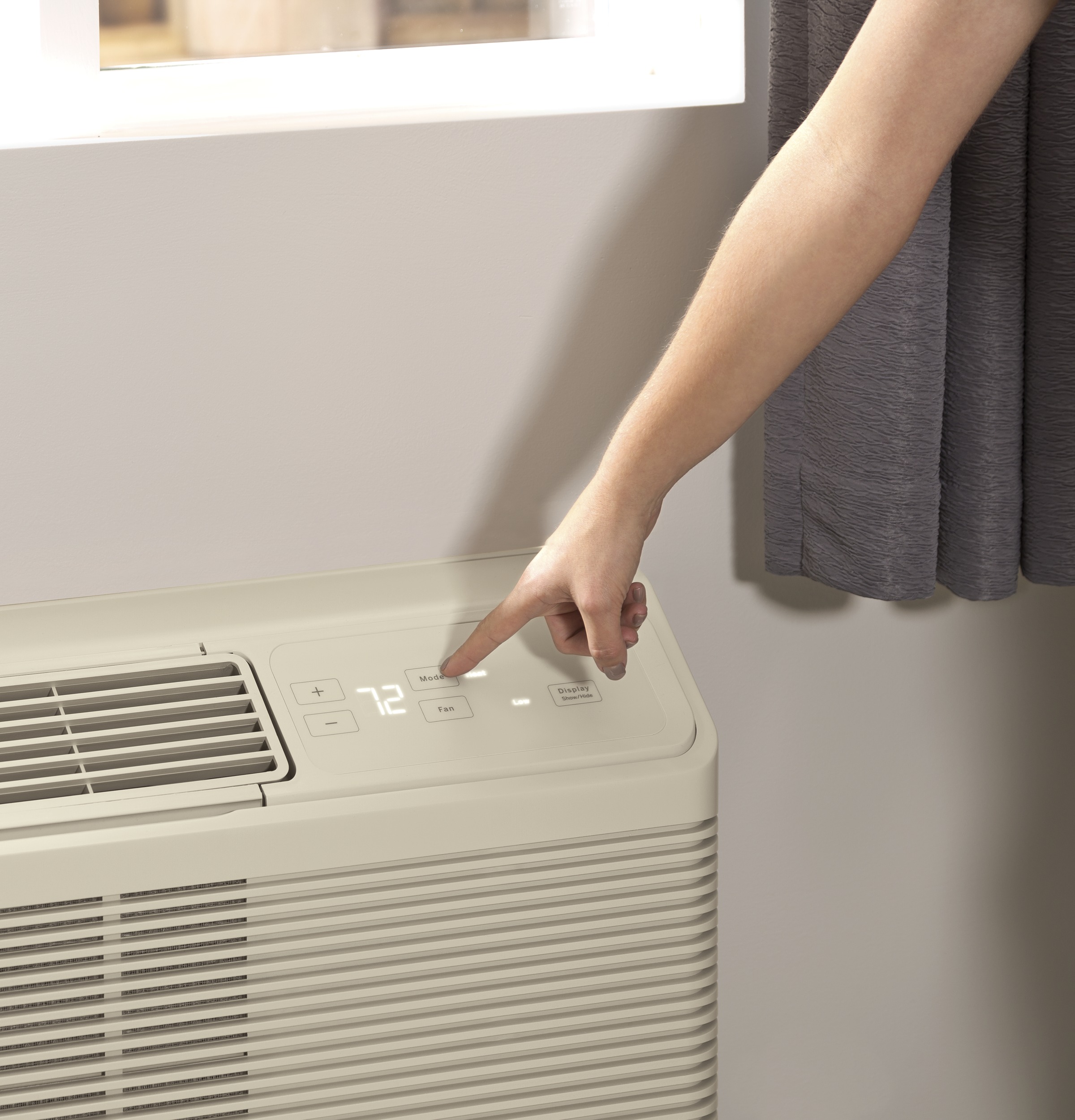

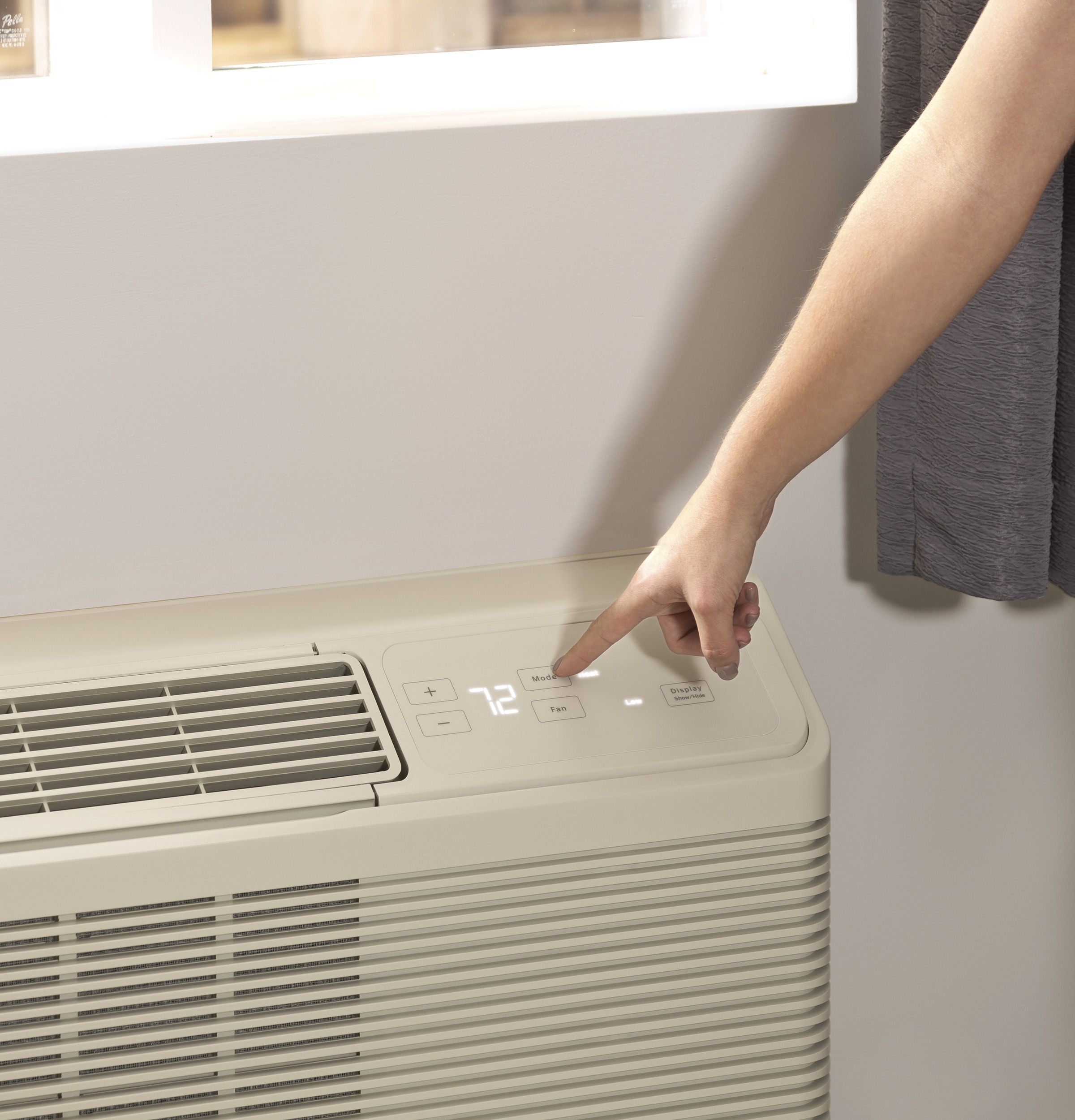

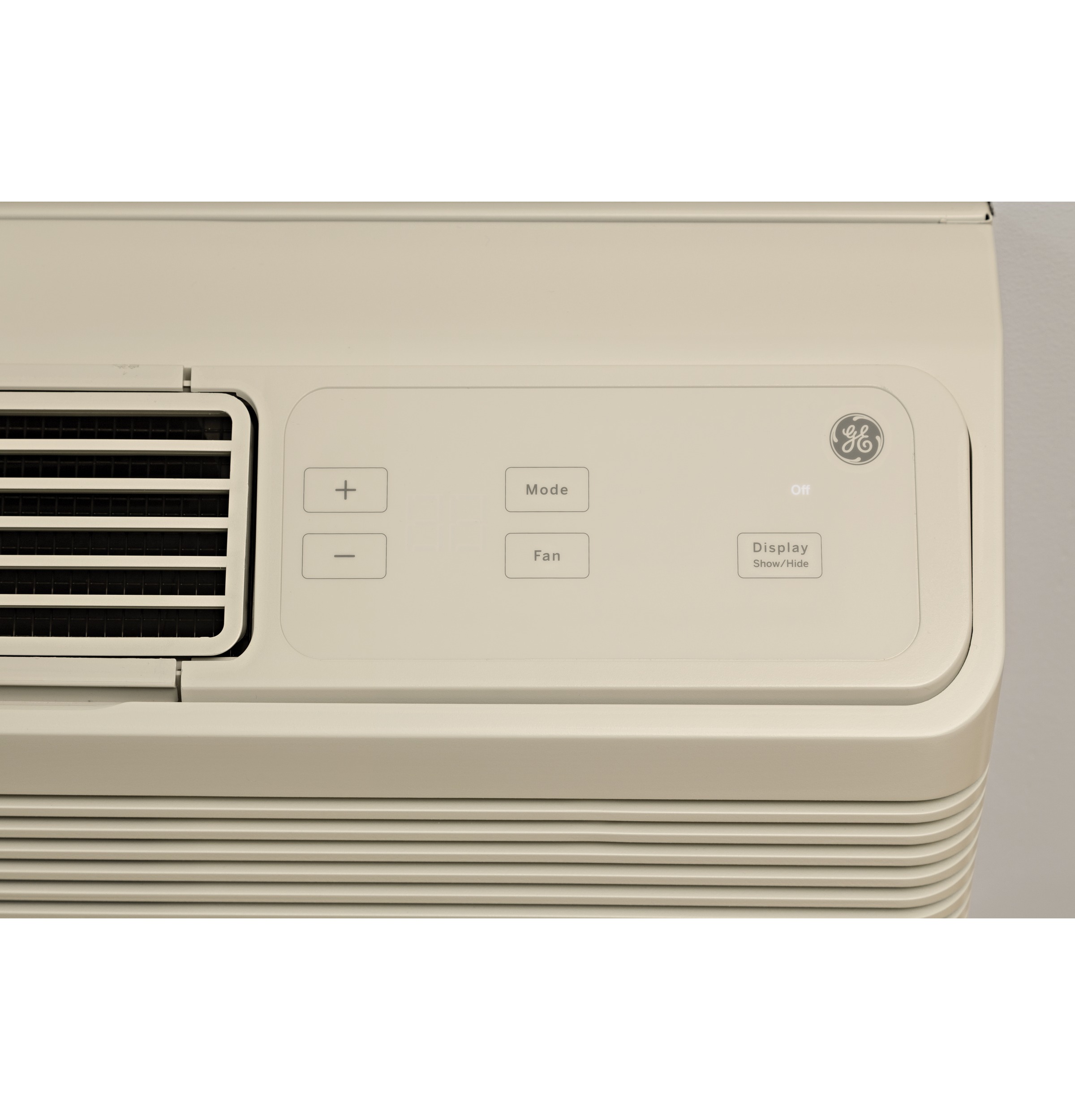

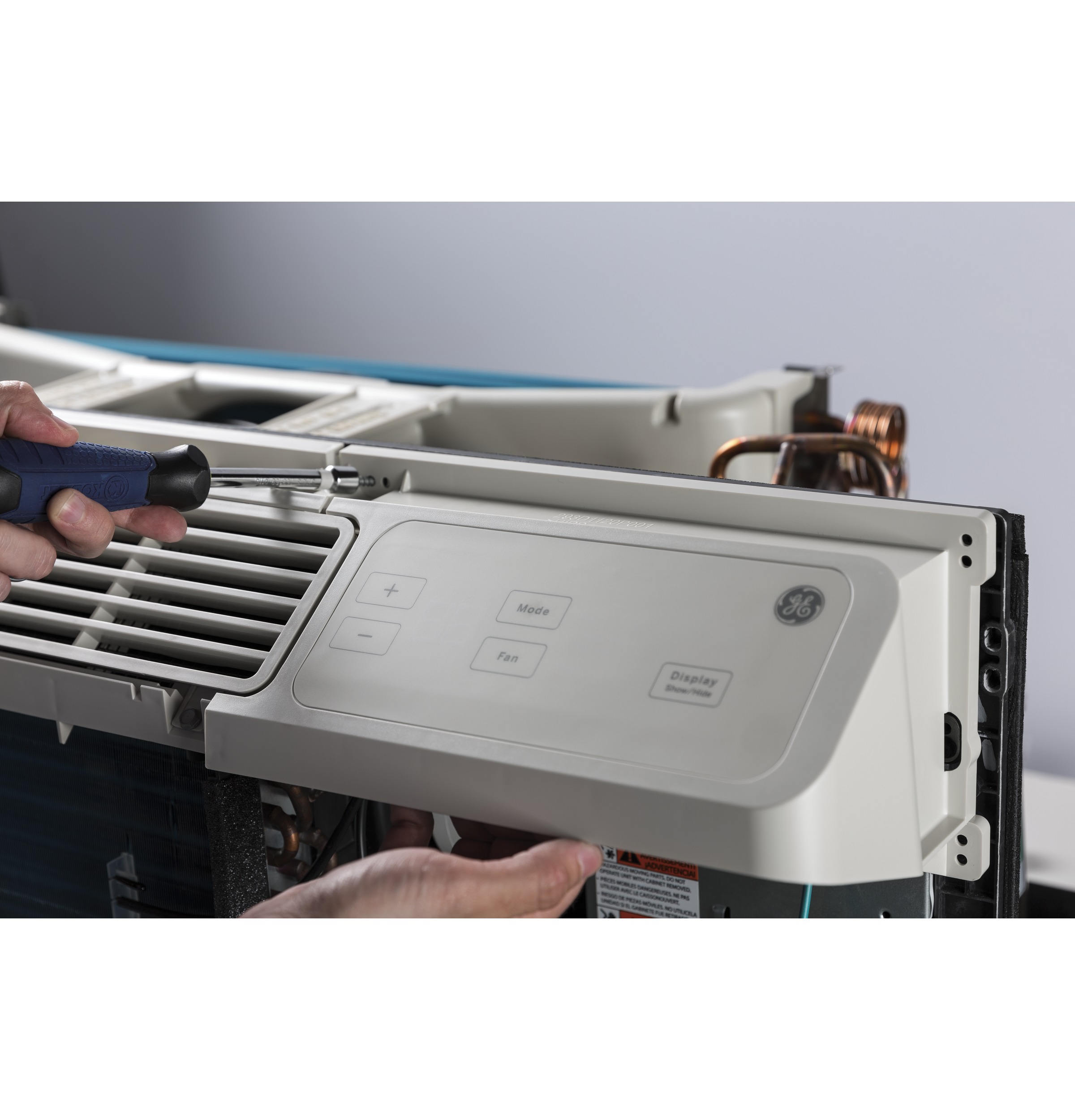

Electronic touch controls with LED display
R-410A refrigerant
Designed & Assembled in America
Certifications
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
Specifications
CAPACITY
| Vent CFM (high fan at zero ESP) | 44 |
| Dehumidification (pts./hr.) | 4.8 |
| CFM Indoor Fan High | 400 |
| CFM Indoor Fan Low | 290 |
| Cooling EER (BTUH / Watt) | 10.4/10.4 |
| Heating - Reverse Cycle - BTUH | 13500/13300 |
| Cooling BTUH (MAX) | 14,400 Btu |
| Cooling BTUH (MIN) | 14,200 Btu |
FEATURES
| Fan Cycle Switch | Yes |
| Discharge Grille | 2-position |
| Heat - Cool | Yes |
| Rotary Compressor | Yes |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Heating - Reverse Cycle - COP | 3.3/3.3 |
| Power Factor | 97 |
| Vent Control | 3-position |
| Manual Vent Control | Hidden |
| Heating System | Heat Pump |
| Louver Style | Reversible |
| Fan Speed Control | Yes |

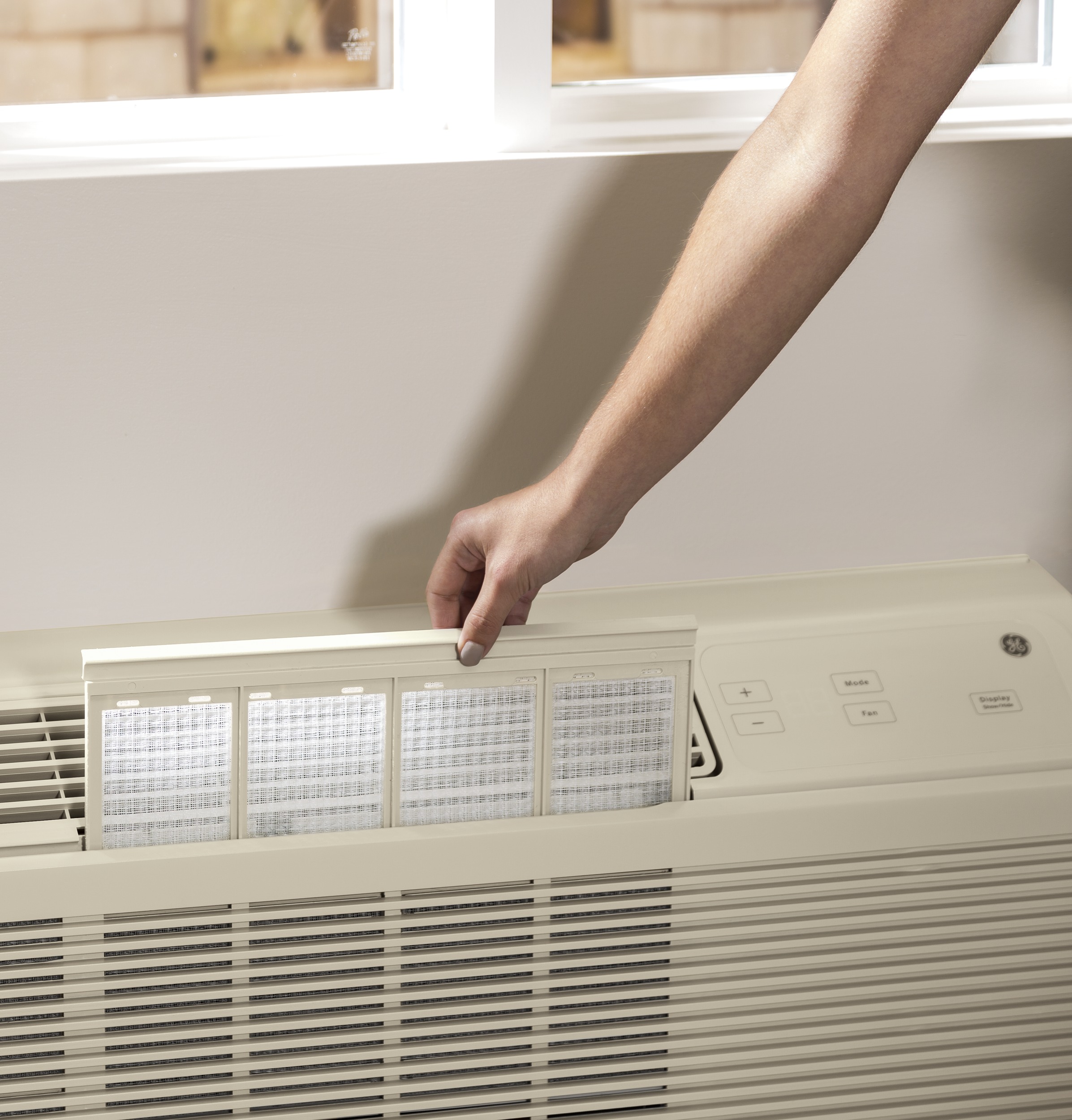

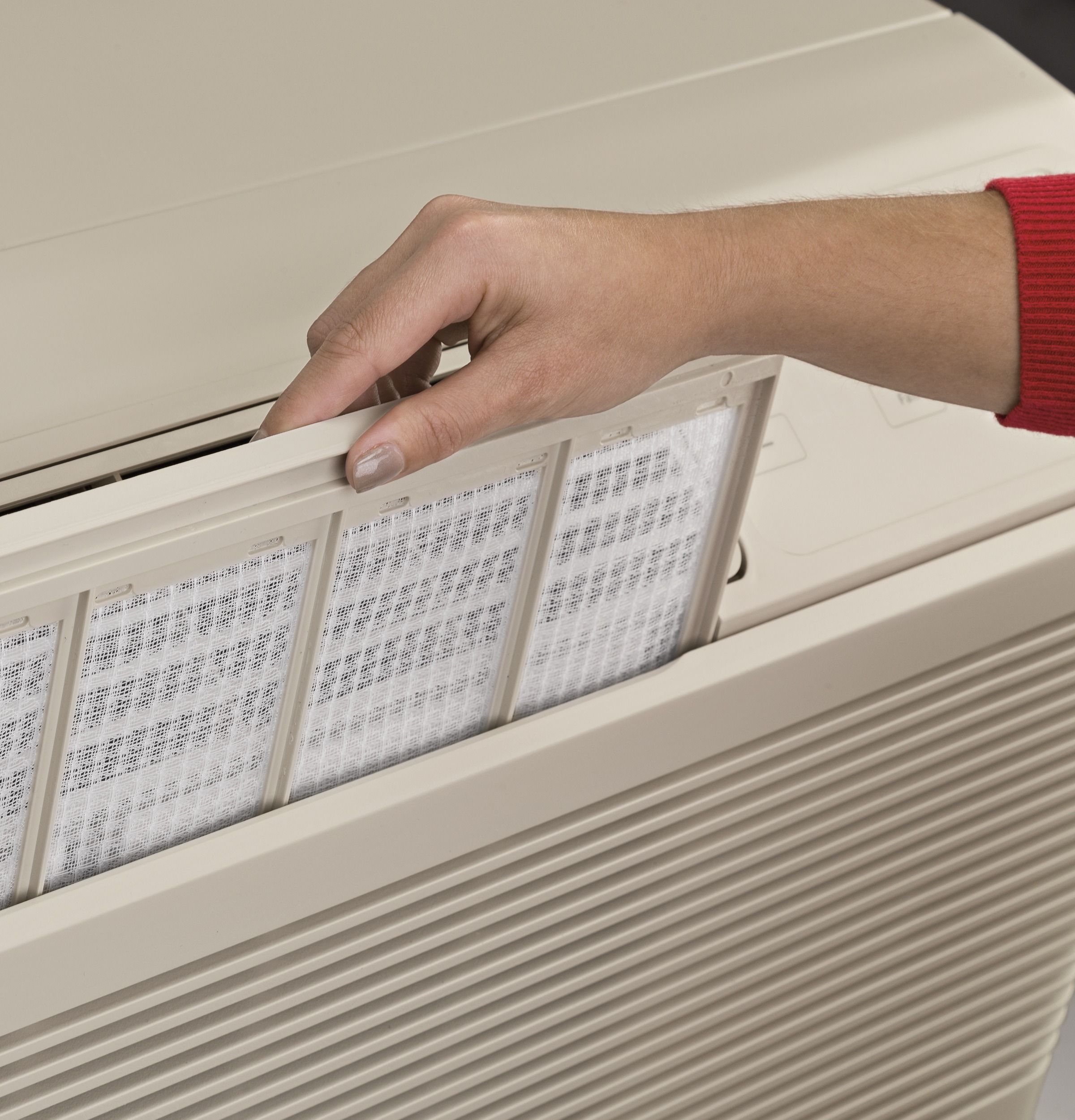

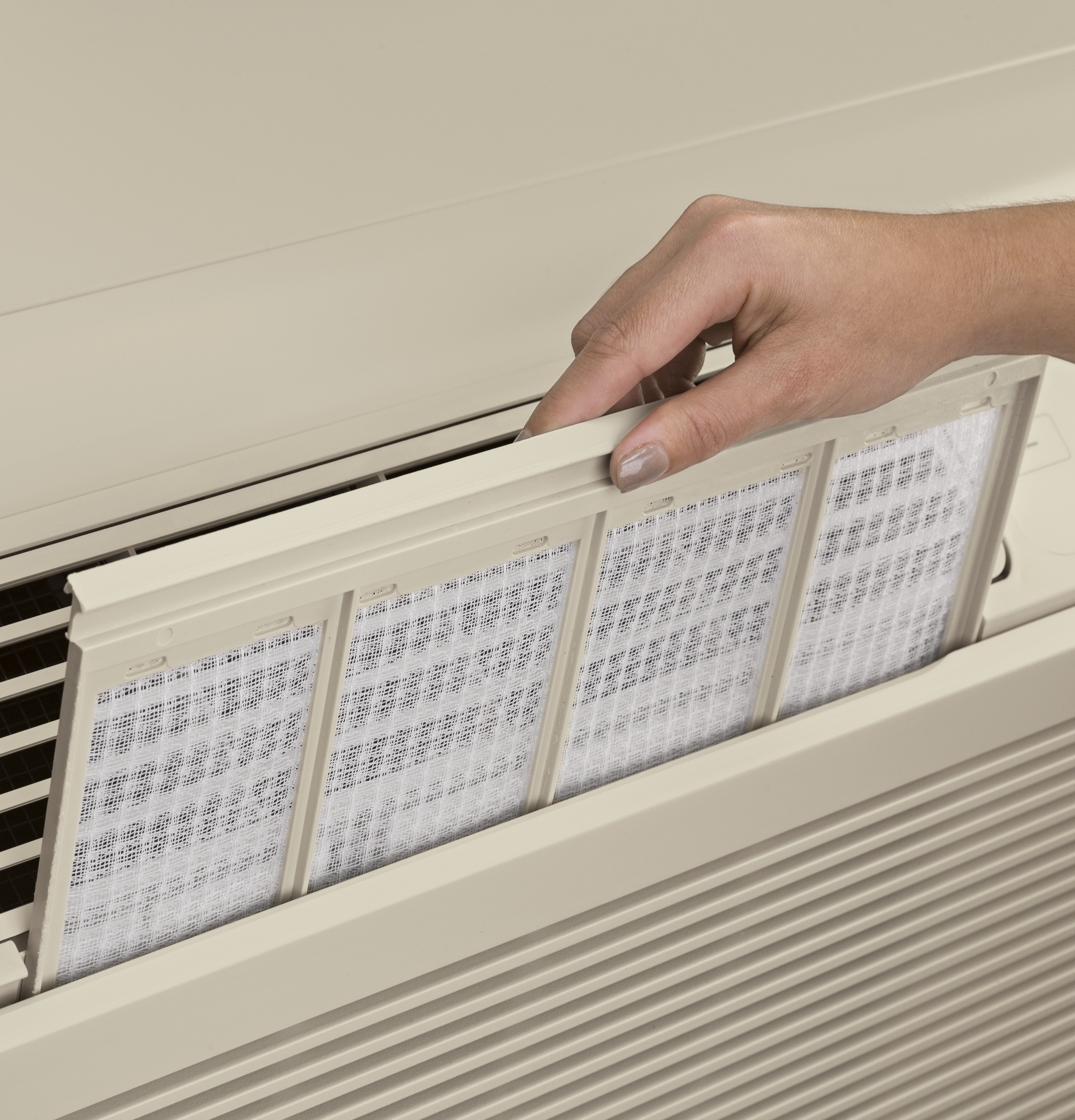

| Filter Type | Rigid Frame |

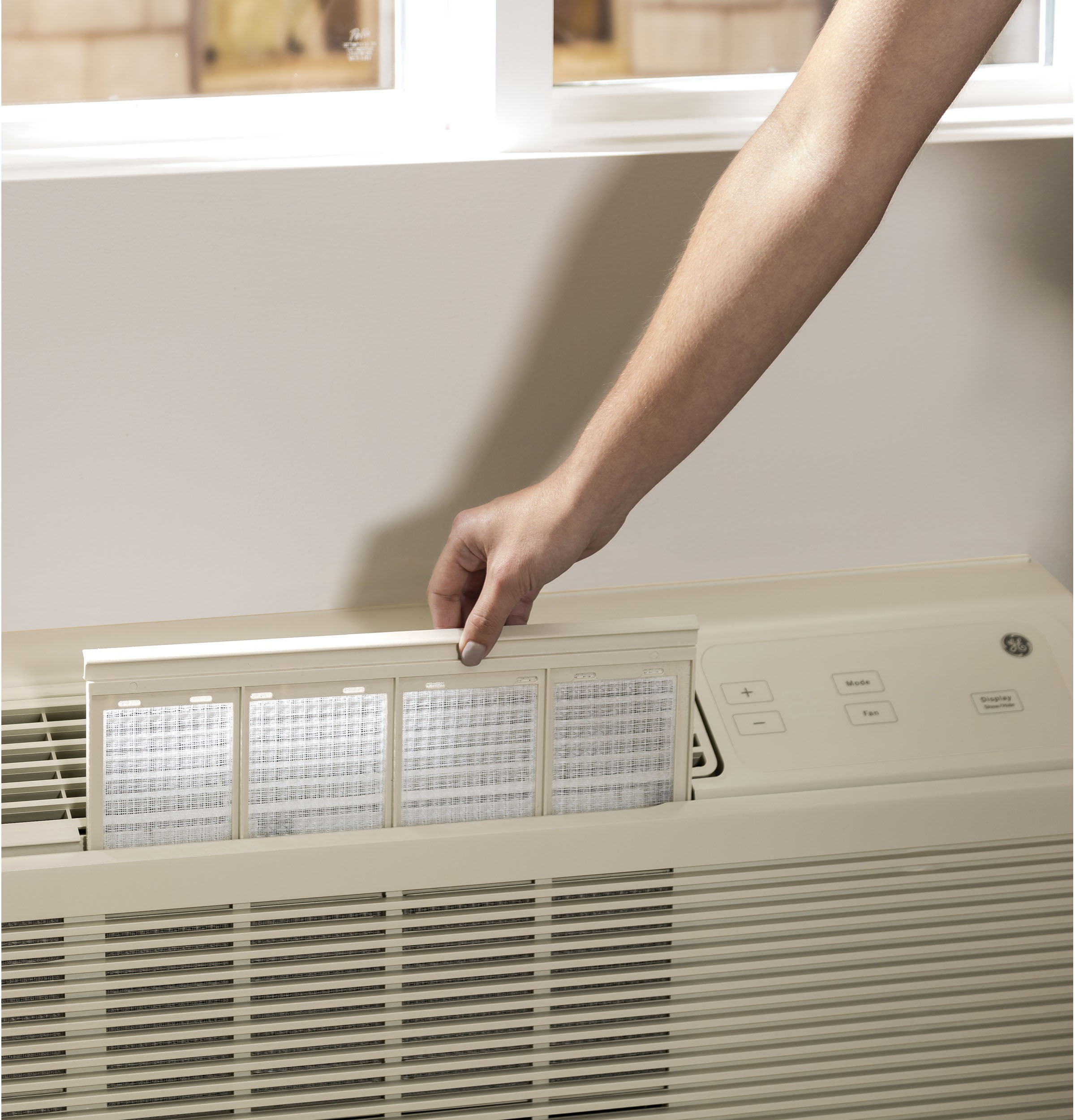

| Filter Type | Slide-Out |
| Temperature Range | 60 - 85 F |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Electronic Micro Computer Control | Yes |
| Zoneline Features | "Sleep" Mode |
| Zoneline Features | "Smart Fan" Fan Cycle Control |
| Zoneline Features | 3-Stage Heating Design |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Automatic Emergency Heat |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | Central Desk Control Compatibility |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Heat Pump with Resistance Heat Backup |
| Zoneline Features | Heat Pump with Supplemental Resistance Heat |
| Zoneline Features | Heat Sentinel |
| Zoneline Features | Proportional - Integral ID Airflow |
| Zoneline Features | Quick Heat Recovery |
| Zoneline Features | Random Twist/Length Segment Tangential Blower |
| Zoneline Features | Remote Thermostat Compatibility |
| Zoneline Features | Reverse Cycle Defrost |
| Zoneline Features | Universal Heaters |

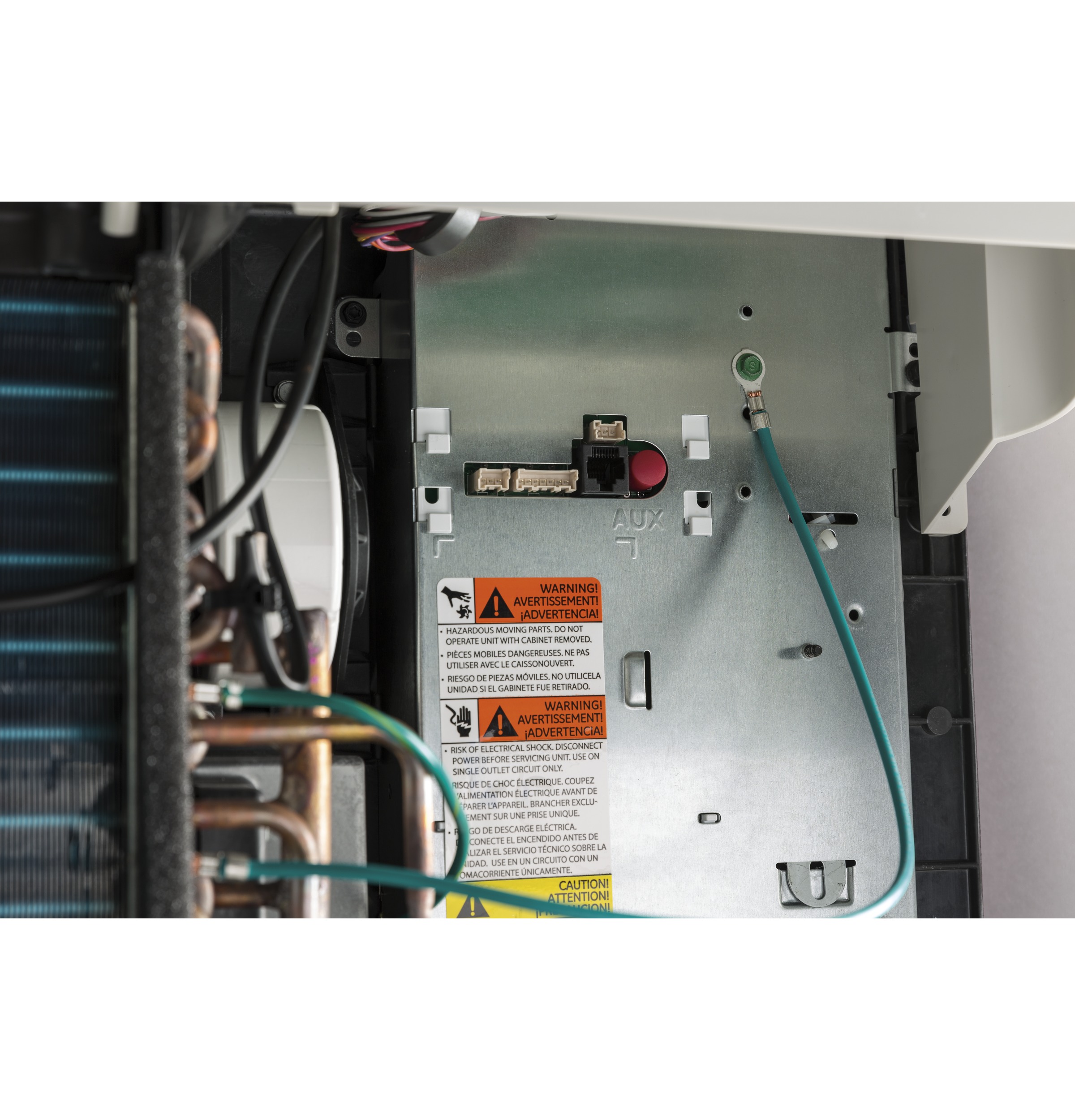

| Zoneline Features | Weather Protected Electrical Components |
| Sensible Heat Ratio | 60% |

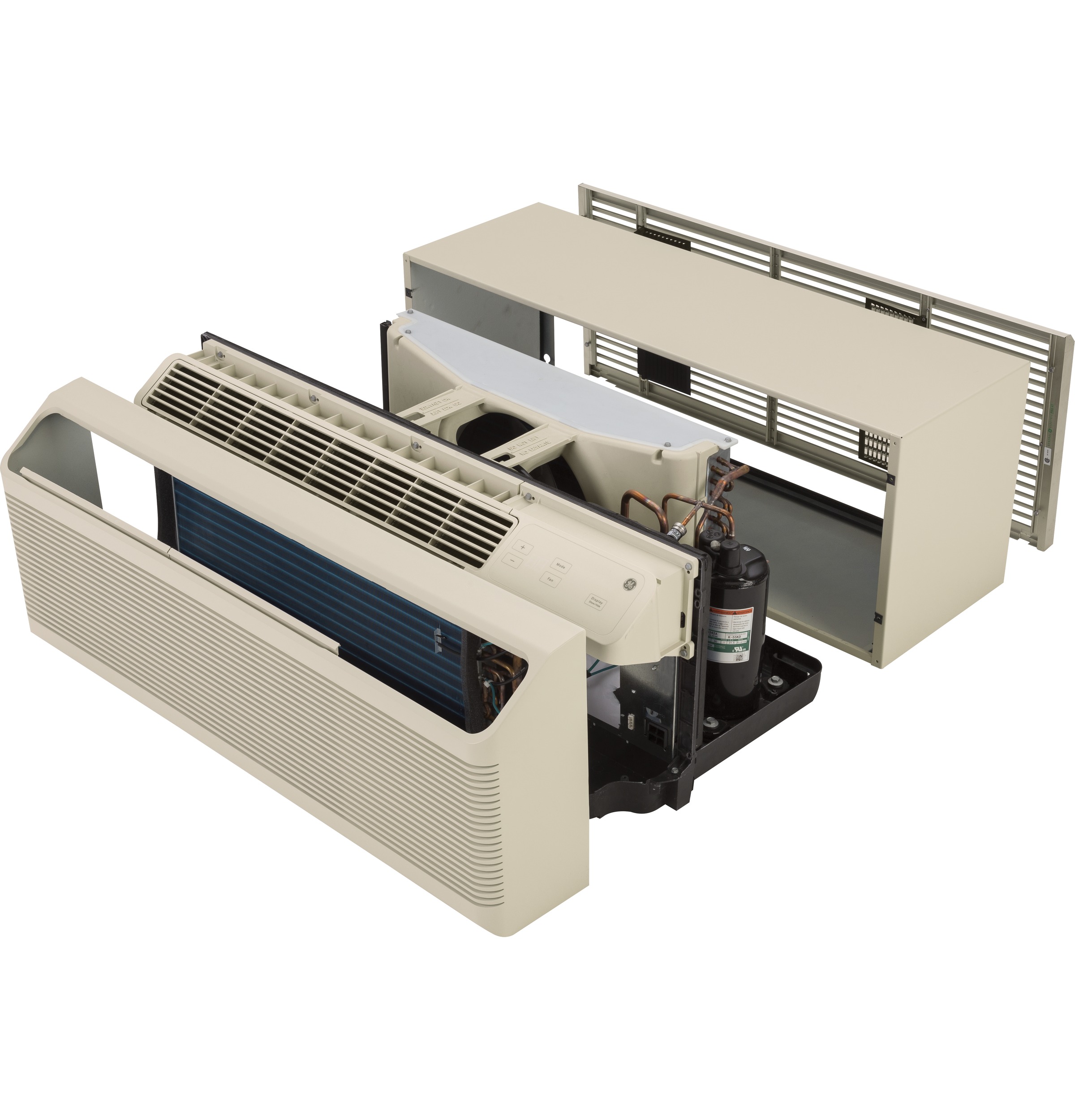

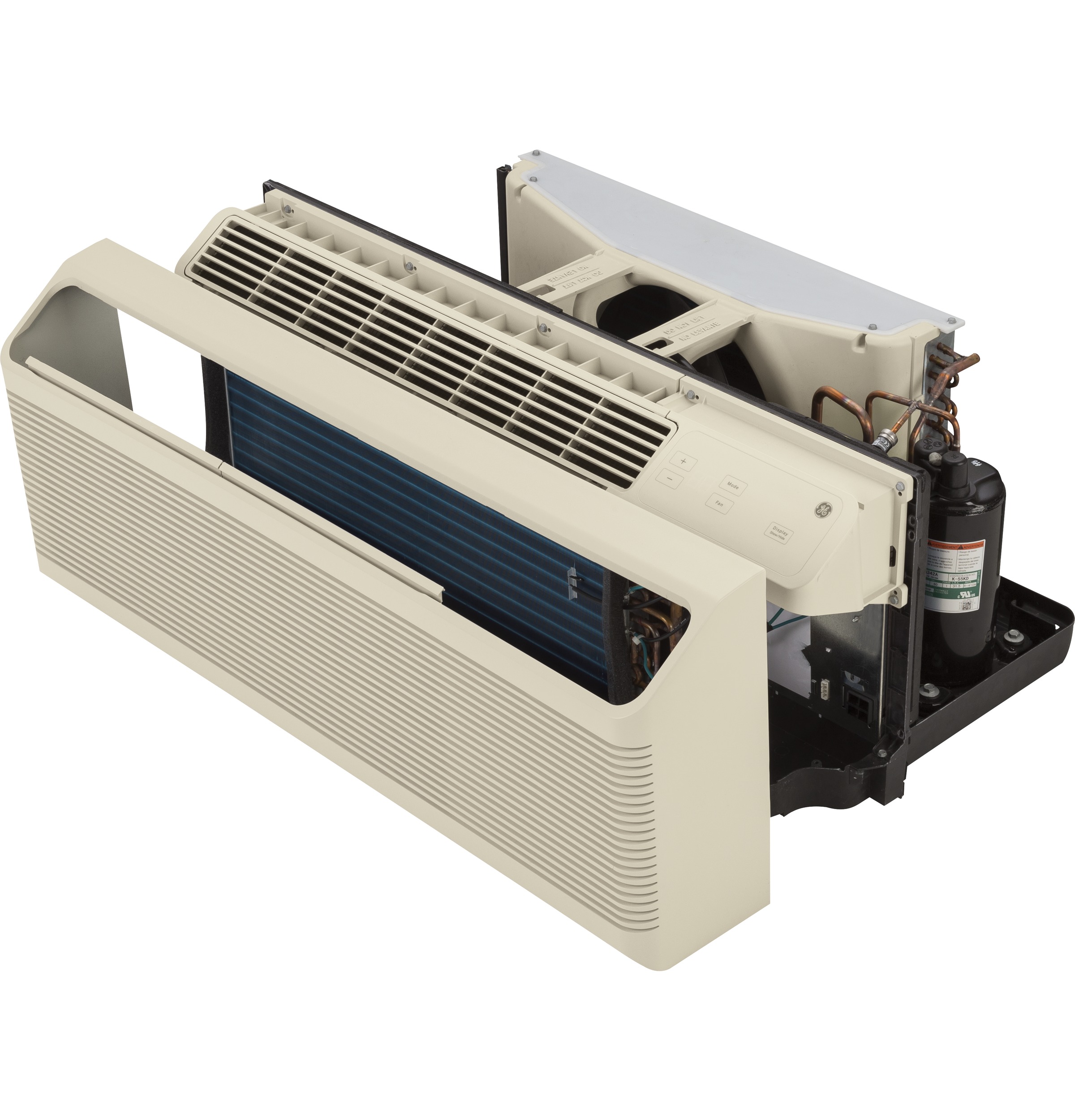

| Chassis Type | Slide-In |
| Corrosion Treated | Yes |
| Control Type | Standard Microcomputer |
| Control Type | Tactile touch pad with LED Display |
| Fan Speed Selections | Hi/Low Cooling |
| Fan Speed Selections | Hi/Low Fan Only |
| Fan Speed Selections | Hi/Low Heating |
| Venting Features | Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions |
| Heat Pump | Yes |
POWER / RATINGS
| Cooling - Amperes; F.L. - Cooling | 6.2/6.7 |
| Cooling - Amperes | 6.2/6.7 |
| Cooling - Watts | 1390/1360 |
| Heating - Reverse Cycle - Watts | 1195/1180 |
| Heating - Reverse Cycle - Amps | 5.4/5.7 |
| Cooling - Amperes; L.R. | 31.5 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 5-year sealed system |
| Parts Warranty | 5 year limited parts warranty |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 20.81 in. |
| Weight | 110 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 25.81 in. |
| Shipping Weight | 150 lbs. |
| Total of Shipping Weight | 150 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.09 ft³ |
| Dimensional Weight | 100.62 lbs. |
| Total of Cubes | 8.09 ft³ |
| Total of Dimensional Weight | 100.62 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 110 lb |
| Net Weight | 110 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
