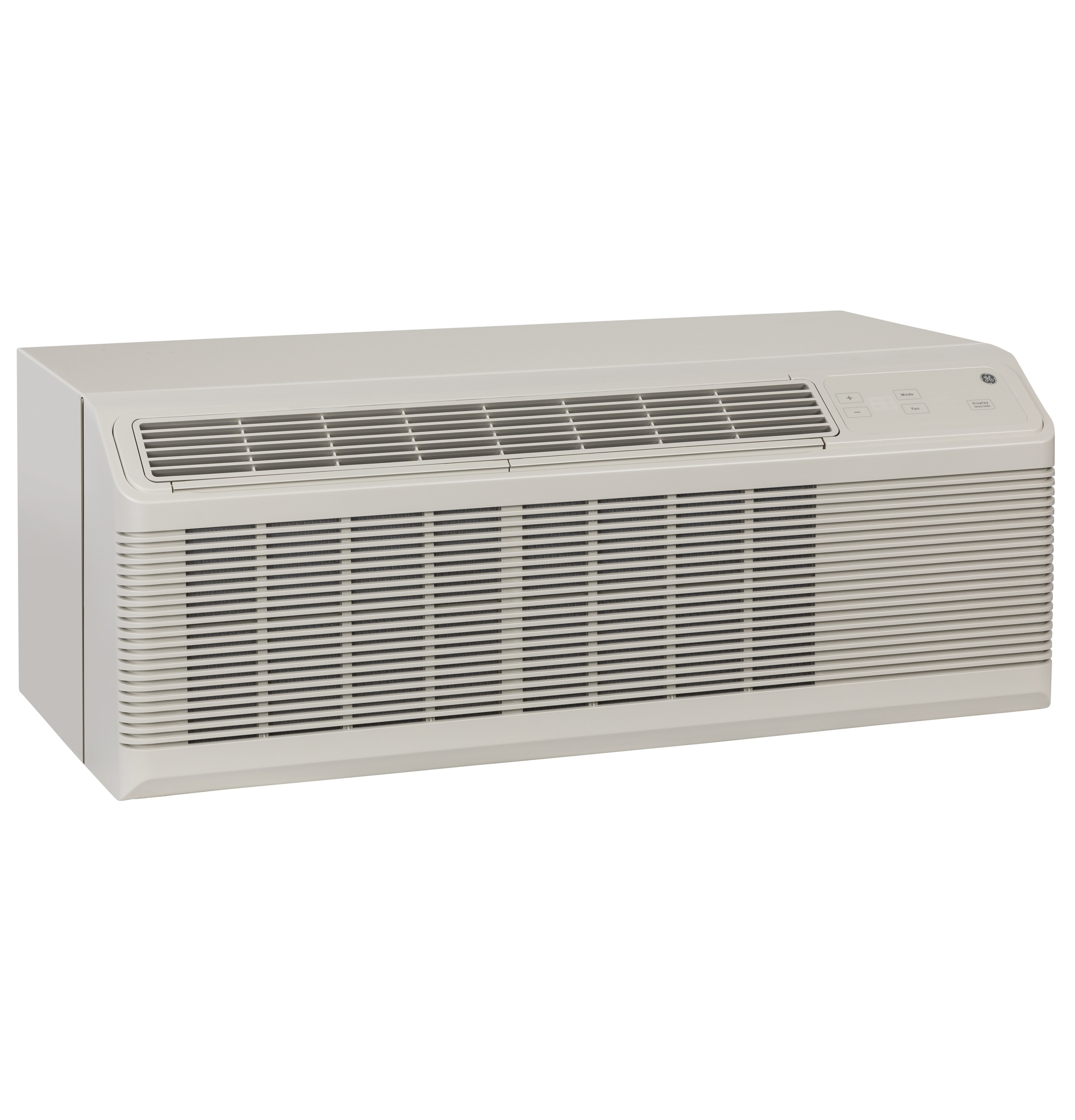

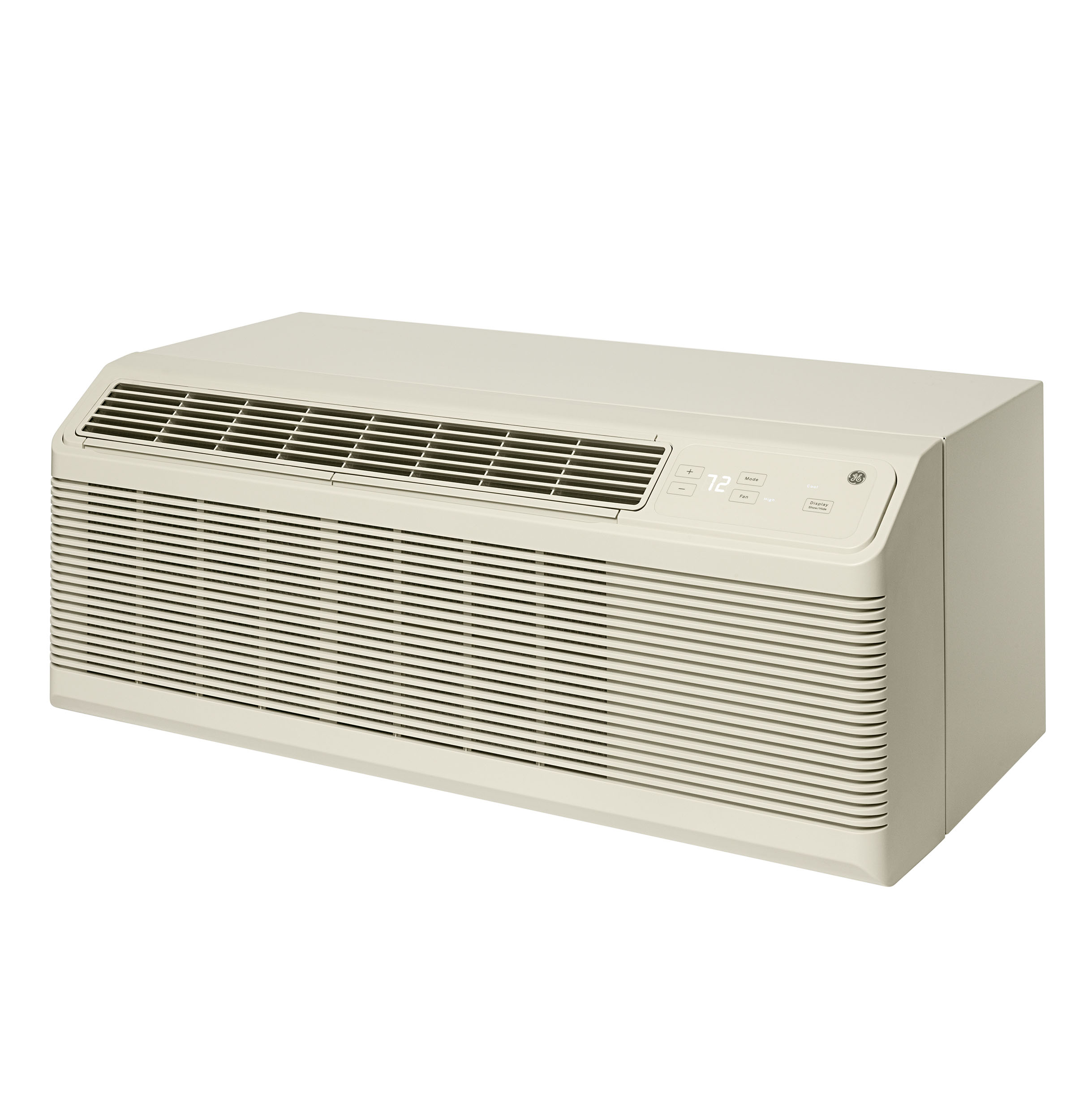

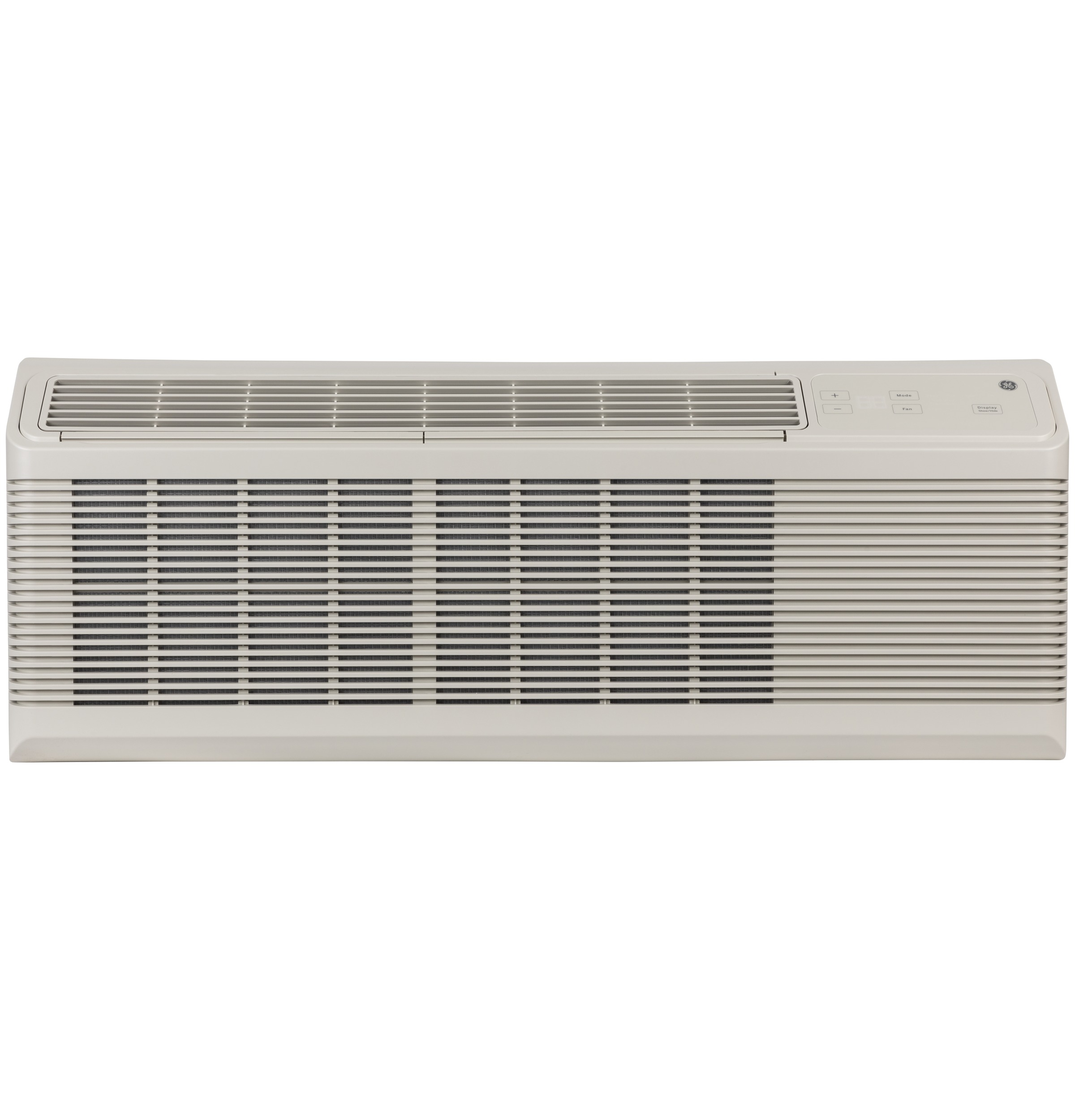

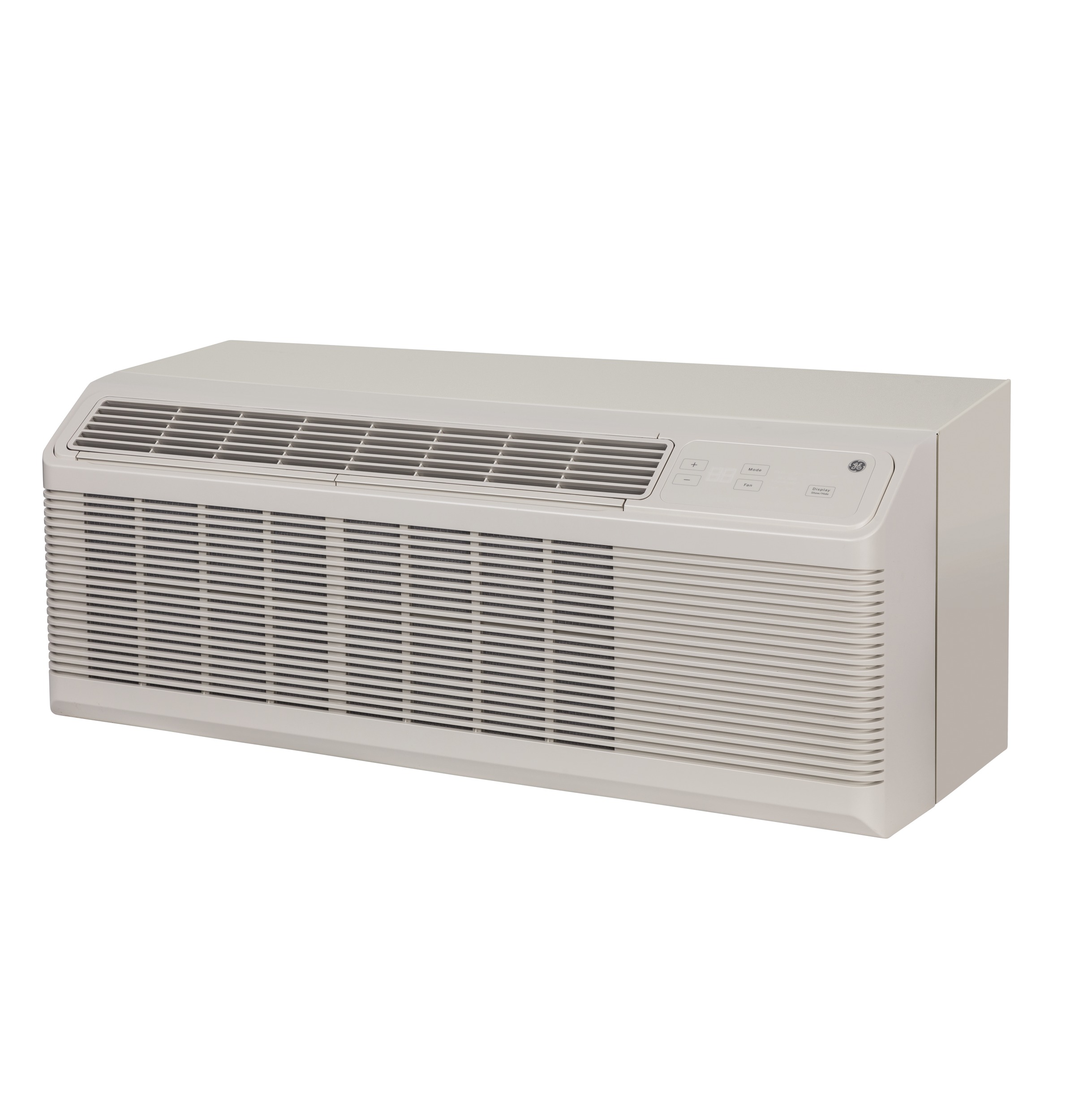

Zoneline Heat Pump Unit with Makeup Air, 265 Volt - AZ65H09EBM
Zoneline Heat Pump Unit with Makeup Air, 265 Volt
Model: AZ65H09EBM





















Zoneline Heat Pump Unit with Makeup Air, 265 Volt
Model: AZ65H09EBM
Key Features
Product built to order, lead times may vary
Makeup air
Energy efficiency
Dehumidification
Boost heat option
Heat & Freeze Sentinels
Electronic temperature limiting
Electronic touch controls with LED display
Documents
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
Product built to order, lead times may vary
Makeup air
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
Energy efficiency
When paired with occupancy sensing hardware, ventilation can be halted during vacancy
Dehumidification
Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)
Boost heat option
Provides supplemental resistance heat in heat pump mode
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room

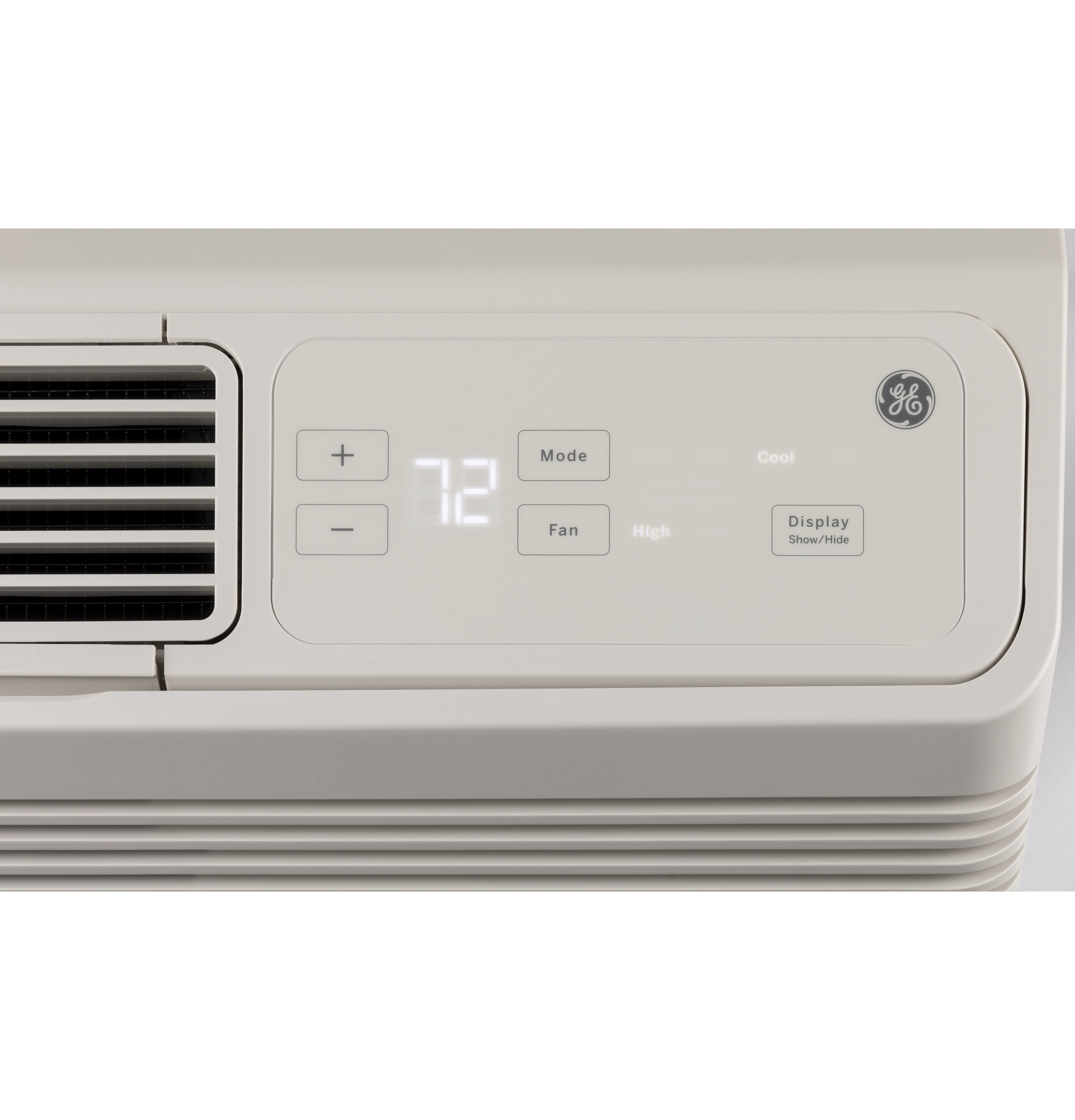

Electronic touch controls with LED display
May reduce the need for individually ducted rooftop systems
Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building’s electrical needs may be impacted
Makeup air models are not recommended for installation within two miles of coastal areas
It is strongly recommended to install makeup air with wall thermostats
SMC base pan
Simplified structure
Easy to maintain and service
Designed & Assembled in America
Certifications
AHRI
CUL
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
UL
Specifications
CAPACITY
| Vent CFM (high fan at zero ESP) | 25-50 |
| Dehumidification (pts./hr.) | 2.0 |
| CFM Indoor Fan High | 409 |
| CFM Indoor Fan Low | 370 |
| Cooling EER (BTUH / Watt) | 11.5 |
| Heating - Reverse Cycle - BTUH | 8100 |
| Cooling BTUH (MAX) | 9,200 Btu |
FEATURES
| Fan Cycle Switch | Yes |
| Discharge Grille | 2-position |
| Heat - Cool | Yes |
| Rotary Compressor | Yes |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Heating - Reverse Cycle - COP | 3.6 |
| Power Factor | 93 |
| Heating System | Heat Pump |
| Louver Style | Reversible |
| Fan Speed Control | Yes |
| Filter Type | Rigid Frame |
| Filter Type | Slide-Out |
| Temperature Range | 60 - 85 F |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Electronic Micro Computer Control | Yes |
| Zoneline Features | "Sleep" Mode |
| Zoneline Features | "Smart Fan" Fan Cycle Control |
| Zoneline Features | 3-Stage Heating Design |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Automatic Emergency Heat |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | Central Desk Control Compatibility |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Heat Pump with Resistance Heat Backup |
| Zoneline Features | Heat Pump with Supplemental Resistance Heat |
| Zoneline Features | Heat Sentinel |
| Zoneline Features | Proportional - Integral ID Airflow |
| Zoneline Features | Quick Heat Recovery |
| Zoneline Features | Random Twist/Length Segment Tangential Blower |
| Zoneline Features | Remote Thermostat Compatibility |
| Zoneline Features | Reverse Cycle Defrost |
| Zoneline Features | Universal Heaters |
| Zoneline Features | Weather Protected Electrical Components |
| Sensible Heat Ratio | 78% |
| Chassis Type | Slide-In |
| Makeup Air | Yes |
| Control Type | Standard Microcomputer |
| Control Type | Tactile touch pad with LED Display |
| Fan Speed Selections | Hi/Low Cooling |
| Fan Speed Selections | Hi/Low Fan Only |
| Fan Speed Selections | Hi/Low Heating |
| Heat Pump | Yes |
POWER / RATINGS
| Cooling - Amperes; F.L. - Cooling | 4.2 |
| Cooling - Amperes | 4.2 |
| Cooling - Watts | 800 |
| Heating - Reverse Cycle - Watts | 655 |
| Heating - Reverse Cycle - Amps | 3.8 |
| Cooling - Amperes; L.R. | 16.5 |
| Voltage (MAX) | 265 V |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 5-year sealed system |
| Parts Warranty | 5 year limited parts warranty |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

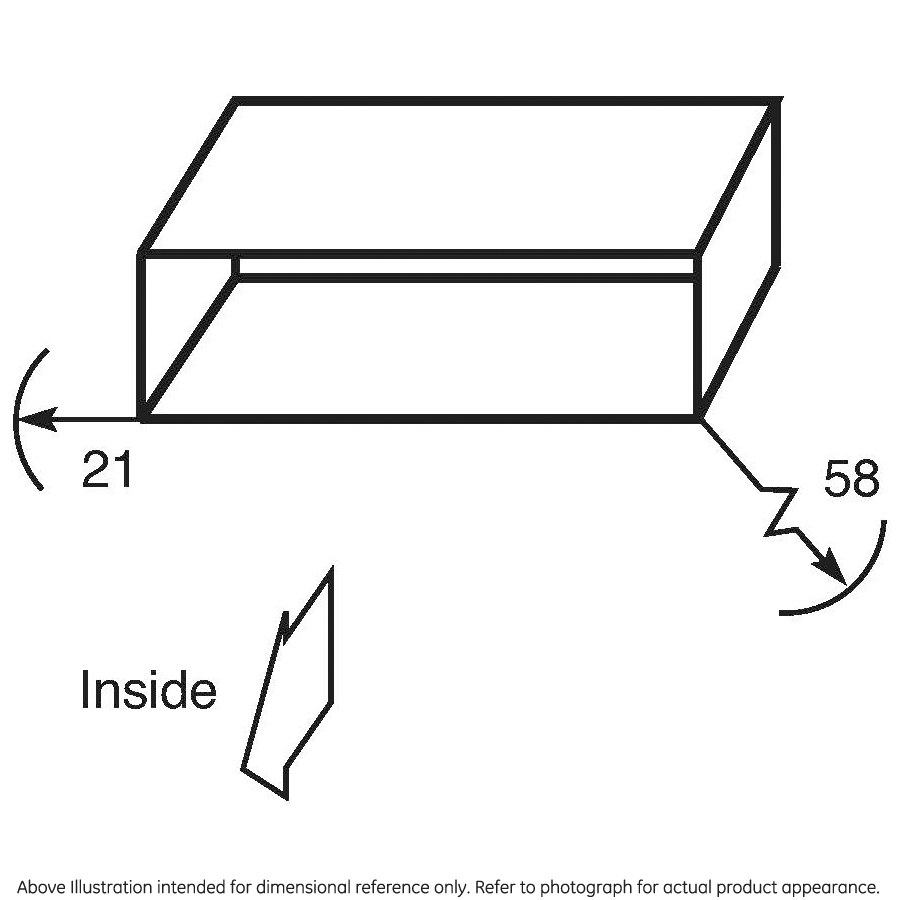

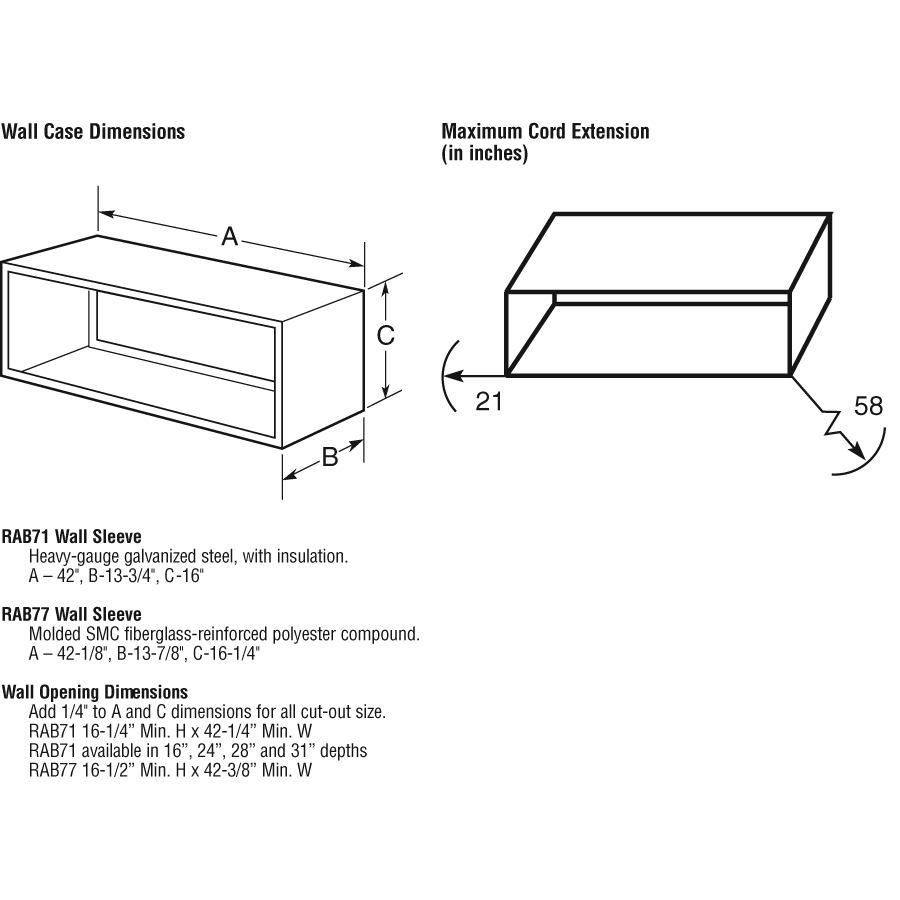

Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 20.81 in. |
| Weight | 135 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 25.81 in. |
| Shipping Weight | 175 lbs. |
| Total of Shipping Weight | 175 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.09 ft³ |
| Dimensional Weight | 100.62 lbs. |
| Total of Cubes | 8.09 ft³ |
| Total of Dimensional Weight | 100.62 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 135 lb |
| Net Weight | 135 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
