Thru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner - AKEQ10DCH

This product has been discontinued by the manufacture and is no longer available.

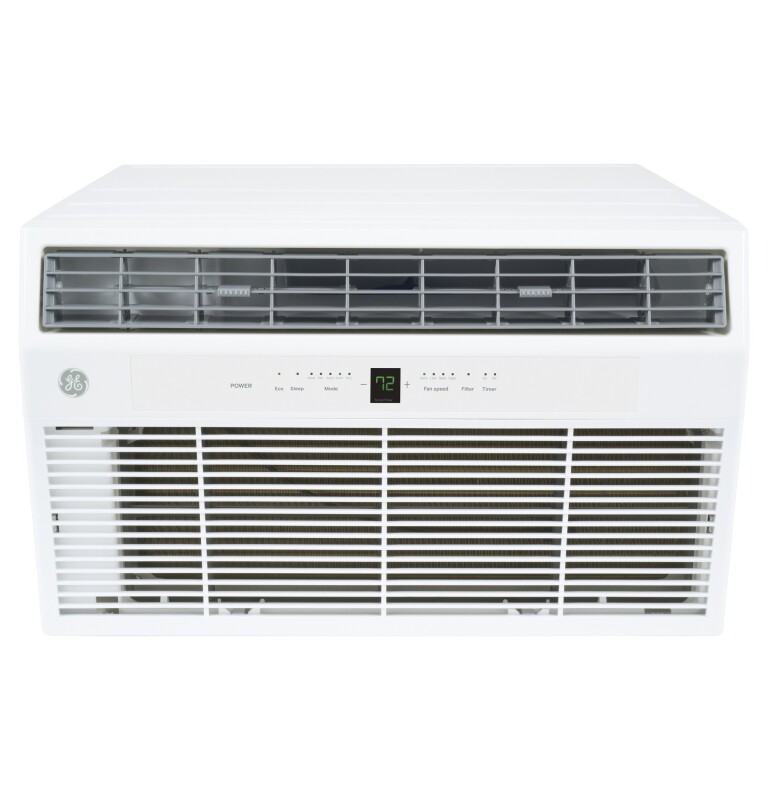

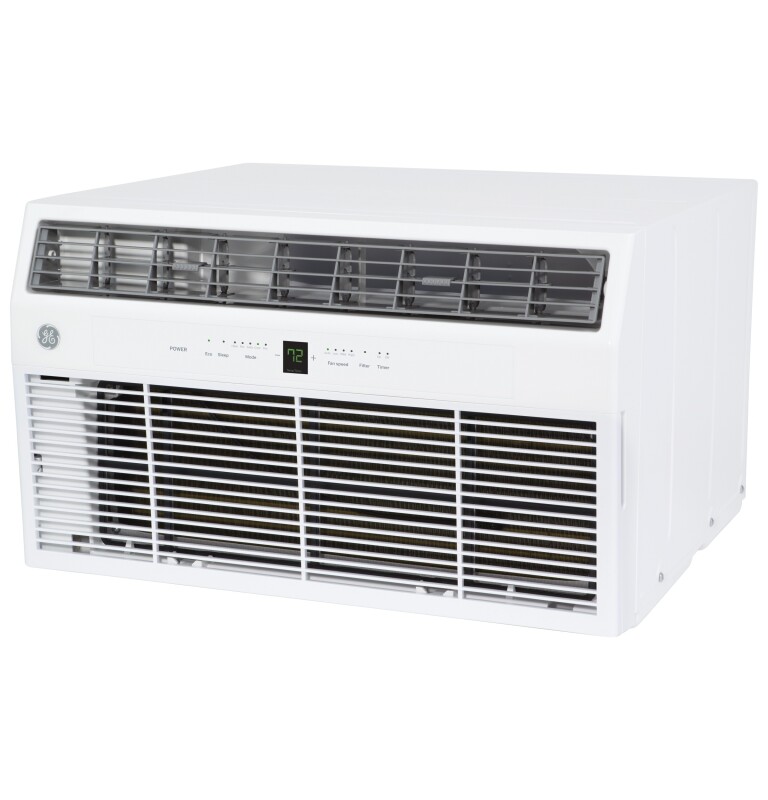

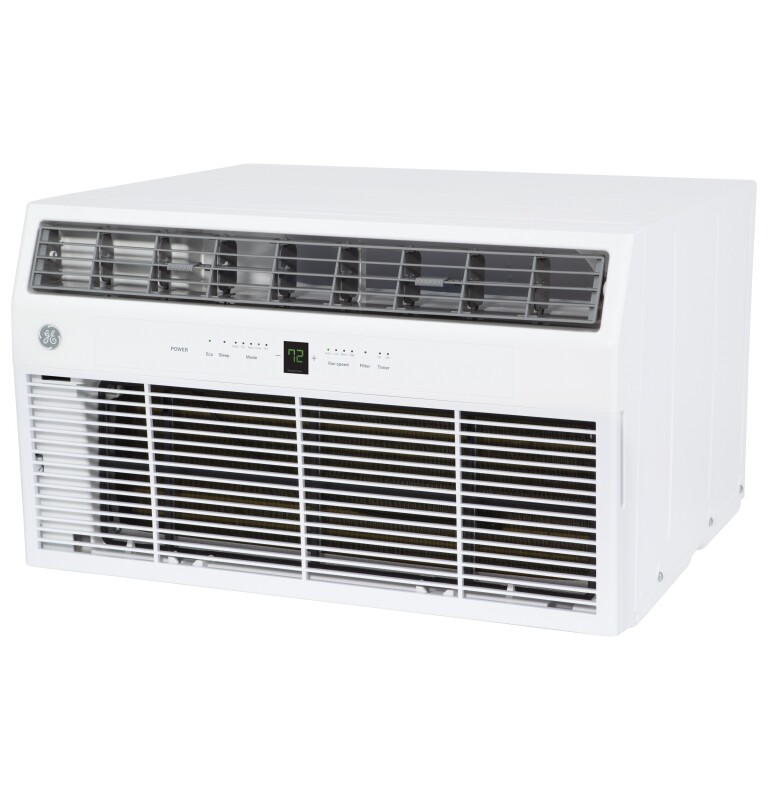

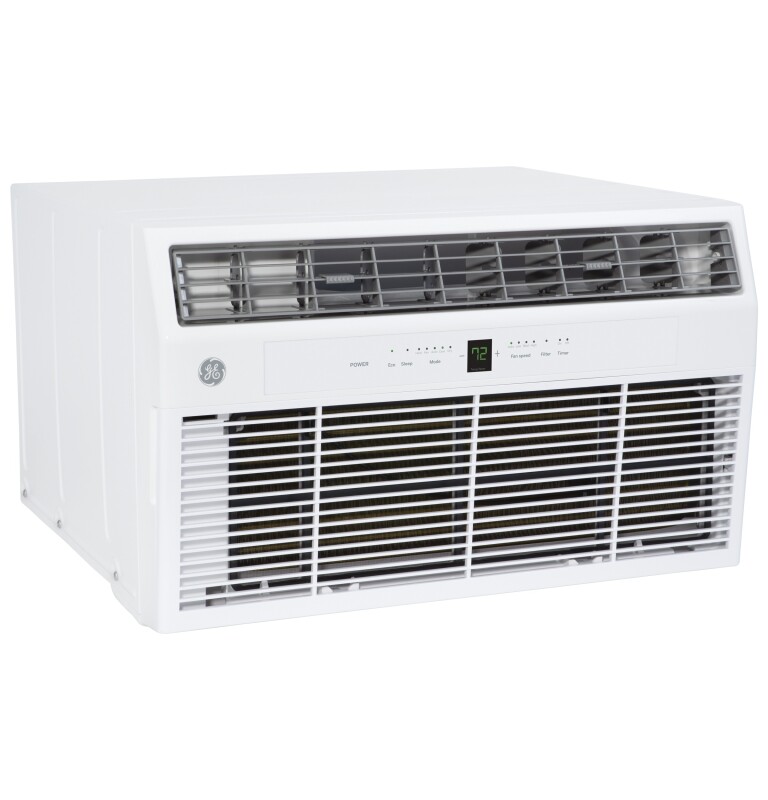

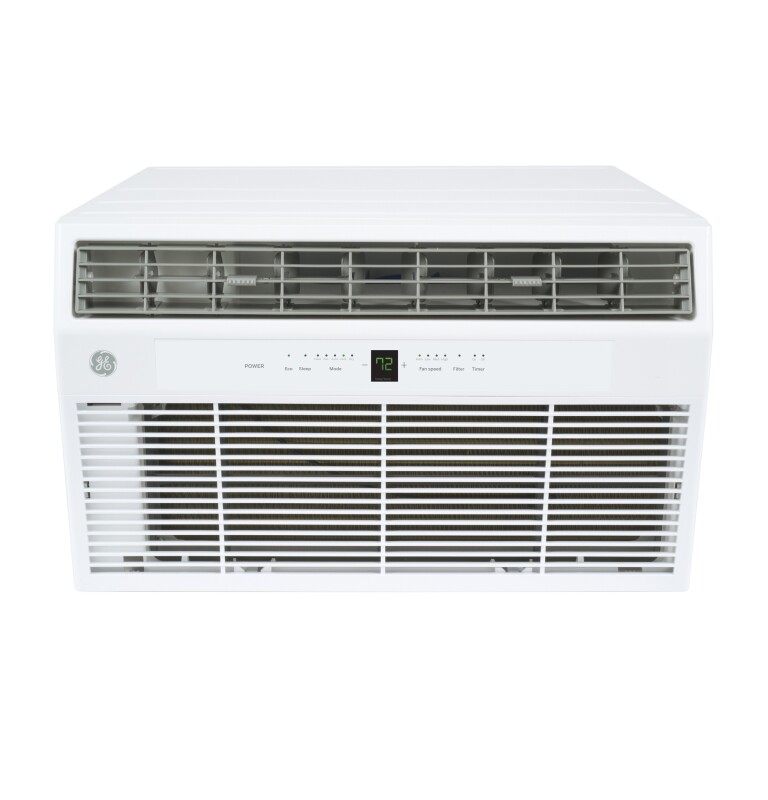

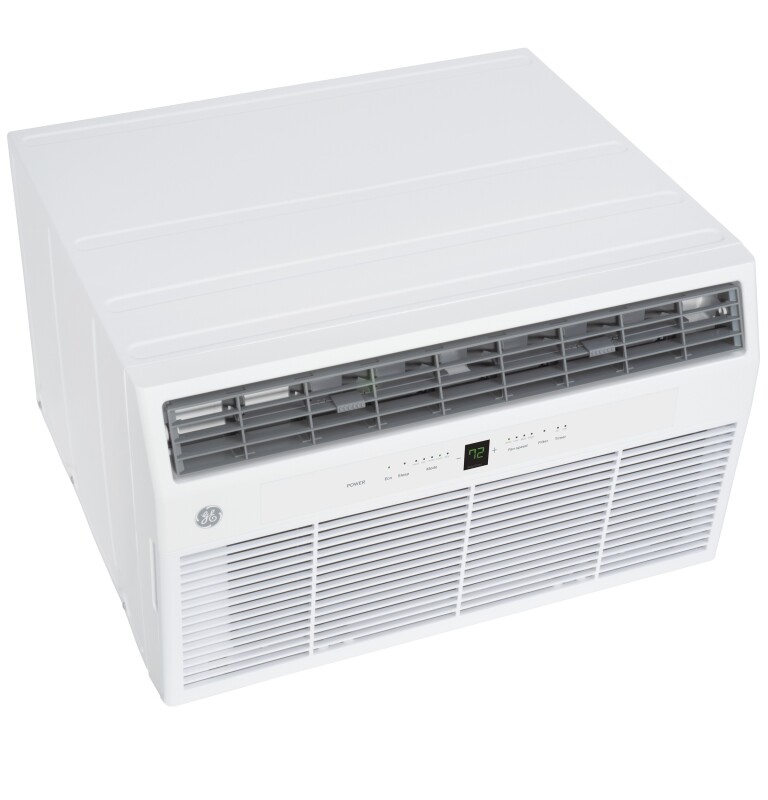

Thru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner

Model: AKEQ10DCH

Thru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCHThru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCH
Thru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCH
Thru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCH
Thru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCH
Thru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCH
Thru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCH
+8more

Color : White

Thru the Wall 230/208V Heat/Cool 10,000 BTU Air Conditioner AKEQ10DCH
White

Key Features

  • True Universal Fit

  • Sleek Appearance

  • Large LCD Display

  • ECO Mode

  • Dry Mode

  • 3-Speed Fan

  • 6-Way Directional Airflow

  • Washable Filter

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

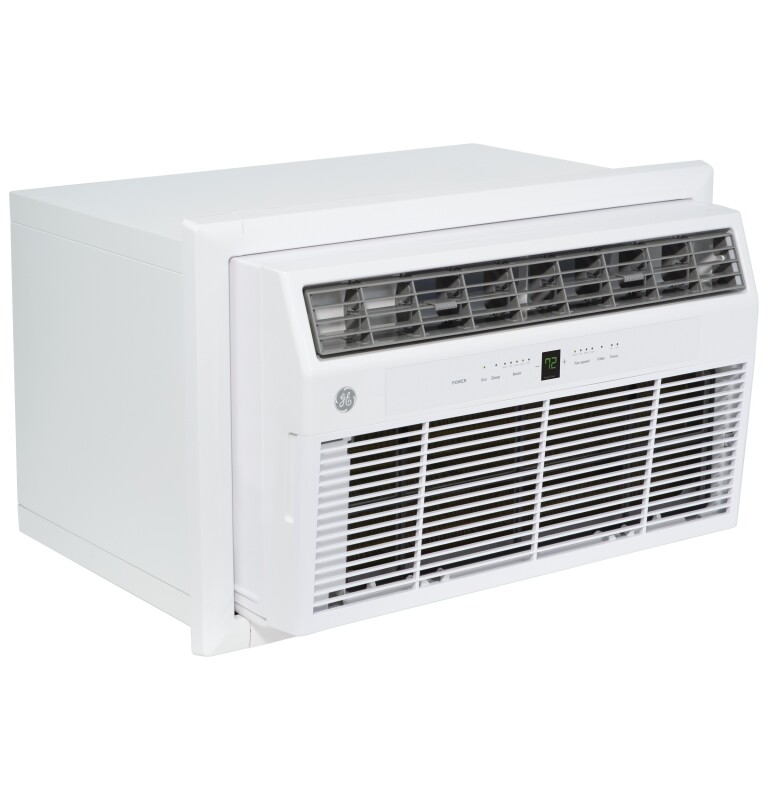

True Universal Fit

Simple slide-in installation is built in for a precise fit into a variety of different wall sleeves. Quickly fit and retrofit with confidence. Trim kit and installation kit included

Sleek Appearance

Streamlined design and bright white color will complement every room—cooling or heating your home in style

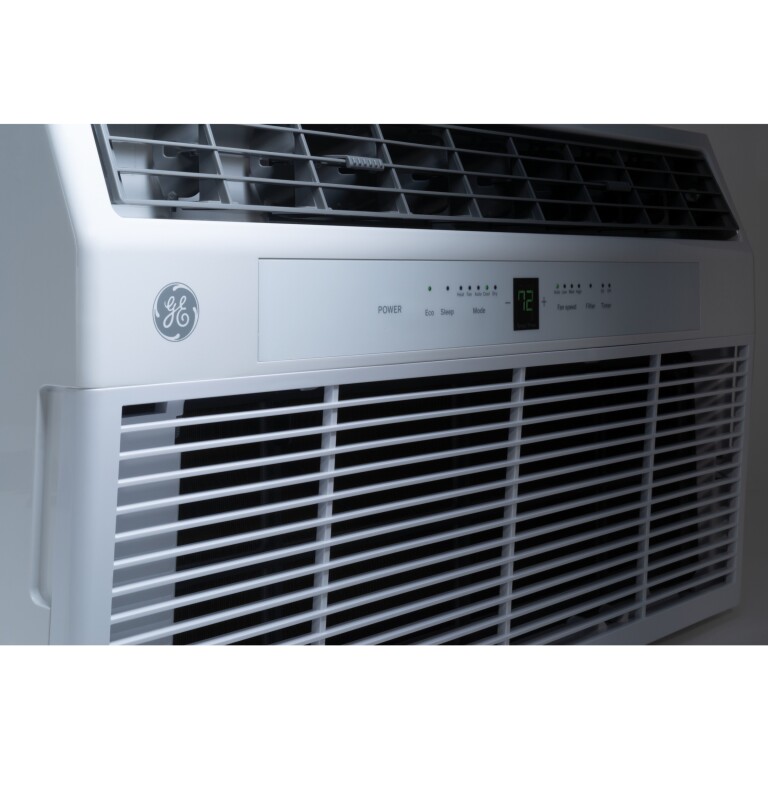

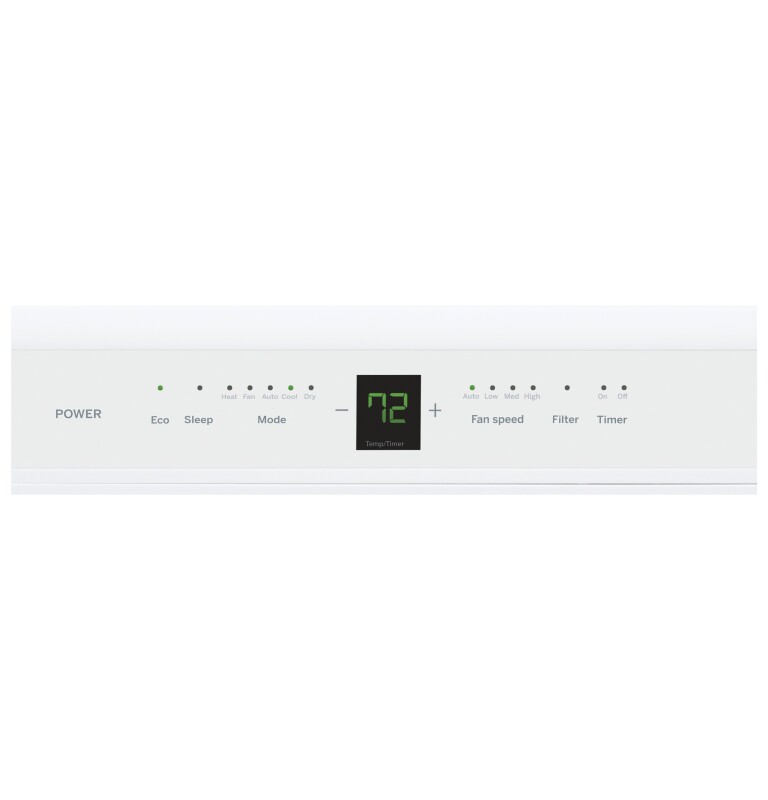

Large LCD Display

Intuitive & easy-to-read LCD display controls room air comfort at a single touch

ECO Mode

Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable

Dry Mode

Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification

3-Speed Fan

Select High, Medium, Low or Auto Setting to achieve the best in air comfort & ultimate flexibility. Available on heat-cool models

6-Way Directional Airflow

Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most

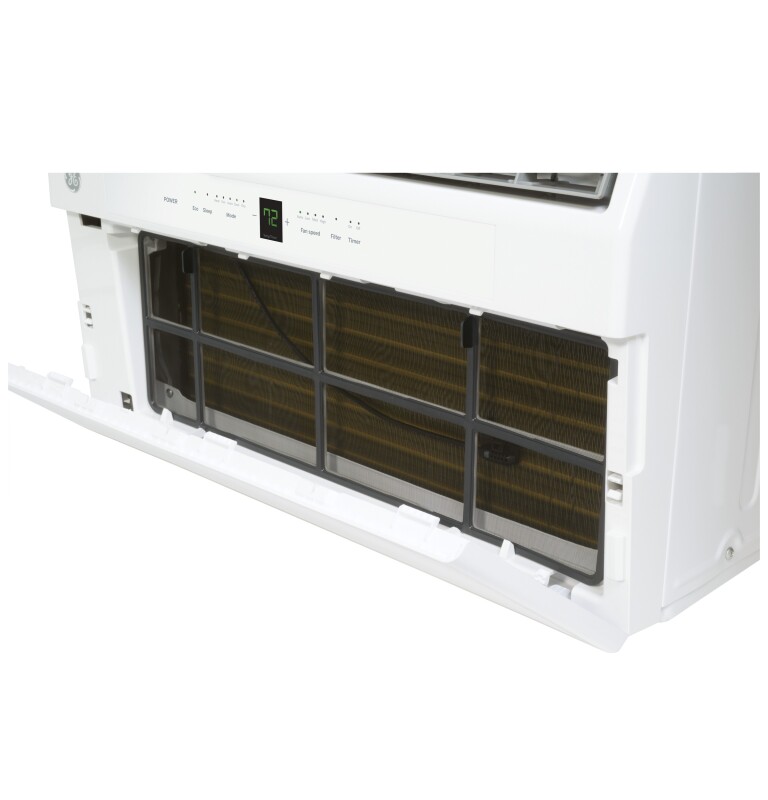

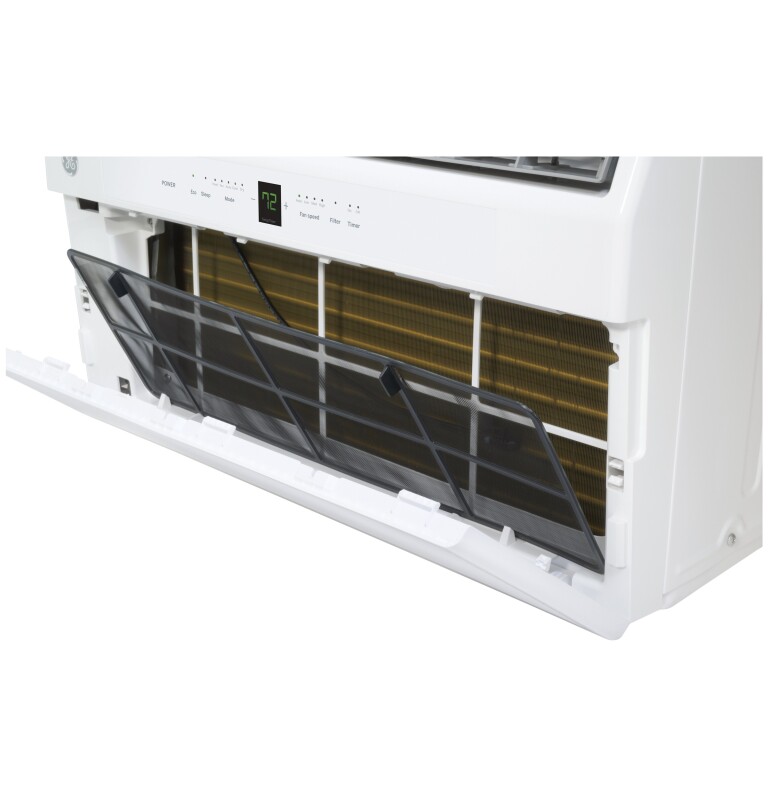

Washable Filter

Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment

Auto Mode

Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort

Remote Control Included

Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room

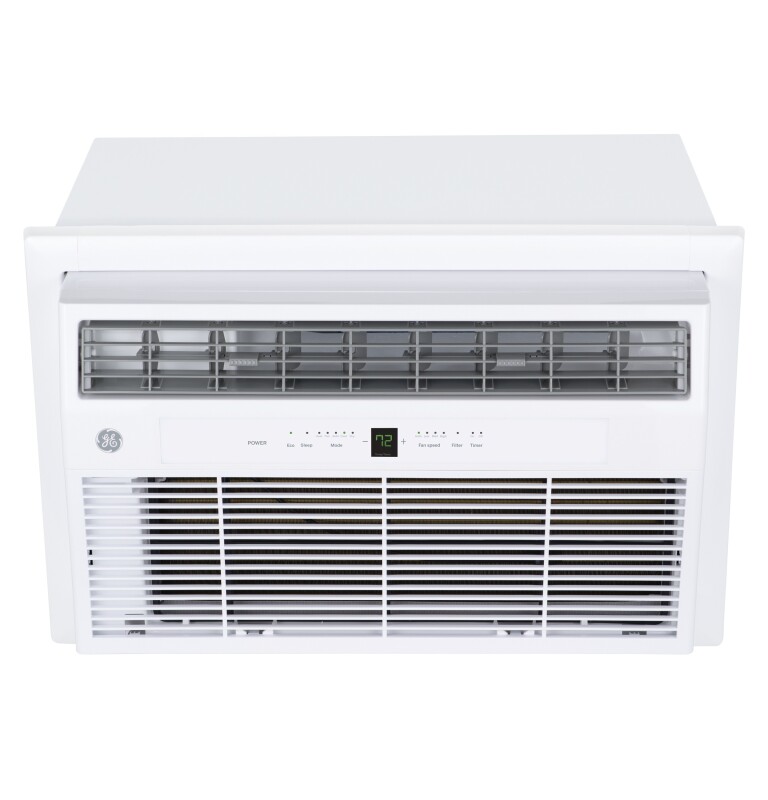

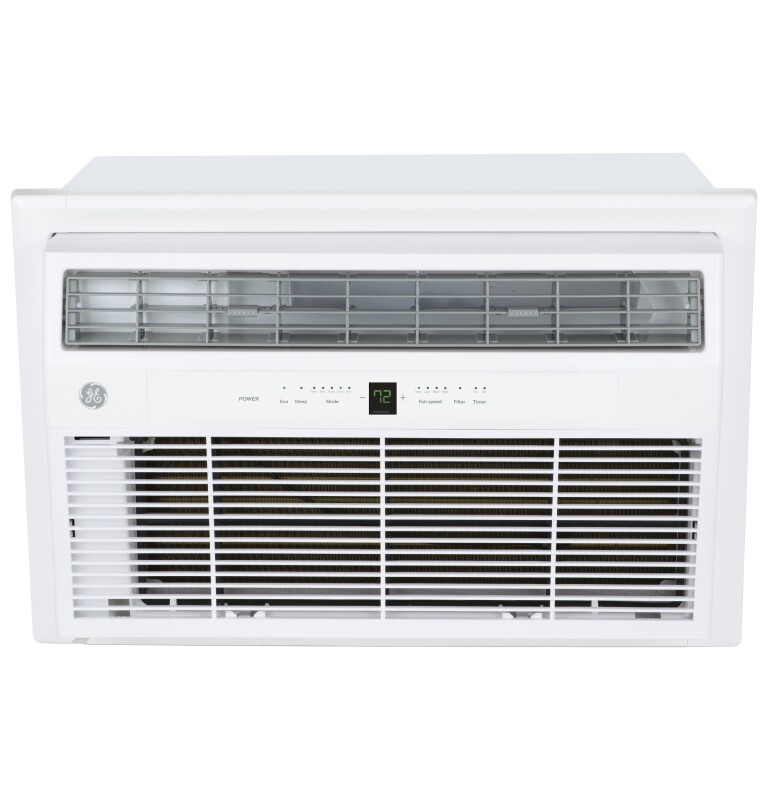

Universal Trim Kit

Designed for a custom appearance and easy installation, the trim kit provides a seamless appearance to the built-in wall sleeve

Sleep Mode

Efficient setting to adjust temperature during sleep times for up to 7 hours, creating more energy savings

2 Year Warranty

GE Appliances cares about its products, offering replacement of any part of the air conditioner which fails due to defect in materials or workmanship up to 2 years from the date of purchase

Certifications

AHAM certification

AHAM

CUL certification

CUL

UL certification

UL

Specifications

WEIGHTS & DIMENSIONS

Overall Width24.0625 in
Overall Height14.5625 in
Overall Depth19 in
Approximate Shipping Weight81 lb
Depth to Louvers20.625 in
Net Weight81 lb

FEATURES

Louver Style6-Way
Fan Speed Selections3 Fan Only
Optional GrillRAG13/RAG13A/RAG14E
Product TypeBuilt-In
Refrigerant TypeR410A
Chassis TypeFixed
Vent/Air Exchange ExhaustTop
Plug TypePerpendicular/NEMA 6-20
Thermostat TypeThermistor
LCDI / AFCI power cordYes
Cord Length48"
Air Flow Volume CFM High/Medium/Low292/275/252
Rotary CompressorYes
Digital Time Temp DisplayYes
Filter TypeRigid
Room Air Conditioner FeaturesBatteries Included
Filter TypeWashable
Room Air Conditioner FeaturesSleep Mode
Fan Speed Selections3 Cooling
Filter TypeEasy Access
Filter TypeTilt-Out
Room Air Conditioner FeaturesOn/Off Timer
Room Air Conditioner FeaturesEnergy Saver
Room Air Conditioner FeaturesAuto Fan
Room Air Conditioner FeaturesDehumidify Function
Room Air Conditioner FeaturesInfrared Remote Control
Room Air Conditioner FeaturesFilter Indicator

POWER / RATINGS

Volts/Hertz230V-208V/60Hz
Cooling - Rated Cooling Amps AHAM4.6/5.0
Cooling - Watts1042/1022
Voltage/Hertz/Phase230-208/60/1
Voltage (MIN)208 V
Heating - Electric - Heater Watts3450/2821
CEER9.6
Voltage (MAX)230 V
Heating - Electric - Heater Amps15.0/13.5

ACCESSORIES

Wall CaseRAB46/47/48/24 Required At Additional Cost

CAPACITY

Cooling EER (BTUH / Watt)9.6
Heating - Electric - BTUH - AHAM - 1R10600/8600
Dehumidification (pts./hr.)3.0
Cooling BTUH (MAX)10,000 Btu
Cooling BTUH (MIN)9,800 Btu

APPEARANCE

Color AppearanceWhite

Dimensions & Weight

Width24.06 in.
Height14.56 in.
Length19 in.
Weight81 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width29.06 in.
Shipping Height19.56 in.
Shipping Length24 in.
Shipping Weight121 lbs.
Total of Shipping Weight121 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement3.85 ft³
Dimensional Weight47.9 lbs.
Total of Cubes3.85 ft³
Total of Dimensional Weight47.9 lbs.

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed system
Parts WarrantyLimited 2-year entire appliance
Labor WarrantyLimited 1-year entire appliance
