230/208 Volt Built-In Heat/Cool Room Air Conditioner - AJEQ12DCE

This product has been discontinued by the manufacture and is no longer available.

230/208 Volt Built-In Heat/Cool Room Air Conditioner

Model: AJEQ12DCE

230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE
230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE
230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE
230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE
230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE
230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE

Color : Gray

230/208 Volt Built-In Heat/Cool Room Air Conditioner AJEQ12DCE
Gray

Key Features

  • 11,800 / 11,600 cooling BTU

  • 11,200 / 9,200 resistance heat BTU

  • 3470 / 2850 Watts heat

  • 9.4 / 9.4 EER

  • R-410A refrigerant

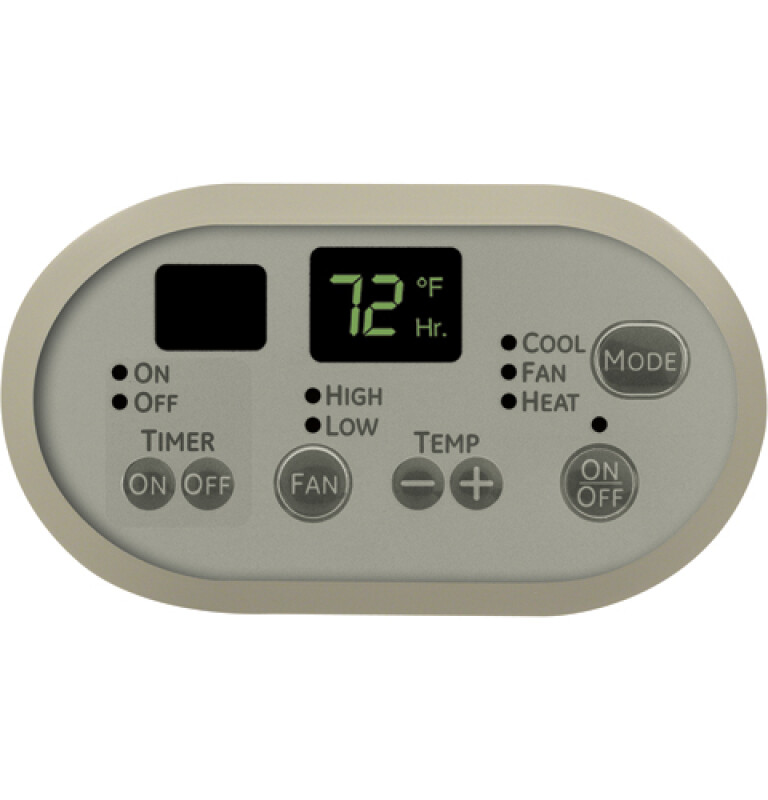

  • Electronic controls with remote

  • Electronic digital thermostat control

  • 4-way air direction

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

11,800 / 11,600 cooling BTU

11,200 / 9,200 resistance heat BTU

3470 / 2850 Watts heat

9.4 / 9.4 EER

R-410A refrigerant

Electronic controls with remote

Electronic digital thermostat control

4-way air direction

Upfront, washable air filter

2 cooling / 2 heating / 2 fan only speeds

Certifications

ADA Compliant certification

ADA Compliant

AHAM certification

AHAM

CUL certification

CUL

California Prop 65 certification

California Prop 65

EEV certification

EEV

UL certification

UL

Specifications

Warranty

Parts1 Year
Labor1 Year

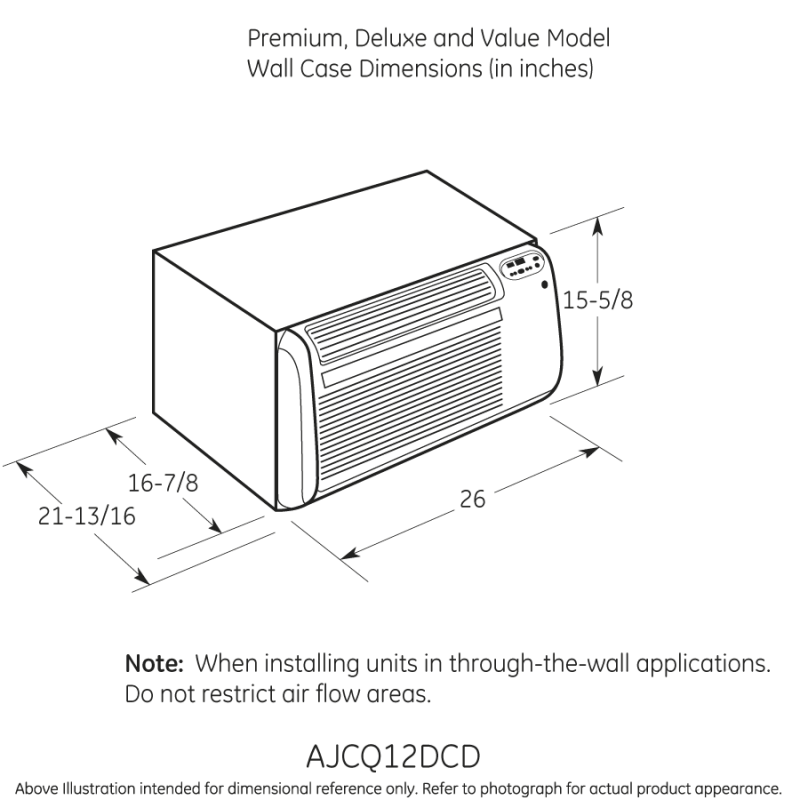

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight95 lb
Overall Height (Excludes Sleeve)14.875 in
Overall Depth (Excludes Sleeve)19.90625 in
Overall Width (Excludes Sleeve)24.8125 in
Net Weight82 lb
Overall Depth21 13/16 in
Overall Height15 5/8 in

Dimensions & Weight

Width26 in.
Height15.63 in.
Length21.81 in.
Weight82 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length26.81 in.
Shipping Weight122 lbs.
Total of Shipping Weight122 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.13 ft³
Dimensional Weight63.75 lbs.
Total of Cubes5.13 ft³
Total of Dimensional Weight63.75 lbs.

FEATURES

Louver Style4-Way Air Direction
Control TypeElectronic
Fan Speed Selections2 Fan Only
Refrigerant TypeR410A
Air DischargeOver / Under
StyleThru-Wall
Chassis TypeSlide-Out
Plug TypePerpendicular/Right Angle LCDI
Heating - Electric - Input Watts3470/2850
Thermostat TypeElectronic Digital
Temperature Range60->85 F
Cord Length68"
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Unit TypeHeat / Cool Unit
Filter TypeRigid Frame
Airflow (cfm) Roomside285/245, 275/235
Room Air Conditioner FeaturesBatteries Included
Filter TypeWashable
Room Air Conditioner FeaturesSmart Fan Switch
Fan Speed Selections2 Cooling/Heating
Filter TypeEZ Slide-Out
Room Air Conditioner Features24 Hr. Timer
Room Air Conditioner FeaturesRemote Control
Room Air Conditioner FeaturesImproved Corrosion Package
Room Air Conditioner FeaturesPower Interruption Restart

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed refrigerating system
Parts WarrantyLimited 5-year sealed refrigerating system
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance

POWER / RATINGS

Hertz60
Cooling - Rated Cooling Amps AHAM5.8/6.3
Cooling - Watts1250/1230
Voltage/Hertz/Phase230-208/60/1
Voltage (MIN)208 V
Voltage (MAX)230 V
Heating - Electric - Heater Amps15.1/14.0

ACCESSORIES

Wall CaseRAB46A/RAB48B Required At Additional Cost

APPEARANCE

InstallationWall Mounted
Color AppearanceSoft Gray

CAPACITY

Cooling EER (BTUH / Watt)9.4/9.4
Heating - Electric - BTUH - AHAM - 1R11200/9200
Dehumidification (pts./hr.)3.4/3.4
Cooling BTUH (MAX)11,800 Btu
Cooling BTUH (MIN)11,600 Btu
