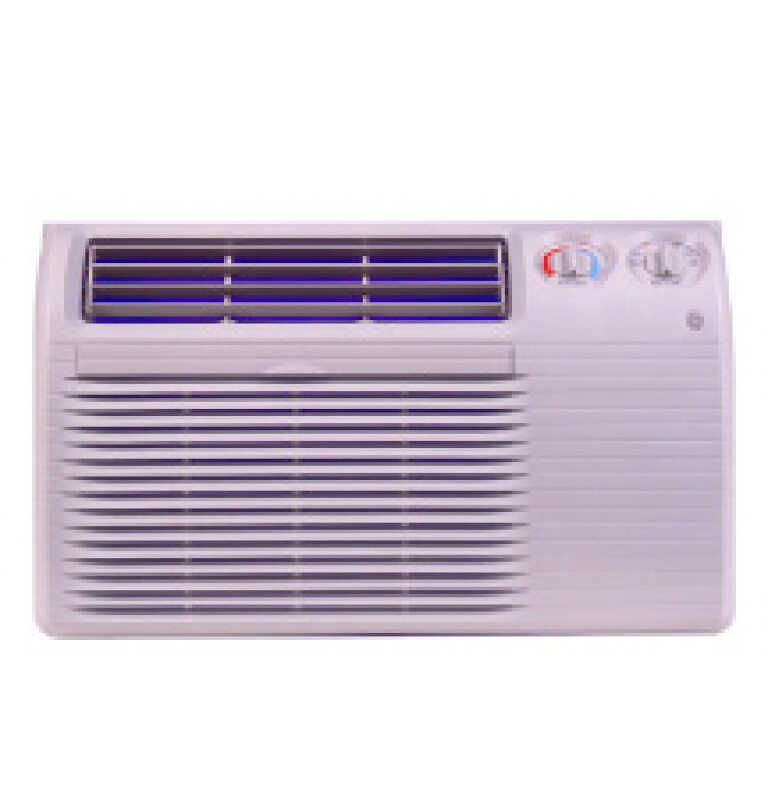

"J Series" Built-In Cool Unit (11,600/11,400 BTUH) - AJCS12DC

This product has been discontinued by the manufacture and is no longer available.

"J Series" Built-In Cool Unit (11,600/11,400 BTUH)

Model: AJCS12DC

"J Series" Built-In Cool Unit (11,600/11,400 BTUH) AJCS12DC
"J Series" Built-In Cool Unit (11,600/11,400 BTUH) AJCS12DC

Color : White

"J Series" Built-In Cool Unit (11,600/11,400 BTUH) AJCS12DC
White

Key Features

  • Decorative warm gray-beige front

  • 11,600 / 11,400 BTU, 9.0 / 9.0 E.E.R., 230 / 208 Volts

  • Fan cycle switch for reduced energy consumption

  • 10-position thermostat

  • 2 cooling / 2 fan only speeds

  • Wall installation

  • Plug type - tandem

  • Wall case - optional accessory (RAB46 / 47 / 48)

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

Decorative warm gray-beige front

11,600 / 11,400 BTU, 9.0 / 9.0 E.E.R., 230 / 208 Volts

Fan cycle switch for reduced energy consumption

10-position thermostat

2 cooling / 2 fan only speeds

Wall installation

Plug type - tandem

Wall case - optional accessory (RAB46 / 47 / 48)

Slide-out chassis

Exhaust for air exchange

Slide-out filter for easy cleaning

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight92 lb
Net Weight84 lb
Overall Depth16 7/8 in
Overall Height15 5/8 in

Dimensions & Weight

Width26 in.
Height15.63 in.
Length16.88 in.
Weight84 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length21.88 in.
Shipping Weight124 lbs.
Total of Shipping Weight124 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement3.97 ft³
Dimensional Weight49.32 lbs.
Total of Cubes3.97 ft³
Total of Dimensional Weight49.32 lbs.

FEATURES

Louver Style4-Way Air Direction
Fan Speed Selections2 Fan Only
Optional GrillRAG14
Air DischargeMulti-Directional
Line Cord Recommended Circuit Prot. (time delay)15 Amps
Filter TypeSlide-Out
StyleWall Mount Only
Chassis TypeSlide-Out
Vent/Air Exchange ExhaustAir Exchange Exhaust
Plug TypeTandem
Thermostat Type10-Position
Rotary CompressorYes
Unit TypeCool Only
Airflow (cfm) Roomside250/210
Fan Speed Selections2 Cooling
Filter TypeQuick Clean

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed refrigerating system
Parts WarrantyLimited 5-year sealed refrigerating system
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM6.1/6.6
Cooling - Watts1350/1330
Voltage (MIN)208 V
Voltage (MAX)230 V

ECONOMICAL / QUIET

Energy SaverYes

ACCESSORIES

Wall CaseRAB46/47/48 Required At Additional Cost

APPEARANCE

InstallationOptional
Color AppearanceCameo White

CAPACITY

Cooling EER (BTUH / Watt)9.0/9.0
Dehumidification (pts./hr.)3.2
Cooling BTUH (MAX)11,600 Btu
Cooling BTUH (MIN)11,400 Btu
