230/208 Volt Built-In Cool-Only Room Air Conditioner - AJCM10DCE

This product has been discontinued by the manufacture and is no longer available.

230/208 Volt Built-In Cool-Only Room Air Conditioner

Model: AJCM10DCE

230/208 Volt Built-In Cool-Only Room Air Conditioner AJCM10DCE230/208 Volt Built-In Cool-Only Room Air Conditioner AJCM10DCE230/208 Volt Built-In Cool-Only Room Air Conditioner AJCM10DCE
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCM10DCE
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCM10DCE
230/208 Volt Built-In Cool-Only Room Air Conditioner AJCM10DCE

Color : Gray

230/208 Volt Built-In Cool-Only Room Air Conditioner AJCM10DCE
Gray

Key Features

  • 10,300 / 10,000 cooling BTU

  • 9.8 / 9.8 EER

  • R-410A refrigerant

  • Electronic controls with remote

  • Electronic digital thermostat control

  • 4-way air direction

  • Upfront, washable air filter

  • 3 cooling / 3 fan only speeds

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

10,300 / 10,000 cooling BTU

9.8 / 9.8 EER

R-410A refrigerant

Electronic controls with remote

Electronic digital thermostat control

4-way air direction

Upfront, washable air filter

3 cooling / 3 fan only speeds

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

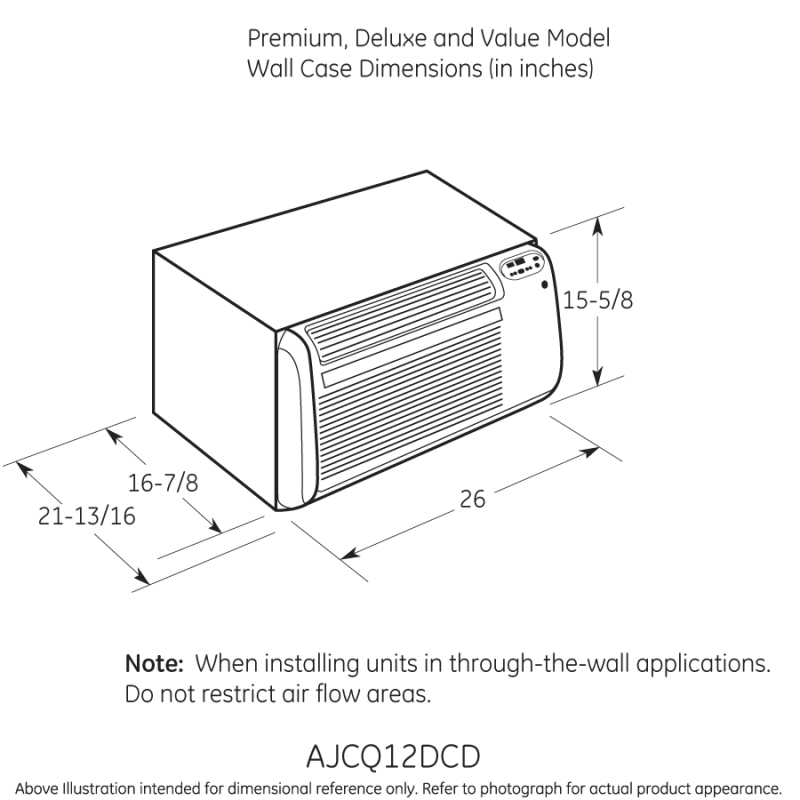

WEIGHTS & DIMENSIONS

Overall Width26 in
Approximate Shipping Weight88 lb
Overall Height (Excludes Sleeve)14.875 in
Overall Depth (Excludes Sleeve)19.90625 in
Overall Width (Excludes Sleeve)24.8125 in
Net Weight75 lb
Overall Depth21 13/16 in
Overall Height15 5/8 in

Dimensions & Weight

Width26 in.
Height15.63 in.
Length21.81 in.
Weight75 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width31 in.
Shipping Height20.63 in.
Shipping Length26.81 in.
Shipping Weight115 lbs.
Total of Shipping Weight115 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.13 ft³
Dimensional Weight63.75 lbs.
Total of Cubes5.13 ft³
Total of Dimensional Weight63.75 lbs.

FEATURES

Louver Style4-Way Air Direction
Control TypeElectronic
Fan Speed Selections3 Fan Only
Refrigerant TypeR410A
Air DischargeOver / Under
StyleThru-Wall
Chassis TypeSlide-Out
Plug TypeTandem/Right Angle/LCDI
Thermostat TypeElectronic Digital
Temperature Range60->85 F
Cord Length68"
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Unit TypeCool Only
Filter TypeRigid Frame
Airflow (cfm) Roomside290/270/250, 280/260/240
Room Air Conditioner FeaturesBatteries Included
Filter TypeWashable
Room Air Conditioner FeaturesSmart Fan Switch
Fan Speed Selections3 Cooling
Filter TypeEZ Slide-Out
Room Air Conditioner Features24 Hr. Timer
Room Air Conditioner FeaturesSleep Auto 8 Hr. Timer
Room Air Conditioner FeaturesRemote Control
Room Air Conditioner FeaturesPower Interruption Restart

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed refrigerating system
Parts WarrantyLimited 5-year sealed refrigerating system
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance

POWER / RATINGS

Cooling - Rated Cooling Amps AHAM4.7/5.1
Cooling - Watts1050/1020
Voltage/Hertz/Phase230-208/60/1

ACCESSORIES

Wall CaseRAB46A/RAB48B Required At Additional Cost

APPEARANCE

InstallationWall Mounted
Color AppearanceSoft Gray
InstallationHigh Mount

CAPACITY

Cooling EER (BTUH / Watt)9.8/9.8
Dehumidification (pts./hr.)2.7/2.7
Cooling BTUH (MAX)10,300 Btu
Cooling BTUH (MIN)10,000 Btu
