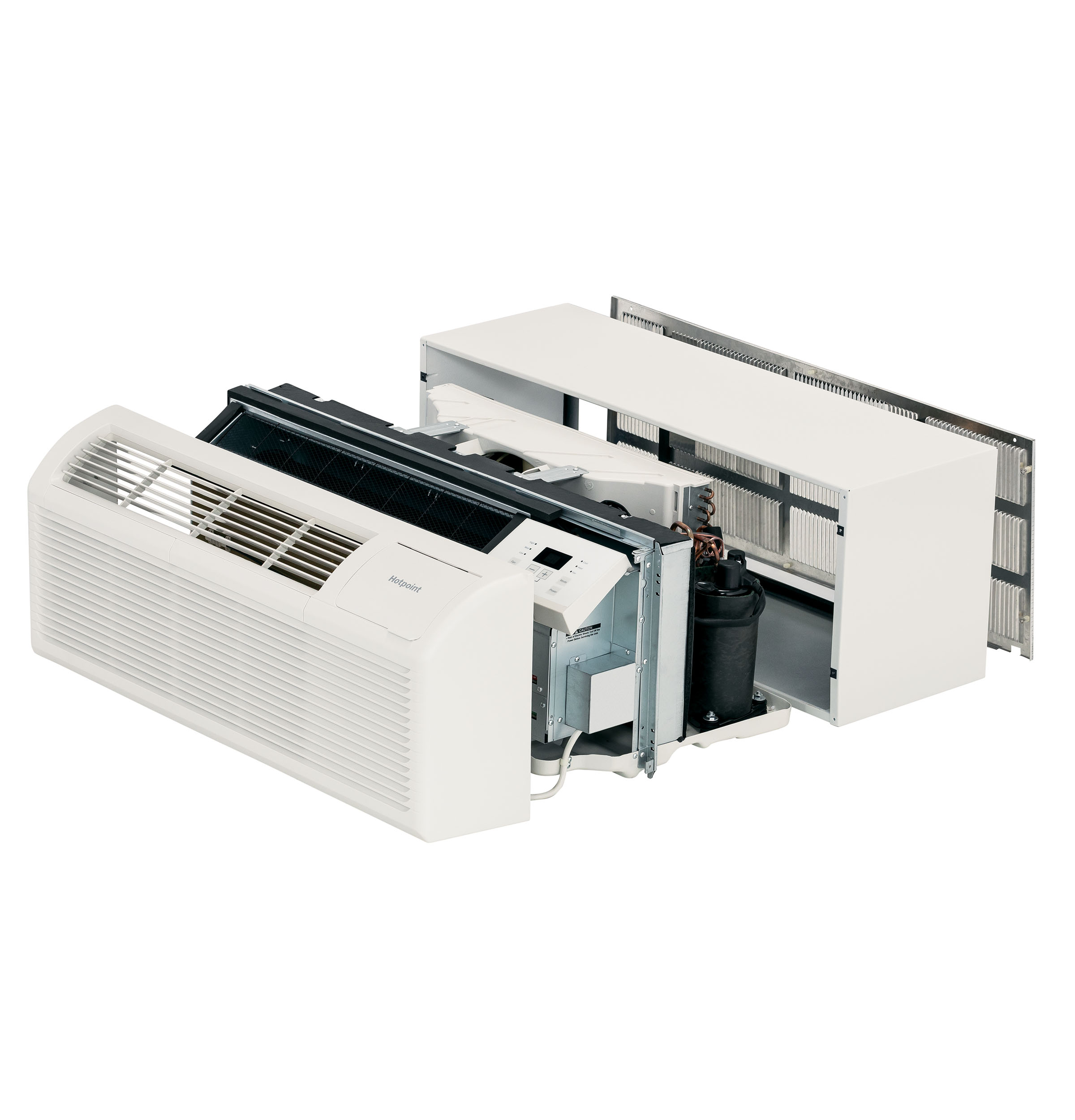

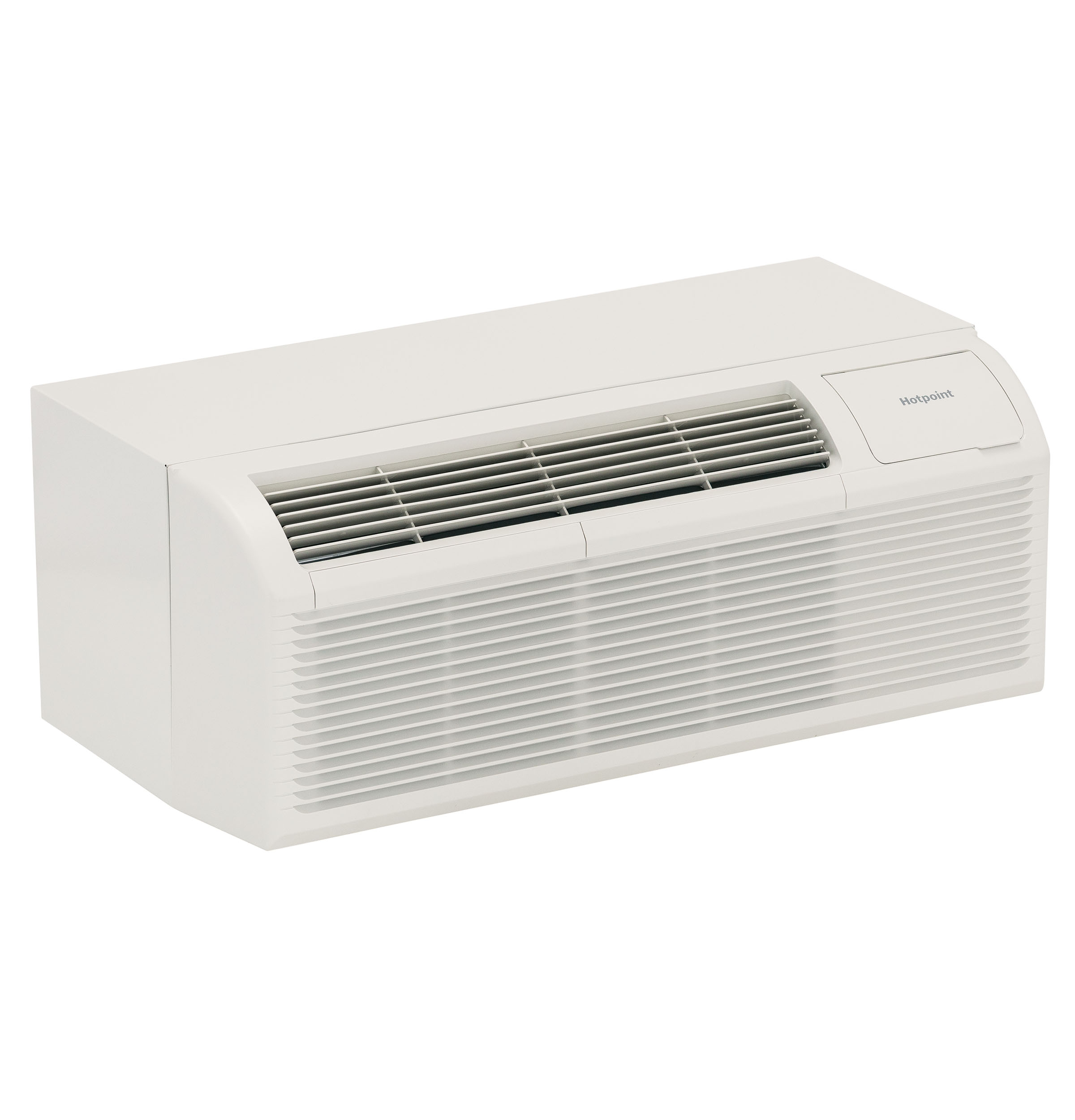

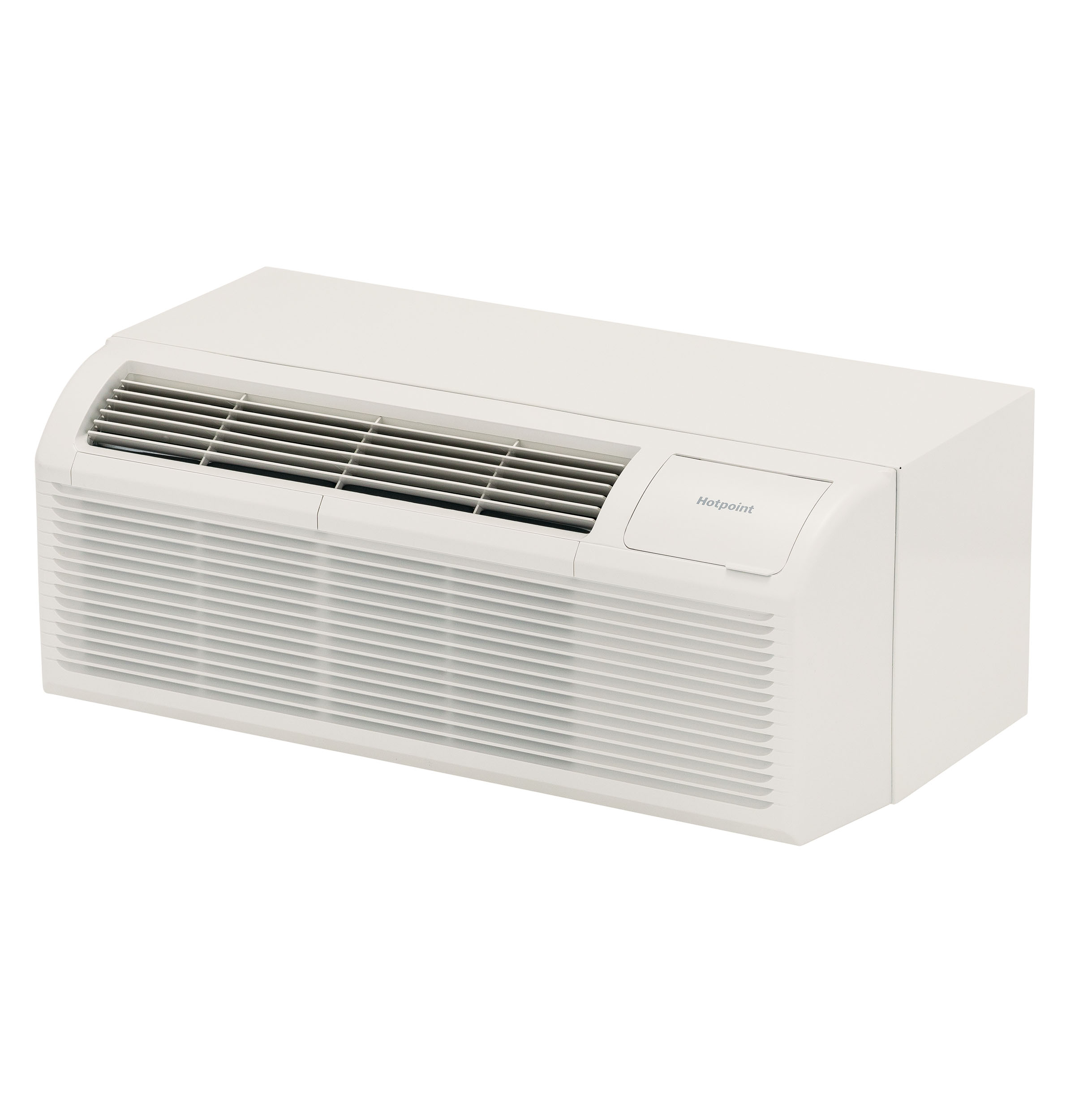

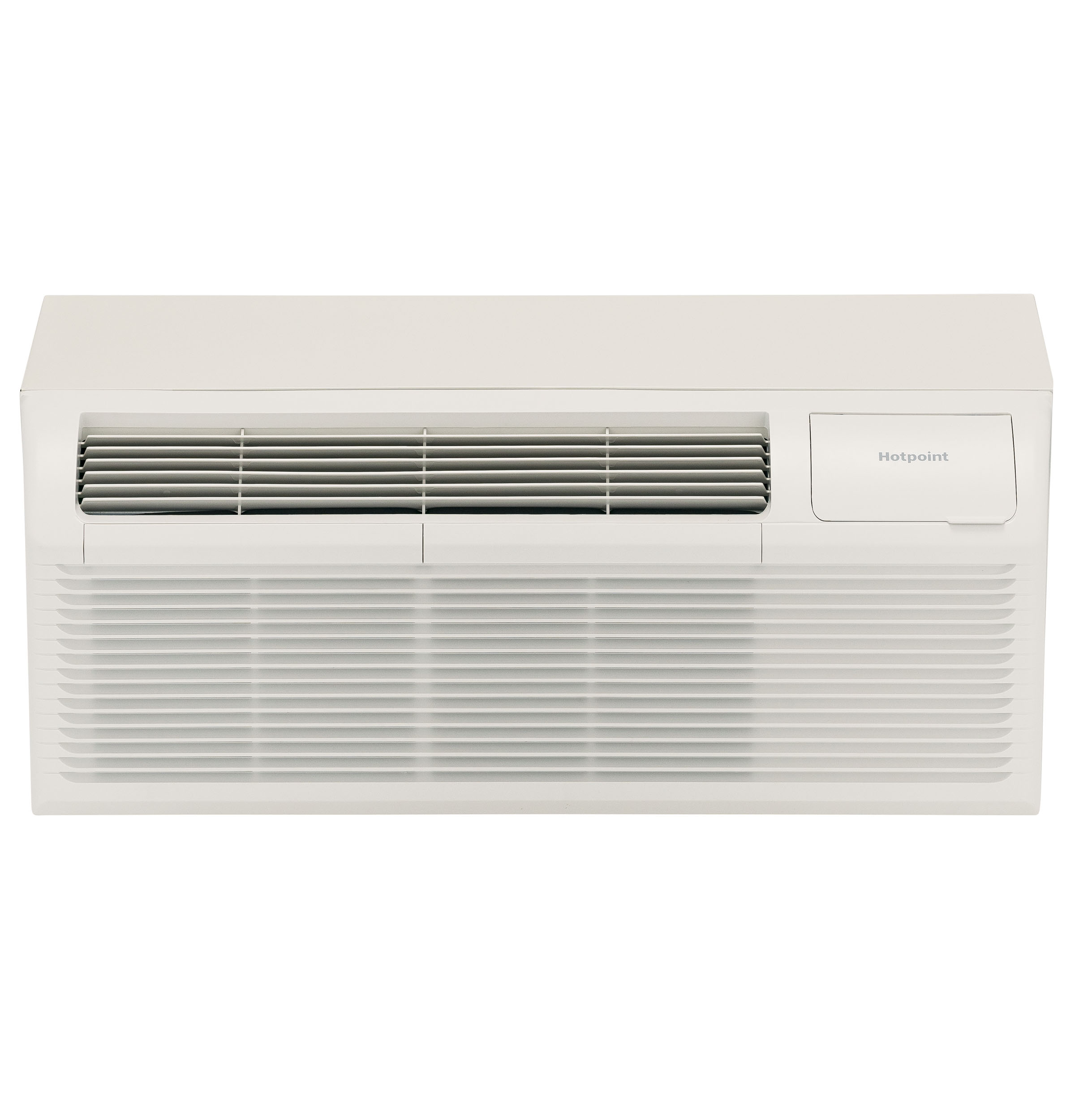

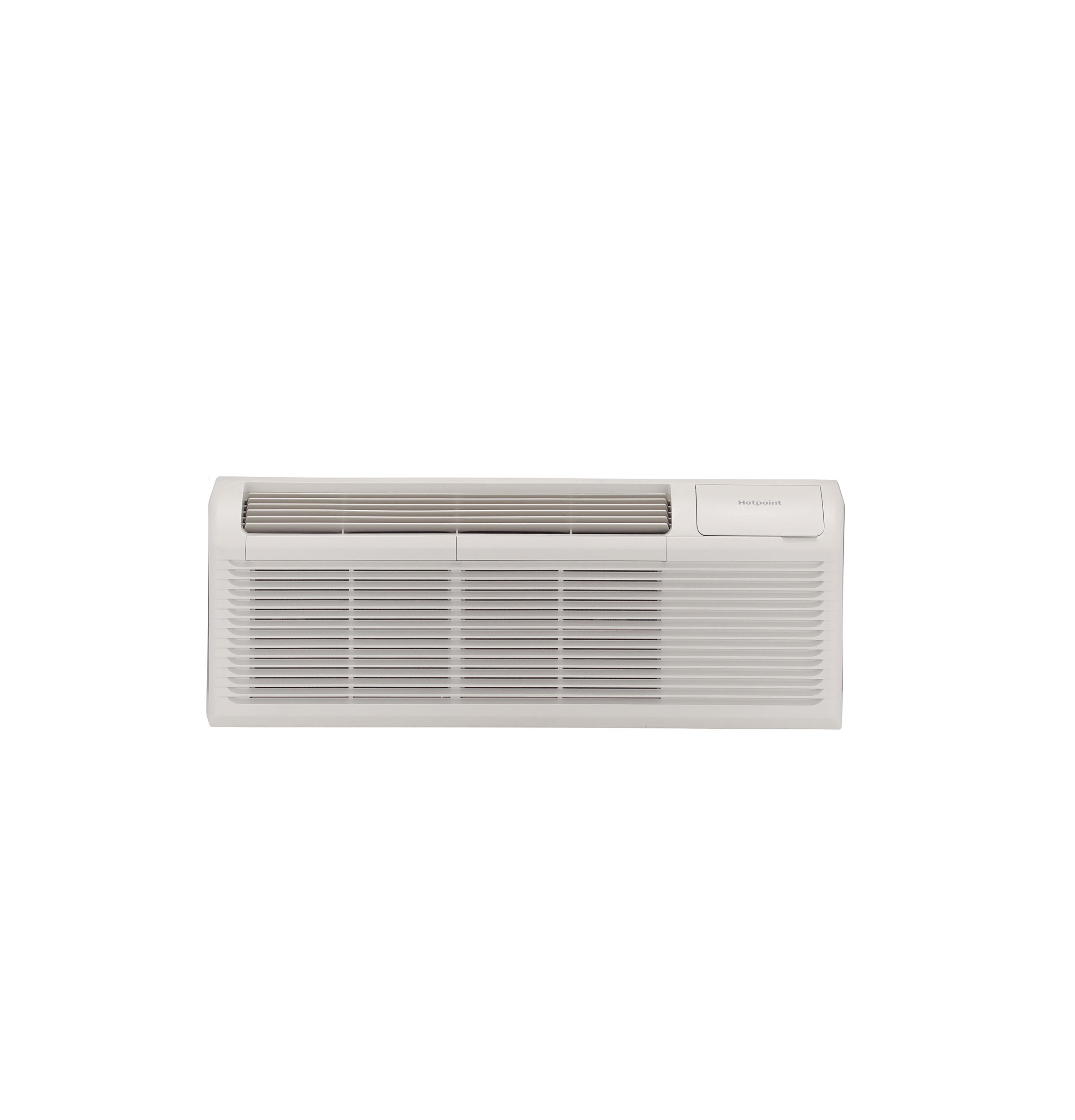

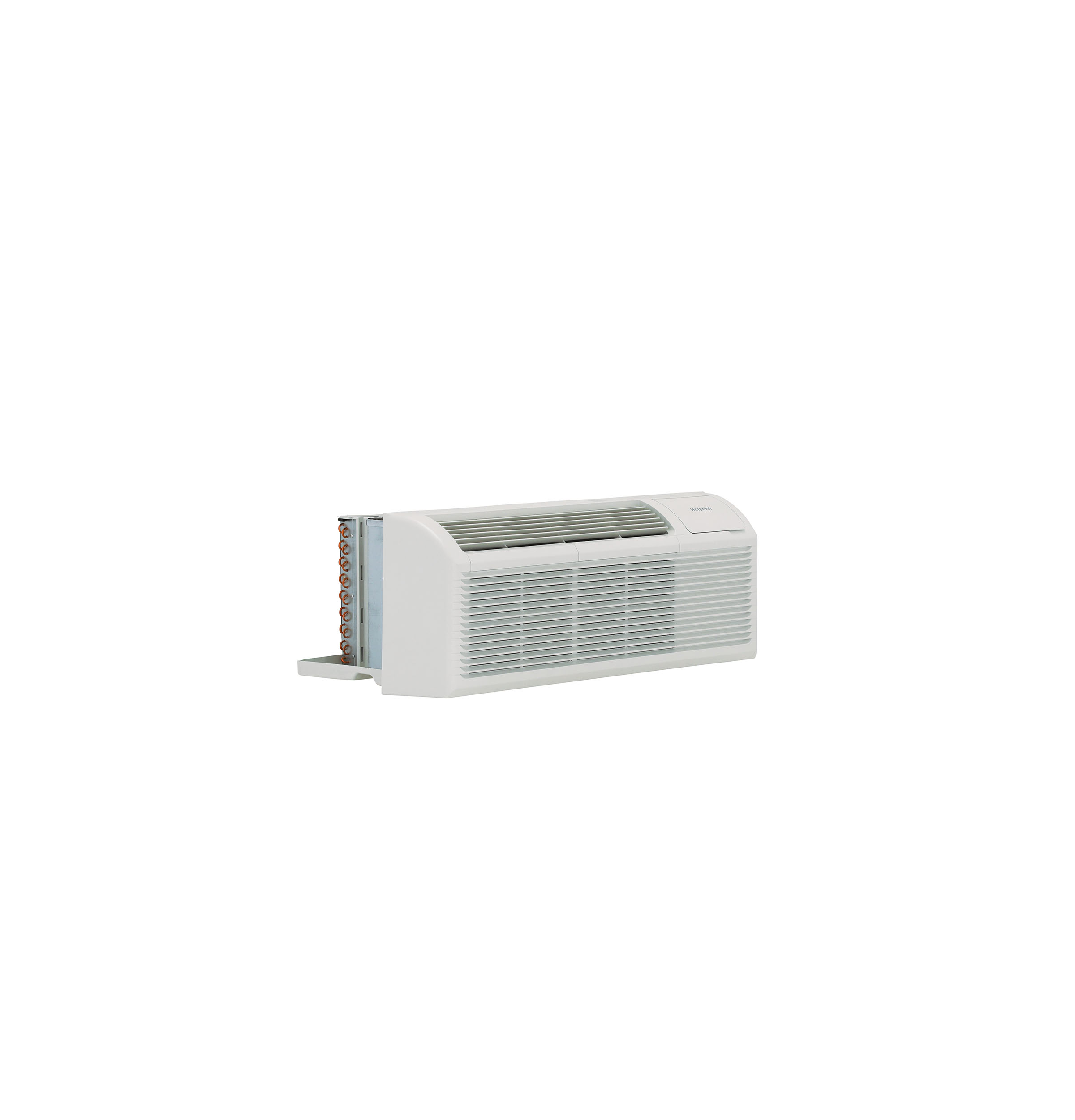

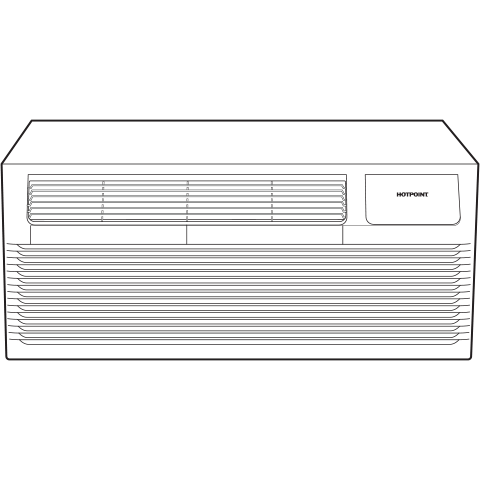

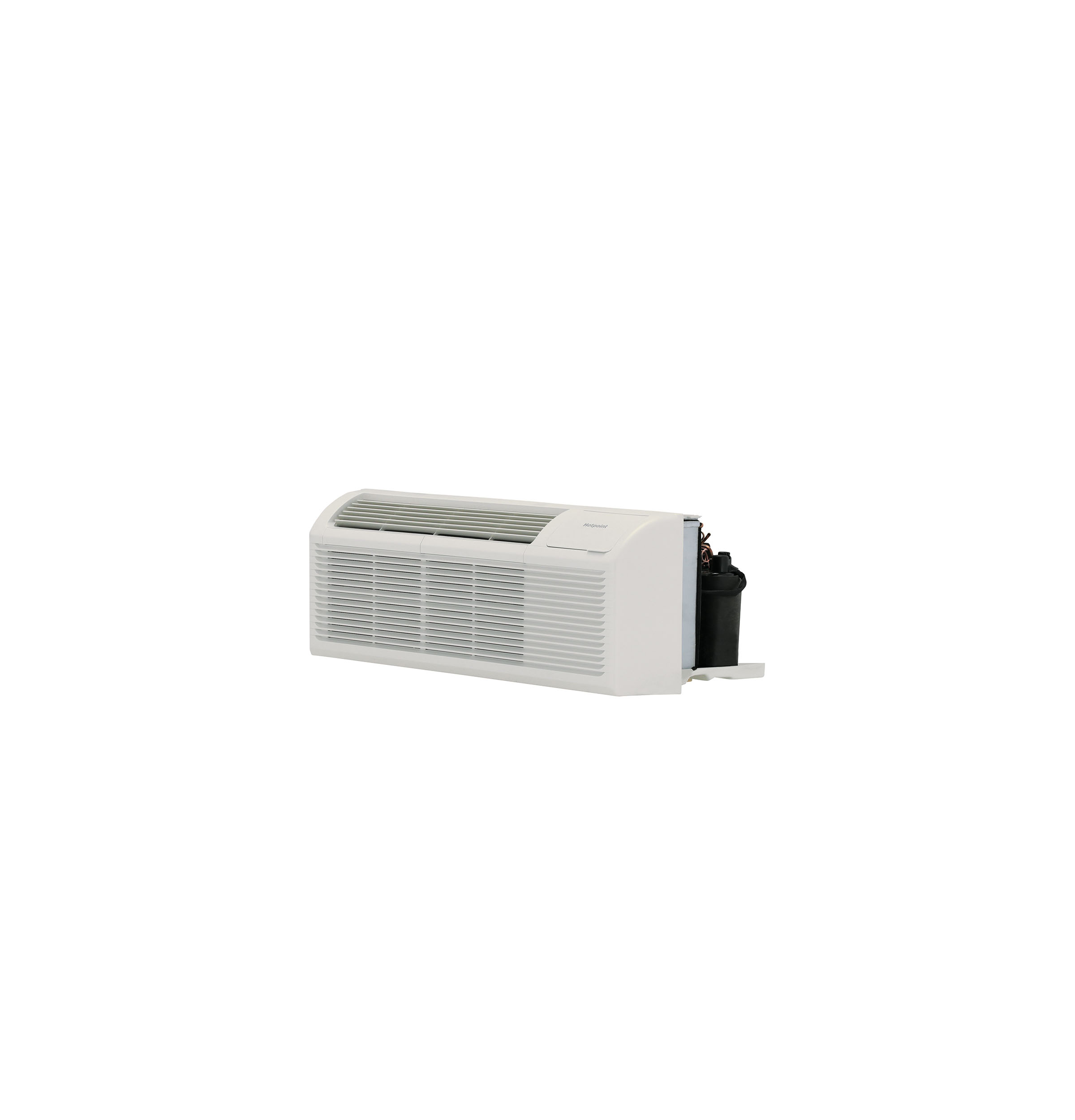

PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp - AH12H07D2B

This product has been discontinued by the manufacture and is no longer available.

PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp

Model: AH12H07D2B

PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2BPTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2B
PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2B
PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2B
PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2B
PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2B
PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2B
+17more

Color : White

PTAC Heat Pump Unit with Electric Heat Backup 7,000 BTU, 230/208V, 15amp AH12H07D2B
White

Key Features

  • 3-speed fan

  • 4-temperature limiting options

  • Freeze and frost protection

  • Auto power recovery

  • Self diagnostics

  • Automatic emergency heat

  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

  • Backed by an industry leader

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options

Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection

Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery

In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics

Quickly and easily identify service needs with a nine-point diagnostic code system

Automatic emergency heat

Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

Backed by an industry leader

With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

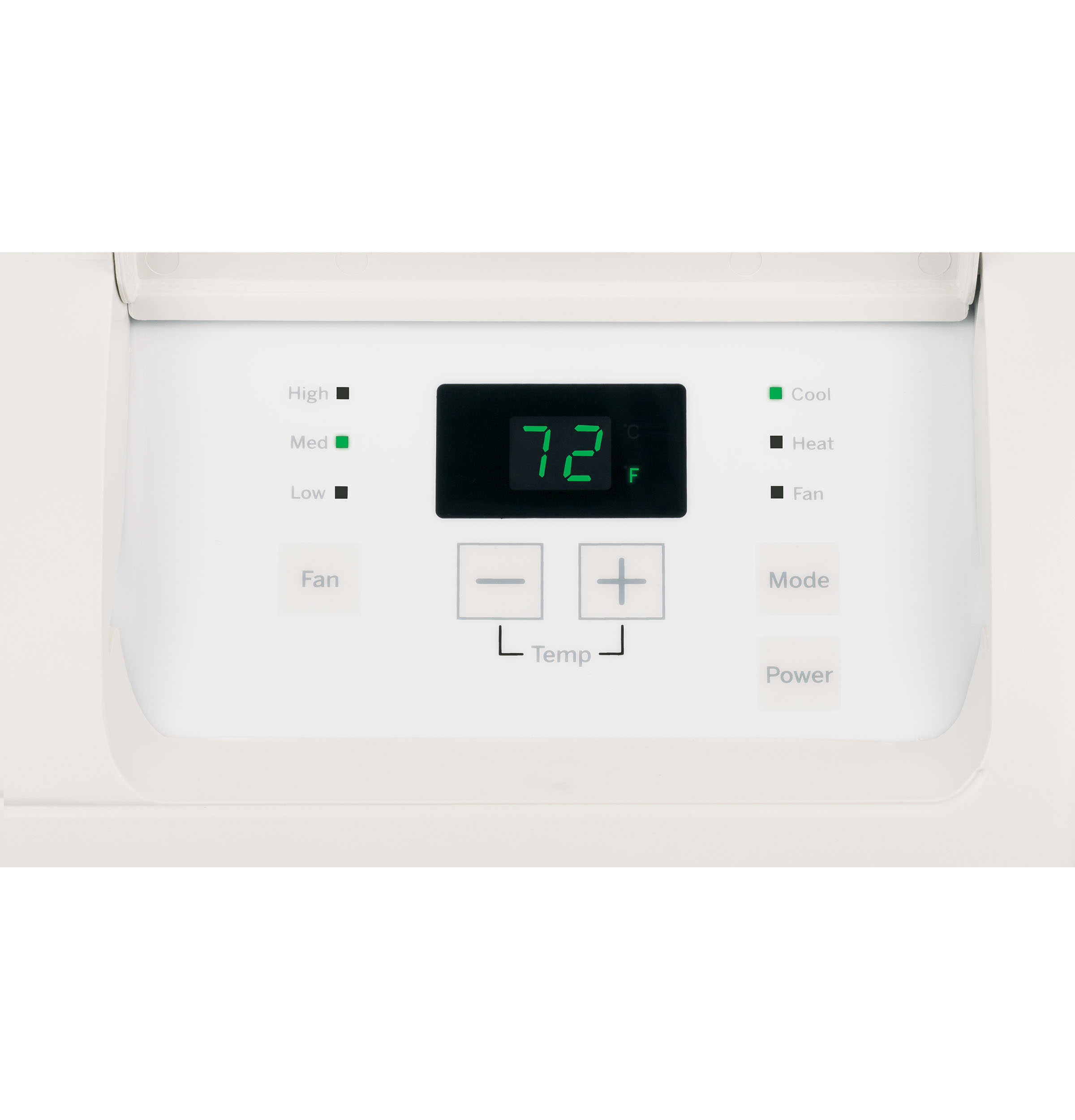

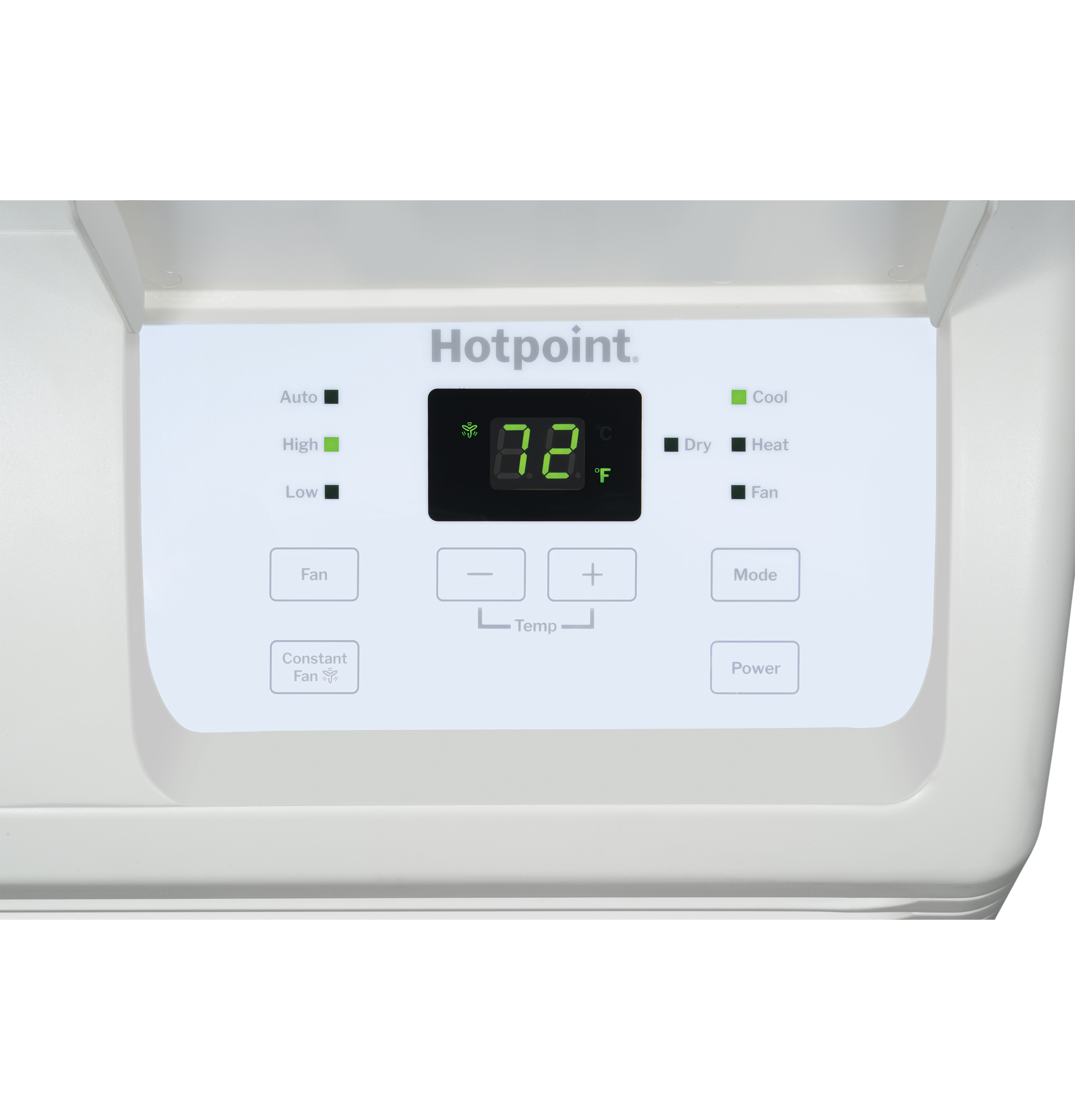

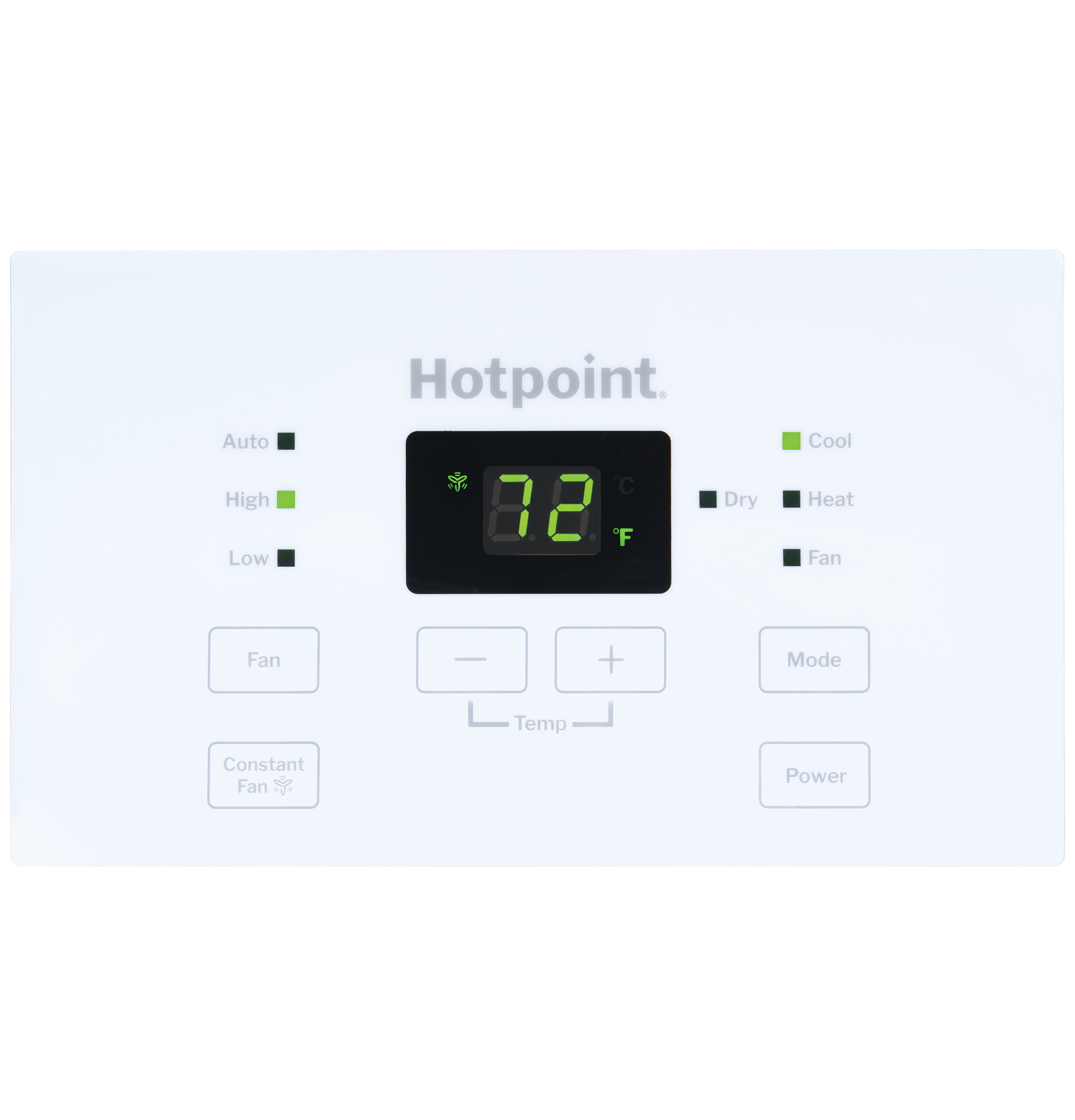

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Remote thermostat compatibility

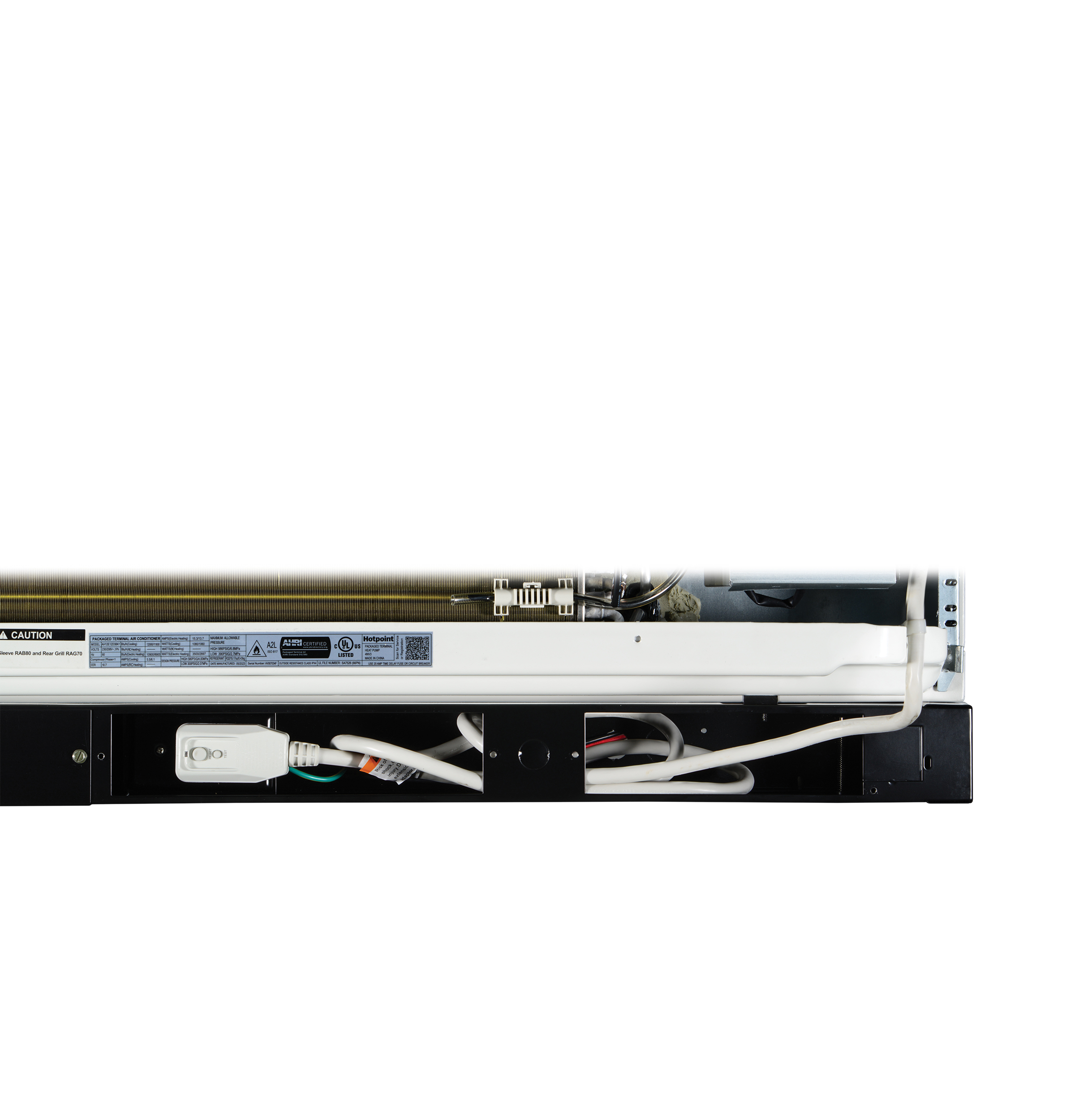

Power cord (LCDI) included

Hotpoint PTACs come with everything needed for a quick and easy installation

Works with central desk control systems

Heatpump models include staged heating

Tangential fan for air flow and smooth sound

Energy-efficient heat pump models available

Certifications

AHRI certification

AHRI

CSA certification

CSA

CUL certification

CUL

NRCAN certification

NRCAN

UL certification

UL

Specifications

CAPACITY

Cooling BTUH (MAX)7200 Btu
CFM Indoor Fan Low240
CFM Indoor Fan Medium281
CFM Indoor Fan High335
Cooling EER (BTUH / Watt)11.9
Heating - Reverse Cycle - BTUH6000/5800
Cooling BTUH (MIN)6800 Btu

FEATURES

Control TypeElectronic
Fan Speed Selections3 Heating
Discharge Grille2-position
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR32
Manual Vent ControlHidden
"SmartFan" Fan CycleYes
Chassis TypeSlide-In
Fan Motor2
Heat PumpYes
Unit FeaturesRemote Thermostat Compatibility
Temperature Range62 - 80 F
Auto Power RecoveryYes
Heat - CoolYes
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Heating - Reverse Cycle - COP3.4

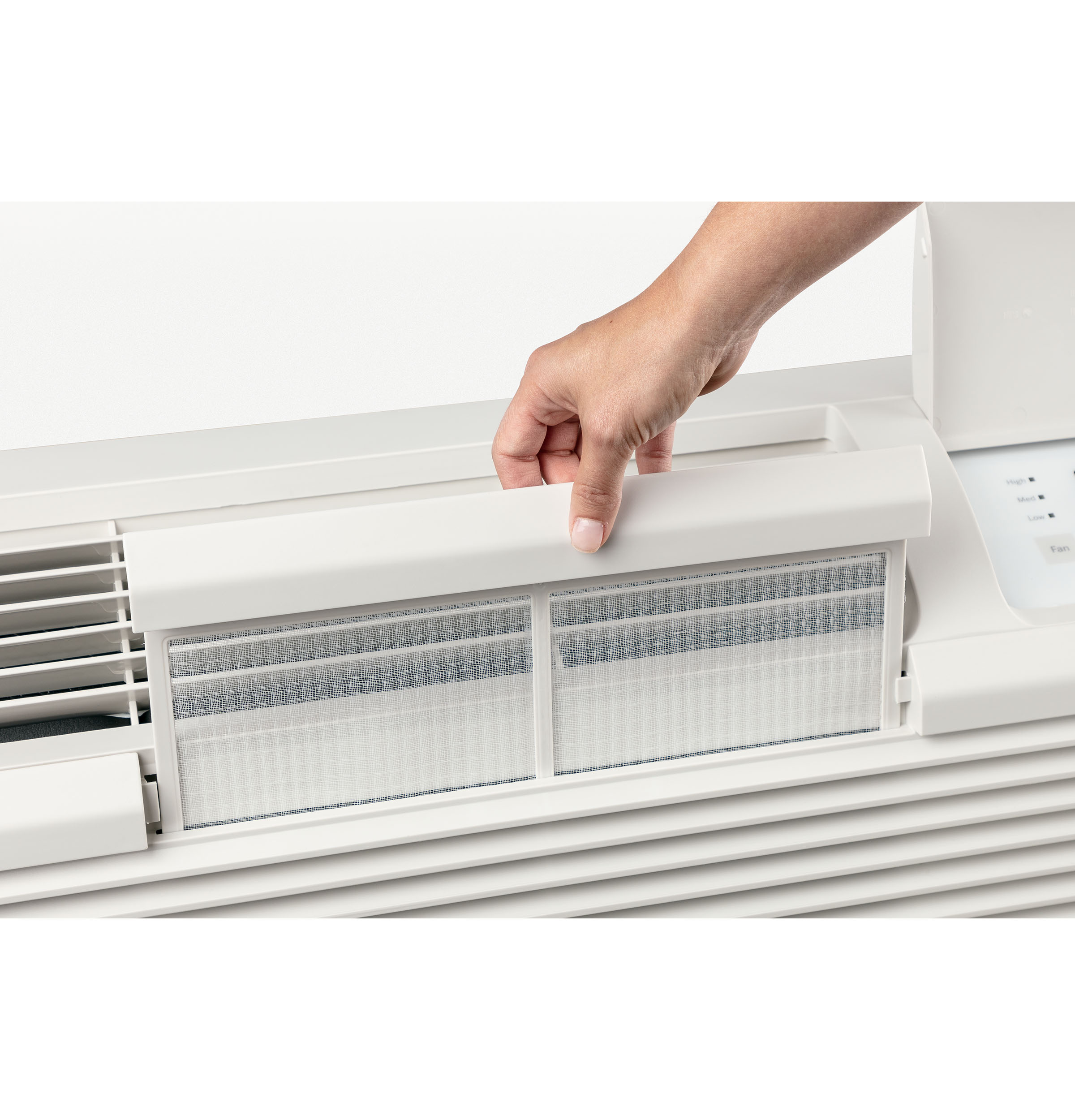

Venting FeaturesVent Air Filter
Heating SystemHeat Pump with Resistance Backup

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed refrigerating system
Parts WarrantyLimited 5-year sealed refrigerating system

POWER / RATINGS

Heating - Reverse Cycle - Watts515/500
Cooling - Amperes2.4/2.6
Heating - Reverse Cycle - Amps2.22/2.38
Cooling - Watts605/570
Heating - Electric - Heater Watts2535/2080
Voltage (MIN)208 V
Voltage (MAX)230 V
Heating - Electric - Heater Amps10.8/9.8

APPEARANCE

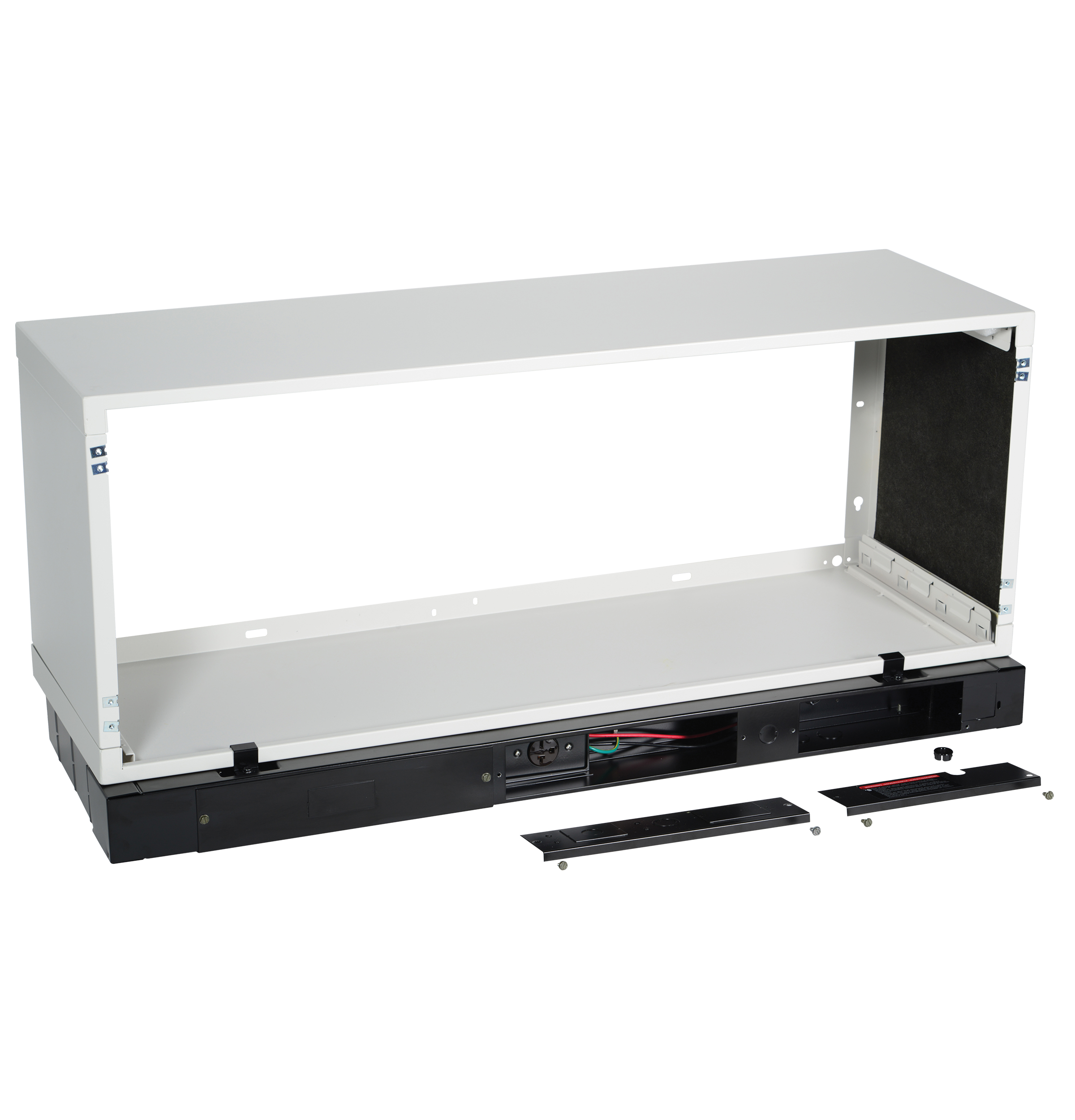

InstallationThrough-the-Wall
Color AppearanceWhite

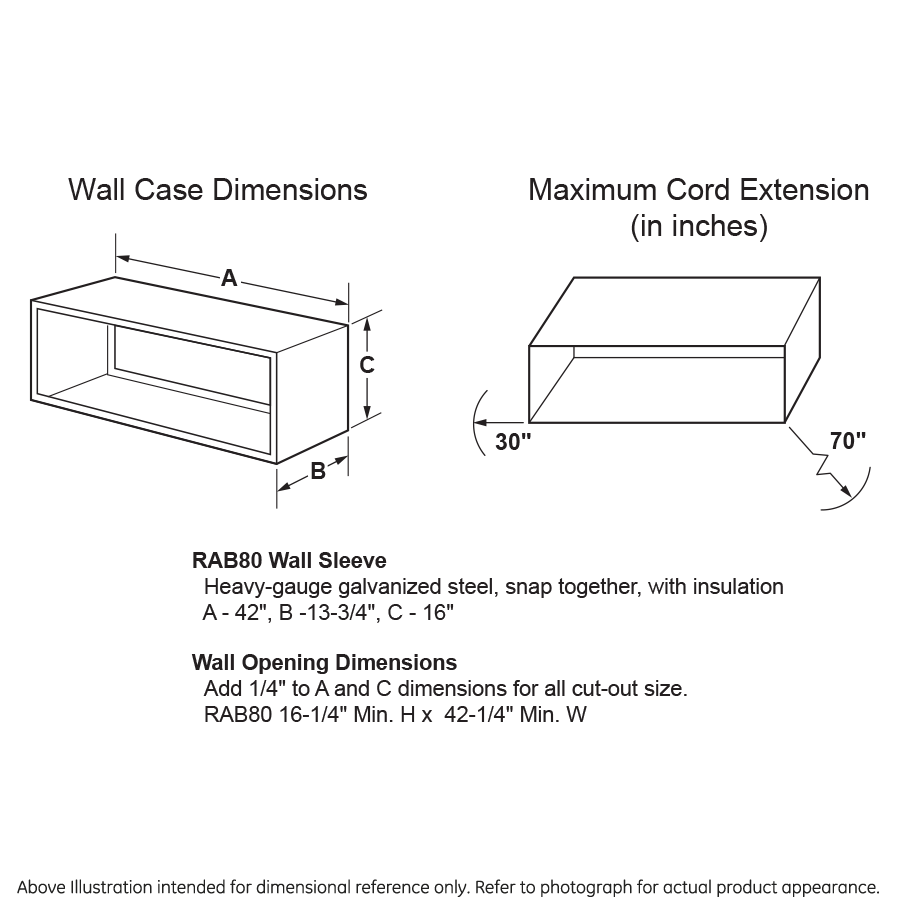

Dimensions & Weight

Width42.4 in.
Height16 in.
Length20.9 in.
Weight104.7 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47.4 in.
Shipping Height21 in.
Shipping Length25.9 in.
Shipping Weight144.7 lbs.
Total of Shipping Weight144.7 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.21 ft³
Dimensional Weight102 lbs.
Total of Cubes8.21 ft³
Total of Dimensional Weight102 lbs.
