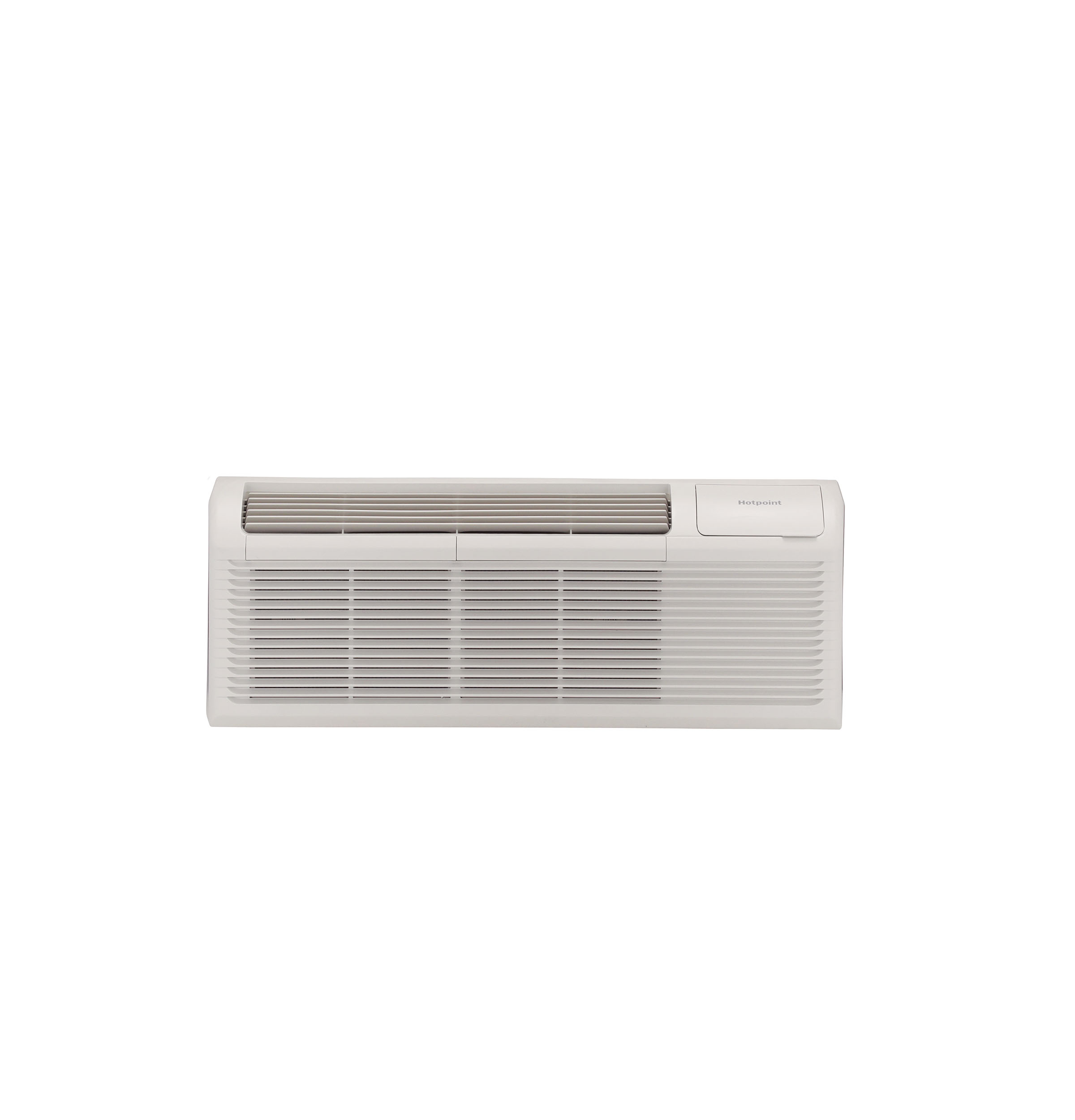

Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp - AH12E15D5B

This product has been discontinued by the manufacture and is no longer available.

Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp

Model: AH12E15D5B

Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5BHotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5BHotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5BHotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5BHotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5BHotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5BHotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5BHotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5BHotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5B
Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5B
Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5B
Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5B
Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5B
Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5B
+4more

Color : White

Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 30amp AH12E15D5B
White

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Specifications
Certifications

Certifications

AHRI certification

AHRI

CSA certification

CSA

CUL certification

CUL

NRCAN certification

NRCAN

UL certification

UL

Specifications

CAPACITY

Cooling BTUH (MAX)14500 Btu
CFM Indoor Fan Low315
CFM Indoor Fan Medium348
CFM Indoor Fan High375
Cooling EER (BTUH / Watt)9.7
Cooling BTUH (MIN)14400 Btu

FEATURES

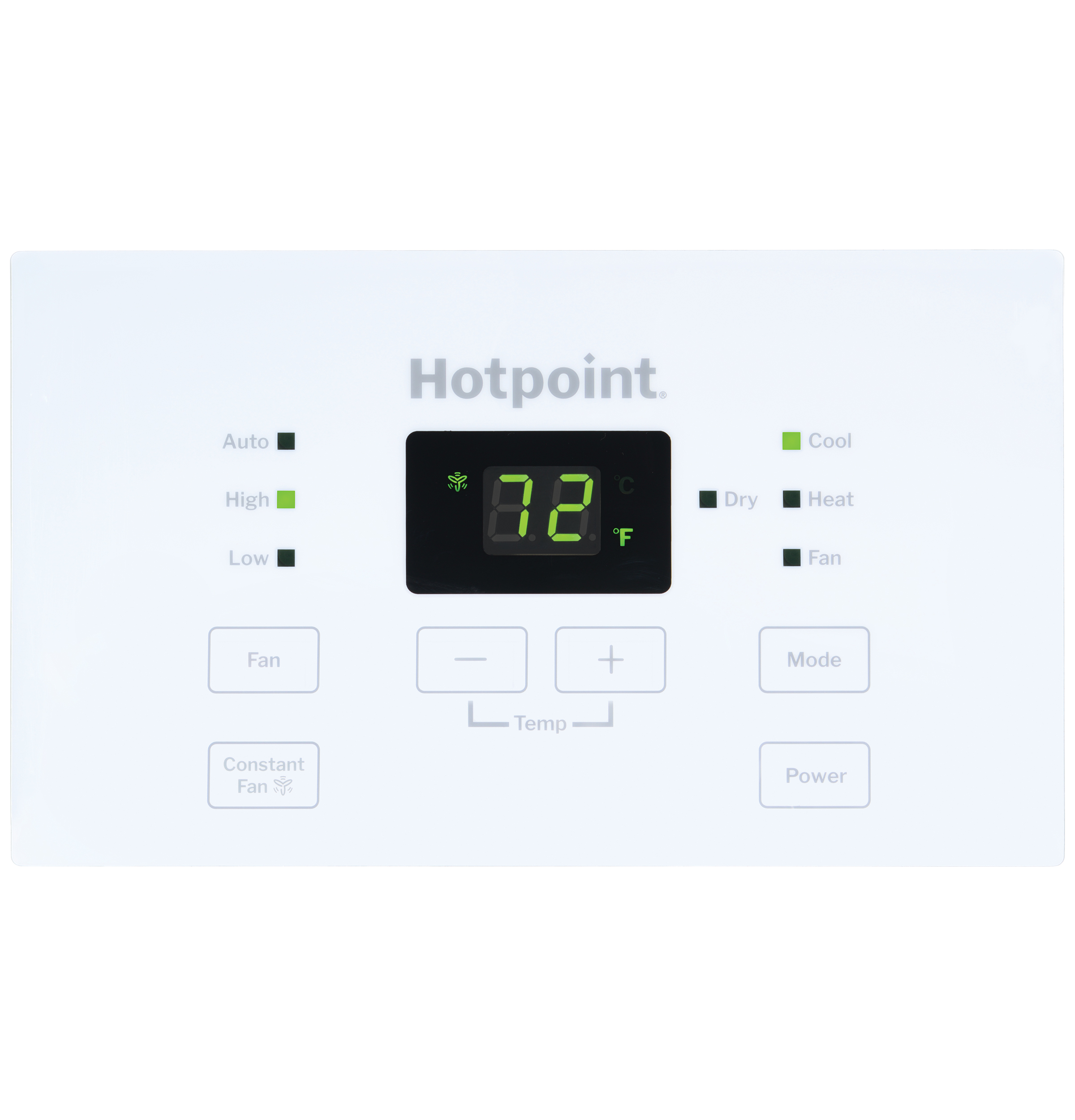

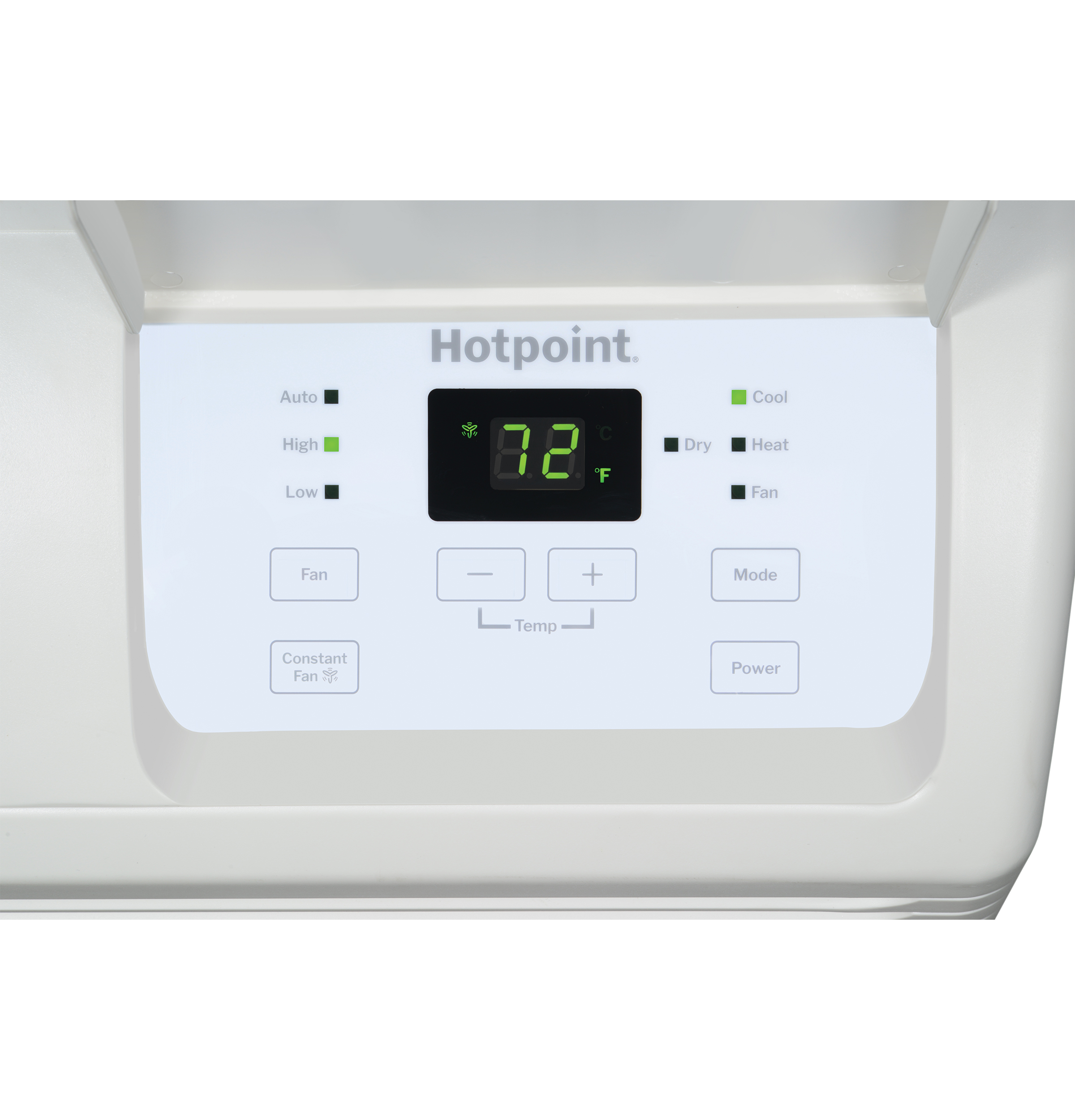

Control TypeElectronic
Fan Speed Selections3 Heating
Discharge Grille2-position
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR32
Manual Vent ControlHidden
"SmartFan" Fan CycleYes
Chassis TypeSlide-In
Fan Motor2
Unit FeaturesRemote Thermostat Compatibility
Temperature Range62 - 80 F
Heat - CoolYes
Auto Power RecoveryYes
Rotary CompressorYes
Outdoor Vent / ExhaustYes
Venting FeaturesVent Air Filter
Heating SystemElectric Resistance

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed refrigerating system
Parts WarrantyLimited 5-year sealed refrigerating system

POWER / RATINGS

Cooling - Amperes6.0/6.58
Cooling - Watts1490/1480
Voltage (MIN)208 V
Heating - Electric - Heater Watts5035/4124
Voltage (MAX)230 V
Heating - Electric - Heater Amps22.0/19.7

APPEARANCE

InstallationThrough-the-Wall
Color AppearanceWhite

Dimensions & Weight

Width42.4 in.
Height16 in.
Length20.9 in.
Weight113.1 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47.4 in.
Shipping Height21 in.
Shipping Length25.9 in.
Shipping Weight153.1 lbs.
Total of Shipping Weight153.1 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.21 ft³
Dimensional Weight102 lbs.
Total of Cubes8.21 ft³
Total of Dimensional Weight102 lbs.
