Hotpoint 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System - 1H12HN2DAA

This product has been discontinued by the manufacture and is no longer available.

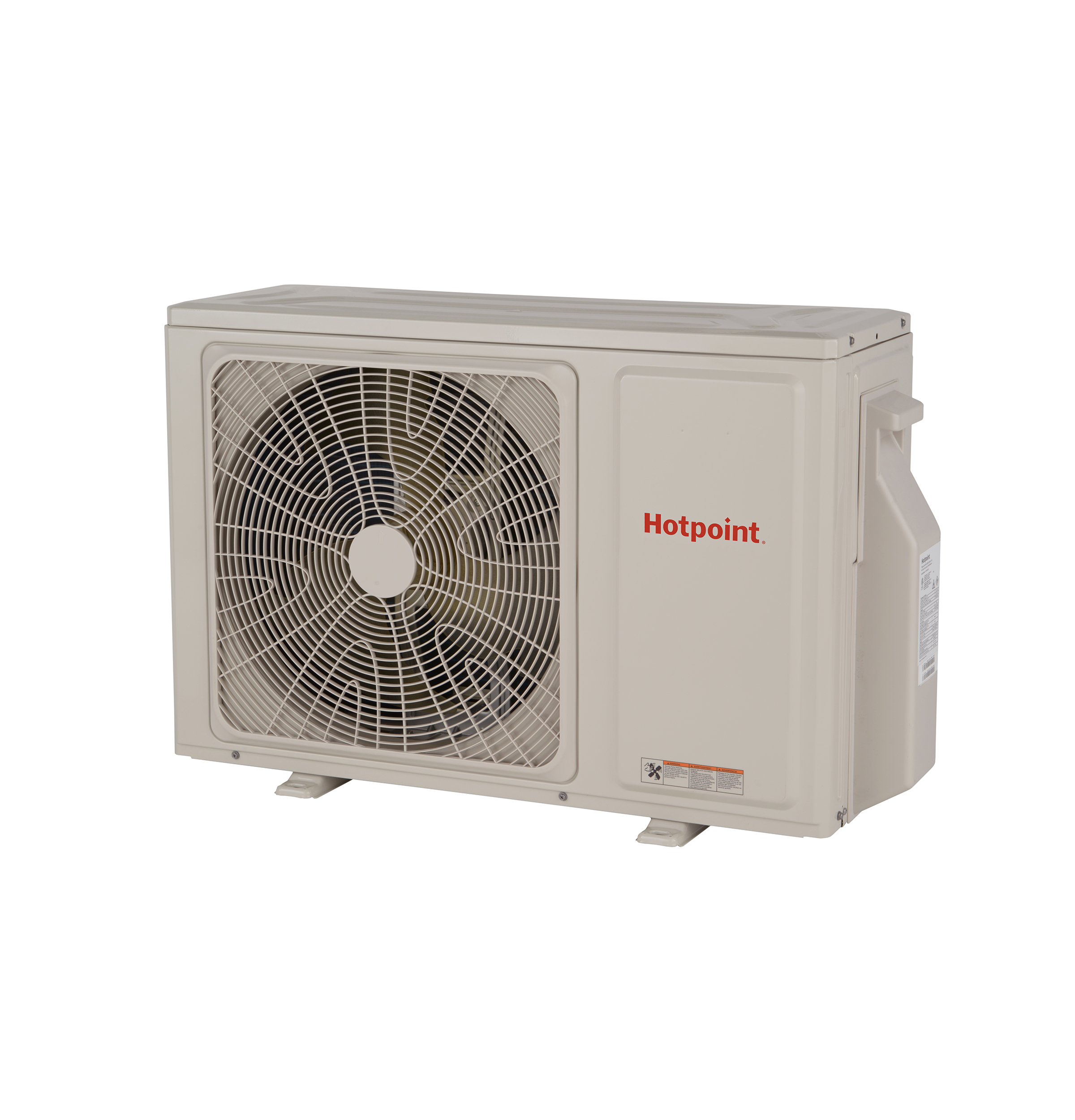

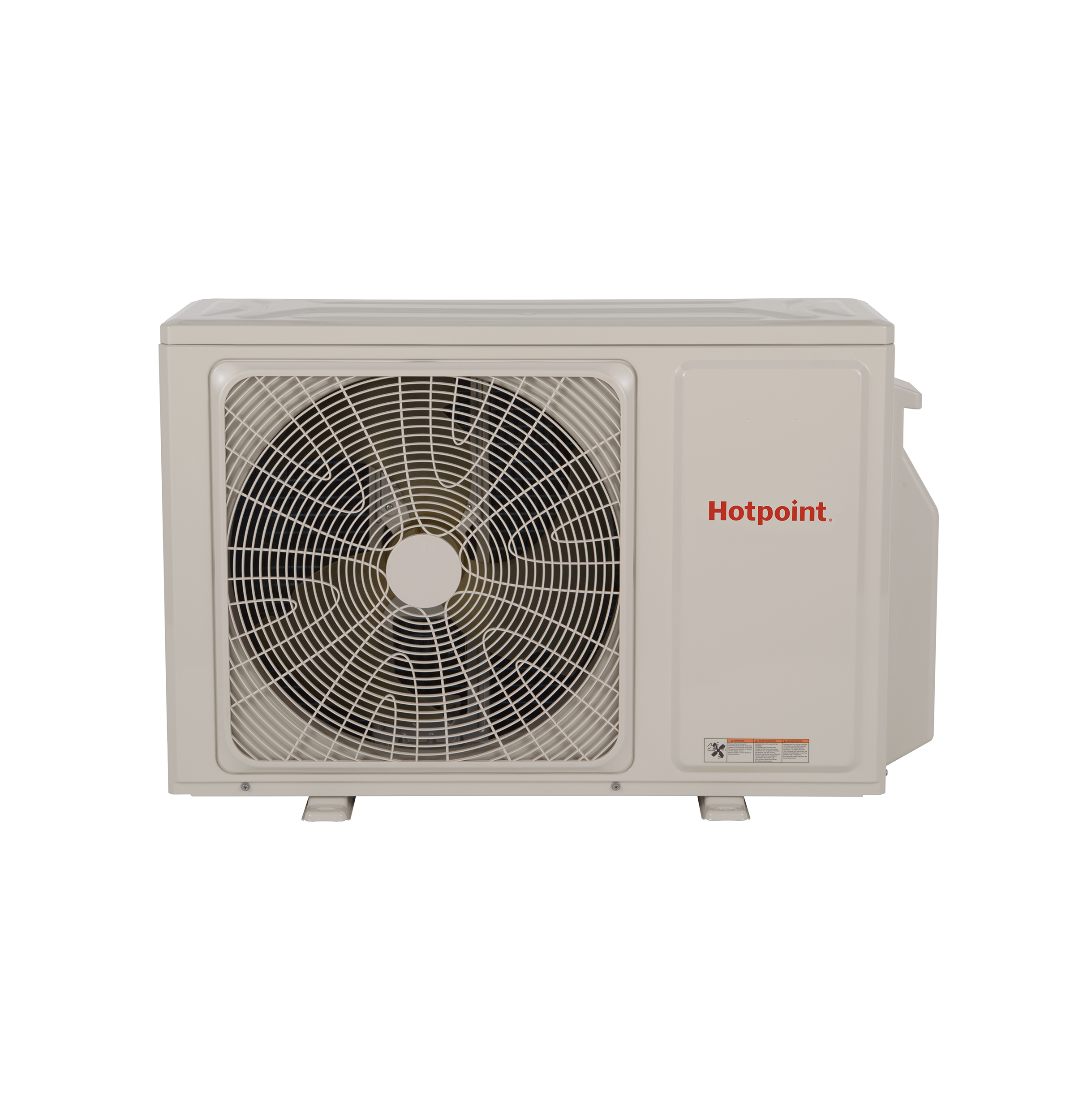

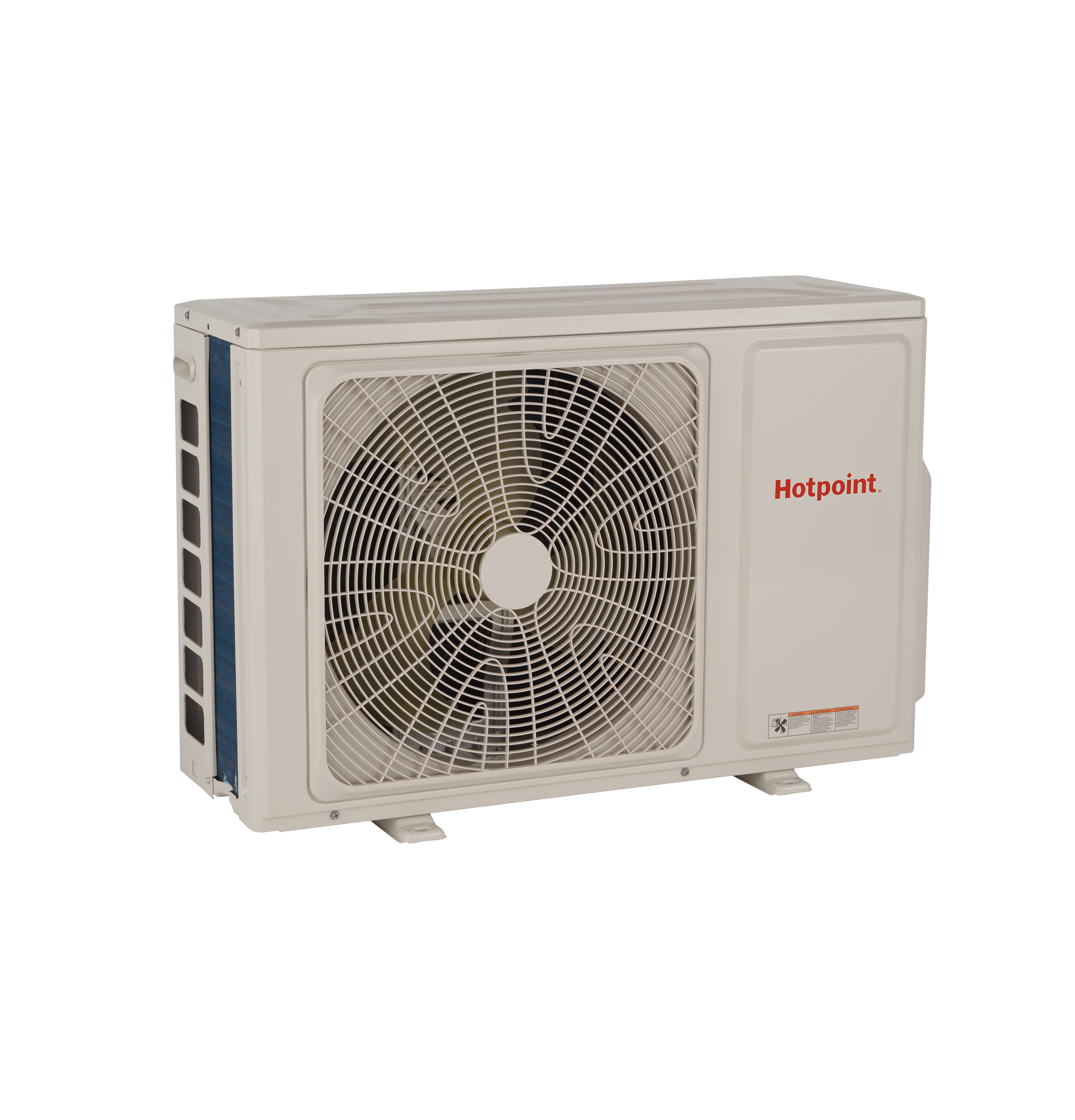

Hotpoint 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System

Model: 1H12HN2DAA

Hotpoint 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System 1H12HN2DAAHotpoint 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System 1H12HN2DAAHotpoint 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System 1H12HN2DAA
Hotpoint 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System 1H12HN2DAA
Hotpoint 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System 1H12HN2DAA
Hotpoint 208-230V 12,000 BTU Ductless Mini-Split Outdoor Heat Pump System 1H12HN2DAA

Color : Almond

product image
Almond

Key Features

  • High Efficiency Ductless Heat Pump

  • High-Performance Inverter Technology

  • All-Season Comfort

  • Built to Last

  • Protective Base Pan Heater

  • Environmentally Compliant

  • Federal & State Incentives

  • Worry-Free Warranty

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications

Features

High Efficiency Ductless Heat Pump

18 SEER2 and 9.5 HSPF2 when paired with HW12HN2DAA.

High-Performance Inverter Technology

A DC inverter compressor keeps indoor temperatures consistent in almost any climate and helps homeowners save money on energy.

All-Season Comfort

With heating down to -15°F and cooling up to 115°F, homeowners know they’re coming home to comfort — no matter the weather outside.

Built to Last

A hydrophilic aluminum fin helps prevent condensation buildup and ensures water flows through the unit smoothly.

Protective Base Pan Heater

A built-in base pan heater on outdoor units prevents systems from freezing, keeping systems operating at peak performance.

Environmentally Compliant

All Hotpoint systems use R-32 refrigerant, ensuring that they meet EPA Low GWP (A2L) refrigerant regulations.

Federal & State Incentives

Eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers. All Hotpoint heat pumps are certified CEE Tier-2 except for 24K units installed in the South region. See CEE directory for qualifying models.

Worry-Free Warranty

Unlock a 5-year limited parts and compressor warranty with registration; see warranty documentation for complete information.

See specification guide for full heating, cooling, and system details.

Specifications

FEATURES

Product TypeSingle Zone
Outdoor Noise Level55 dBA
System12K Hotpoint
Factory Charge (ounces)25.8 oz
Temperature Range - Cooling Mode14-115 F (-10-46 C)
Unit TypeOutdoor
Maximum Fuse Size A15
Temperature Range - Heating Mode-15-75 F (-26-24 C)
Maximum Line Length (Ft/M)66/20
SeriesHotpoint
ConnectionsFlare
StyleOutdoor
Rotary CompressorDC Inverter Driven Rotary
Compatible Indoor ModelsHW12HN2DAA
Maximum Height (Ft/m)33/10

POWER / RATINGS

Voltage/Hertz/Phase208-230/60/1
Minimum Circuit Amp12
Cooling Rated Capacity BTU/Hr12,000

WARRANTY

Parts WarrantySee warranty documentation for complete information

Other

Suction O.D. Refrigerant Line3/8"
Liquid O.D. Refrigerant Line1/4"

Dimensions & Weight

Width31.5 in.
Height21.75 in.
Length11 in.
Weight67.9 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width36.5 in.
Shipping Height26.75 in.
Shipping Length16 in.
Shipping Weight107.9 lbs.
Total of Shipping Weight107.9 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement4.36 ft³
Dimensional Weight54.22 lbs.
Total of Cubes4.36 ft³
Total of Dimensional Weight54.22 lbs.
