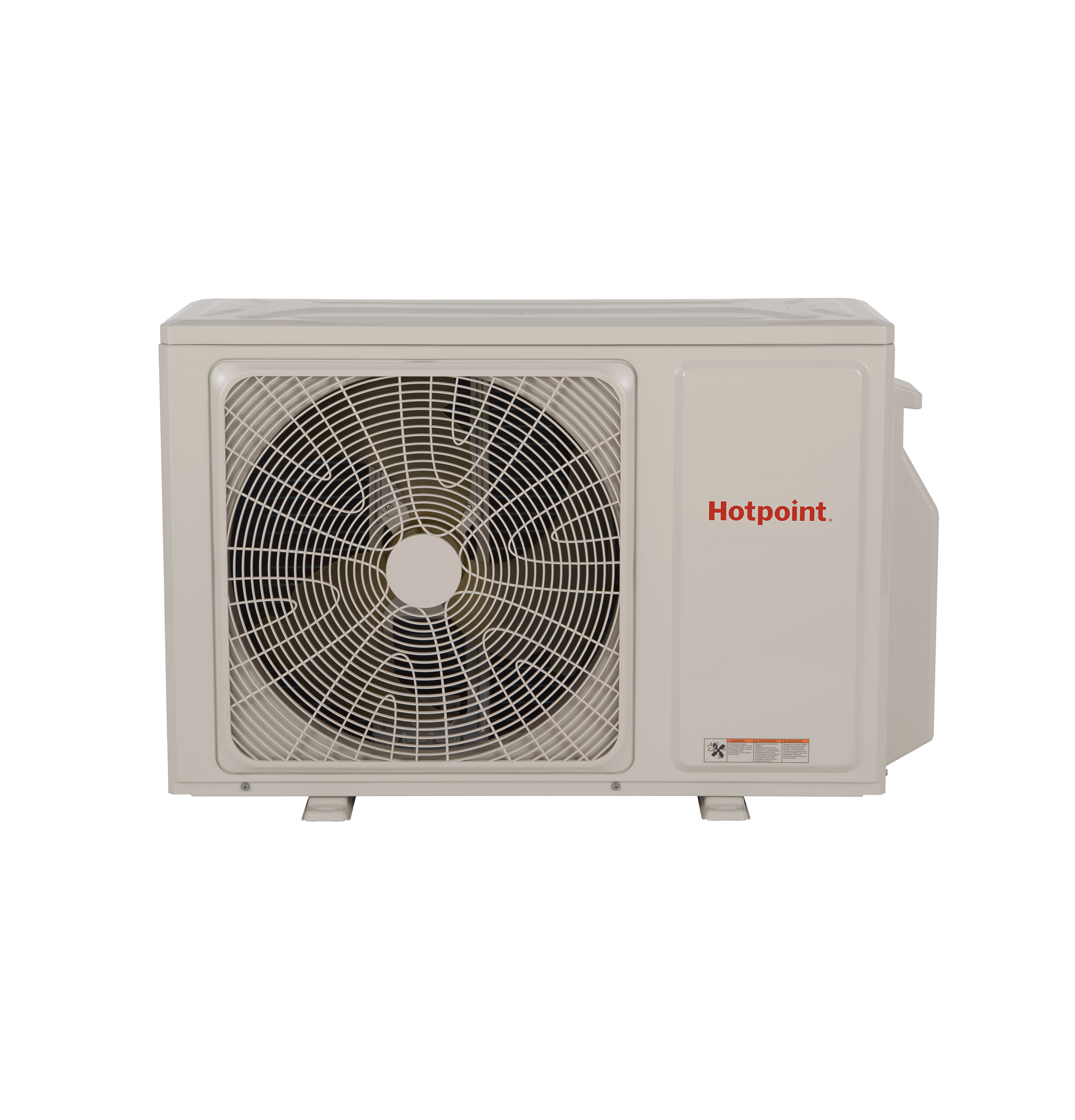

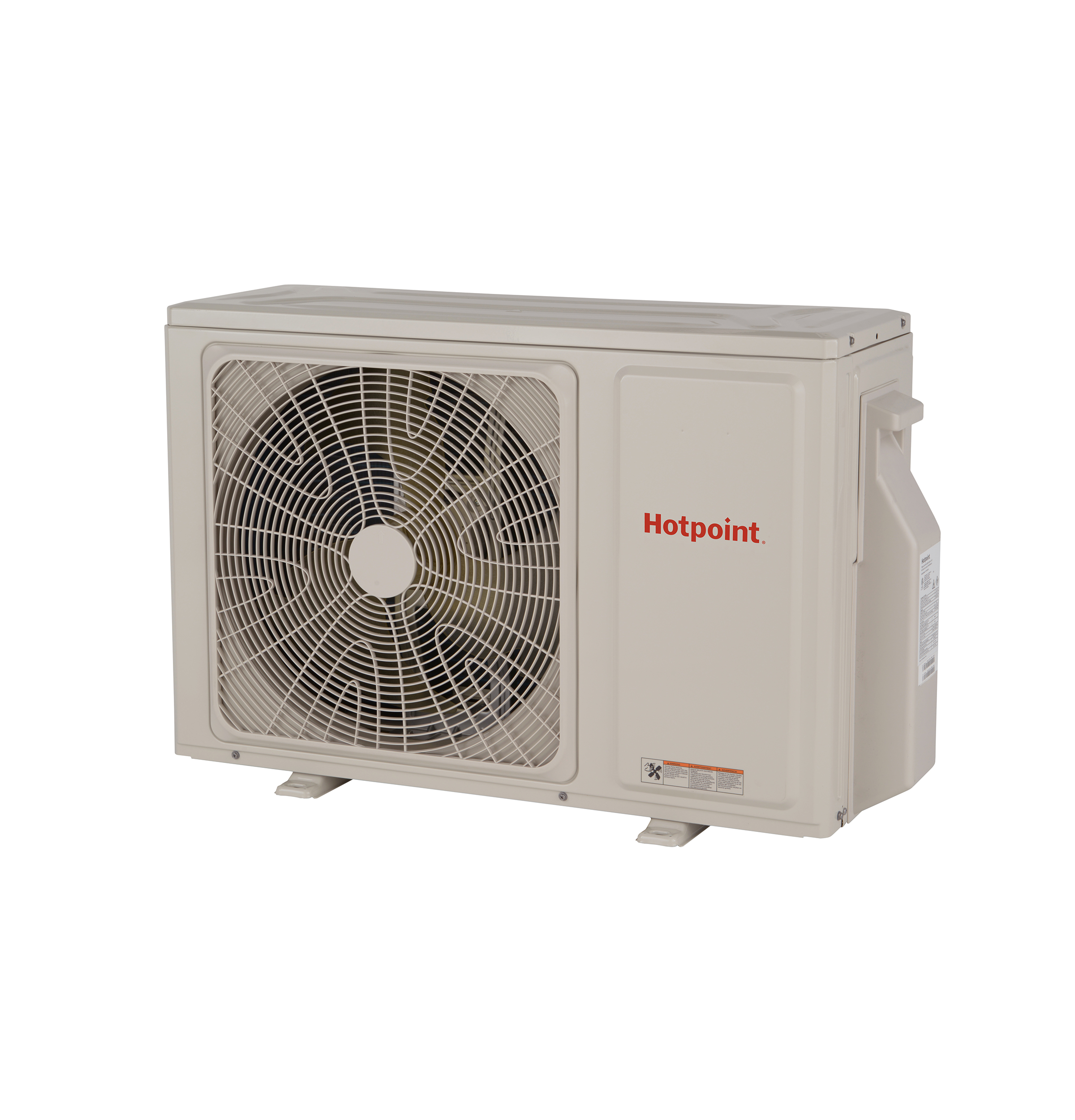

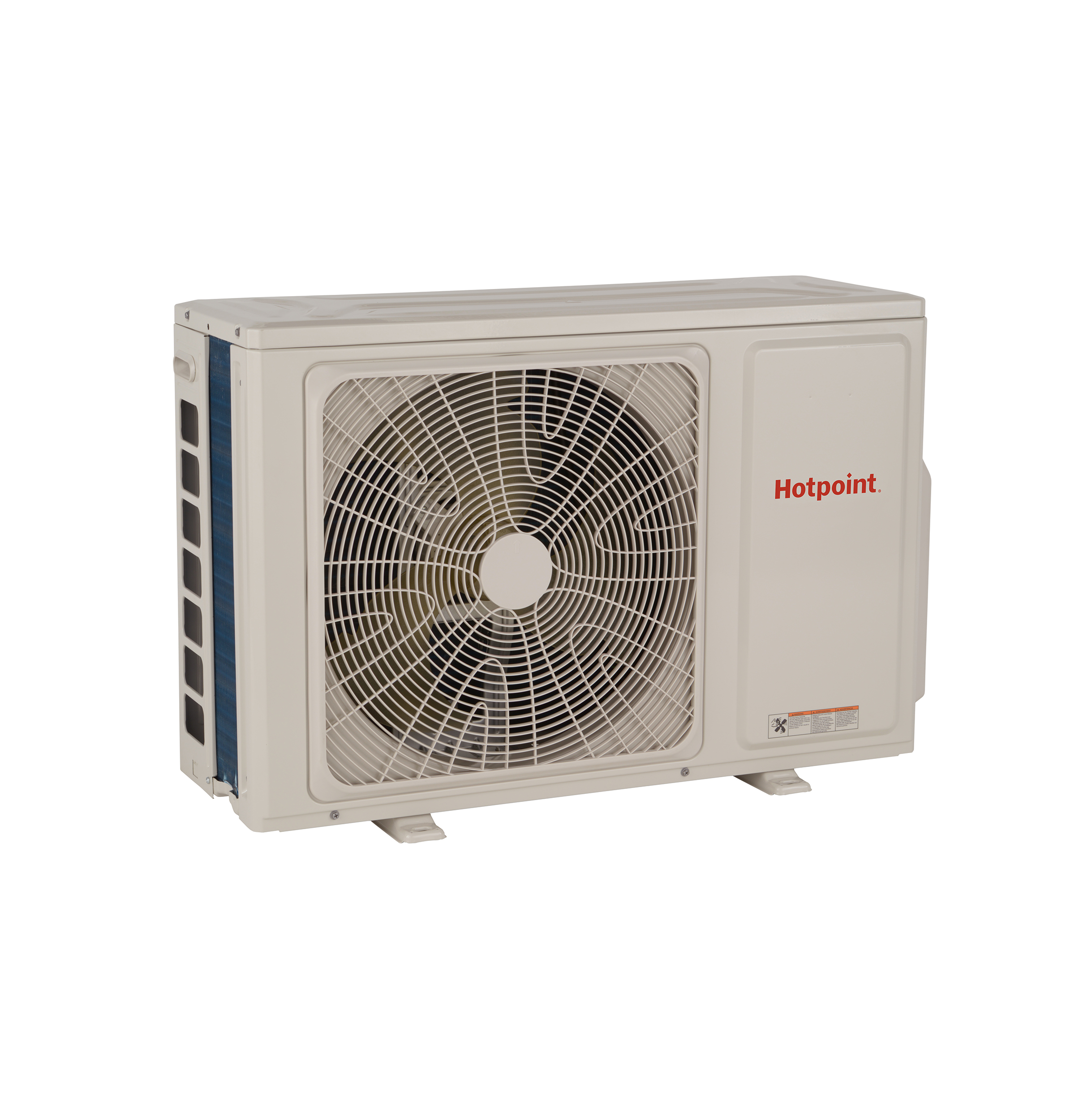

Hotpoint 208-230V 9,000 BTU Ductless Mini-Split Outdoor Heat Pump System - 1H09HN2DAA
Hotpoint 208-230V 9,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: 1H09HN2DAA






Hotpoint 208-230V 9,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: 1H09HN2DAA
Key Features
High Efficiency Ductless Heat Pump
High-Performance Inverter Technology
All-Season Comfort
Built to Last
Protective Base Pan Heater
Environmentally Compliant
Federal & State Incentives
Worry-Free Warranty
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
High Efficiency Ductless Heat Pump
18 SEER2 and 9.5 HSPF2 when paired with HW09HN2DAA.
High-Performance Inverter Technology
A DC inverter compressor keeps indoor temperatures consistent in almost any climate and helps homeowners save money on energy.
All-Season Comfort
With heating down to -15°F and cooling up to 115°F, homeowners know they’re coming home to comfort — no matter the weather outside.
Built to Last
A hydrophilic aluminum fin helps prevent condensation buildup and ensures water flows through the unit smoothly.
Protective Base Pan Heater
A built-in base pan heater on outdoor units prevents systems from freezing, keeping systems operating at peak performance.
Environmentally Compliant
All Hotpoint systems use R-32 refrigerant, ensuring that they meet EPA Low GWP (A2L) refrigerant regulations.
Federal & State Incentives
Eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers. All Hotpoint heat pumps are certified CEE Tier-2 except for 24K units installed in the South region. See CEE directory for qualifying models.
Worry-Free Warranty
Unlock a 5-year limited parts and compressor warranty with registration; see warranty documentation for complete information.
See specification guide for full heating, cooling, and system details.
Specifications
FEATURES
| Product Type | Single Zone |
| Outdoor Noise Level | 55 dBA |
| System | 9K Hotpoint |
| Factory Charge (ounces) | 25.8 oz |
| Temperature Range - Cooling Mode | 14-115 F (-10-46 C) |
| Unit Type | Outdoor |
| Maximum Fuse Size A | 15 |
| Temperature Range - Heating Mode | -15-75 F (-26-24 C) |
| Maximum Line Length (Ft/M) | 66/20 |
| Series | Hotpoint |
| Connections | Flare |
| Style | Outdoor |
| Rotary Compressor | DC Inverter Driven Rotary |
| Compatible Indoor Models | HW09HN2DAA |
| Maximum Height (Ft/m) | 33/10 |
POWER / RATINGS
| Voltage/Hertz/Phase | 208-230/60/1 |
| Minimum Circuit Amp | 12 |
| Cooling Rated Capacity BTU/Hr | 9,000 |
WARRANTY
| Parts Warranty | See warranty documentation for complete information |
Other
| Suction O.D. Refrigerant Line | 3/8" |
| Liquid O.D. Refrigerant Line | 1/4" |
Dimensions & Weight
| Width | 31.5 in. |
| Height | 21.75 in. |
| Length | 11 in. |
| Weight | 67.9 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 36.5 in. |
| Shipping Height | 26.75 in. |
| Shipping Length | 16 in. |
| Shipping Weight | 107.9 lbs. |
| Total of Shipping Weight | 107.9 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.36 ft³ |
| Dimensional Weight | 54.22 lbs. |
| Total of Cubes | 4.36 ft³ |
| Total of Dimensional Weight | 54.22 lbs. |
