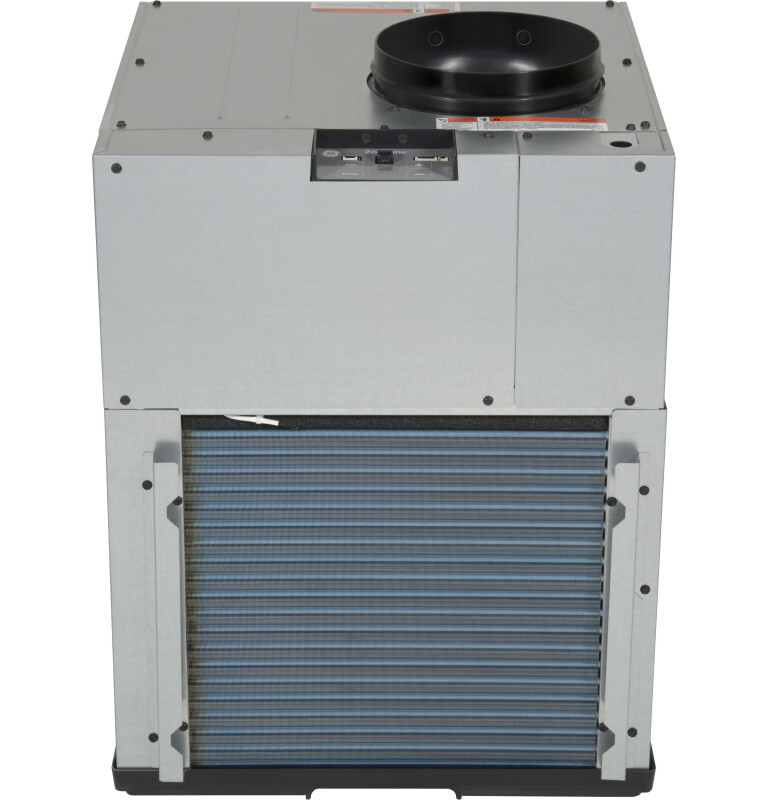

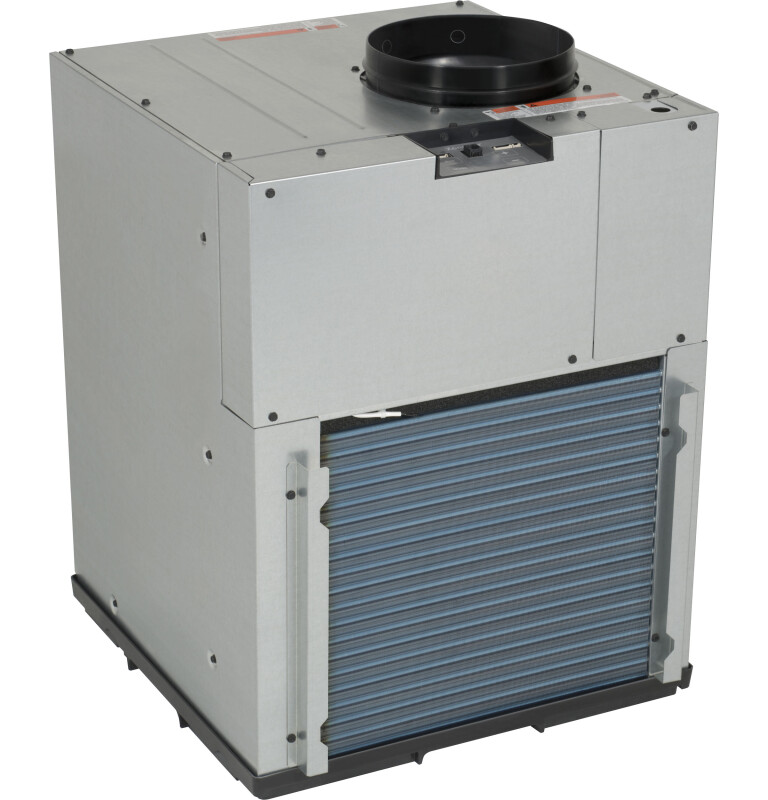

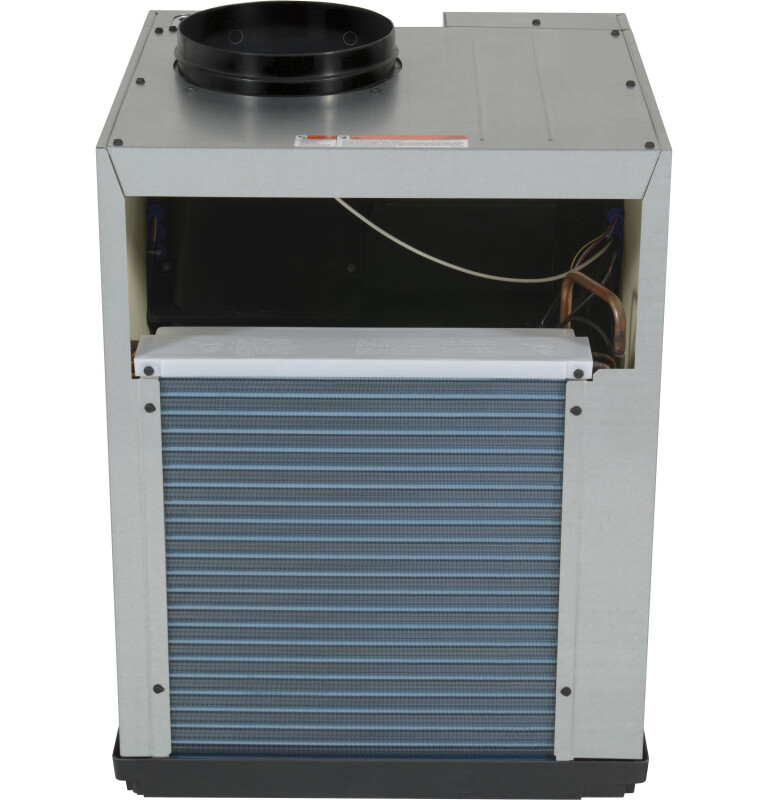

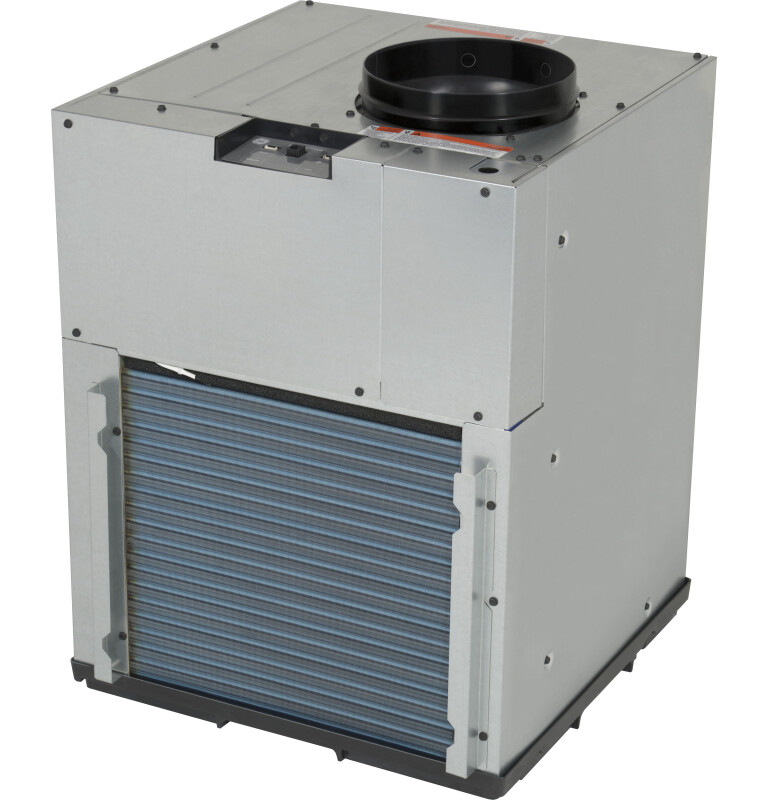

Zoneline UltimateV10 Heat Pump Single Package Vertical Air Conditioner 265 Volt - AZ95H12EAC
Zoneline UltimateV10 Heat Pump Single Package Vertical Air Conditioner 265 Volt
Model: AZ95H12EAC























Zoneline UltimateV10 Heat Pump Single Package Vertical Air Conditioner 265 Volt
Model: AZ95H12EAC
Key Features
Self-Contained Drainage System
Fast-Connect Plumbing
Quick-Install Plenum
Self-aligning, lock in place system
Onboard Diagnostics
Reverse Cycle Defrost
Anti-Corrosion Design
Ultra-Quiet
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
Self-Contained Drainage System
Easy installation and simple chassis removal while leaving plumbing completely intact
Fast-Connect Plumbing
Thoughtful design enables platform build and rough plumbing completed in only minutes
Quick-Install Plenum
Plenum is easily installed from the interior of building, without the need for exterior building access*(*caulking required)
Self-aligning, lock in place system
Perfect fit and mistake proof when the chassis is placed on the platform

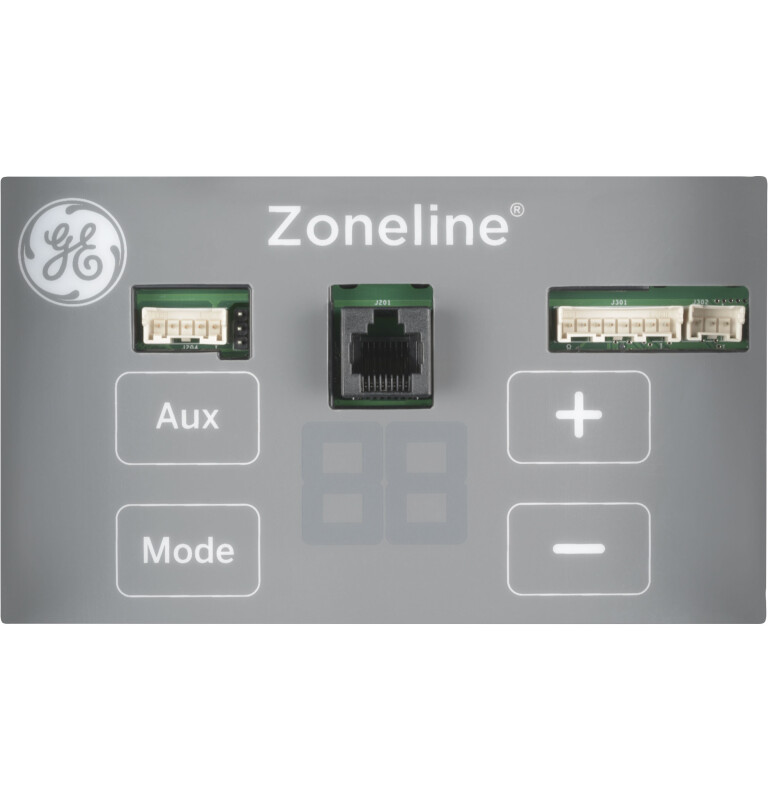

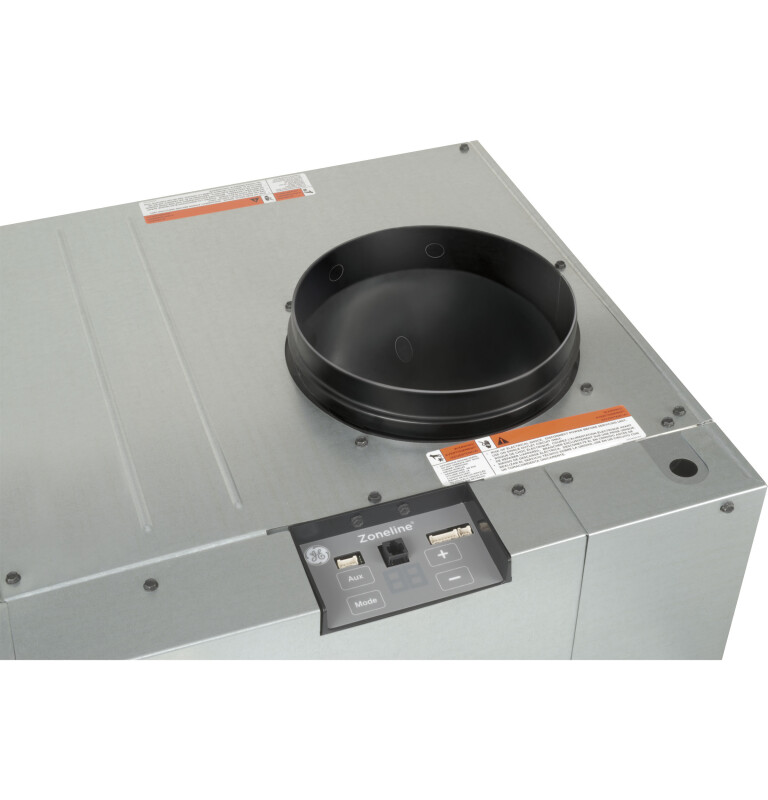

Onboard Diagnostics
Electronic controls give clear and fast diagnostics data and fault codes, for quick and easy notifications
Reverse Cycle Defrost
Exclusive technology increases efficiency, enabling the unit to run in heat pump mode longer

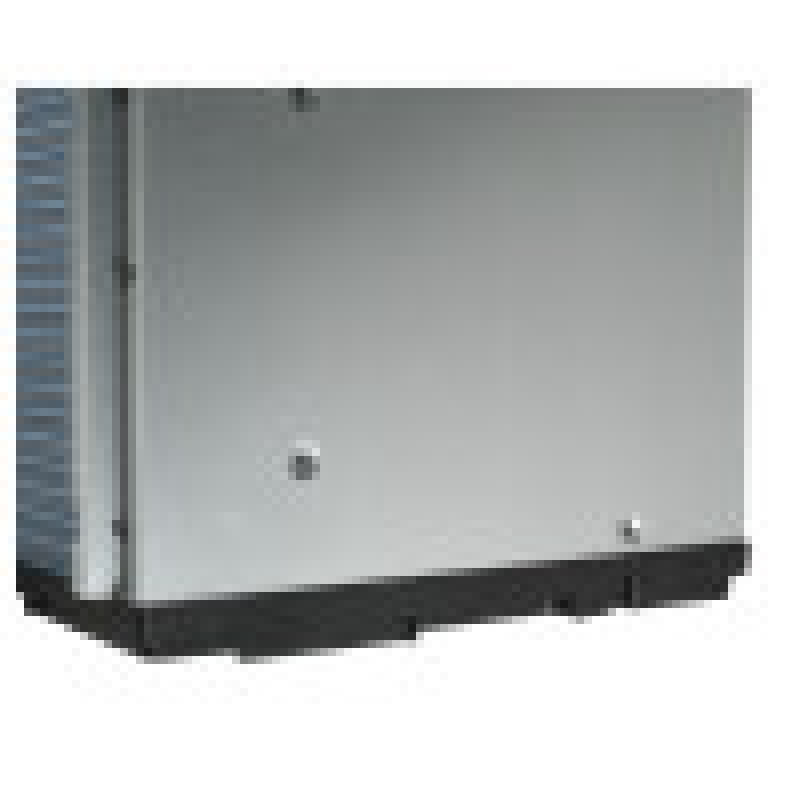

Anti-Corrosion Design
Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection
Ultra-Quiet
Delivers quiet cooling power with a smooth sound for a good night’s sleep
SmartHQ WiFi capability
An optional WiFi module gives property managers the ability to oversee units, increasing productivity and enhancing guests’ experience
Insta-Platform™
One-piece design fully integrates with the wall plenum and aligns for a tight seal. Eliminates need for a customized platform construction on site
Certifications
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
Specifications
FEATURES
| Remote Thermostat | RAK149F2, RAK149P2, RAK180W1 |
| Heating System | Heat Pump |
| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |
| Power Connection Kit | RAK5XXD Series |
| Product Type | Vertical Air Conditioners |
| Refrigerant Type | R410A |
| Sensible Heat Ratio | 76% |
| Freeze Sentinel | Yes |
| Heat Sentinel | Yes |
| Heat Pump | Yes |
| Corrosion Treated | Yes |
| Fan Speed Selections | 3 |
| Heating - Reverse Cycle - COP | 3.3 |
| VTAC Features | Anti-Corrosion Design |
| VTAC Features | Auto Compressor Random Restart |
| VTAC Features | Automatic Emergency Heat |
| VTAC Features | Automatic Indoor Frost Control |
| VTAC Features | Boost Heat |
| VTAC Features | Chassis Design with Perfect Fit to Insta-Platform™ and Quick-Install Plenum (sold separately) |
| VTAC Features | Fast-Connect Plumbing |
| VTAC Features | Freeze Sentinel |
| VTAC Features | Heat Pump with Resistance Heat Backup |
| VTAC Features | Heat Sentinel |
| VTAC Features | Onboard Electronic Error Diagnostics |
| VTAC Features | Quick Heat Recovery |
| VTAC Features | Reverse Cycle Defrost |
| VTAC Features | Self-Aligning, Lock In Place Platform System |
| VTAC Features | Self-Contained Drainage System |
| VTAC Features | SmartHQ WiFi Capability |
| VTAC Features | Thermostat Quick Disconnect |
| VTAC Features | Ultra-Quiet |
CAPACITY
| CFM Indoor Fan Medium | 417 |
| Cooling EER (BTUH / Watt) | 11.1 |
| Dehumidification (pts./hr.) | 2.5 |
| CFM Indoor Fan Low | 376 |
| Heating - Reverse Cycle - BTUH | 10700 |
| Cooling BTUH (MIN) | 11,300 |
ACCESSORIES

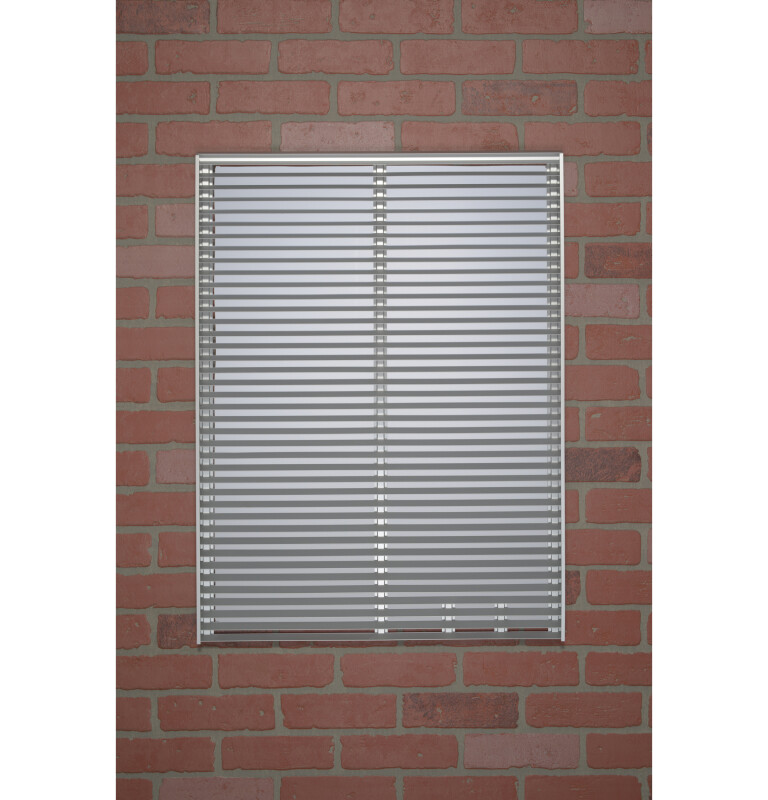

| Accessories Required for Installation | Outdoor Grille - RAVAL3 |
| Accessories Required for Installation | Plenum - RAVWPT15 or RAVTRANS2, 3, 4 |
| Accessories Required for Installation | RAVDPLAT |
| Accessories Required for Installation | Return Air Grille - RAVRG4, RAVRG2 |

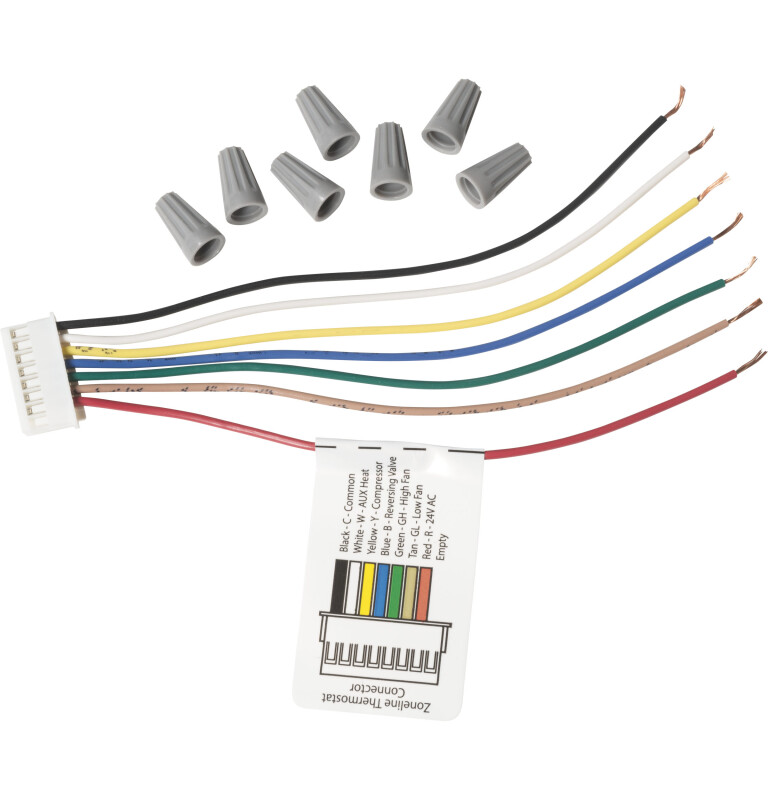

| Accessories Required for Installation | Wall Thermostat - RAK149F2, RAK149P2, RAK180W1 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
POWER / RATINGS
| Cooling - Watts | 1015 |
| Heating - Reverse Cycle - Watts | 925 |
| Heating - Reverse Cycle - Amps | 3.8 |
| Cooling - Amperes | 4.0 |
| Voltage (MAX) | 265 V |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 23.63 in. |
| Height | 31.88 in. |
| Length | 24.13 in. |
| Weight | 123 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.63 in. |
| Shipping Height | 36.88 in. |
| Shipping Length | 29.13 in. |
| Shipping Weight | 163 lbs. |
| Total of Shipping Weight | 163 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.51 ft³ |
| Dimensional Weight | 130.7 lbs. |
| Total of Cubes | 10.51 ft³ |
| Total of Dimensional Weight | 130.7 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 135 lb |
| Net Weight | 123 lb |
| Overall Depth | 24.125 in |
| Overall Height | 31.875 in |
| Overall Width | 23.625 in |
APPEARANCE
| Color Appearance | White |
