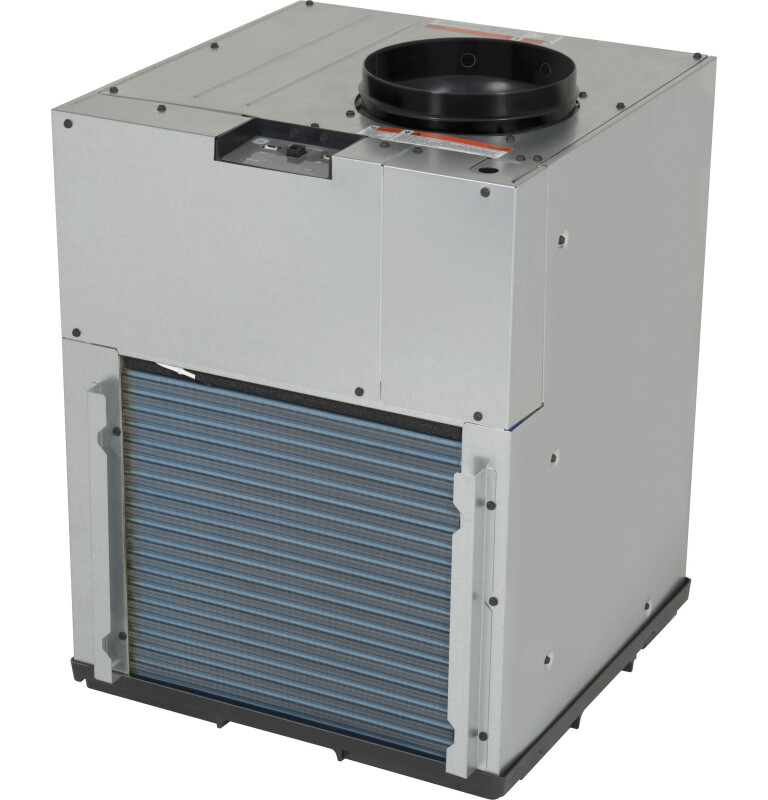

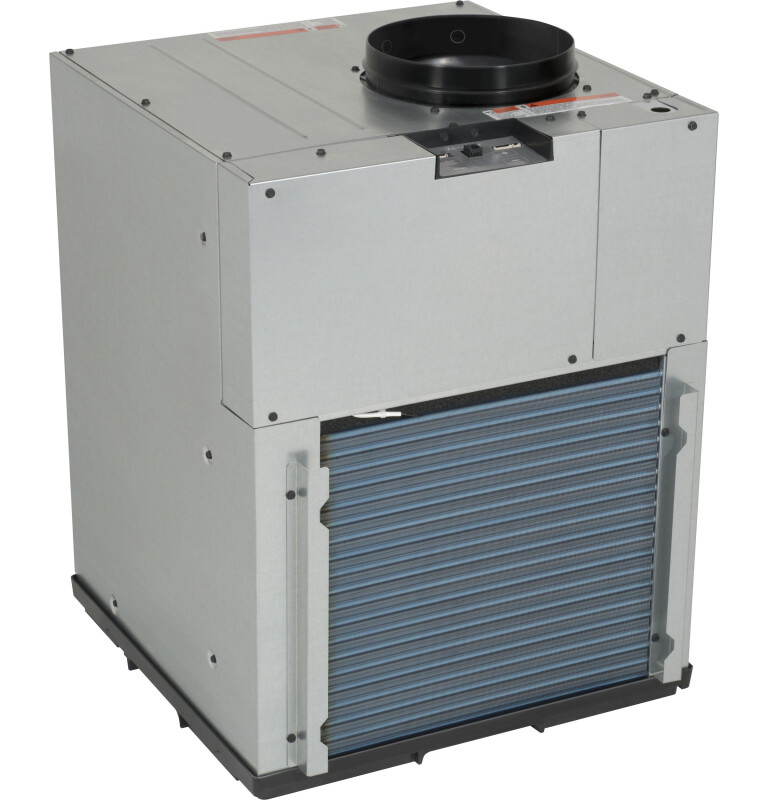

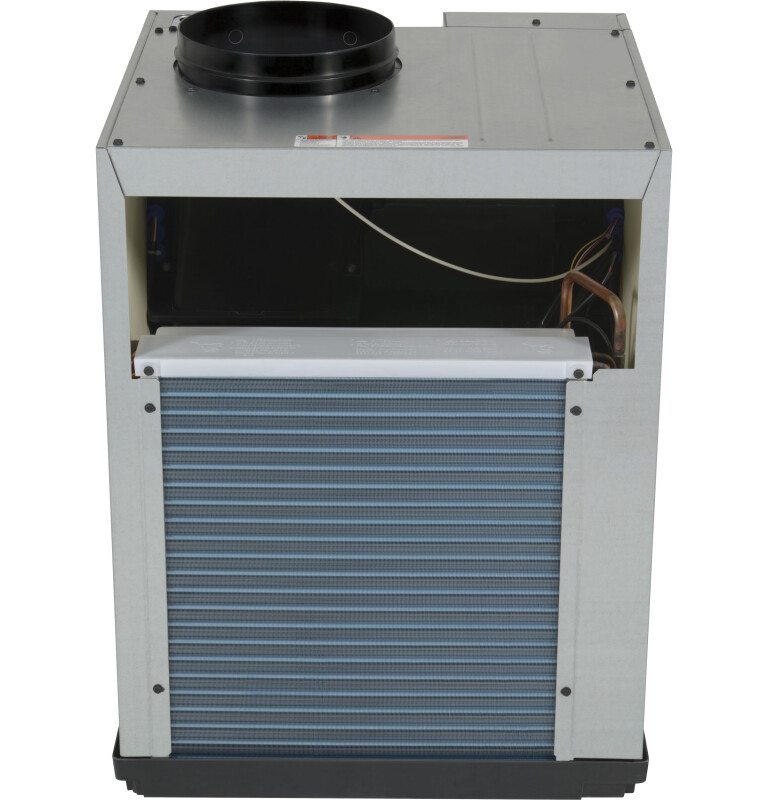

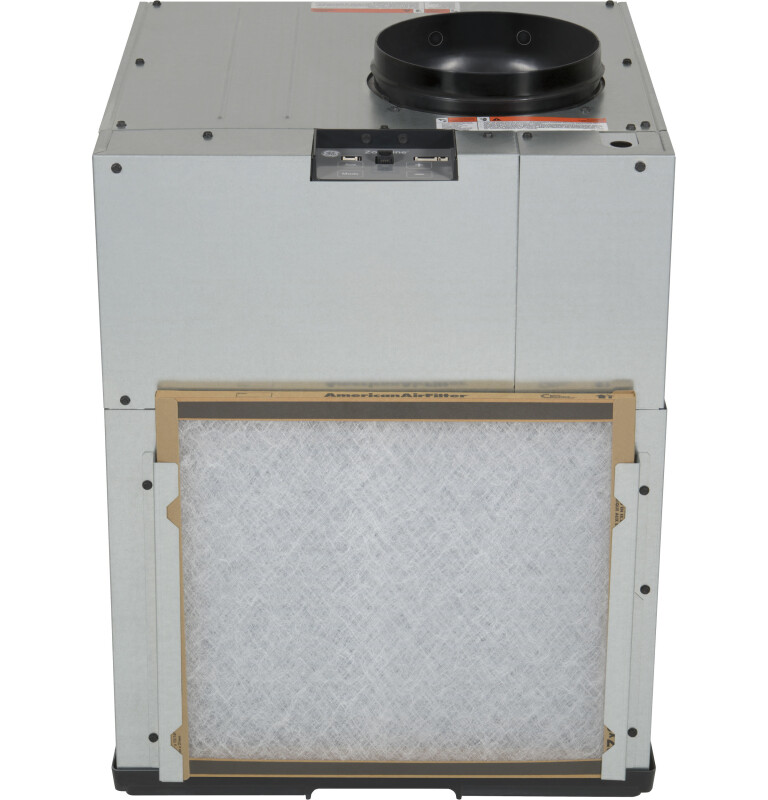

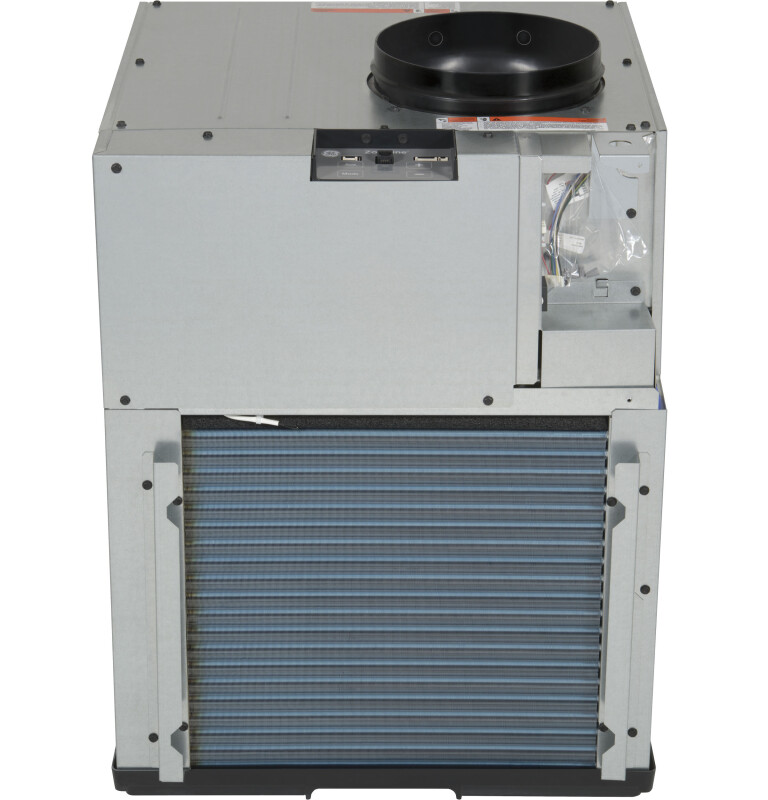

Zoneline UltimateV10 Cool/Electric Resistance Heat Vertical Air Conditioner 230-208 Volt - AZ95E09DAC
Zoneline UltimateV10 Cool/Electric Resistance Heat Vertical Air Conditioner 230-208 Volt
Model: AZ95E09DAC
Zoneline UltimateV10 Cool/Electric Resistance Heat Vertical Air Conditioner 230-208 Volt
Model: AZ95E09DAC
Color : Other
Key Features
Self-Contained Drainage System
Fast-Connect Plumbing
Quick-Install Plenum
Self-aligning, lock in place system
Onboard Diagnostics
Anti-Corrosion Design
Ultra-Quiet
SmartHQ WiFi capability
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
Self-Contained Drainage System
Easy installation and simple chassis removal while leaving plumbing completely intact
Fast-Connect Plumbing
Thoughtful design enables platform build and rough plumbing completed in only minutes
Quick-Install Plenum
Plenum is easily installed from the interior of building, without the need for exterior building access*(*caulking required)
Self-aligning, lock in place system
Perfect fit and mistake proof when the chassis is placed on the platform

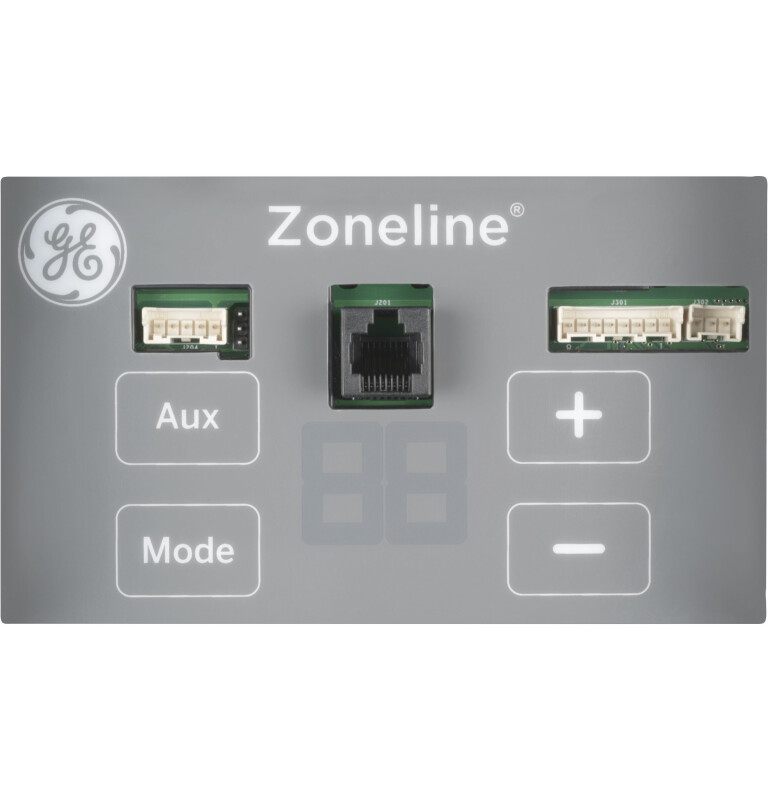

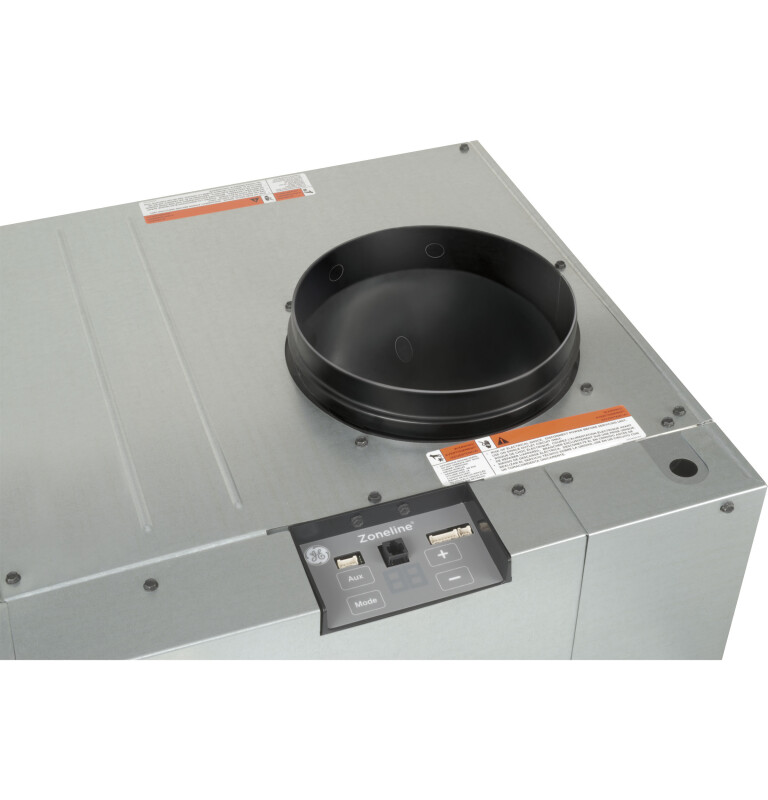

Onboard Diagnostics
Electronic controls give clear and fast diagnostics data and fault codes, for quick and easy notifications

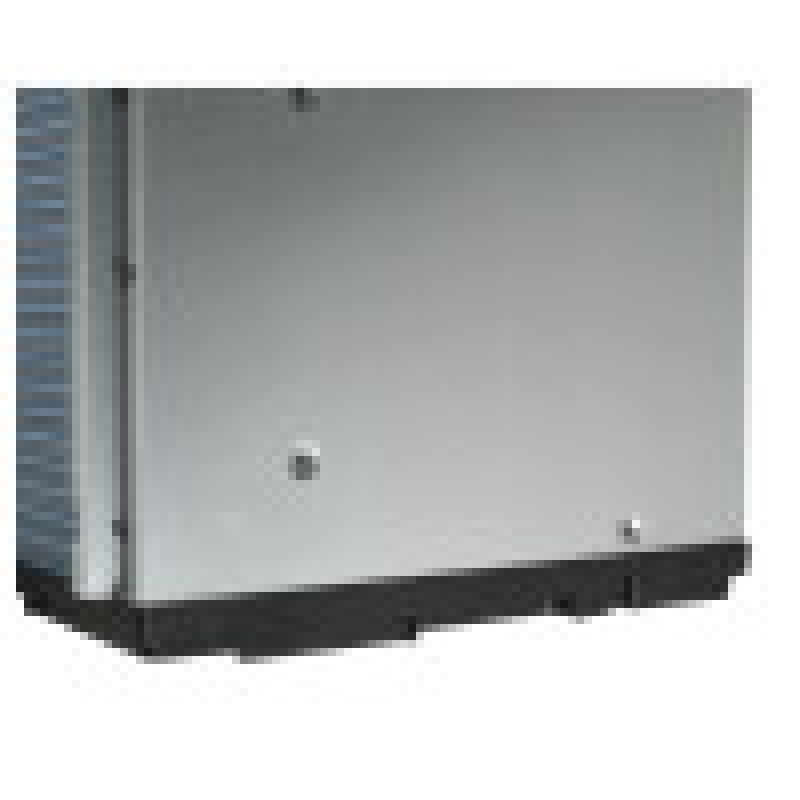

Anti-Corrosion Design
Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection
Ultra-Quiet
Delivers quiet cooling power with a smooth sound for a good night’s sleep
SmartHQ WiFi capability
An optional WiFi module gives property managers the ability to oversee units, increasing productivity and enhancing guests’ experience
Insta-Platform™
One-piece design fully integrates with the wall plenum and aligns for a tight seal. Eliminates need for a customized platform construction on site
Designed & Assembled in America
Certifications
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
Specifications
FEATURES

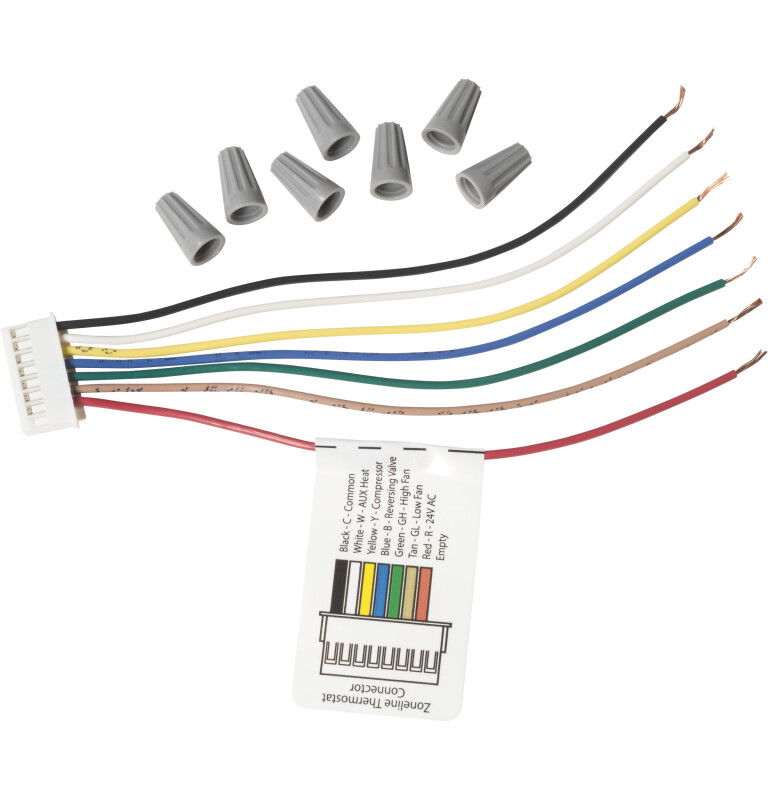

| Remote Thermostat | RAK149F2, RAK149P2, RAK180W1 |
| Heating System | Electric Resistance |
| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |
| Power Connection Kit | RAK3XXD Series |
| Product Type | Vertical Air Conditioners |
| Refrigerant Type | R410A |
| Sensible Heat Ratio | 74% |
| Freeze Sentinel | Yes |
| Heat Sentinel | Yes |
| Corrosion Treated | Yes |
| Fan Speed Selections | 3 Cooling |
| VTAC Features | Anti-Corrosion Design |
| VTAC Features | Auto Compressor Random Restart |
| VTAC Features | Automatic Indoor Frost Control |
| VTAC Features | Chassis Design with Perfect Fit to Insta-Platform™ and Quick-Install Plenum (sold separately) |
| VTAC Features | Fast-Connect Plumbing |
| VTAC Features | Freeze Sentinel |
| VTAC Features | Heat Sentinel |
| VTAC Features | Onboard Electronic Error Diagnostics |
| VTAC Features | Reverse Cycle Defrost |
| VTAC Features | Self-Aligning, Lock In Place Platform System |
| VTAC Features | Self-Contained Drainage System |
| VTAC Features | SmartHQ WiFi Capability |
| VTAC Features | Thermostat Quick Disconnect |
| VTAC Features | Ultra-Quiet |
CAPACITY
| CFM Indoor Fan Medium | 408 |
| Cooling EER (BTUH / Watt) | 11.5 |
| Dehumidification (pts./hr.) | 2.2 |
| CFM Indoor Fan Low | 305 |
| Cooling BTUH (MIN) | 9,200 |
ACCESSORIES

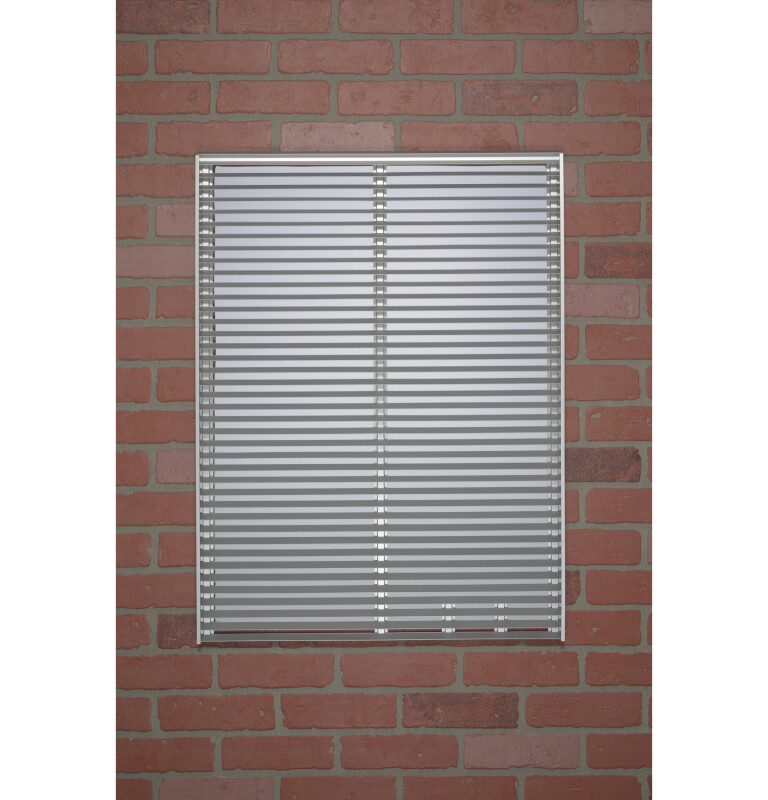

| Accessories Required for Installation | Outdoor Grille - RAVAL3 |
| Accessories Required for Installation | Plenum - RAVWPT15 or RAVTRANS2, 3, 4 |
| Accessories Required for Installation | RAVDPLAT |
| Accessories Required for Installation | Return Air Grille - RAVRG4, RAVRG2 |
| Accessories Required for Installation | Wall Thermostat - RAK149F2, RAK149P2, RAK180W1 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
POWER / RATINGS
| Cooling - Watts | 795 |
| Cooling - Amperes | 3.6 |
| Voltage (MAX) | 230 V |
| Voltage (MIN) | 208 V |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & Weight
| Width | 23.63 in. |
| Height | 31.88 in. |
| Length | 24.13 in. |
| Weight | 116 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.63 in. |
| Shipping Height | 36.88 in. |
| Shipping Length | 29.13 in. |
| Shipping Weight | 156 lbs. |
| Total of Shipping Weight | 156 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.51 ft³ |
| Dimensional Weight | 130.7 lbs. |
| Total of Cubes | 10.51 ft³ |
| Total of Dimensional Weight | 130.7 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 128 lb |
| Net Weight | 116 lb |
| Overall Depth | 24.125 in |
| Overall Height | 31.875 in |
| Overall Width | 23.625 in |
APPEARANCE
| Color Appearance | White |
