Connect Series 48,000/60,000 Heat Pump - AUH4860ZGDA

This product has been discontinued by the manufacture and is no longer available.

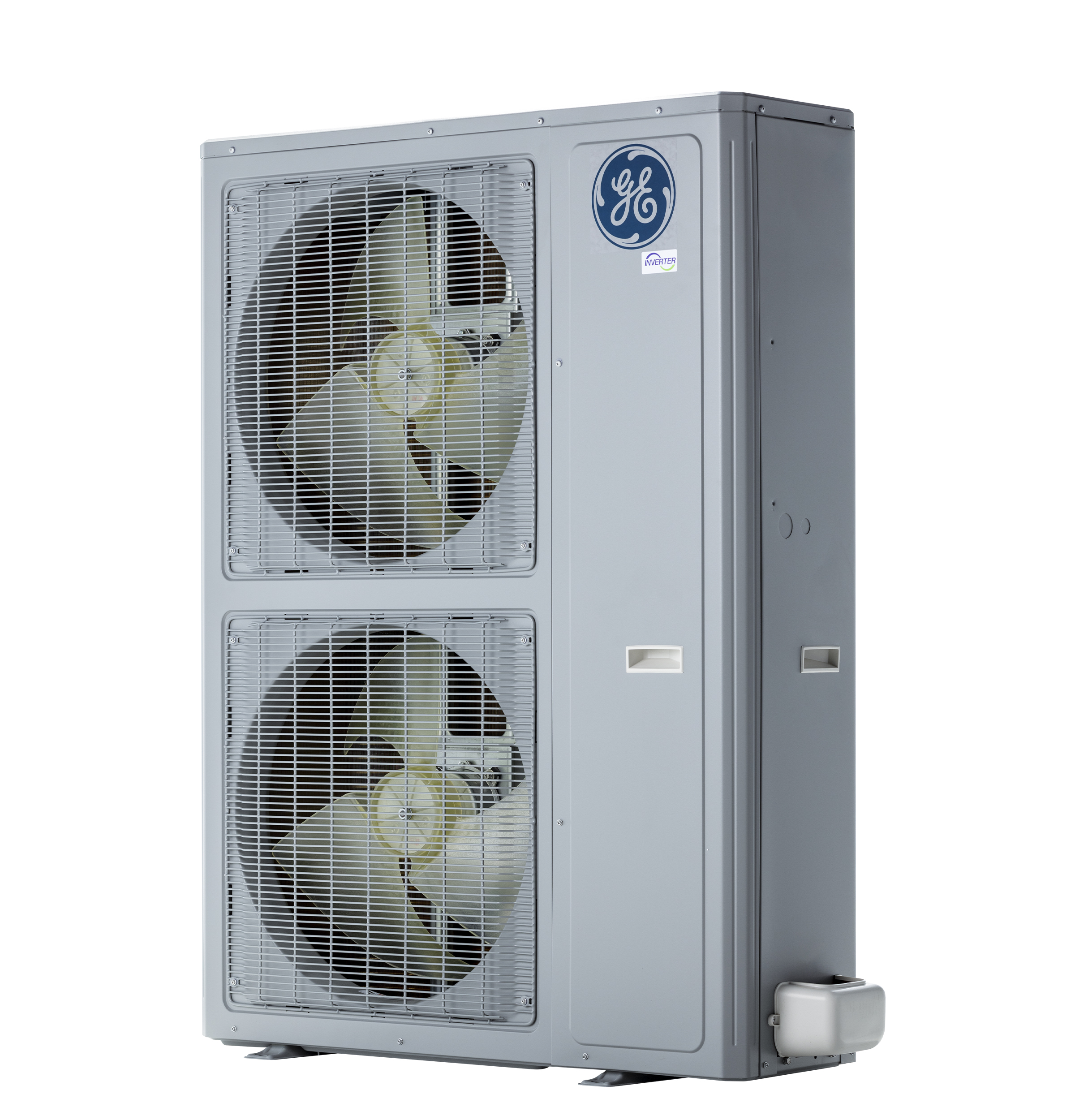

Connect Series 48,000/60,000 Heat Pump

Model: AUH4860ZGDA

Connect Series 48,000/60,000 Heat Pump AUH4860ZGDA
Connect Series 48,000/60,000 Heat Pump AUH4860ZGDA

Color : Other

Connect Series 48,000/60,000 Heat Pump AUH4860ZGDA
Other

Key Features

  • High Efficiency Inverter Compressor

  • Capacity Select Function

  • Small Footprint

  • Mid-Vapor Compressor Technology

  • ODU Compatibility

  • Ten-Year Warranty

  • See specification book for full heating, cooling, and system details

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

High Efficiency Inverter Compressor

The Connect Series delivers high efficiency variable speed mini-split performance with inverter technology

Capacity Select Function

The Connect Series outdoor units can be configured via the capacity select function to produce 4 or 5 tons of capacity, which would have required stocking four conventional outdoor heat pump units

Small Footprint

The small footprint of the Connect Series outdoor unit provides more installation flexibility than conventional top-discharge outdoor units

Mid-Vapor Compressor Technology

Using mid-vapor technology, the compressor produces a remarkably high heat output at low temperatures. The Connect Series has a heat operating range down to -22F

ODU Compatibility

Compatible with UUY48ZGDAB and UUY60ZGDAB indoor units

Ten-Year Warranty

Your homeowners can double the standard five-year warranty simply by registering their unit. Translation: peace of mind for homeowner.

See specification book for full heating, cooling, and system details

Certifications

ADA Compliant certification

ADA Compliant

Specifications

FEATURES

StyleHeat Pump
Product TypeHeat Pump
Compatible Indoor ModelsUUY60ZGDAB
HSPF Rating10.5 (when paired with UUY48ZGDAB), 10 (when paired with UUY60ZGDAB)
SeriesConnect
Unit TypeOutdoor
SEER18 (when paired with UUY48ZGDAB), 17 (when paired with UUY60ZGDAB)
EER11.5 (when paired with UUY48ZGDAB), 10.5 (when paired with UUY60ZGDAB)
Compatible Indoor ModelsUUY48ZGDAB

POWER / RATINGS

Cooling Rated Capacity BTU/Hr48,000/60,000

Dimensions & Weight

Width42.75 in.
Height53.75 in.
Length14.63 in.
Weight216.1 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47.75 in.
Shipping Height58.75 in.
Shipping Length19.63 in.
Shipping Weight256.1 lbs.
Total of Shipping Weight256.1 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement19.45 ft³
Dimensional Weight241.77 lbs.
Total of Cubes19.45 ft³
Total of Dimensional Weight241.77 lbs.

WEIGHTS & DIMENSIONS

Approximate Shipping Weight216.1 lb
Net Weight216.1 lb
Overall Depth14.625 in
Overall Height53.75 in
Overall Width42.75 in

WARRANTY

Parts WarrantyLimited 5-year entire appliance
Parts Warranty7-year compressor
Parts Warranty10-year entire appliance with registration
Labor WarrantyNo Warranty
Warranty NotesSee written warranty for full details

APPEARANCE

Color AppearanceWhite
