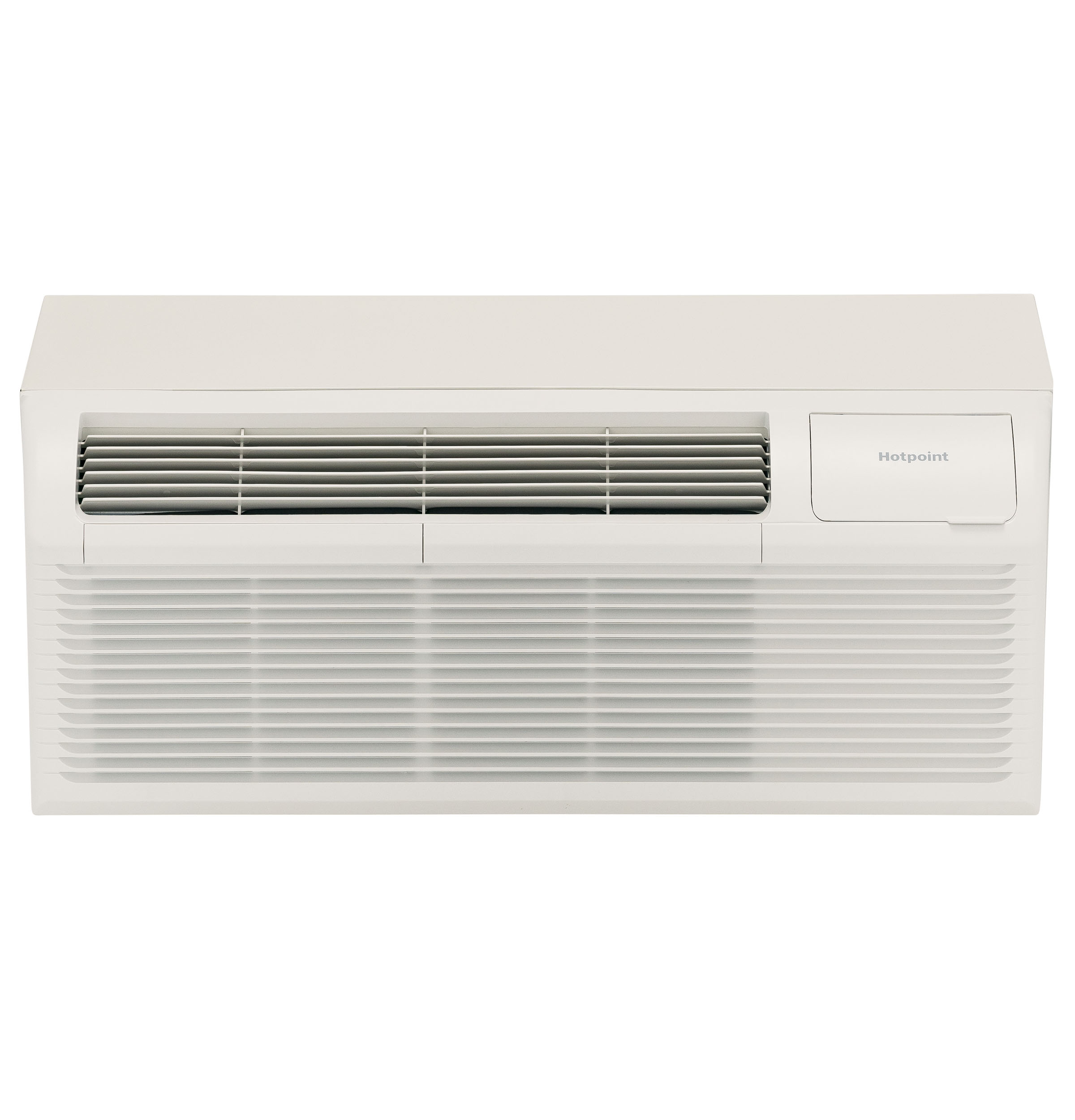

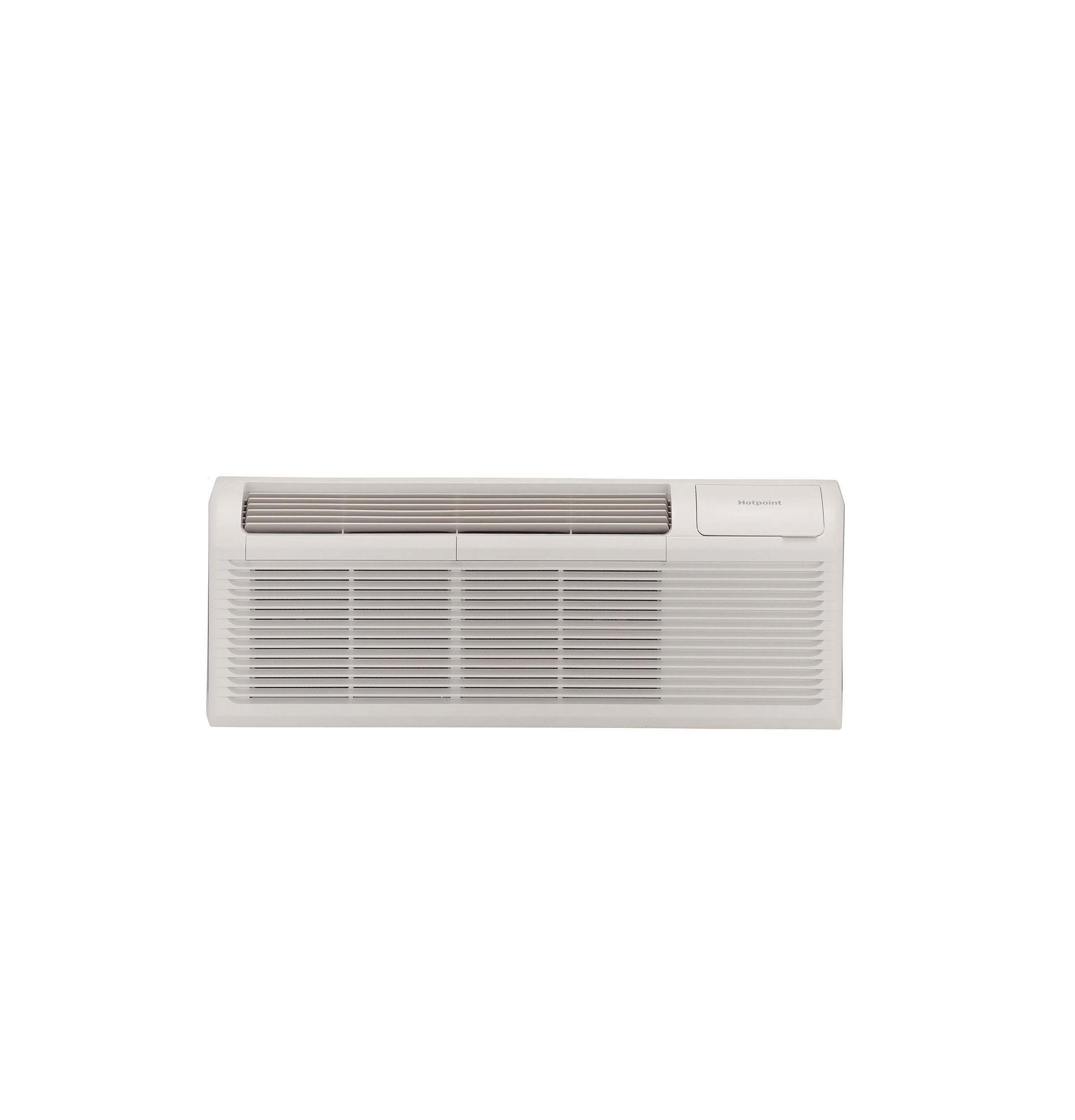

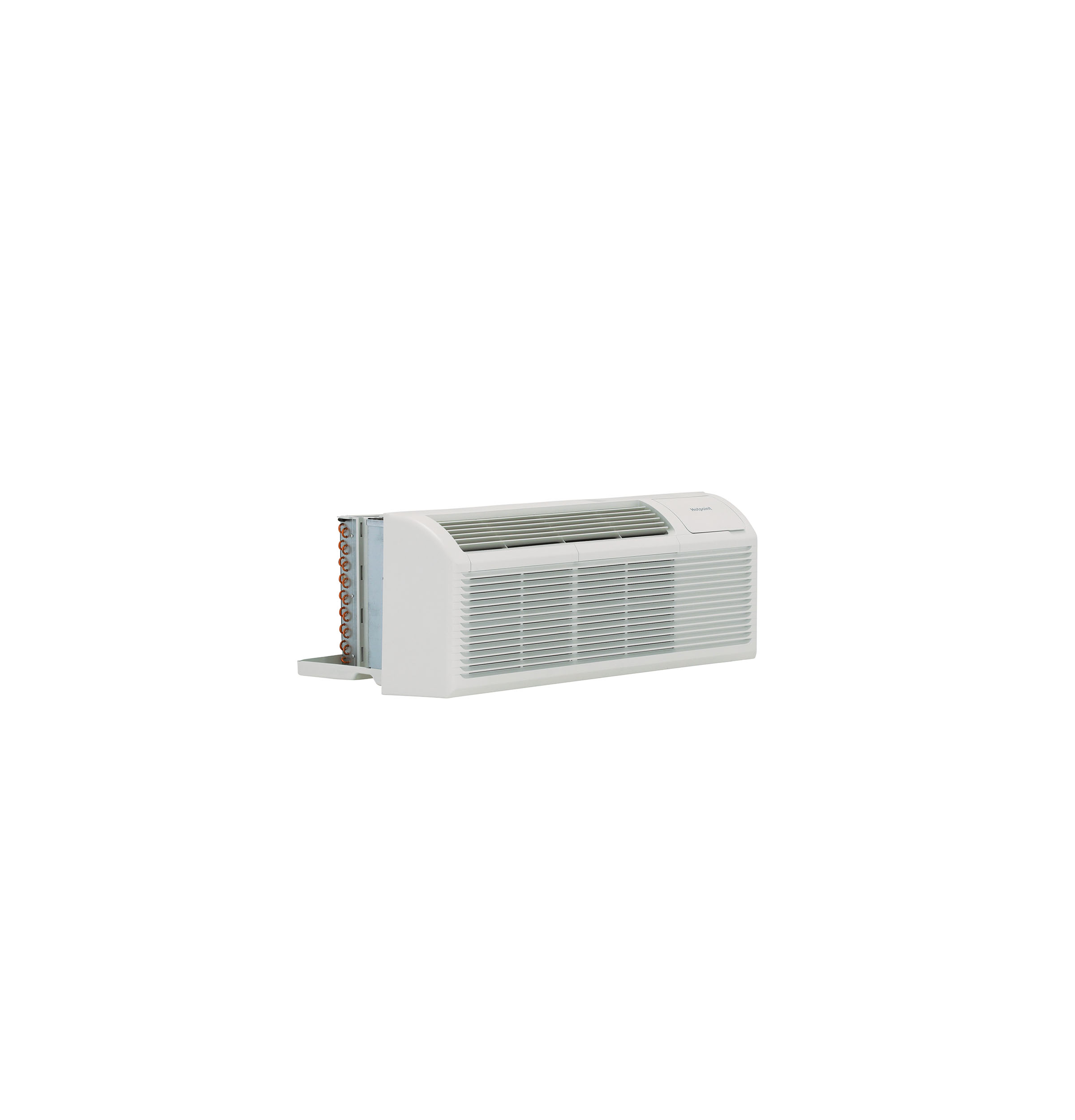

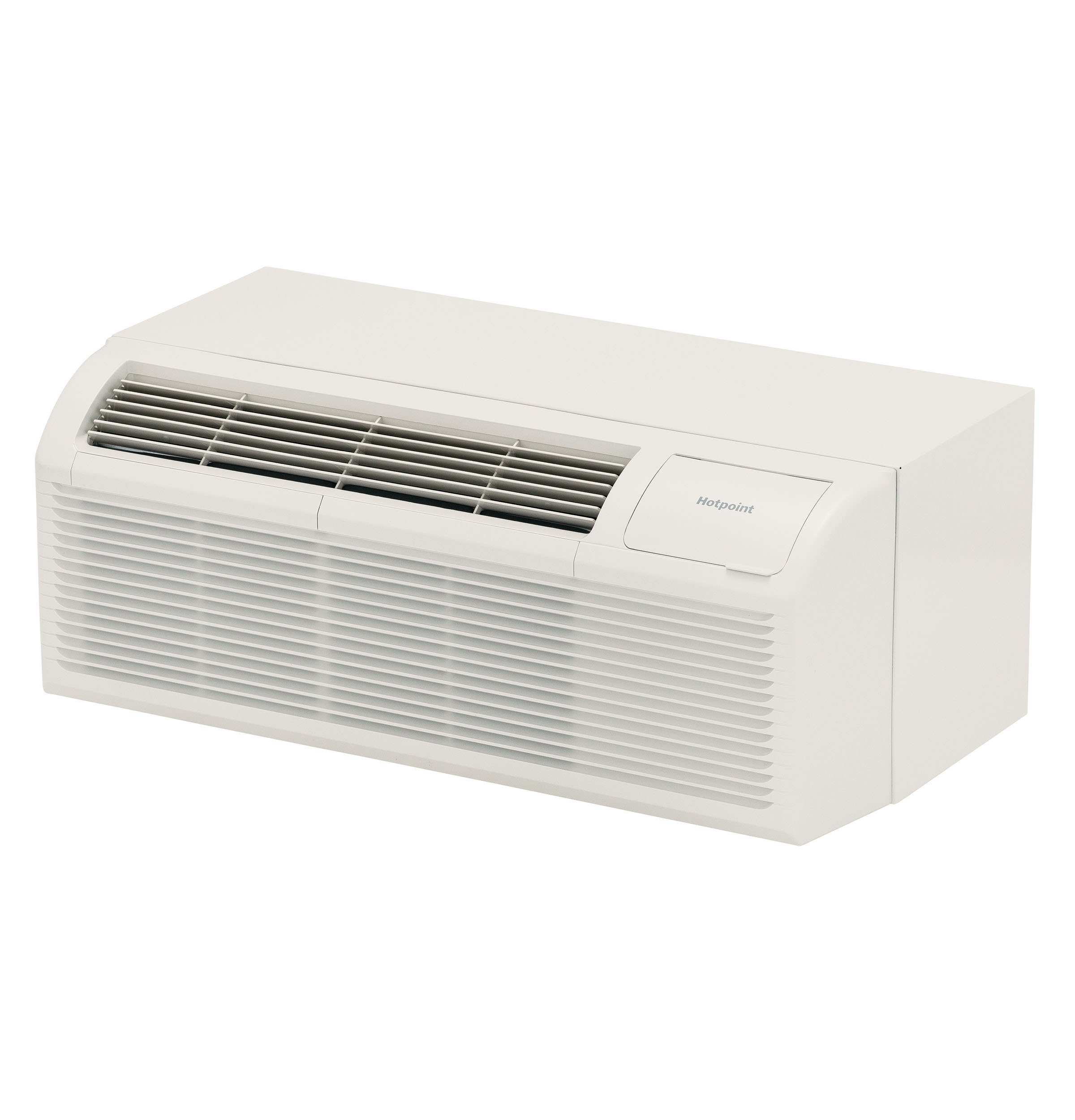

Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp - AH12H15D5B

This product has been discontinued by the manufacture and is no longer available.

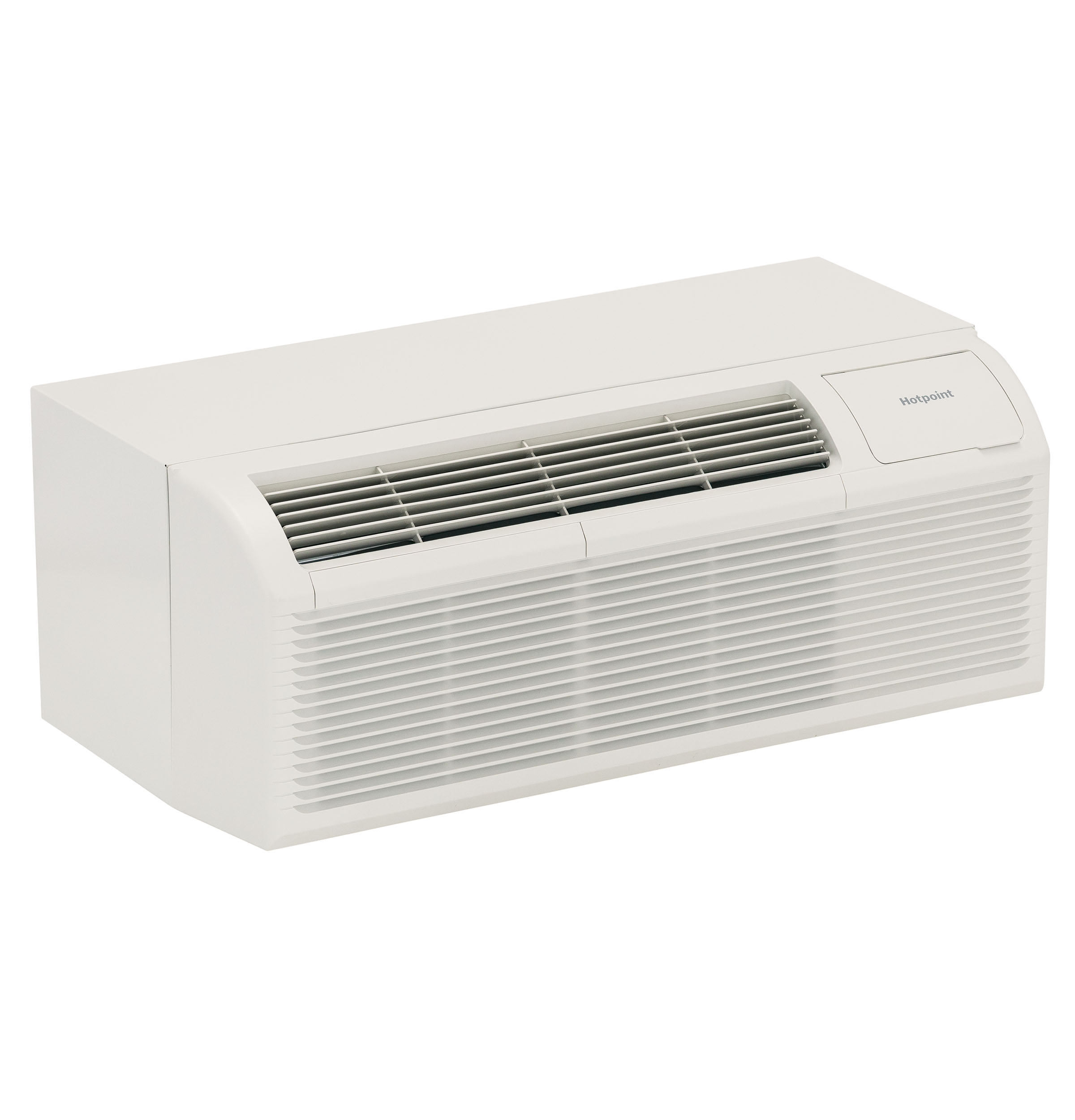

Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp

Model: AH12H15D5B

Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5BHotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5B
Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5B
+17more

Color : White

Hotpoint® PTAC Heat Pump Unit with Electric Heat Backup 15,000 BTU, 230/208V, 30amp AH12H15D5B
White

Key Features

  • 3-speed fan

  • 4-temperature limiting options

  • Freeze and frost protection

  • Auto power recovery

  • Self diagnostics

  • Backed by an industry leader

  • Automatic emergency heat

  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options

Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection

Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery

In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics

Quickly and easily identify service needs with a nine-point diagnostic code system

Backed by an industry leader

With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Automatic emergency heat

Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

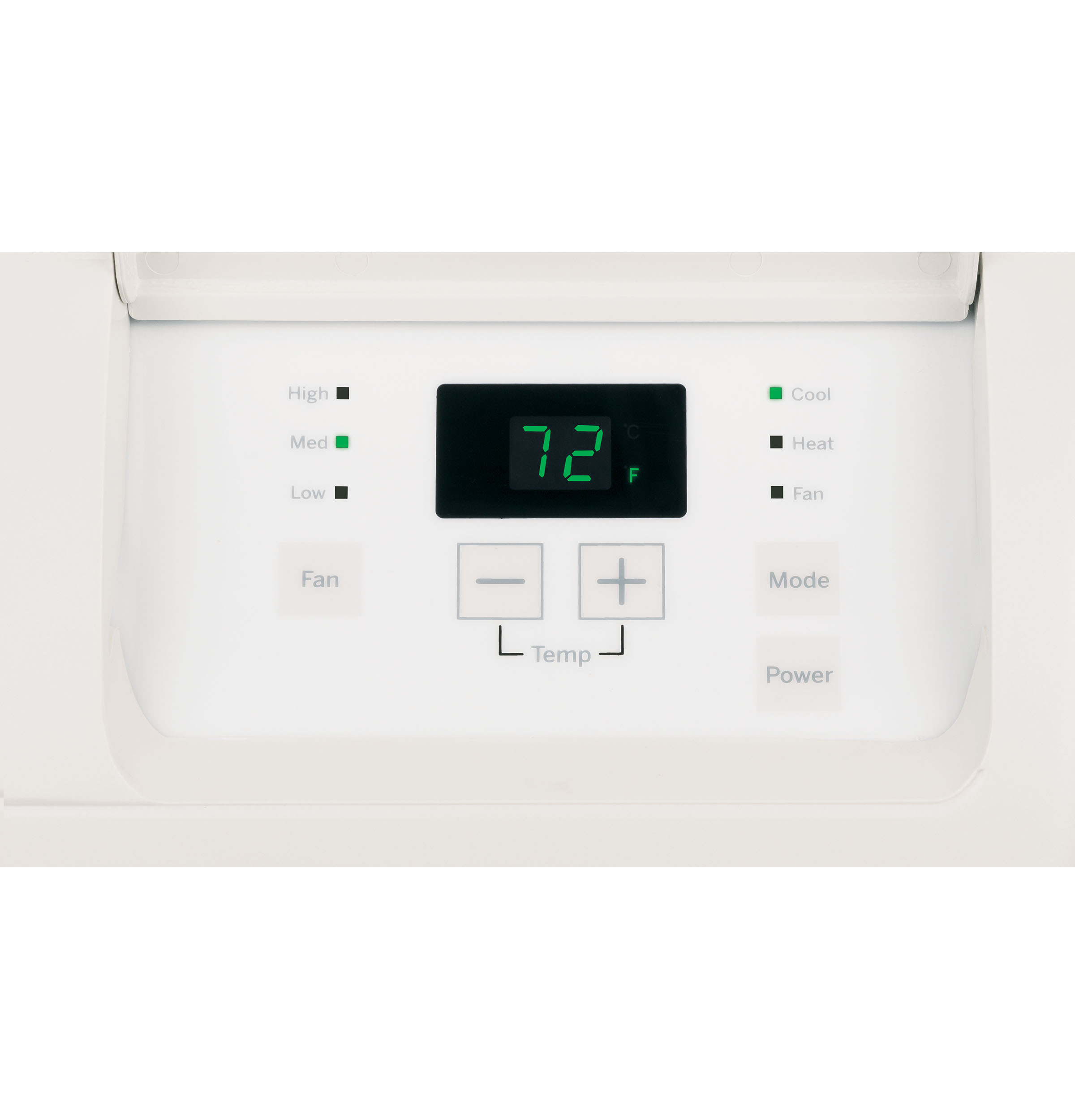

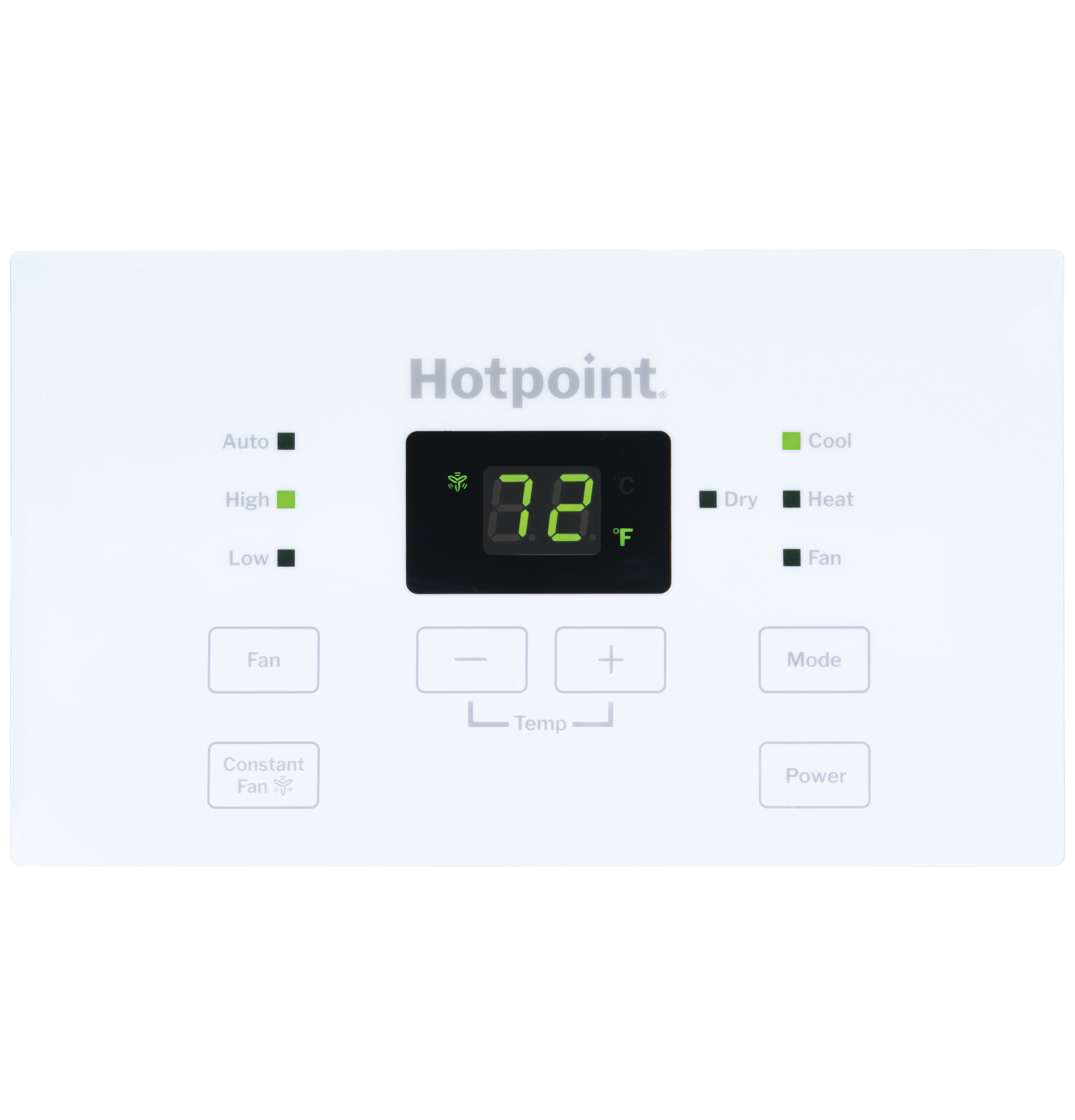

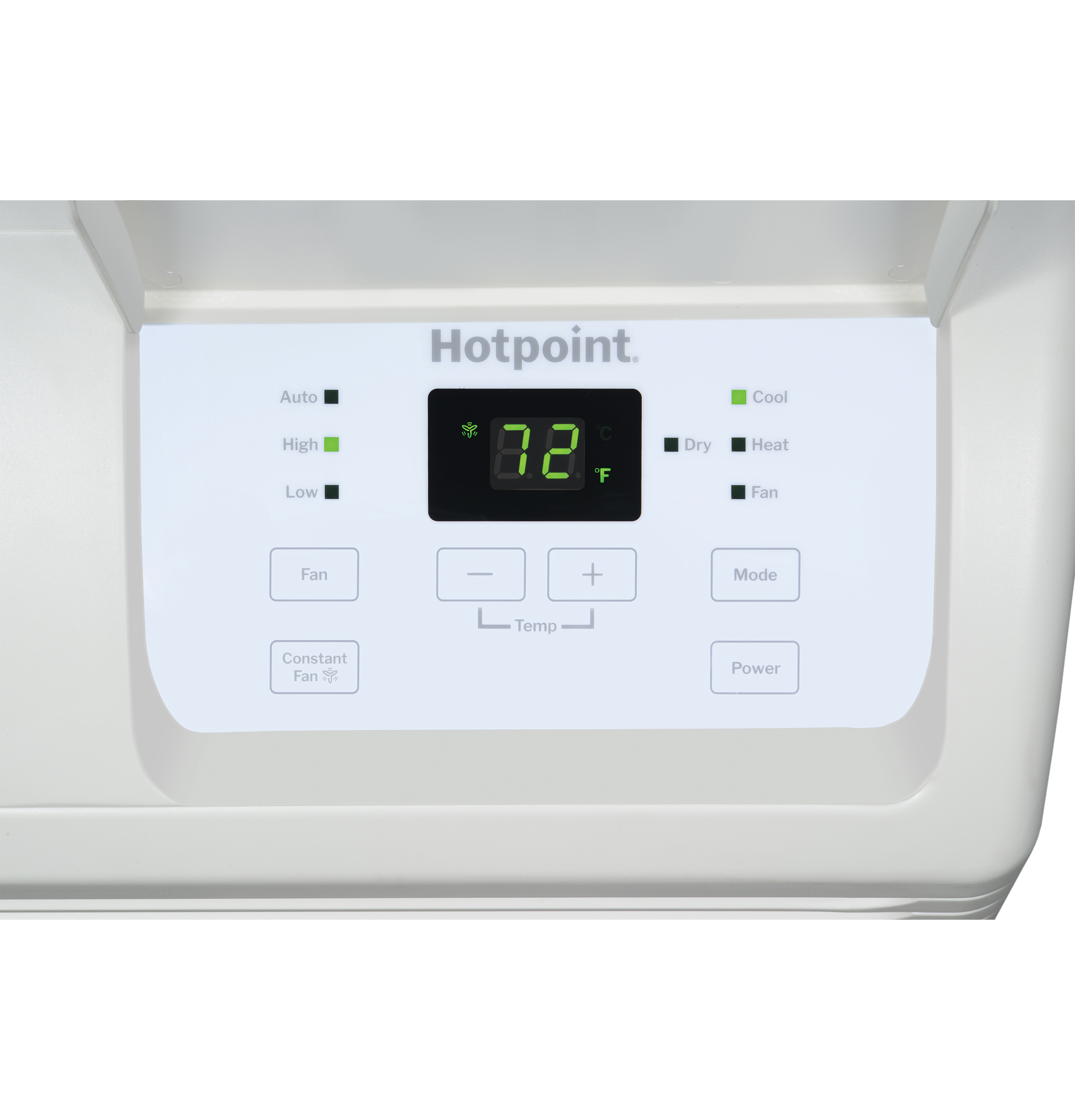

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

Remote thermostat compatibility

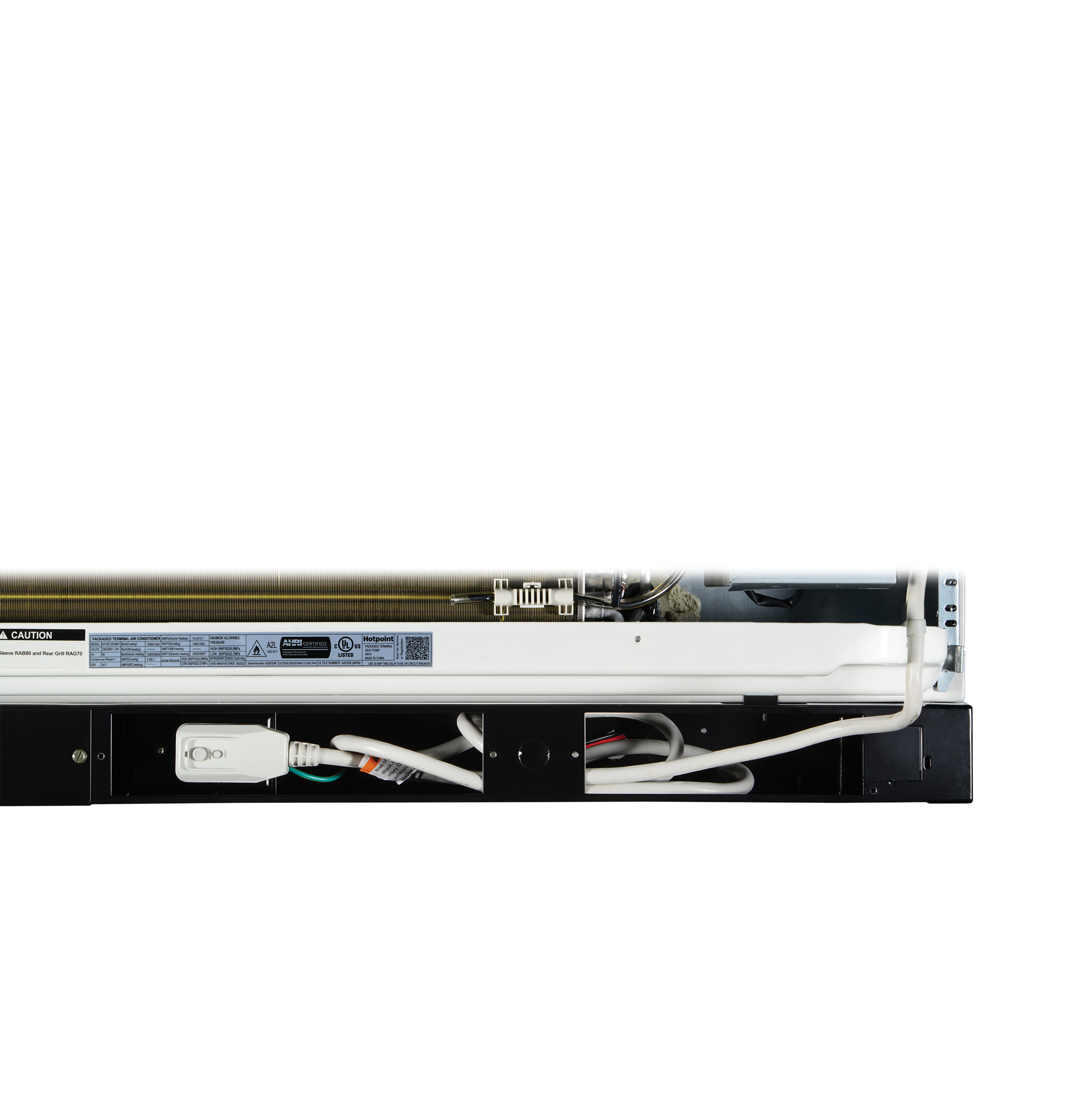

Power cord (LCDI) included

Hotpoint PTACs come with everything needed for a quick and easy installation

Works with central desk control systems

Tangential fan for air flow and smooth sound

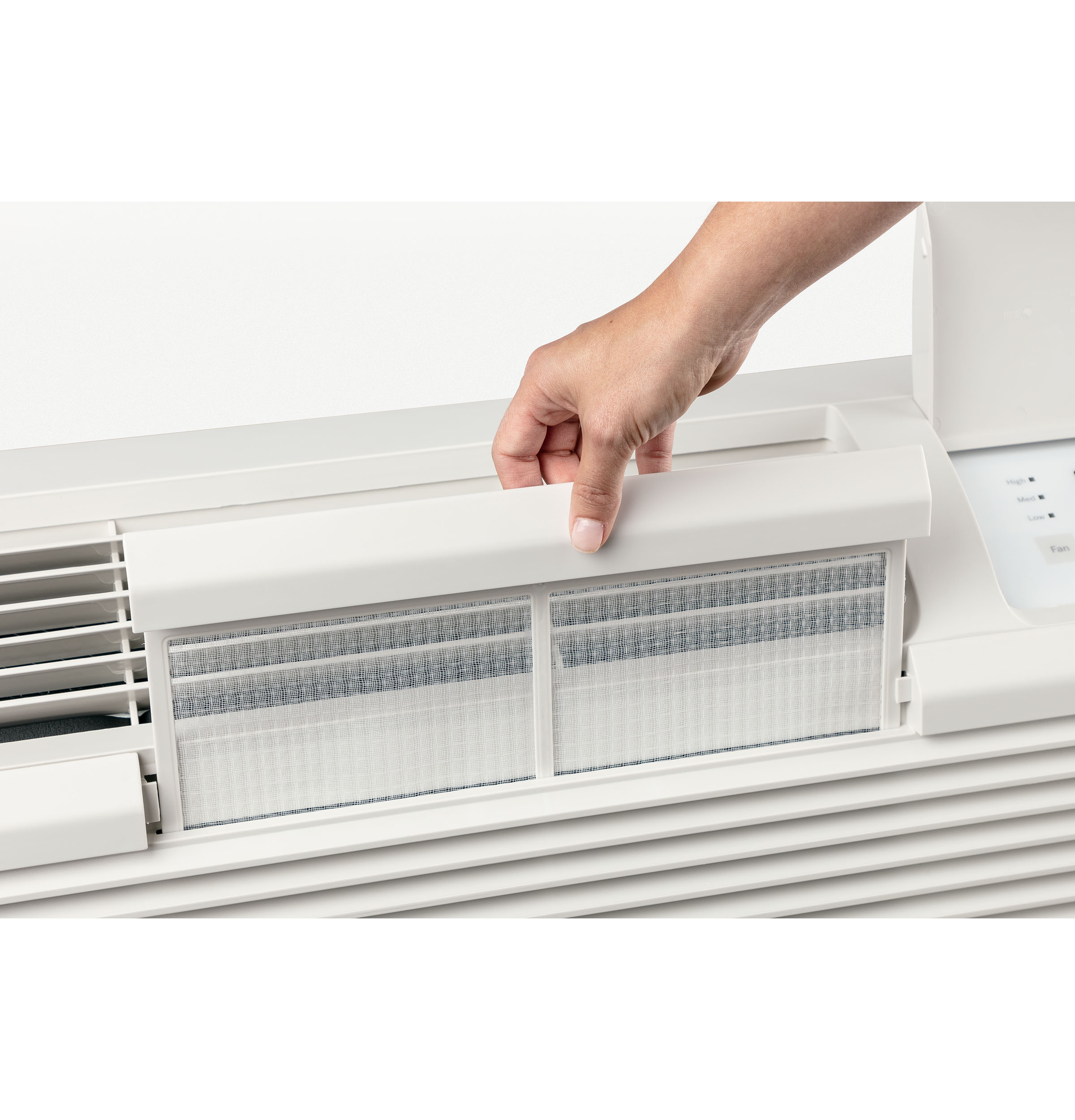

Removable filters for easy maintenance

Certifications

AHRI certification

AHRI

CSA certification

CSA

CUL certification

CUL

NRCAN certification

NRCAN

UL certification

UL

Specifications

CAPACITY

Cooling BTUH (MAX)14700 Btu
CFM Indoor Fan Low311
CFM Indoor Fan Medium344
CFM Indoor Fan High373
Cooling EER (BTUH / Watt)9.7
Heating - Reverse Cycle - BTUH13500/13200
Cooling BTUH (MIN)14500 Btu

FEATURES

Control TypeElectronic
Fan Speed Selections3 Heating
Discharge Grille2-position
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR32
Manual Vent ControlHidden
"SmartFan" Fan CycleYes

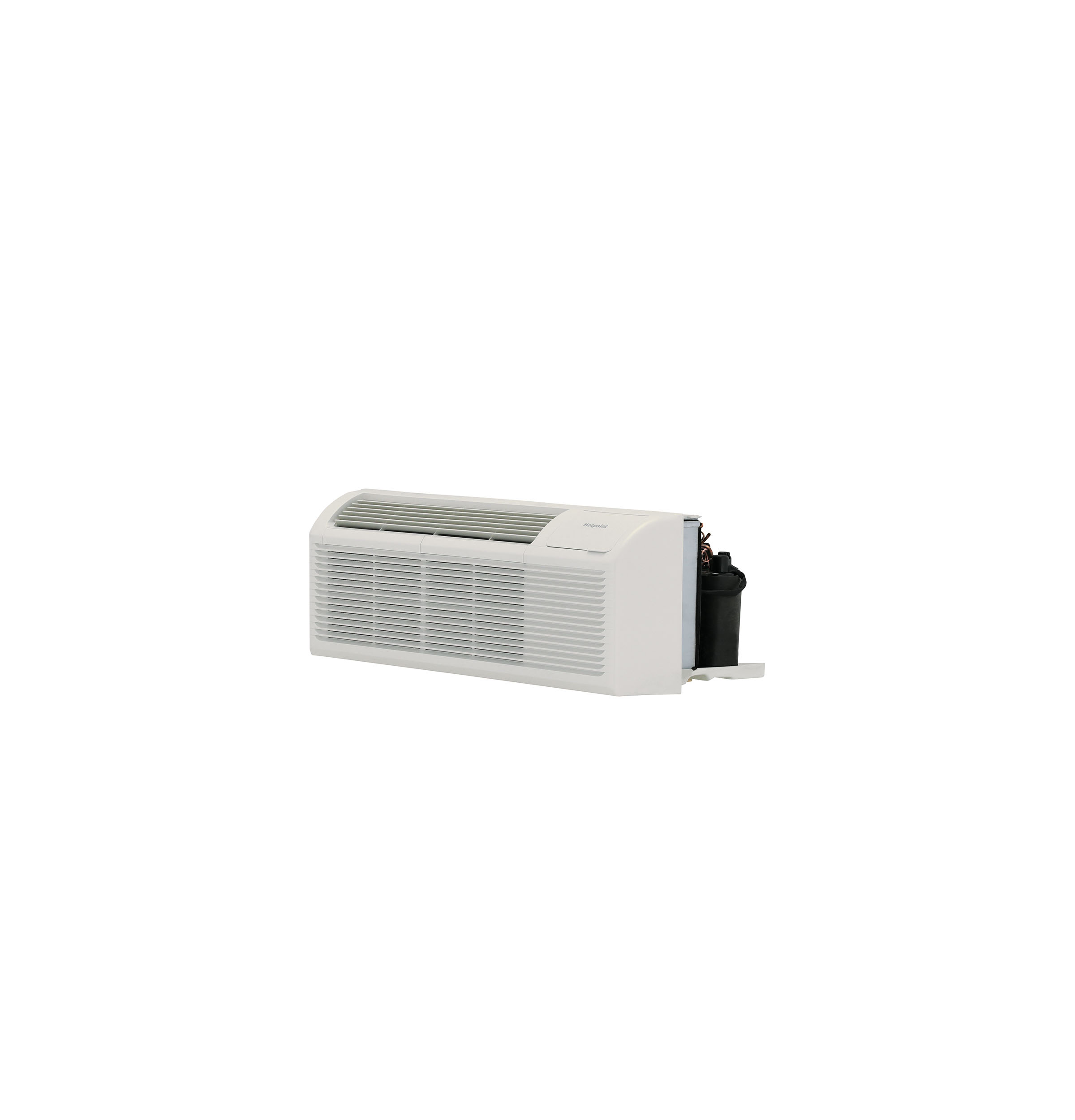

Chassis TypeSlide-In
Fan Motor2
Heat PumpYes
Unit FeaturesRemote Thermostat Compatibility
Temperature Range62 - 80 F
Heat - CoolYes
Auto Power RecoveryYes
Rotary CompressorYes
Heating - Reverse Cycle - COP3.0
Outdoor Vent / ExhaustYes
Venting FeaturesVent Air Filter
Heating SystemHeat Pump with Resistance Backup

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed refrigerating system
Parts WarrantyLimited 5-year sealed refrigerating system

POWER / RATINGS

Heating - Reverse Cycle - Watts1315/1285
Cooling - Amperes6.03/6.58
Cooling - Watts1515/1490
Heating - Reverse Cycle - Amps5.38/5.82
Voltage (MIN)208 V
Heating - Electric - Heater Watts5035/4124
Voltage (MAX)230 V
Heating - Electric - Heater Amps22.0/19.7

APPEARANCE

InstallationThrough-the-Wall
Color AppearanceWhite

Dimensions & Weight

Width42.4 in.
Height16 in.
Length20.9 in.
Weight116.8 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47.4 in.
Shipping Height21 in.
Shipping Length25.9 in.
Shipping Weight156.8 lbs.
Total of Shipping Weight156.8 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.21 ft³
Dimensional Weight102 lbs.
Total of Cubes8.21 ft³
Total of Dimensional Weight102 lbs.
