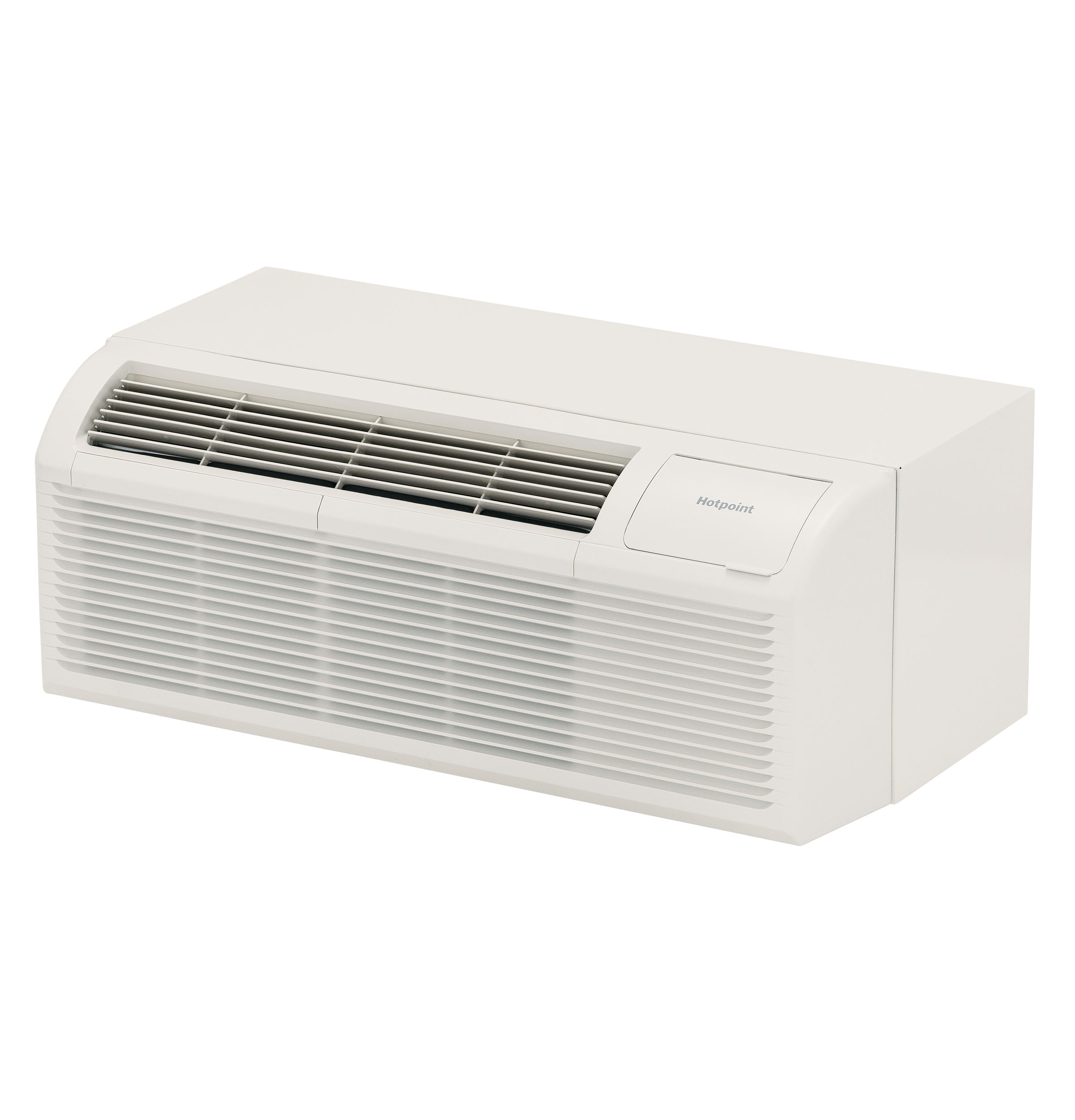

Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp - AH12H09D3B

This product has been discontinued by the manufacture and is no longer available.

Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp

Model: AH12H09D3B

Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3BHotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3B
Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3B
Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3B
Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3B
Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3B
Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3B
+17more

Color : White

Hotpoint® PTAC Heat Pump 9,000 BTU, 230/208V, 20amp AH12H09D3B
White

Key Features

  • 3-speed fan

  • 4-temperature limiting options

  • Freeze and frost protection

  • Auto power recovery

  • Self diagnostics

  • Automatic emergency heat

  • Backed by an industry leader

  • Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

3-speed fan

Give guests control over their comfort with three fan speeds to choose from

4-temperature limiting options

Easily select one of four temperature ranges for peak efficiency and total customer comfort

Freeze and frost protection

Automatic freeze and indoor frost control keep units operating in peak condition

Auto power recovery

In case of power failures, units automatically resume their operation when power restores, reducing maintenance calls

Self diagnostics

Quickly and easily identify service needs with a nine-point diagnostic code system

Automatic emergency heat

Keep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

Backed by an industry leader

With a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand

Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warranty

Enjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network

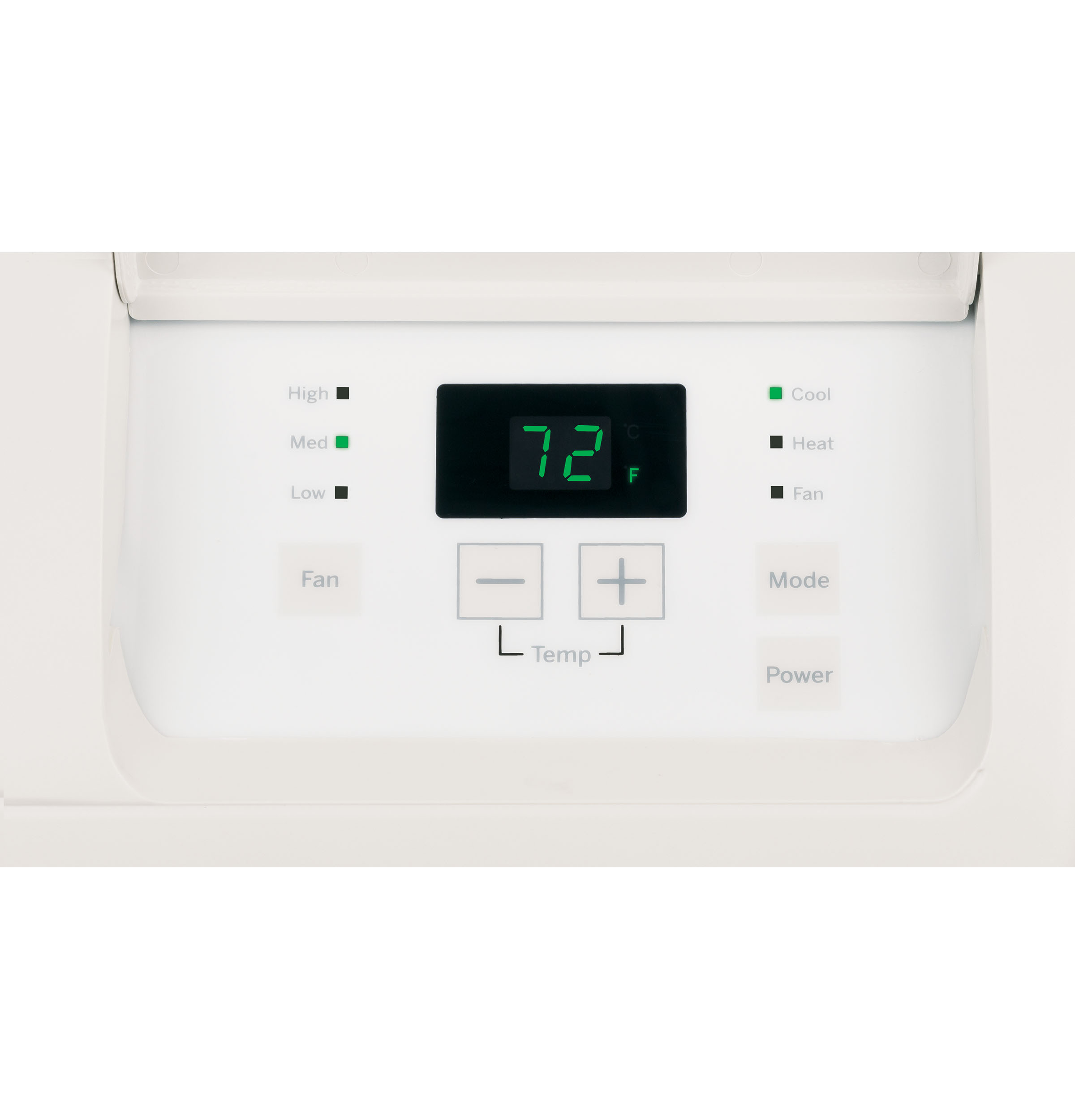

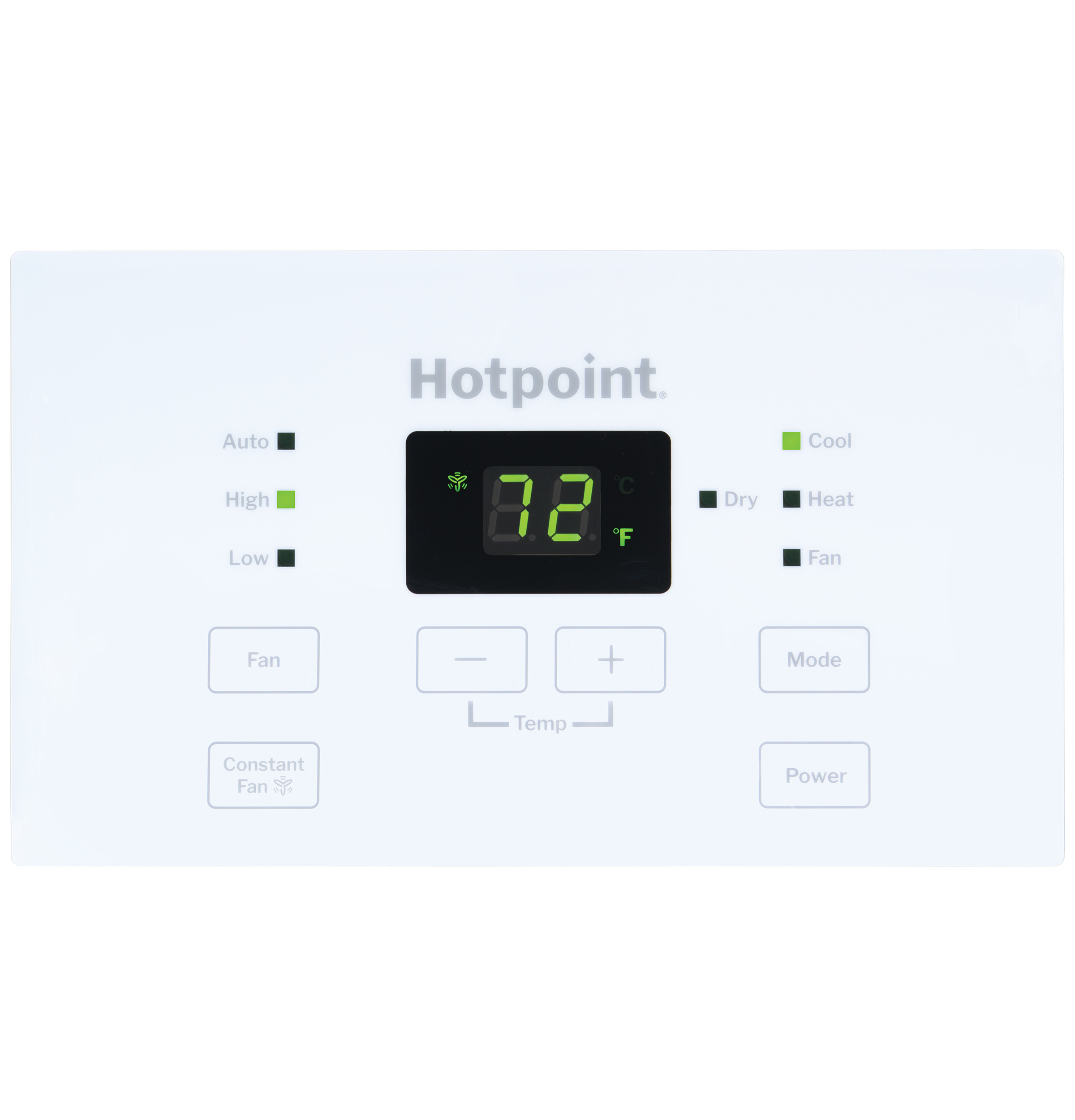

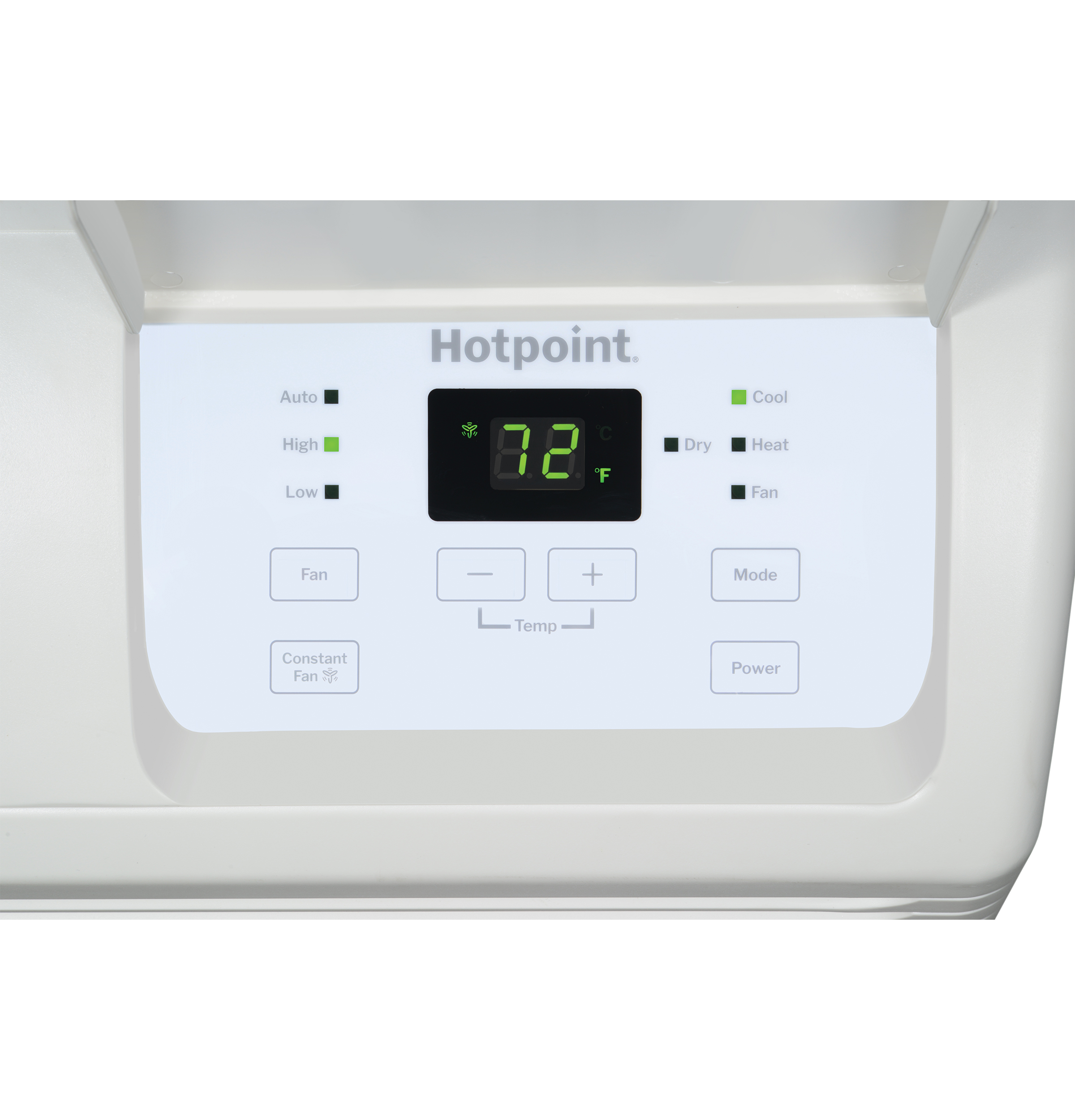

Intuitive display

Allow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel

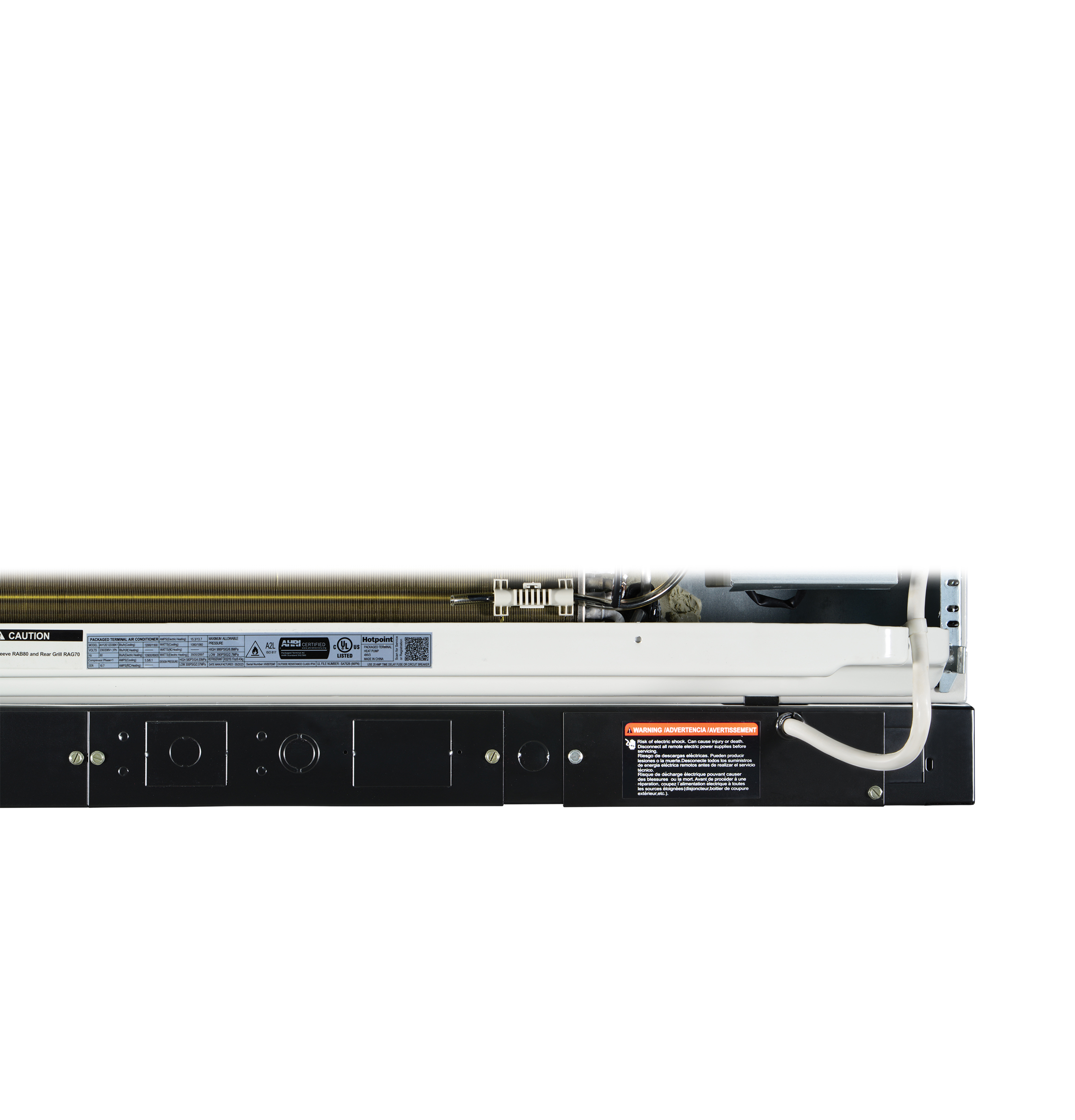

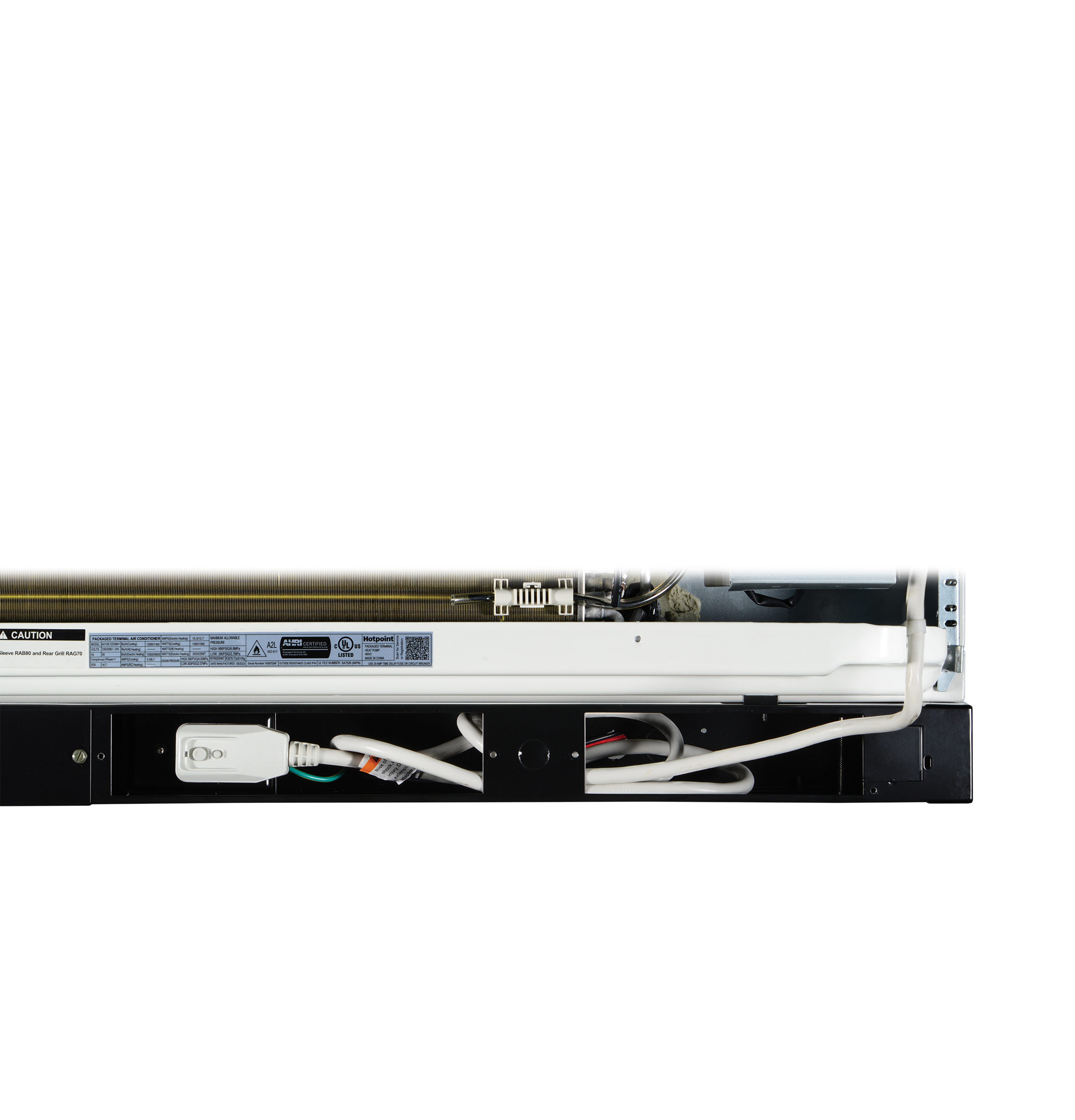

Power cord (LCDI) included

Hotpoint PTACs come with everything needed for a quick and easy installation

Works with central desk control systems

Remote thermostat compatibility

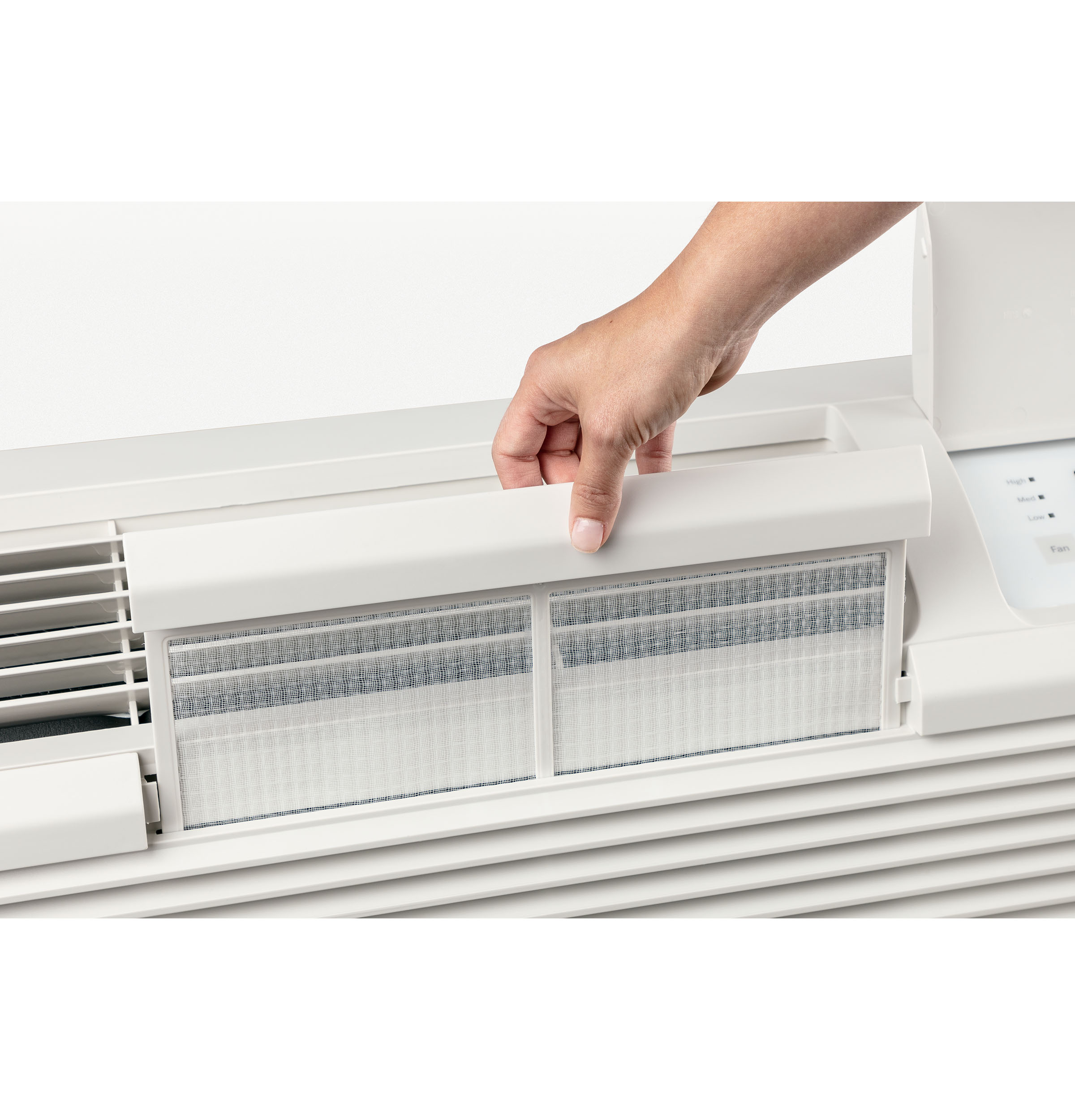

Removable filters for easy maintenance

Tangential fan for air flow and smooth sound

Certifications

AHRI certification

AHRI

CSA certification

CSA

CUL certification

CUL

NRCAN certification

NRCAN

UL certification

UL

Specifications

CAPACITY

Cooling BTUH (MAX)9000 Btu
CFM Indoor Fan Low332
CFM Indoor Fan Medium385
CFM Indoor Fan High431
Cooling EER (BTUH / Watt)11.4
Heating - Reverse Cycle - BTUH8100/7900
Cooling BTUH (MIN)8800 Btu

FEATURES

Control TypeElectronic
Discharge Grille2-position
Fan Speed Selections3 Heating
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR32
Manual Vent ControlHidden
"SmartFan" Fan CycleYes

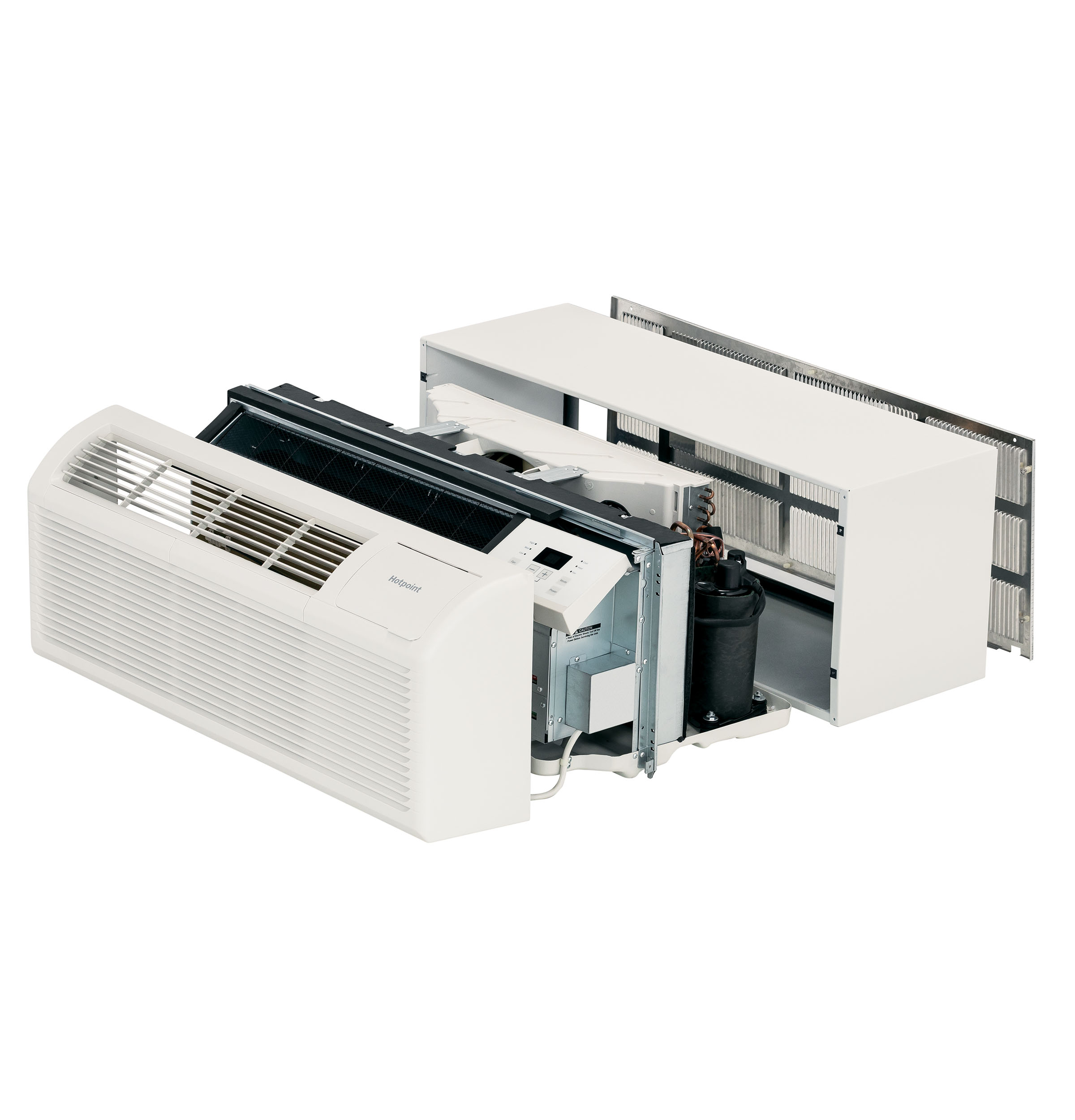

Chassis TypeSlide-In
Fan Motor2
Heat PumpYes
Unit FeaturesRemote Thermostat Compatibility
Temperature Range62 - 80 F
Heat - CoolYes
Auto Power RecoveryYes
Rotary CompressorYes
Heating - Reverse Cycle - COP3.4
Outdoor Vent / ExhaustYes
Venting FeaturesVent Air Filter
Heating SystemHeat Pump with Resistance Backup

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed refrigerating system
Parts WarrantyLimited 5-year sealed refrigerating system

POWER / RATINGS

Heating - Reverse Cycle - Watts695/680
Cooling - Amperes; F.L. - Cooling3.5/3.8
Cooling - Amperes3.46/3.75
Cooling - Watts785/770
Heating - Reverse Cycle - Amps3.04/3.28
Voltage (MIN)208 V
Heating - Electric - Heater Watts3535/2900
Voltage (MAX)230 V
Heating - Electric - Heater Amps15.3/13.7

APPEARANCE

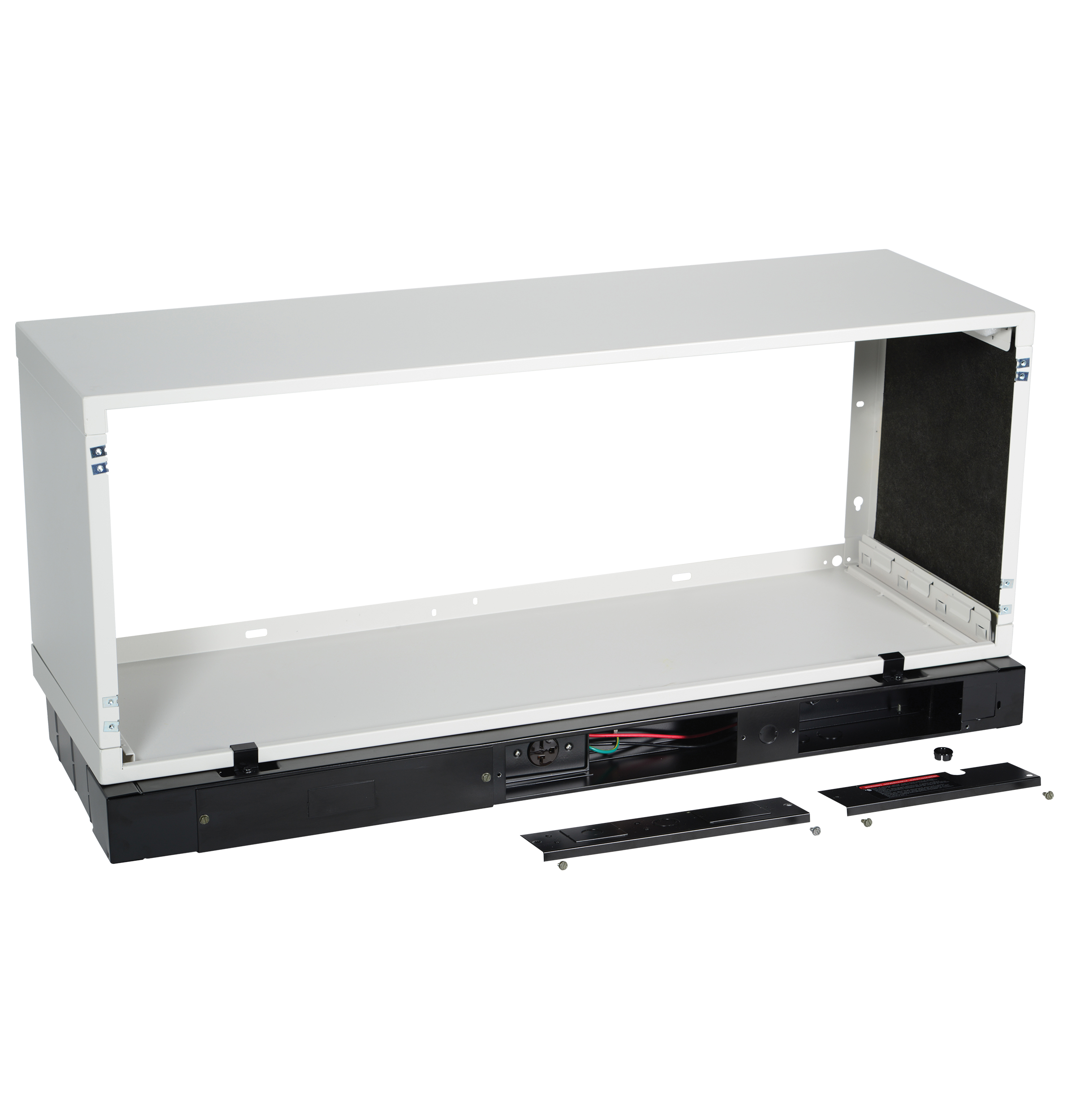

InstallationThrough-the-Wall
Color AppearanceWhite

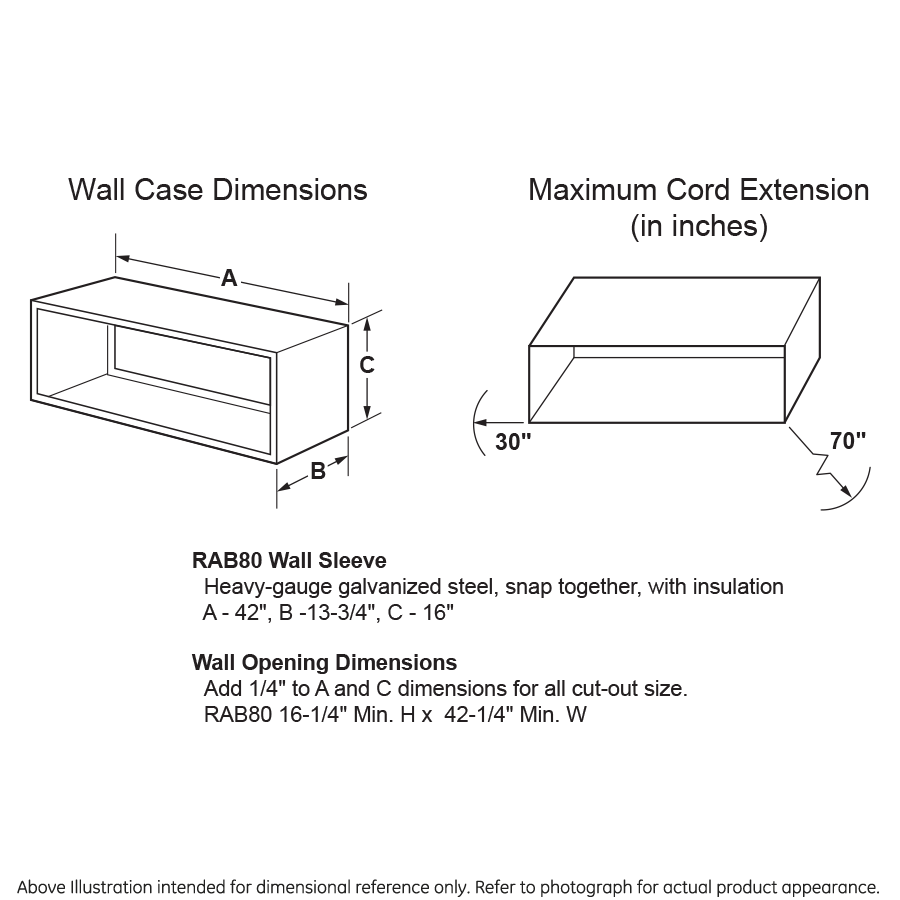

Dimensions & Weight

Width42.4 in.
Height16 in.
Length20.9 in.
Weight102.5 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width47.4 in.
Shipping Height21 in.
Shipping Length25.9 in.
Shipping Weight142.5 lbs.
Total of Shipping Weight142.5 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement8.21 ft³
Dimensional Weight102 lbs.
Total of Cubes8.21 ft³
Total of Dimensional Weight102 lbs.
