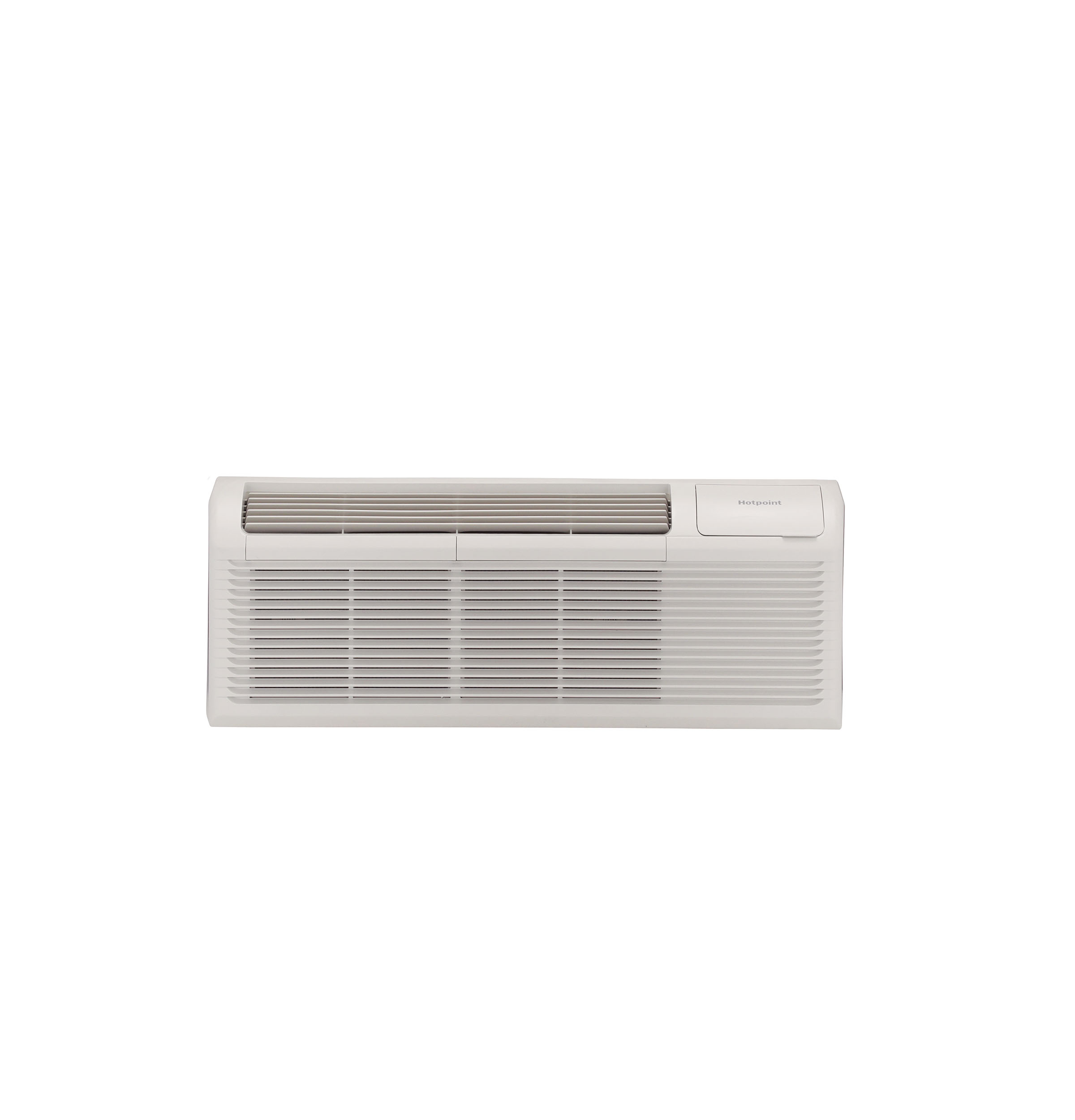

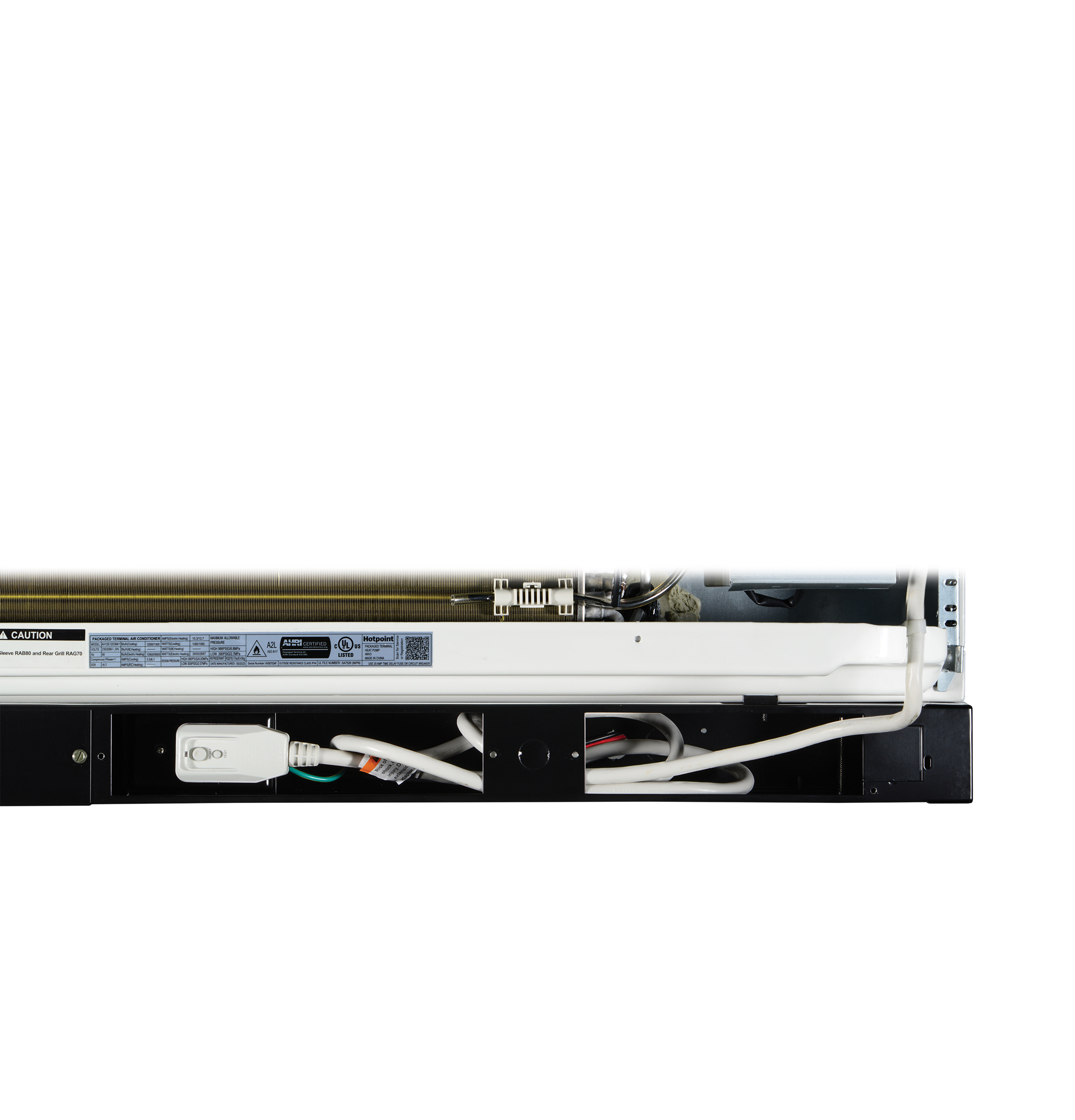

Hotpoint® PTAC with Electric Heat 7,000 BTU, 230/208V, 20amp - AH12E07D3B
This product has been discontinued by the manufacture and is no longer available.
Hotpoint® PTAC with Electric Heat 7,000 BTU, 230/208V, 20amp
Model: AH12E07D3B














+4more
This product has been discontinued by the manufacture and is no longer available.
Hotpoint® PTAC with Electric Heat 7,000 BTU, 230/208V, 20amp
Model: AH12E07D3B
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Specifications
Certifications
Certifications
AHRI
CSA
CUL
NRCAN
UL
Specifications
CAPACITY
| Cooling BTUH (MAX) | 7200 Btu |
| CFM Indoor Fan Low | 236 |
| CFM Indoor Fan Medium | 339 |
| CFM Indoor Fan High | 334 |
| Cooling EER (BTUH / Watt) | 11.9 |
| Cooling BTUH (MIN) | 7000 Btu |
FEATURES

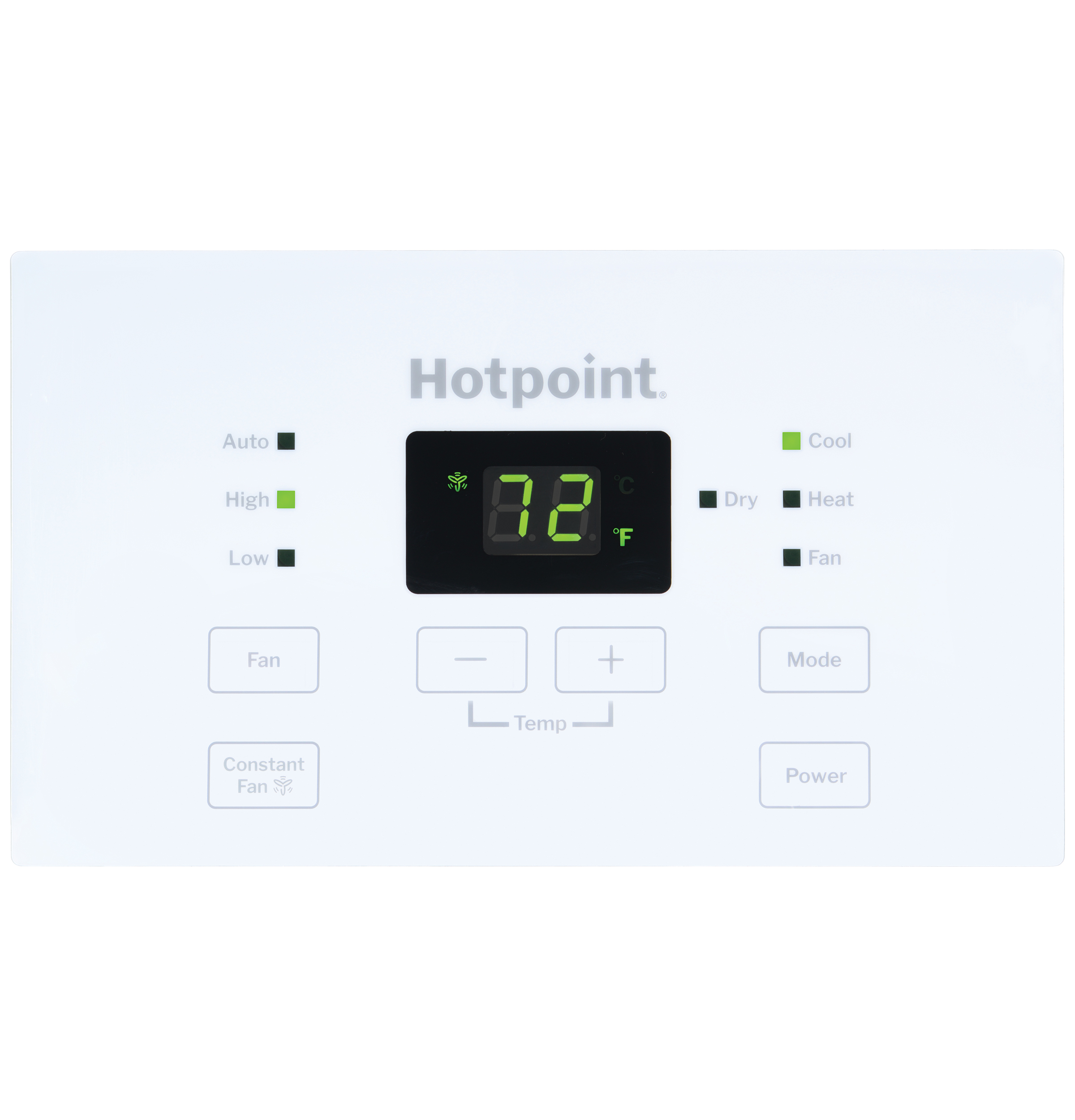

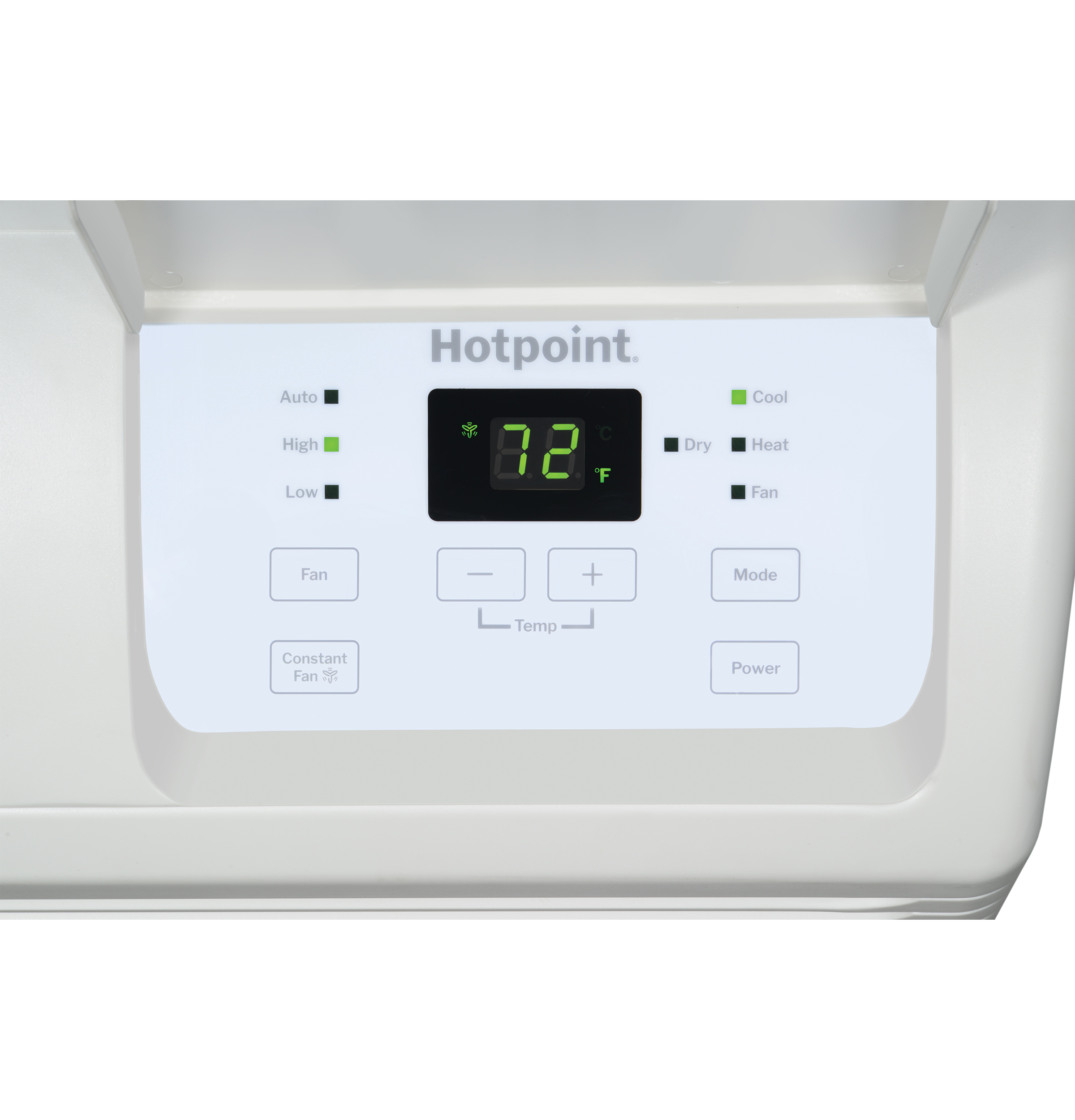

| Control Type | Electronic |
| Fan Speed Selections | 3 Heating |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R32 |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |
| Fan Motor | 2 |
| Chassis Type | Slide-In |
| Unit Features | Remote Thermostat Compatibility |
| Temperature Range | 62 - 80 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Venting Features | Vent Air Filter |
| Heating System | Electric Resistance |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 5-year sealed refrigerating system |
POWER / RATINGS
| Cooling - Amperes | 2.45/2.6 |
| Cooling - Watts | 605/585 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3535/2900 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.3/13.7 |
APPEARANCE
| Installation | Through-the-Wall |
| Color Appearance | White |
Dimensions & Weight
| Width | 42.4 in. |
| Height | 16 in. |
| Length | 20.9 in. |
| Weight | 101.6 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47.4 in. |
| Shipping Height | 21 in. |
| Shipping Length | 25.9 in. |
| Shipping Weight | 141.6 lbs. |
| Total of Shipping Weight | 141.6 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.21 ft³ |
| Dimensional Weight | 102 lbs. |
| Total of Cubes | 8.21 ft³ |
| Total of Dimensional Weight | 102 lbs. |
