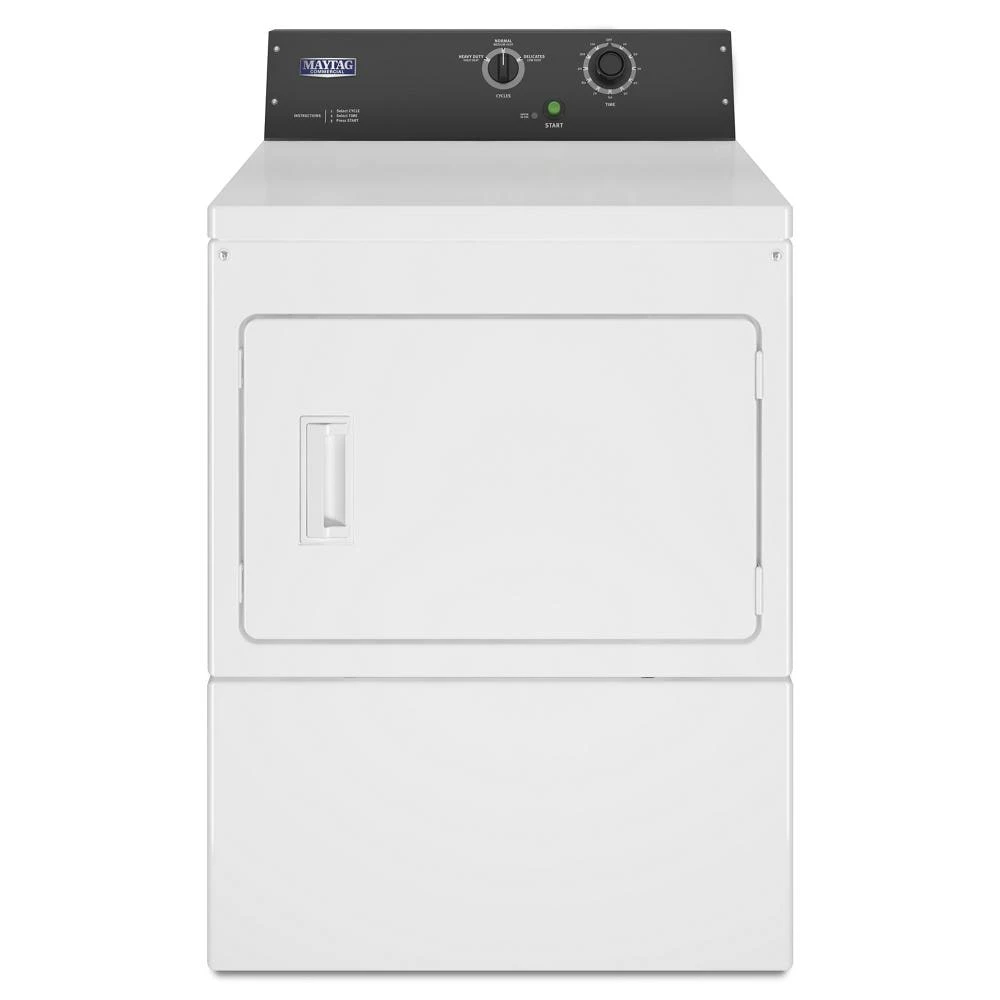

COMMERCIAL GAS DRYER, CARD READER READY OR NON-VEND - MDG20MNTKW
COMMERCIAL GAS DRYER, CARD READER READY OR NON-VEND
Model: MDG20MNTKW






COMMERCIAL GAS DRYER, CARD READER READY OR NON-VEND
Model: MDG20MNTKW
Key Features
5-Year Limited Warranty
Extra-Large Reversible Door
Four-Roller Suspension with Permanently Lubricated Bearings
Front-Access Panel
Full-Wrap Console
Large Capacity
Porcelain-Enamel Top
Turbovent® System
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
5-Year Limited Warranty
This reliable dryer is backed with a 5-Year Limited Parts Warranty.*See maytagcommerciallaundry.com for warranty details.
Extra-Large Reversible Door
The extra-large door opening provides users easy access while loading and unloading clothes, while the reversible side-swing design provides flexibility for installation.

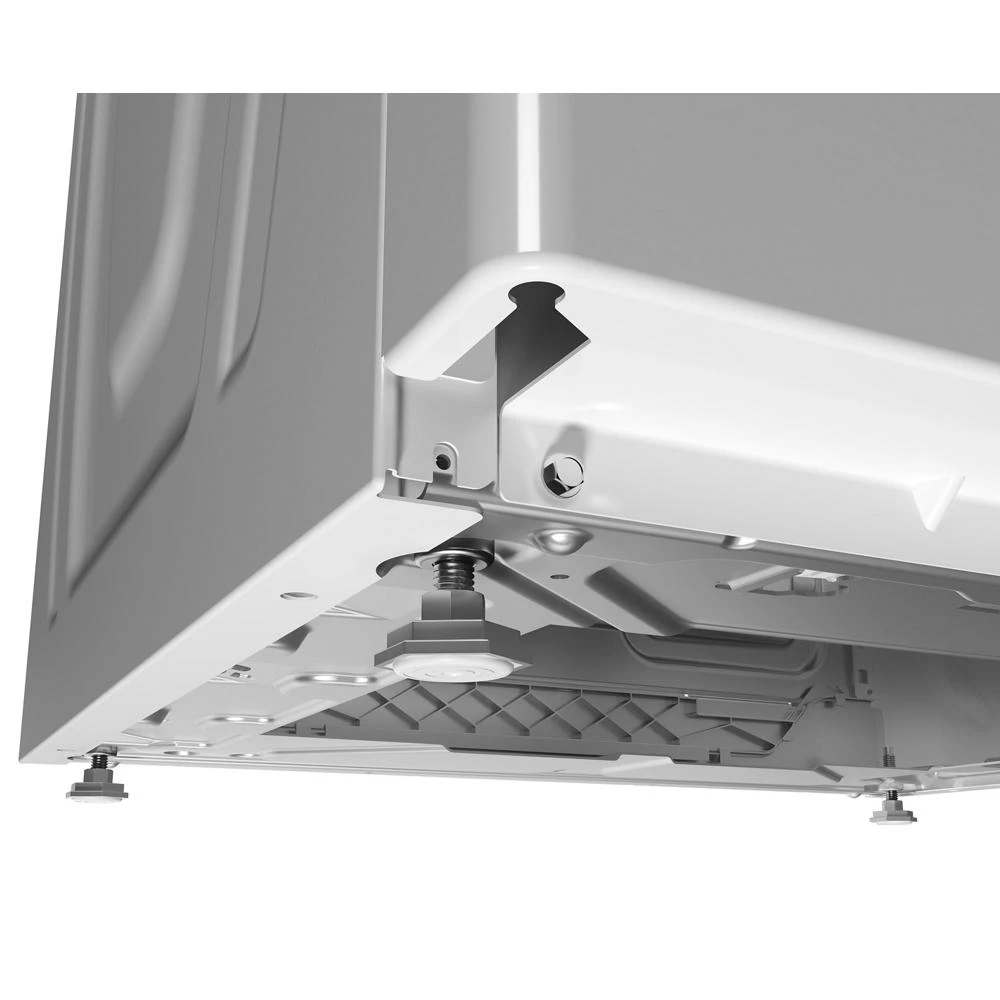

Four-Roller Suspension with Permanently Lubricated Bearings
Four heavy-duty rollers in the suspension and permanently lubricated bearings are built to last.

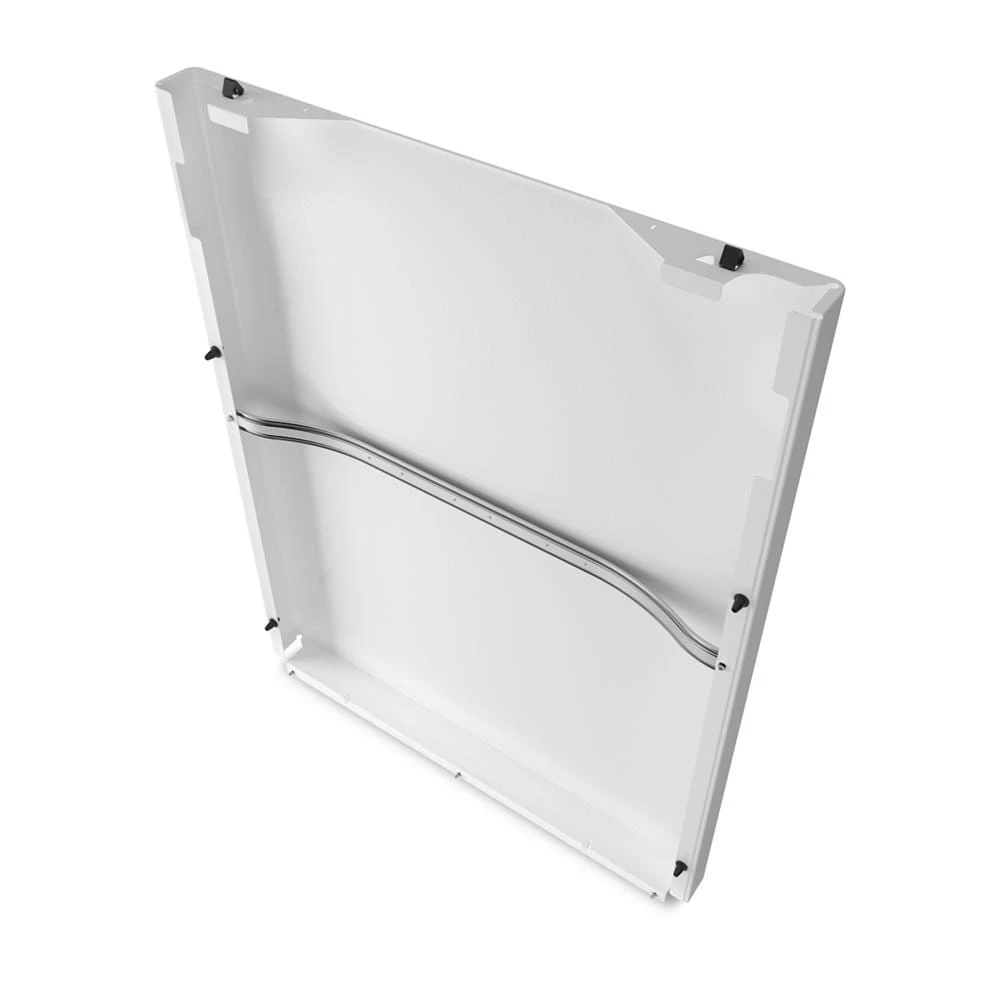

Front-Access Panel
Gain access to several routine maintenance and service tasks.
Full-Wrap Console
Designed to help protect the internal components from any unexpected liquids or vapor, this one-piece, full-wrap metal console is sleek, robust, and easy-to-clean.
Large Capacity
The large 7.4 cu. ft. capacity dryer allows for large loads to be dried efficiently and effectively, delivering an optimal drying experience for end users and maximizing productivity.
Porcelain-Enamel Top
The porcelain-enamel top is robust, boosting machine durability and aesthetics in high-use laundry environments.
Turbovent® System
Our Turbovent® technology uses a high-speed blower to increase airflow for long vent installations. With 100 feet of venting capability, the Turbovent® system allows for long vent installations, while maintaining high performance.
Turbovent® system
A high-speed blower wheel optimizes performance in long vents, while high airflow helps reduce drying times for a wide variety of loads — increasing efficiency and turns over the life of the machine.
5-Year Limited Parts Warranty
This reliable dryer is backed with a 5-Year Limited Parts Warranty. *See maytagcommerciallaundry.com for warranty details.
Specifications
Certifications
| UL | Yes |
| prop65 | CA |
Controls
| Automatic Temperature Controls | Yes |
| Control Type | Dials |
| End of Cycle Signal | No |
| Neon Indicator | Yes |
Cycles
| Drying Cycles Selections | Delicates; Heavy Duty; Normal |
| Number of Dryer Cycles | 3 |
Details
| Air Flow | 230 |
| Card Reader Ready | No |
| Coin Drop Ready | No |
| Coin Slide Ready | No |
| Cycle Time Remaining | No |
| Door Opening Direction | Left |
| Dryer Heating Burner | 20, 000 |
| Dryer Interior Light | No |
| Drying Rack | No |
| EcoBoost Energy Saver | No |
| Electronic Burner Ignition | No |
| Fuel Type | Gas |
| Gas Inlet Size | 3/8 N.P.T |
| Infrared Data Collection | No |
| LP Convertible | Yes |
| Lint Filter Indicator | No |
| Machine in Use Indicator | Yes |
| Meter Case Service door | No |
| Moisture Sensor | No |
| Mount Type | Rigid |
| Quad Baffles | No |
| Secondary Lint Filter | No |
| Service Mode Activation | No |
| Sound Package | No |
| Stackable | No |
Dimensions
| Cylinder Depth | 23.2 |
| Cylinder Diameter | 26.26 |
| Cylinder Volume | 7.4 |
| Door Opening Angle | 180 deg |
| Full Width Console | Yes |
| carton depth | 31 |
| carton height | 44.5 |
| carton width | 28.5 |
| gross weight | 164 |
| net weight | 149 |
Electrical
| Power Cord Included | No |
Exterior Details
| Reversible Door | Yes |
| Window | No |
Installation Considerations
| Exhaust Diameter | 4 |
| Four Way Venting | Yes |
Interior Details
| Drum Speed | 45 |
| Dryer Drum Material | Powder Coat |
| Lint Screen Location | Front |
Management System Details
| Meter Case | No |
Performance Details
| Motor Horsepower | 1/3 HP |
Product Details
| Energy Star® Qualified | No |
