Deluxe Range Hood - JV347HWW
Deluxe Range Hood
Model: JV347HWW
Deluxe Range Hood
Model: JV347HWW
Color : White
Key Features
200-CFM venting system
Convertible venting
Vertical and rear exhaust
Variable three-speed fan control
Cooktop light
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
200-CFM venting system
Helps effectively remove smoke, grease, odors and moisture
Convertible venting
Offers vented or non-vented installation options
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Variable three-speed fan control
Helps draw smoke, grease, odors and moisture out of the kitchen air
Cooktop light
Brightens the cooktop surface
Certifications
AHAM
California Prop 65
Specifications

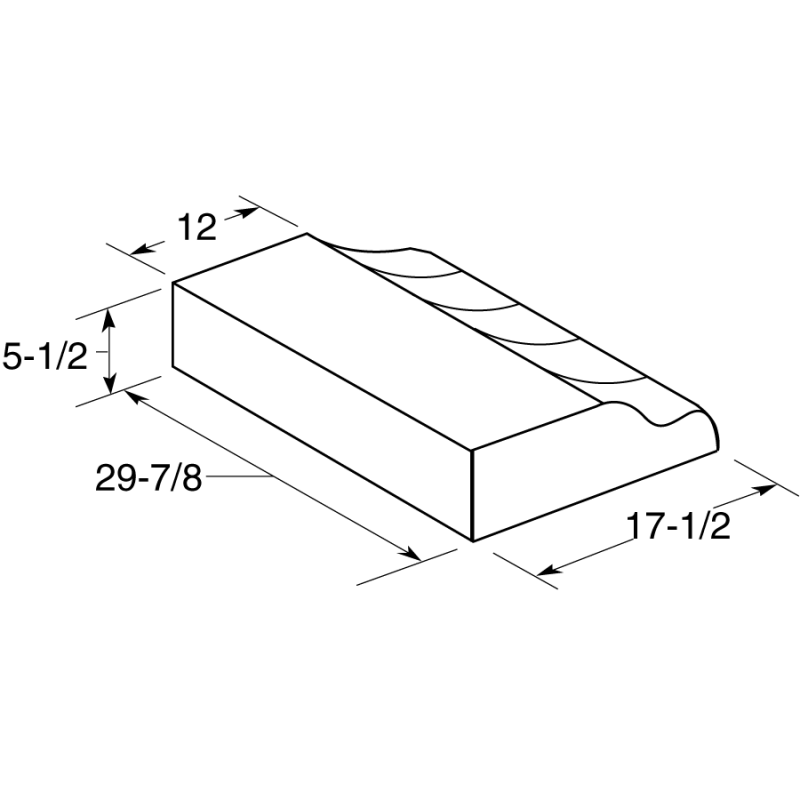

Dimensions & Weight
| Width | 29.88 in. |
| Height | 5.5 in. |
| Length | 17.5 in. |
| Weight | 19 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 22.5 in. |
| Shipping Weight | 59 lbs. |
| Total of Shipping Weight | 59 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.66 ft³ |
| Dimensional Weight | 20.69 lbs. |
| Total of Cubes | 1.66 ft³ |
| Total of Dimensional Weight | 20.69 lbs. |
FEATURES
| Fan Speed Control | 3-Speed |
| Cooktop Lighting | Incandescent |
| Max CFM | 200 |
| Ducting | 4-Way |
| Light Controls | Knob |
| Filter Cleaning | Dishwasher Safe Mesh |
| Fan Controls | Knob |
| Exhaust Options | 3-1/4" x 10" Rectangular Duct |
| Damper Included (Rectangular) | Yes |
| Removable Grease Filter(s) | Single Mesh and Carbon |
| CFM/ Sones Rating | 180/ 7.0 (Back Rectangular) |
| CFM/ Sones Rating | 200/ 6.0 (Top Round) |
| CFM/ Sones Rating | 180/ 6.0 (Top Rectangular) |
WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Net Weight | 19 lb |
| Approximate Shipping Weight | 19 lb |
| Overall Depth | 17 1/2 in |
| Overall Height | 5 1/2 in |
| Overall Width | 29 7/8 in |
ACCESSORIES
| Optional Damper Accessory (Round) | JXDA22 |
POWER / RATINGS
| Amp Rating at 120V | 2.5 |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 |
APPEARANCE
| Color Appearance | White on White |
ECONOMICAL / QUIET
| Venting Type | Convertible |
