5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes - KFES530SPS

This product has been discontinued by the manufacture and is no longer available.

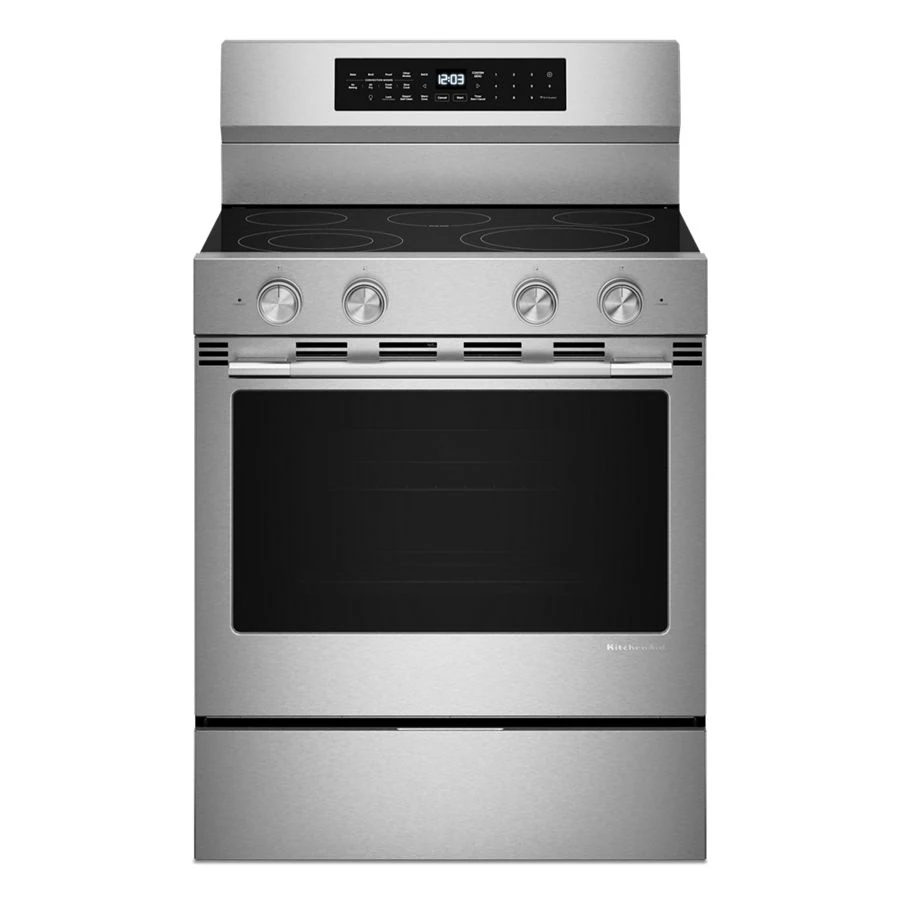

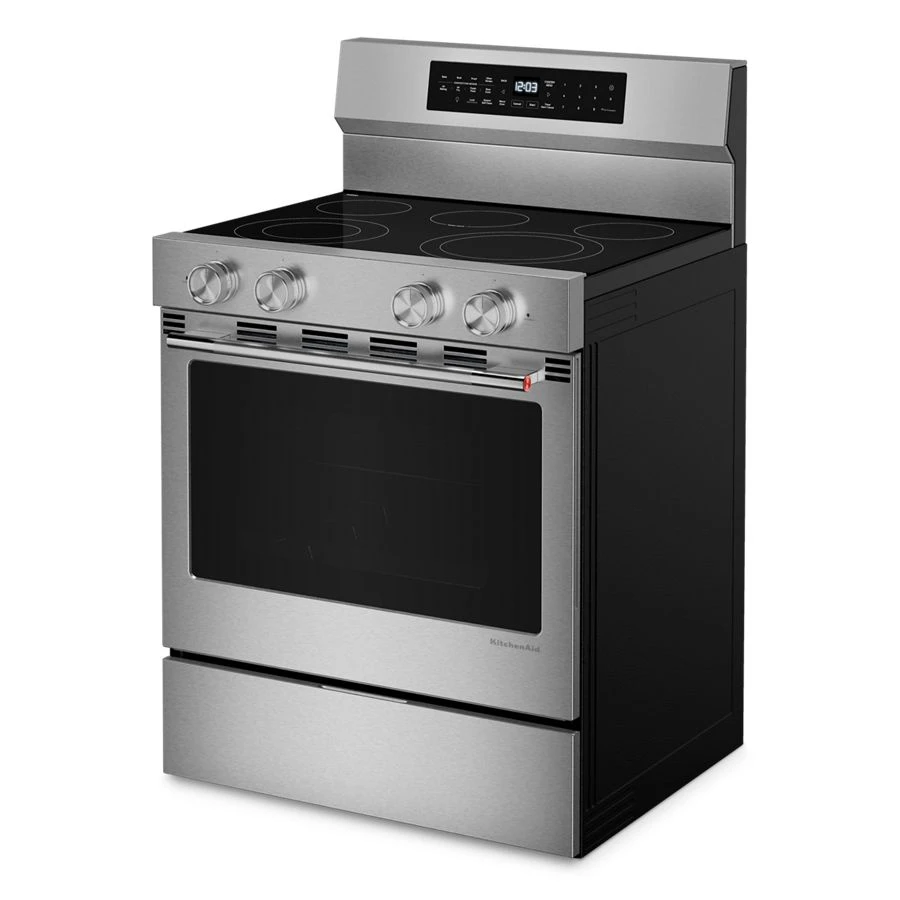

5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes

Model: KFES530SPS

5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS
5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS
5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS
5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS
5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS
5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS
+8more
rebate iconRebate Available

Color : PrintShield™ Stainless Finish

5.3 Cu. Ft. Smart Freestanding Electric Range With Convection Cooking Modes KFES530SPS
PrintShield™ Stainless Finish

Current Rebates

KitchenAid + NMG: Up to $4,000 Exclusive Rebate
Expires: July 08, 2026
KitchenAid Craft Your Dream Kitchen Promotion
Expires: July 08, 2026
KitchenAid Buy More Save More Delivery And Installation Allowance
Expires: June 10, 2026

Key Features

  • 5 Cooking Elements Including a Warm Zone

  • 5.3 Cu. Ft. Capacity with Rapid Preheat

  • 6-Inch Warm Zone

  • Air Baking

  • Air Broil

  • Air Roast

  • Convection Cooking Modes

  • Edge-to-Edge Glass Cooking Surface

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications

Features

5 Cooking Elements Including a Warm Zone

provides five independent cooking surfaces that allow you to do more on your range. Two 6 to 9-inch dual cooking zones and two standard 6-inch elements allow you to cook more at once, while a dedicated warm zone keeps dishes at the perfect serving temperature.

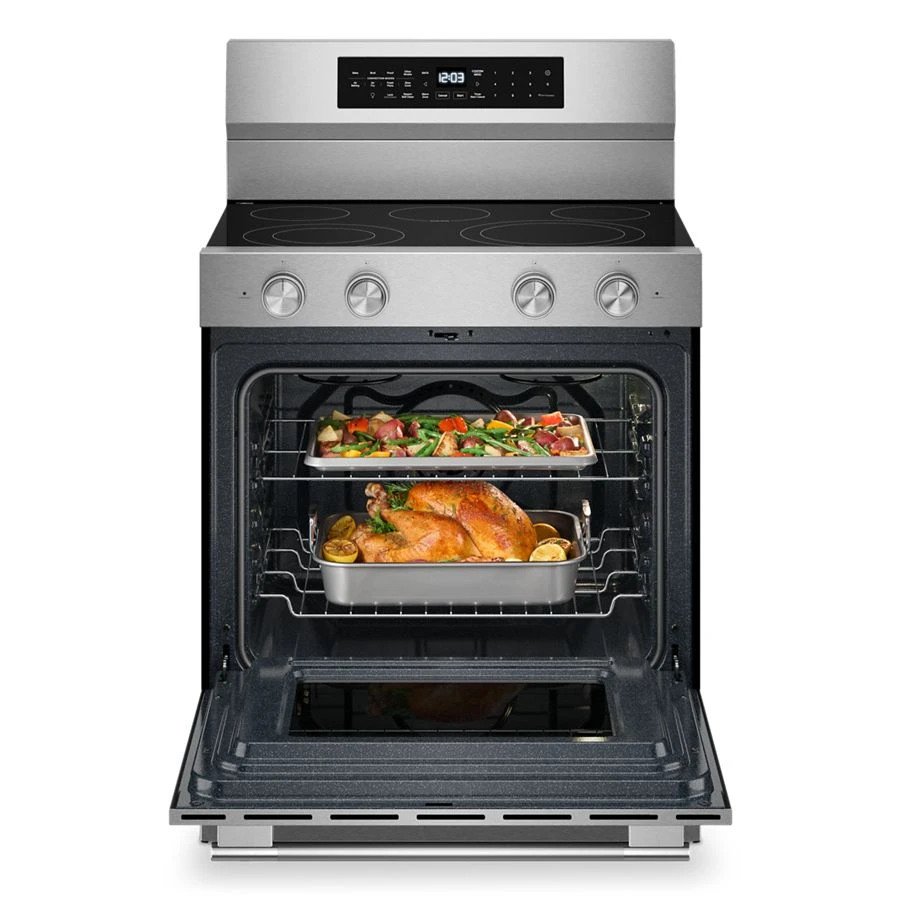

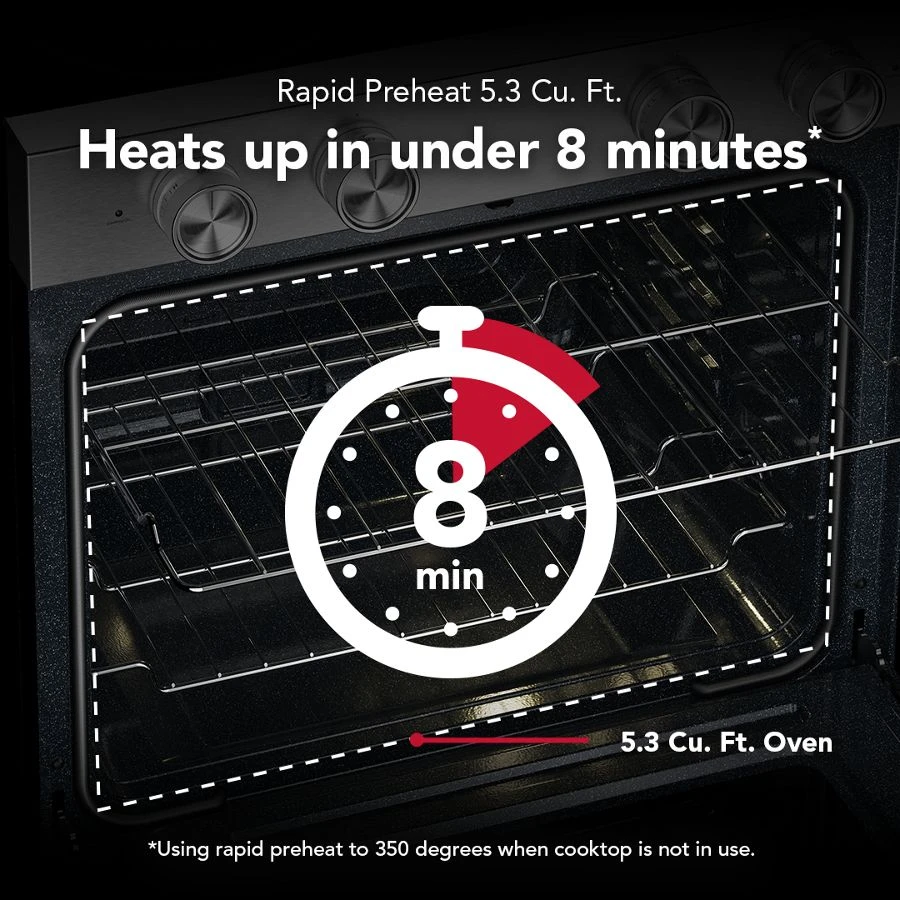

5.3 Cu. Ft. Capacity with Rapid Preheat

maximizes your cooking potential with our spacious oven, designed to handle entire meals like a full turkey and sides simultaneously. Featuring an optimized oven design, it reaches 350°F in under 8 minutes*, reducing wait times and using up to 15% less energy.***Using Rapid Preheat to 350 degrees when cooktop is not in use.**Compared to KFEG500E.

6-Inch Warm Zone

keeps dishes at the perfect serving temperature while you finish preparing the rest of your meal.

Air Baking

helps you craft delicious cakes, muffins, last-minute bake sale treats, and more, with even results on multiple racks.

Air Broil

melts, chars and sears quickly using intense air-driven heat to create toasted treats, melty grilled cheese and more.

Air Roast

seals in the flavors and juices of meat and poultry for a hearty, comforting meal.

Convection Cooking Modes

help you get consistent results with optimal heating temperatures for juicy roast meats with No Preheat Slow Cook, restaurant-style pizza with Fresh Pizza Mode, No Preheat Air Fry for crispy game day wings, and more.

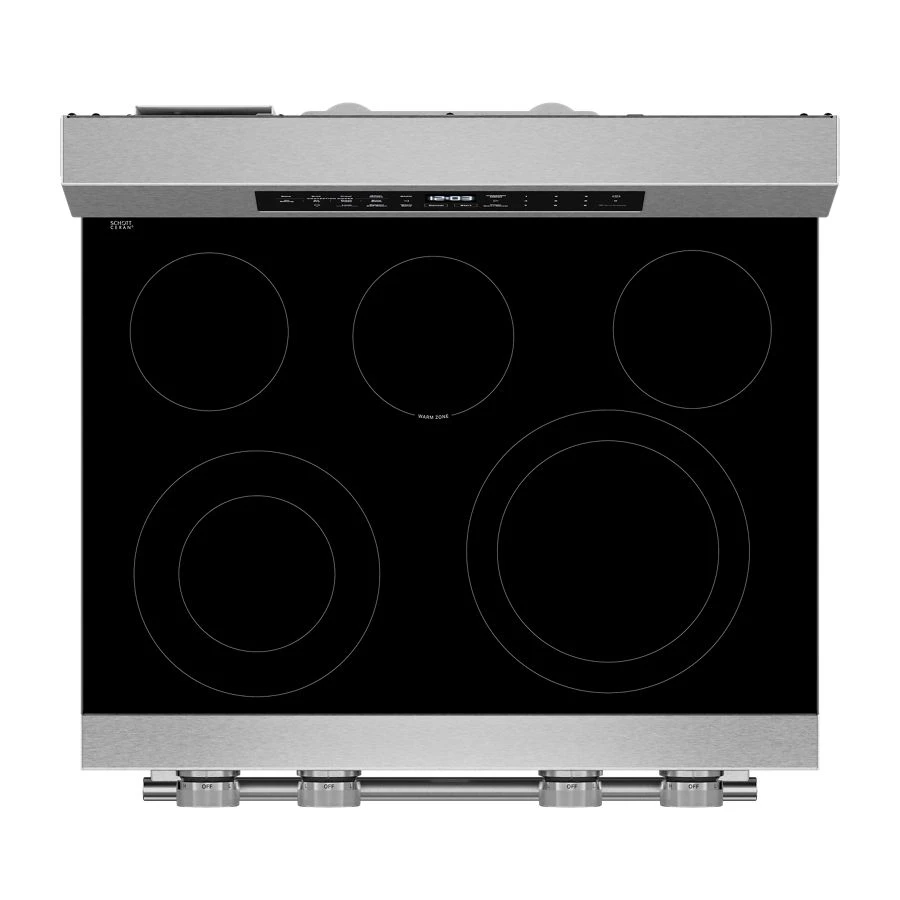

Edge-to-Edge Glass Cooking Surface

subtly integrates with your countertop, allowing you to move pots and pans easily from your counter to the cooking surface. Its clean, minimalist lines enhance your kitchen's design.

Energy Star® Certified

to exceed government standards for energy efficiency, supporting sustainability and helping to save money on utility bills.

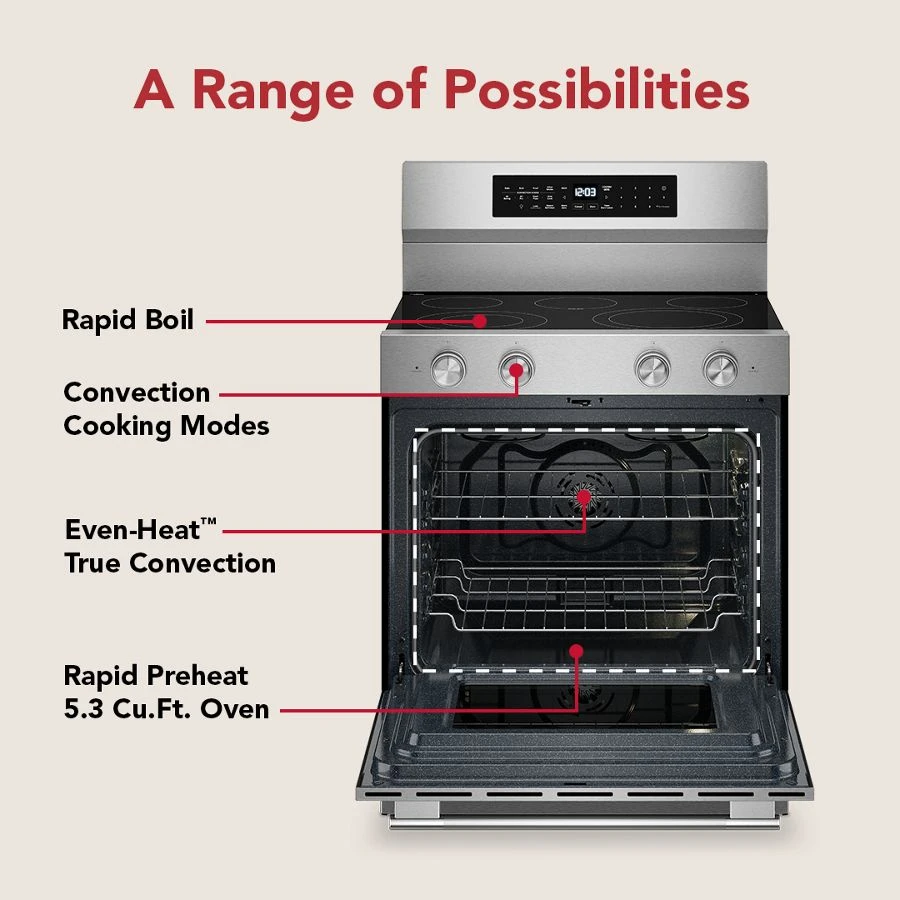

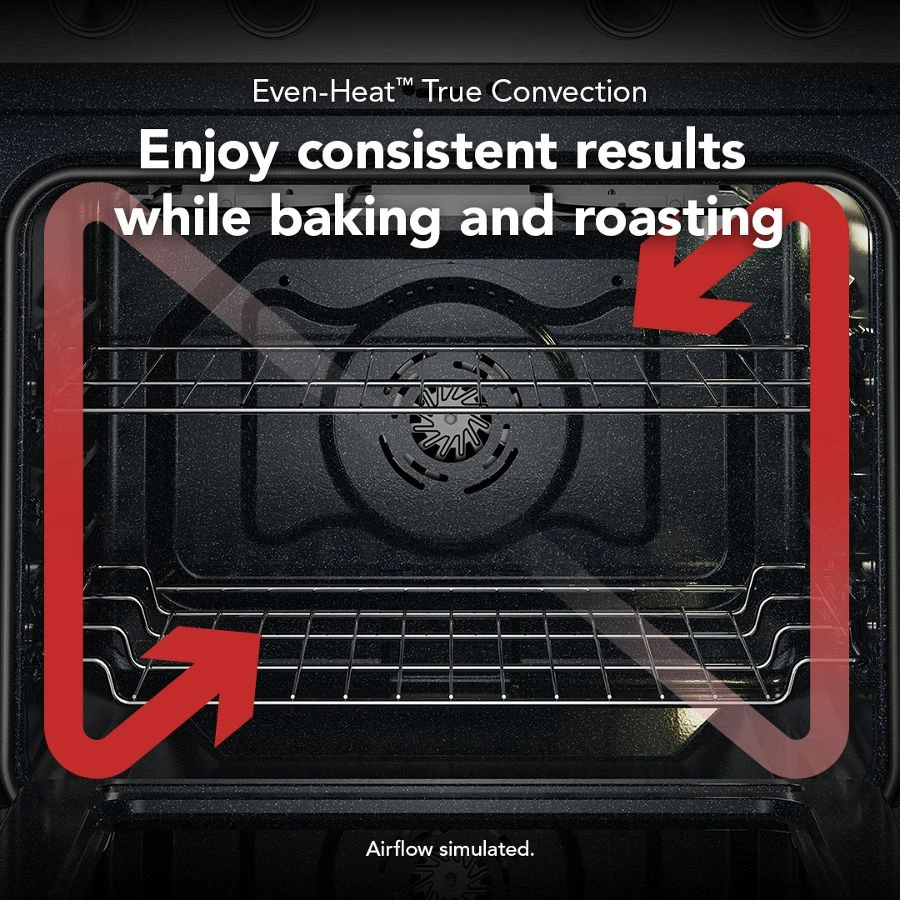

Even-Heat™ True Convection

features a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts, and flavorful caramelized vegetables.

Fresh Pizza Mode

helps you create homemade, restaurant-style pizzas from the comfort of your kitchen. This setting cranks the heat to 550°F for delicious results.

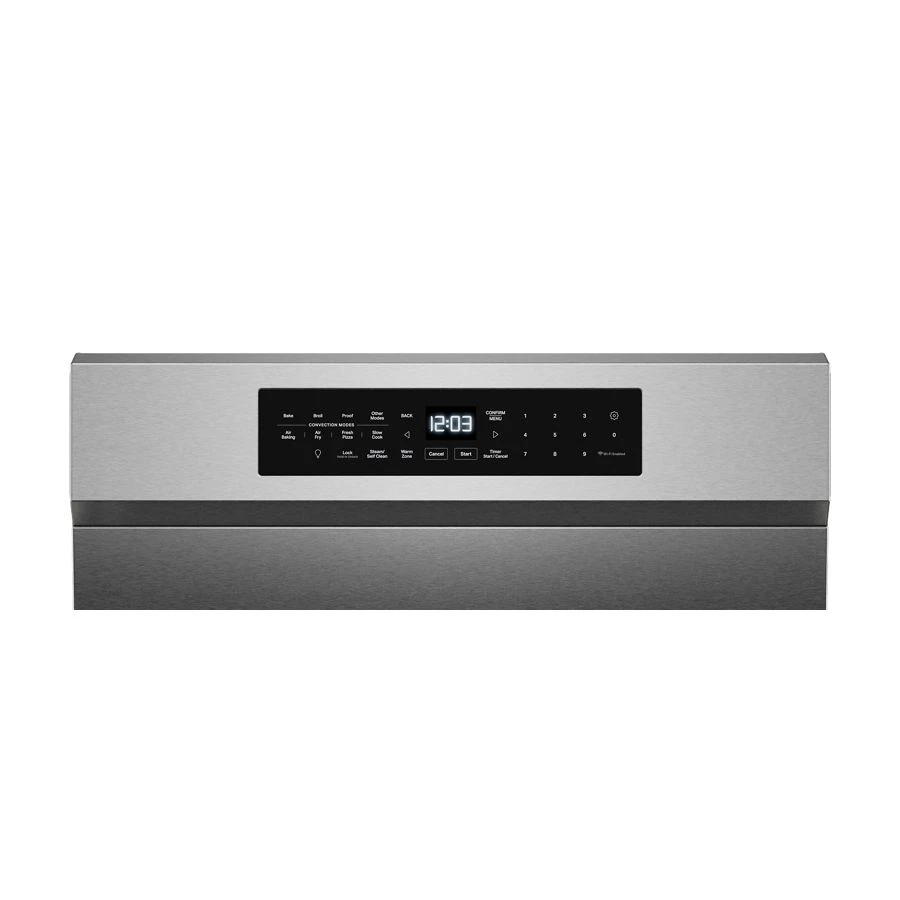

LCD Glass Touch Controls

offer an intuitive, easy-to-use touch screen experience.

No Preheat Air Fry Mode

lets you save time and skip preheating while you get crispy and browned food while using less oil than traditional deep frying. Dishwasher-safe basket sold separately.

No Preheat Reheat

brings yesterday's meal back to life quickly, without the need for a microwave.

No Preheat Slow Cook

seal in flavors of juicy roasts, stews, and braised foods with No Preheat Slow Cook for savory comfort meals without the need for a countertop slow cooker.

PrintShield™ Finish

resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

Proof Mode

is designed to maintain a low temperature and provides ideal conditions to properly activate yeast, allowing your baked goods to rise.

Proudly assembled in Tulsa, Oklahoma, U.S.A.

we take pride in building strong, reliable appliances for your home. These ranges are proudly assembled by hard-working employees in Tulsa, Oklahoma.

Sabbath Mode

to meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven can be set to Sabbath baking and will maintain a constant temperature with lights, displays and tones disabled.

Smart Appliance

lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands-on or hands-off.* The KitchenAid™ App lets you conveniently preheat, proof, bake, and roast, plus store your favorite recipes for easy reference. *Wi-Fi & App required. Features subject to change. Amazon Alexa capabilities available in U.S. only. Google Assistant capabilities available globally. For details and privacy info, visit KitchenAid.com/Connect (U.S.) or KitchenAid.ca/Connect (Canada). Alexa, Google and certain other trademarks are owned by their respective companies.

Steam Clean & Self-Cleaning Cycles

keep your oven clean with two distinct cycles. The Steam Clean Cycle, perfect for quick, routine maintenance, helps loosen cooked-on food in under an hour. Simply add water to the bottom of the oven and wipe down after the cycle. For a deeper clean, the high-temperature Self-Clean Cycle powers through baked-on spills, leaving the oven cavity clean with just a final wipe-down.

Storage Drawer

adds additional storage space that’s perfect for pots, pans and baking sheets.

Designed To Be Personalized

with a curated palette of exterior finishes and mixed metal hardware. Pick from serene Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching handles and knobs. Personalize your hardware with optional handle and knob accessory kits in Brass, Bronze, Black Ore and Stainless Steel.

Specifications

Certifications

ADA CompliantNo
CULNo
Star K CertifiedStar K Certified
ULYes
Energy Star® QualifiedYes
Prop 65Standard

Controls

Display ColorWhite

Cooktop Details

Cooktop Control Knob TypePlastic
Cooktop Control LocationBackguard
Cooktop Control TypeKnobs
Cooktop Surface MaterialGlass
Griddle IncludedNo
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes

Details

Cooktop ConfigurationAll Burners
Delay CleanNo
Fuel TypeElectric
Installation ConfigurationFreestanding
Oven Automatic Shut-OffYes
Oven ConfigurationSingle Oven
Oven SelectionsAudible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Keep Warm/Warm Hold; Language Conversion; No Preheat - Frozen; Rapid Preheat; Re
Power On Indicator LightYes
Power Outage CompatibleYes
Range ConfigurationFreestanding
Range TypeFreestanding
Oven SelectionsAudible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Keep Warm/Warm Hold, Language Conversion, No Preheat - Frozen, Rapid Preheat, Re

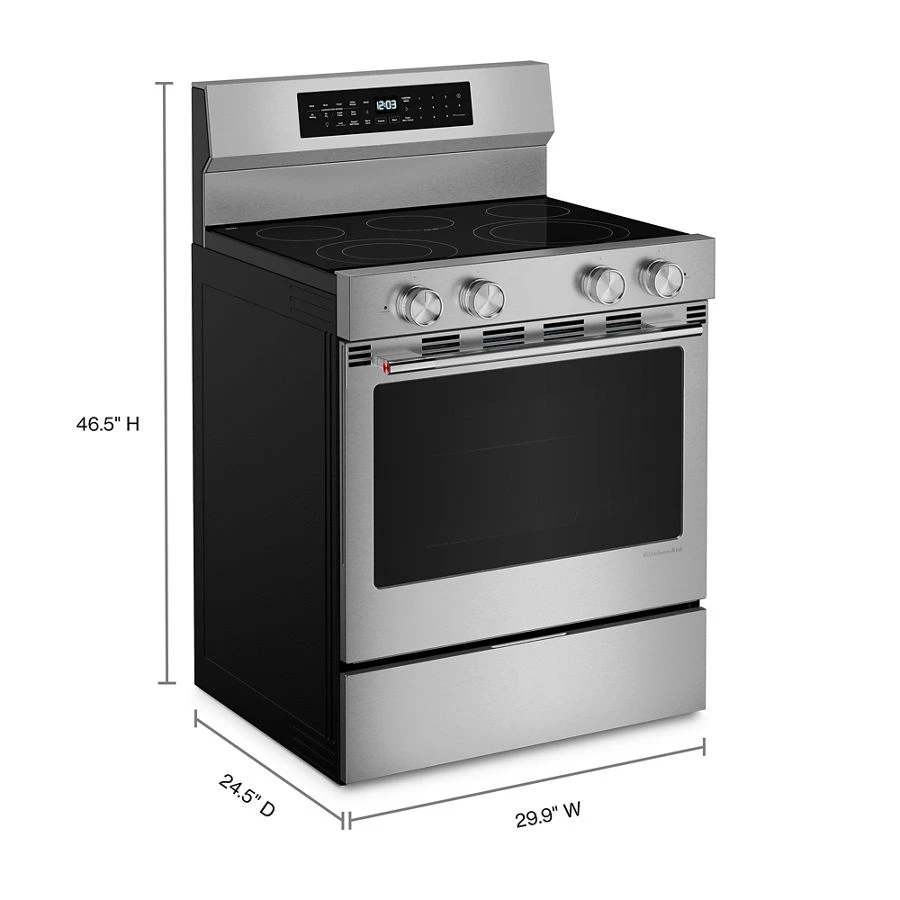

Dimensions

Adjustable HeightYes
Capacity5.3 cu. ft.
Common Size30 in
Cutout Depth24 in
Cutout Height36 in
Cutout Width30 in
Depth24-1/2 in
Depth Closed Excluding Handles26-1/2 in
Depth Closed Including Handles28-1/10 in
Depth Excluding Doors24-1/2 in
Depth With Door Open 90 Degree46-4/5 in
Gross Weight192 lbs
Height46-1/2 in
Maximum Height52 in
Minimum Height46-1/2 in
Net Weight176 lbs
Oven Interior Depth19-7/10 in
Oven Interior Height19-1/5 in
Oven Interior Width24-1/5 in
Width29-9/10 in

Electrical

Power Cord IncludedNo
Amps40
Hz60
Volts208
Watts12

Element/Burner Details

Center Rear Element-Burner Power100W
Center Rear Element-Burner Size6in.
Center Rear Element-Burner TypeWarming
Cooktop Element StyleRadiant
Left Front Element-Burner Power3000W
Left Front Element-Burner Size9in./6in.
Left Front Element-Burner TypeDual
Left Rear Element-Burner Power1200W
Left Rear Element-Burner Size6in.
Left Rear Element-Burner TypeSingle
Number of Cooking Element-Burners5
Right Front Element-Burner Power3000W
Right Front Element-Burner Size12in./9in.
Right Front Element-Burner TypeDual
Right Rear Element-Burner Power1200W
Right Rear Element-Burner Size6in.
Right Rear Element-Burner TypeSingle

Exterior Details

Door TypeGlass
Oven Control Knob TypeN/A
Oven Control LocationBackguard
Oven Control TypeElectronic Touch
Oven Window SizeExtra Large
Handle ColorStainless Steel
Handle MaterialMetal
Handle TypeReach Through Handle
Knob ColorStainless Steel
Knob TypeWeighted-Plastic
Door LockYes

Smart Compatibility

Smart ApplianceYes
ConnectivityAmazon Alexa, Android, Google Assistant, Nest, iOS
Works WithApp, Bluetooth, Remote Access, Voice Controlled, WiFi

Oven Cavity Details

Automatic Convection Conversion Temperature AdjustNo
Bake Element Power2,400 W
Broiler Element Power3,400 W
Broiler LocationTop Center
Convection Element TypeTrue Convection
Convection FunctionsAir Baking, Air Broil, Air Fry, Air Reheat, Air Roast, Bake Broil, Bake, Broil, and Roast, Fresh Pizza, Keep Warm, No Preheat, Proof, Roast, Slow Cook, Warm Zone
Door RemovableYes
Hidden Bake ElementHidden
Interior ColorBlue
Number of Oven Lights1
Number of Oven Racks2
Number of Rack Guides5
Oven Cleaning TypeSelf Clean + Steam Clean
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Oven Rack Front MaterialMetal
Oven Rack TypeMax Capacity, Standard
Temperature ProbeNo
Temperature SensorYes

Features

Range FeaturesSmart Appliance
