30" Free-Standing Gas Range - JGBS10GEFSA

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range

Model: JGBS10GEFSA

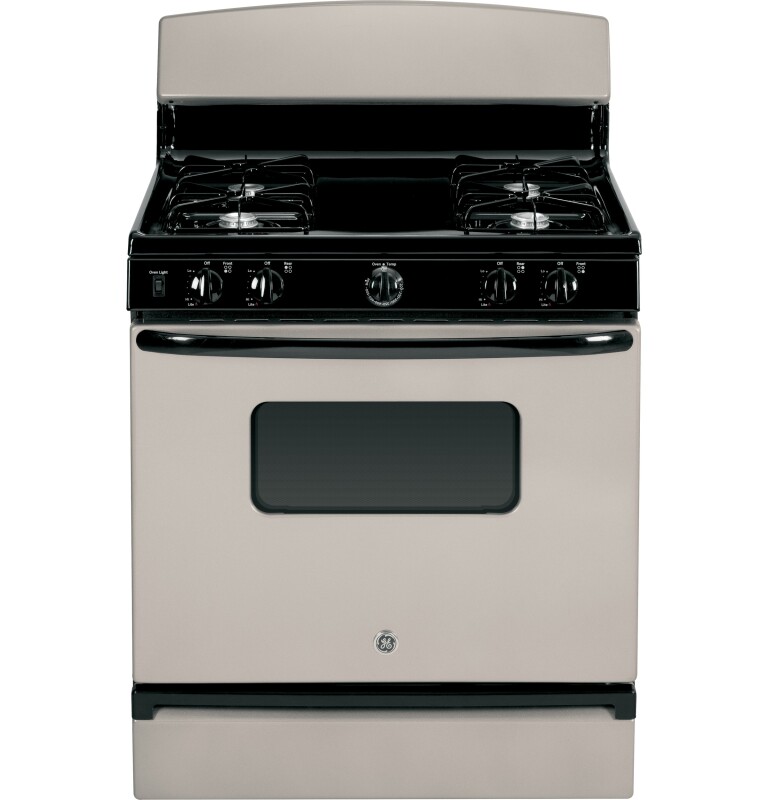

GE 30" Free-Standing Gas Range Other JGBS10GEFSA Picture

Color : Other

product image
Other

Key Features

  • 4.8 cu. ft. oven capacity

  • Standard clean oven

  • Standard grates

  • Porcelain upswept cooktop

Description

Smooth surface and rounded corners make clean-up quick and easy.Hold cookware securely over burners.46 1/4 H x 30 W x 28 3/4 D

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

4.8 cu. ft. oven capacity

Enough room to cook an entire meal at once

Standard clean oven

Smooth surface and rounded corners make clean-up quick and easy

Standard grates

Hold cookware securely over burners

Porcelain upswept cooktop

Raised edges contain spills, while the surface is easy to wipe clean

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth28.75 in
Overall Height46.25 in
Net Weight145 lb
Depth Without Handle26.25 in
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Height to Cooking Surface (in.)36 - 36 1/2
Depth with Door Open46.25 in
Cabinet Width30 in
Approximate Shipping Weight165 lb

Dimensions & Weight

Width30 in.
Height46.25 in.
Length28.75 in.
Weight145 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.25 in.
Shipping Length33.75 in.
Shipping Weight185 lbs.
Total of Shipping Weight185 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.08 ft³
Dimensional Weight286.98 lbs.
Total of Cubes23.08 ft³
Total of Dimensional Weight286.98 lbs.

FEATURES

Slide - Out Broiler DrawerDrop Down Door
Cooking SystemTraditional
Porcelain-Enameled SubtopYes
Ignition SystemElectronic
Broiler Pan and GridYes
Burner - Right Rear9,100 BTU
Interior Oven Light1 Incandescent
Fuel TypeNatural Gas
Cooktop Burner TypeStandard
Oven Rack FeaturesEmbossed Rack Positions
Burner - Left Rear9,100 BTU
Oven Cleaning TypeStandard Clean
Product TypeFree-Standing Single Oven
Cooktop TypeStandard Grates
Cooktop Burner Grate MaterialSquare
Burner - Right Front9,100 BTU
Cooktop SurfacePorcelain-Enamel
Burner - Left Front9,100 BTU
Drawer TypeBroiler
Oven Rack Positions (Single or Upper/Lower)6
One-Piece Drip PansOptional Accessory

FILTER

App Filter - Cleaning TypeManual
App Filter - Cooking TechnologyTraditional
App Filter - Cabinet WidthCooking 30 in. (Standard)
App Filter - Control TypeRotary knobs
App Filter - Product TypeRanges Free-Standing Single Oven
App Filter - Drawer TypeBroiler
App Filter - Fuel TypeGas
App Filter - ConvectionNo
App Filter - Cooktop TypeStandard Grates

APPEARANCE

Cooktop Burner Grate ColorBlack Gloss
Oven Door FeaturesOven Window
HandleDesigner Style
Control KnobsGloss Black
Color AppearanceSilver

ACCESSORIES

LP Conversion KitIncluded
Optional One-Piece Drip PansWB35K10001 black; WB35K10002 chrome

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(4) 9.1
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(4) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0 Bake / 18.0 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.5 Bake / 16.5 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)4.8 cu ft
