30" Free-Standing Gas Range - JGBP33DEMCC

This product has been discontinued by the manufacture and is no longer available.

30" Free-Standing Gas Range

Model: JGBP33DEMCC

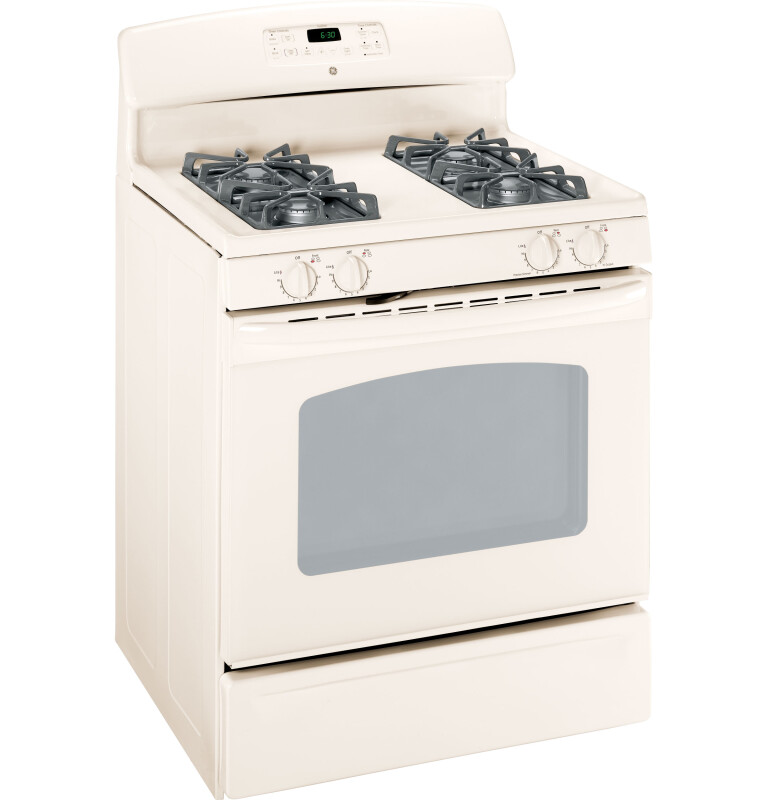

GE 30" Free-Standing Gas Range Other JGBP33DEMCC Picture

Color : Other

product image
Other

Key Features

  • Self-clean oven

  • Extra-large oven capacity

  • TrueTemp oven system

  • QuickSet oven controls

  • High output burner

  • Precise Simmer burner

  • Big hearth window

  • Frameless glass oven door

Read More

Description

Enough room to cook an entire meal at once.This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire.46 1/8 H x 30 W x 26 1/4 D

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

Self-clean oven

Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior

Extra-large oven capacity

Enough room to cook an entire meal at once

TrueTemp oven system

This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire

QuickSet oven controls

Electronic touch pads on the control panel make controlling your oven effortless

High output burner

This 12,000 (or 11,000) BTU burner element provides the high heat ideal for frying or sautéing and fast heat-up

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

Big hearth window

Elegant shaped window makes it easy to monitor the progress of food

Frameless glass oven door

Simple and stylish frameless glass door creates an elegant look that blends into cabinetry, and is easy to wipe clean

Sealed cooktop burners

Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless

All purpose burners

All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs

Certifications

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth26.25 in
Overall Height46.125 in
Net Weight202 lb
Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19
Cabinet Width30 in
Approximate Shipping Weight225 lb

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 18-1/2 x 19

Dimensions & Weight

Width30 in.
Height46.13 in.
Length26.25 in.
Weight202 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height51.13 in.
Shipping Length31.25 in.
Shipping Weight242 lbs.
Total of Shipping Weight242 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.02 ft³
Dimensional Weight261.32 lbs.
Total of Cubes21.02 ft³
Total of Dimensional Weight261.32 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Cleaning TimeVariable
Ignition SystemElectronic
Fuel TypeNatural Gas
Oven InteriorInterior Oven Light
Cooktop Burner TypeSealed
Oven Rack FeaturesEmbossed Rack Positions
Temperature Management SystemTrue Temp System
Oven Cleaning TypeSelf-Clean
High Output Burner(1) 13,000/1,000 BTU
All-Purpose Burners(2) 9,500/850 BTU
Cooktop Burner Grate MaterialSquare
Valves (Degree of Turn)270
BackguardScratch-Resistant
Cooktop SurfacePorcelain-Enamel
Oven Rack Positions (Single or Upper/Lower)6
Leveling System4 Leveling Legs
Precise Simmer Burner(1) 5,000/600 BTU
One-Piece Drip PansGray Porcelain-Enameled
Control TypeElectronic Oven Controls
Oven Control FeaturesAuto Oven Shut-Off

APPEARANCE

Cooktop Burner Grate ColorGray
Oven Door FeaturesBig Hearth Oven Window
HandleColor-Matched Sculptured
Frameless Oven Door(s)Bisque Glass
Control KnobsDesigner-Style
Color AppearanceBisque

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 13.0; (2) 9.5; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (2) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 12.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)4.8 cu ft
