30" Free-Standing Gas Range - JGB650DEFBB

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

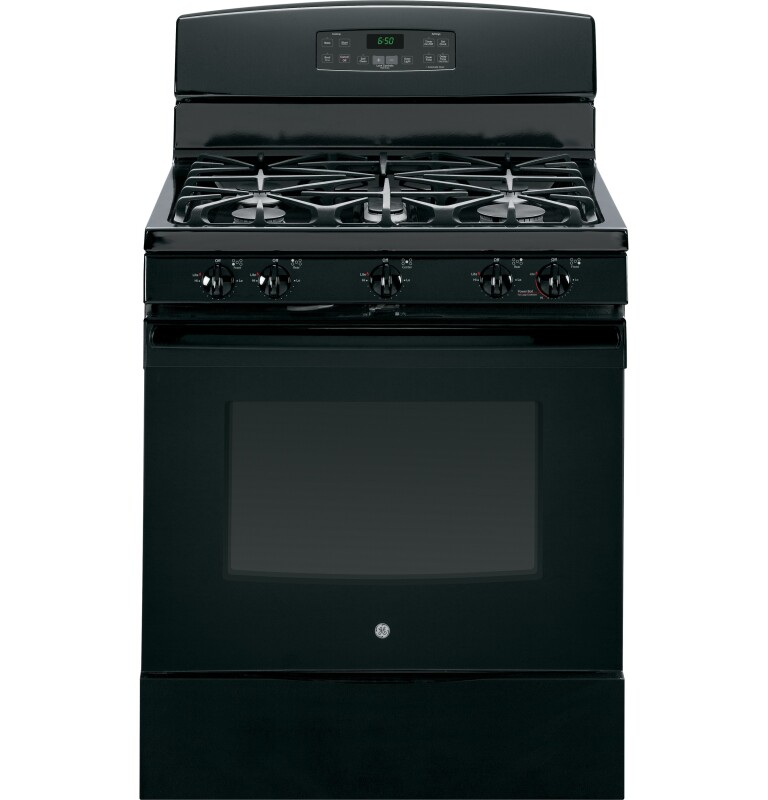

30" Free-Standing Gas Range

Model: JGB650DEFBB

GE 30" Free-Standing Gas Range Other JGB650DEFBB Picture

Product Video

GE 30" Free-Standing Gas Range Other JGB650DEFBB Picture
2 Videos

Color : Other

product image
Other

Key Features

  • 17,000 BTU Power Boil burner

  • Center oval burner

  • Precise Simmer burner

  • Heavy-cast, continuous grates

  • Deep-recessed cooktop

  • 5.0 cu. ft. oven capacity

Description

Large oval fifth burner is ideal for griddle or odd-size cookware.Delicate foods don’t burn with low, even heat.47 1/4 H x 30 W x 28 3/4 D

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

17,000 BTU Power Boil burner

Delivers intense heat for fast boiling

Center oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

Precise Simmer burner

Delicate foods don’t burn with low, even heat

Heavy-cast, continuous grates

Allow for easy movement of pans between burners

Deep-recessed cooktop

Contains spills for quick and easy cleaning

5.0 cu. ft. oven capacity

Cook more dishes at once

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year

WEIGHTS & DIMENSIONS

Overall Width30 in
Overall Depth28.75 in
Overall Height47.25 in
Net Weight190 lb
Depth Without Handle26.25 in
Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Height to Cooking Surface (in.)36 - 36 1/2
Depth with Door Open46.25 in
Cabinet Width30 in
Approximate Shipping Weight210 lb

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19

Dimensions & Weight

Width30 in.
Height47.25 in.
Length28.75 in.
Weight190 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52.25 in.
Shipping Length33.75 in.
Shipping Weight230 lbs.
Total of Shipping Weight230 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement23.58 ft³
Dimensional Weight293.19 lbs.
Total of Cubes23.58 ft³
Total of Dimensional Weight293.19 lbs.

FEATURES

ConfigurationRange with Storage Drawer
Ignition SystemElectronic
Burner - Right Rear5,000 BTU Precise Simmer
Interior Oven Light1 Incandescent
Fuel TypeNatural Gas
Cooktop Burner TypeSealed
Oven Rack Features2 Oven Racks
Burner - Left Rear9,500 BTU
Oven Cleaning TypeSelf-Clean
Product TypeFree-Standing Single Oven
Cooktop TypeContinuous Grates
Cooktop Burner Grate MaterialHeavy Cast Iron
Cooktop Burner Grate FeaturesContinuous Grates
Burner - Center8,000 BTU Oval
Burner - Right Front17,000 BTU Power Boil
Burner - Left Front11,000 BTU
Drawer TypeStorage
Cooking TechnologyTraditional
Control TypeElectronic Oven Controls
Cooktop SurfaceDeep Recessed
Oven Control FeaturesAuto Self Clean

FILTER

App Filter - Cleaning TypeSelf-Clean
App Filter - Cooking TechnologyTraditional
App Filter - Cabinet WidthCooking 30 in. (Standard)
App Filter - Control TypeElectronic touchpad
App Filter - Product TypeRanges Free-Standing Single Oven
App Filter - Drawer TypeStorage
App Filter - Fuel TypeGas
App Filter - ConvectionNo
App Filter - Cooktop TypeContinuous Grates

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig View Oven Window
HandleDesigner Style
Control KnobsColor-Matched
Color AppearanceBlack on Black

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 11.0; (1) 9.5; (1) 5.0; (1) 6.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0; (1) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details

CAPACITY

Total Capacity (cubic feet)5 cu ft
