Kitchenaid® 30 In. Gas Cooktop With 5 Burners And Integrated Wok Grate - KCGK530SBE
Kitchenaid® 30 In. Gas Cooktop With 5 Burners And Integrated Wok Grate
Model: KCGK530SBE
Kitchenaid® 30 In. Gas Cooktop With 5 Burners And Integrated Wok Grate
Model: KCGK530SBE
Rebate AvailableColor : Black Ore
Current Rebates
Key Features

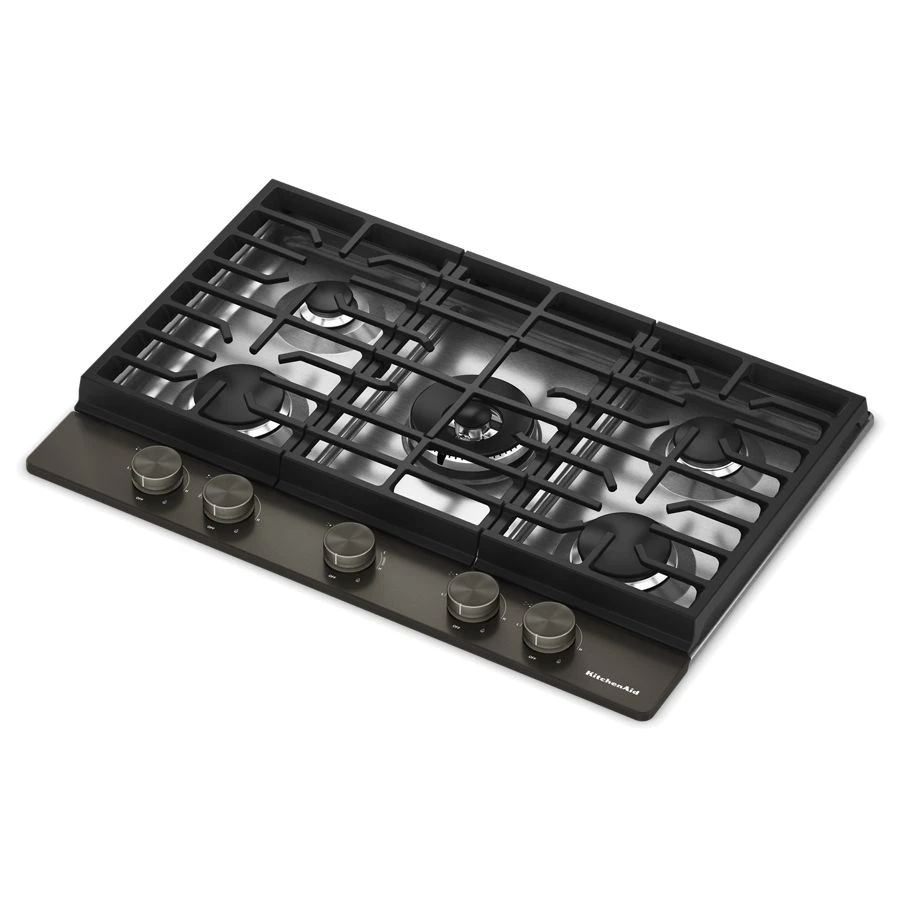

Edge-to-Edge Cast-Iron Grates
Premium Weighted Knobs
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
Edge-to-Edge Cast-Iron Grates
enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface. Wash these Cast-Iron Grates right in the dishwasher when they get messy.

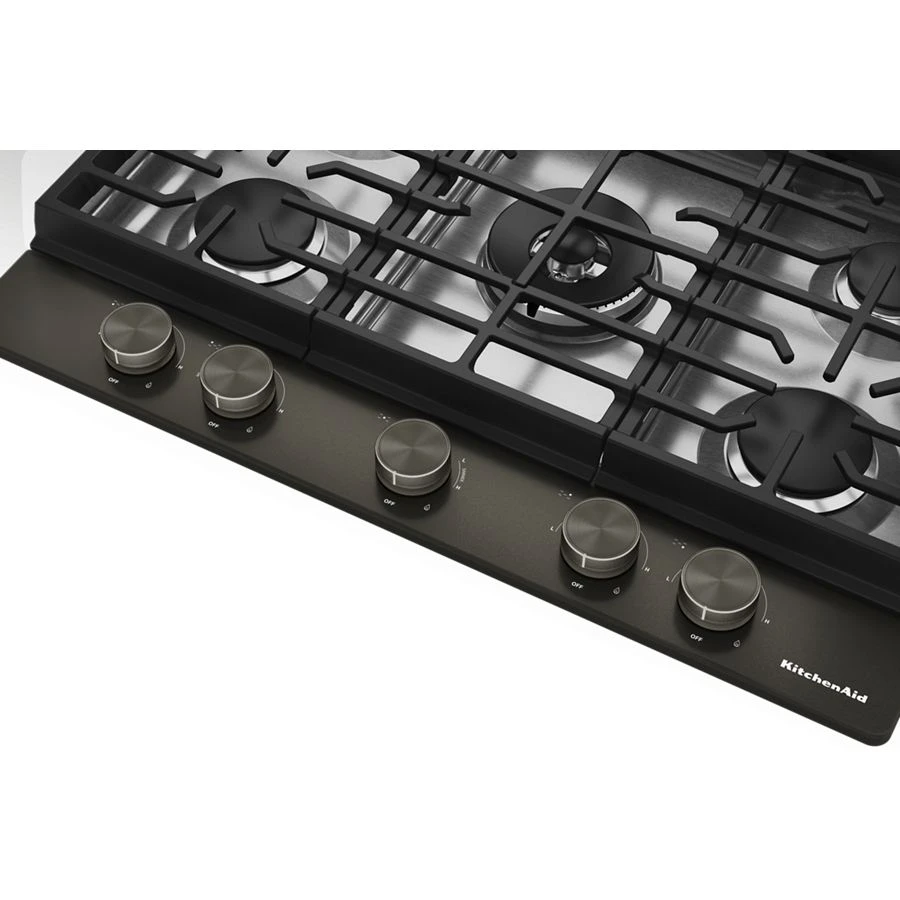

Premium Weighted Knobs
offer an enhanced, tactile feel when controlling your cooktop.
Specifications
Certifications
| ADA Compliant | ADA Height and Side Reach Compliant |
| CEC Listed | Yes |
| CUL | Yes |
| Star K Certified | No |
| UL | Yes |
| prop65 | Standard - Standard |
Controls
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
Cooktop Details
| Auto Re-ignition | No |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Electronic Automatic |
| Number of Open Bays | N/A |
Details
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Cooktop Configuration | All Burners |
| Fuel Type | Gas |
| Installation Configuration | Built-In |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |

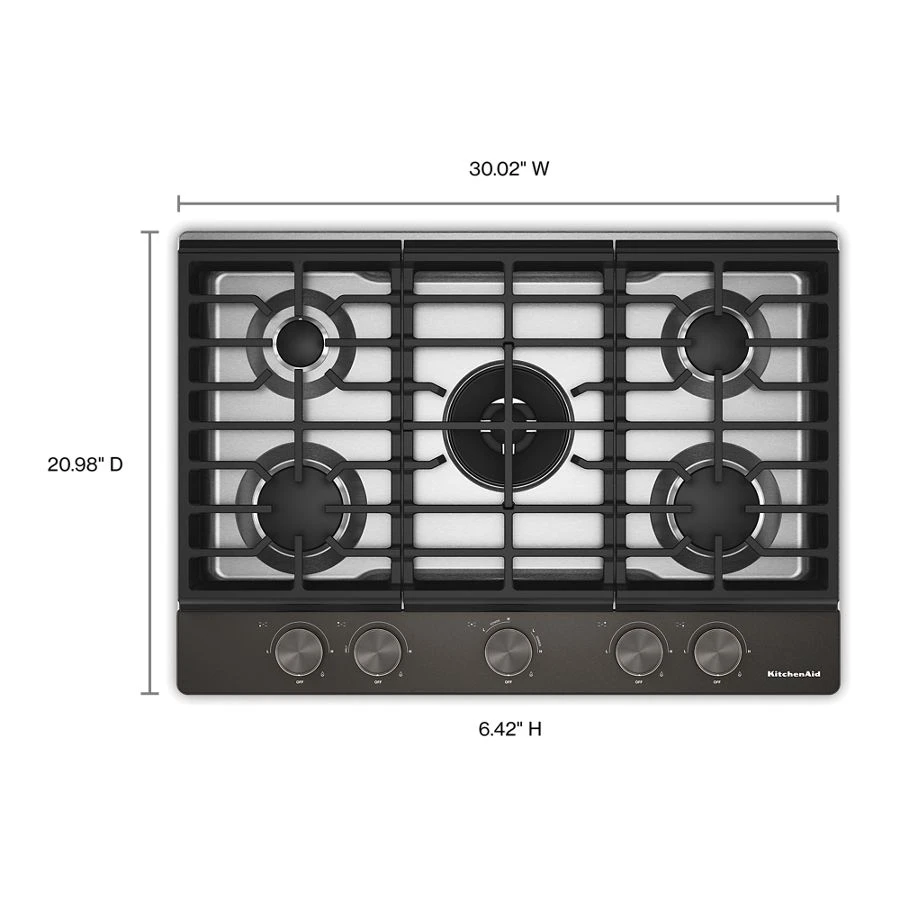

Dimensions
| Cutout Depth | 19.813 |
| Cutout Depth Max | 20 |
| Cutout Depth Min | 19.5 |
| Cutout Height | 5 |
| Cutout Width | 28.875 |
| Cutout Width Max | 29.313 |
| Cutout Width Min | 28.5 |
| carton depth | 25 |
| carton height | 13 |
| carton width | 35 |
| gross weight | 59 lbs. |
| net weight | 53 |
| Height | 13 in. |
| Length | 25 in. |
| Width | 35 in. |
Electrical
| 208V Compatible | No |
| Power Cord Included | Yes |

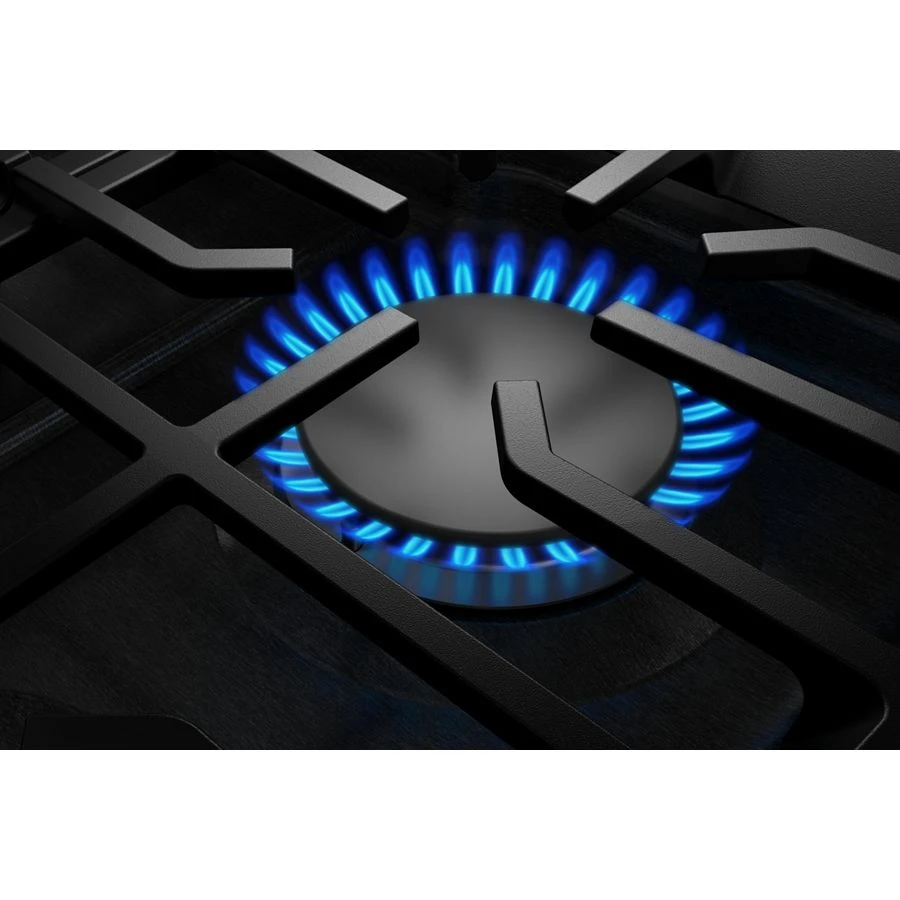

Element/Burner Details
| Center Element Burner Power | 17, 000 BTU |
| Center Element Burner Type | Professional Dual Ring |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 10000 BTU |
| Left Front Element-Burner Type | Rapid |
| Left Rear Element-Burner Power | 6, 000 BTU |
| Left Rear Element-Burner Type | Melt / Simmer |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Front Element-Burner Power | 10, 000 BTU |
| Right Front Element-Burner Type | Rapid |
| Right Rear Element-Burner Power | 7, 000 BTU |
| Right Rear Element-Burner Type | Semirapid |
Grate Details
| Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Integrated Wok Grate; Matte Finish |
| Number of Grates | 3 |
Oven Details
| Natural Gas Convertible | Yes |
Smart Compatibility
| Connectivity | No |
Ventilation Details
| Downdraft Vent | No |
Product Details
| Combination Match with Oven | KOES430R; KOES527P; KOES530P; KOES530S; KOES630S; KOES727S; KOES730P; KOES730S; KOES930S; KOSE500E; KOSE507E; KOSE900; KOSE900H |
| Gas Regulator Inlet Thread Size | .75 |
| Personalized Hardware | Yes |
| Total Maximum BTU Output (cooktop & oven) | 50000 BTU |
Capacity
| Volume | 6.583 Cu.Ft. |
