36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements - WCE77US6HS

This product has been discontinued by the manufacture and is no longer available.

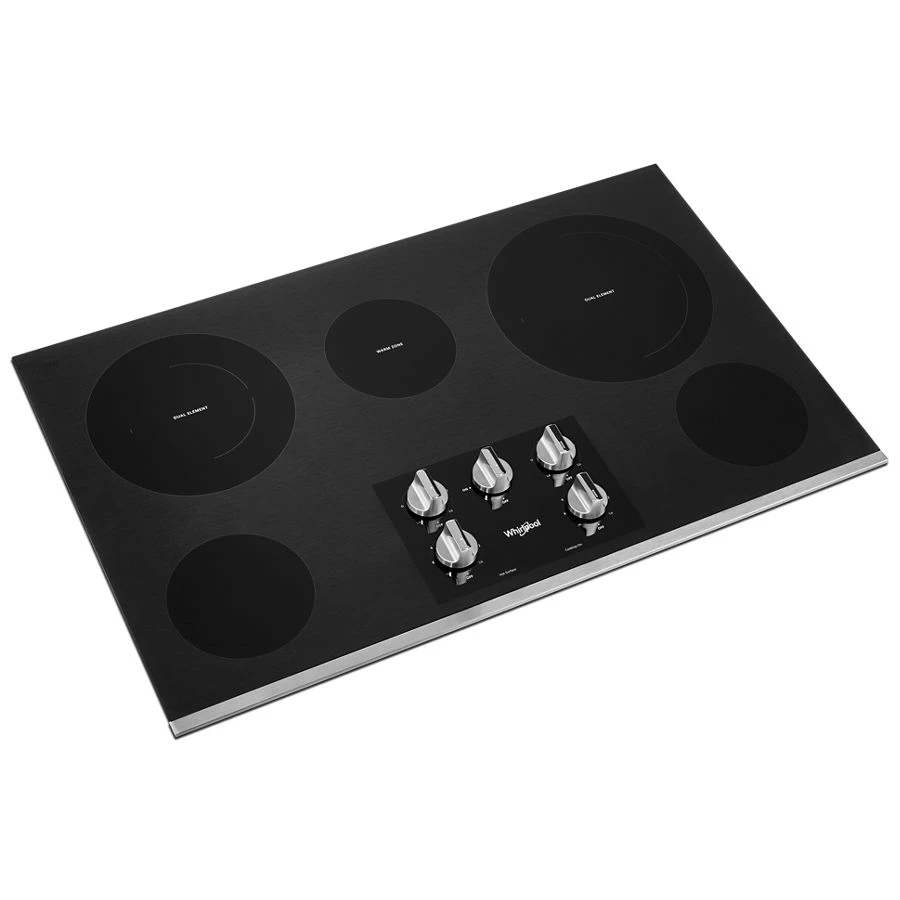

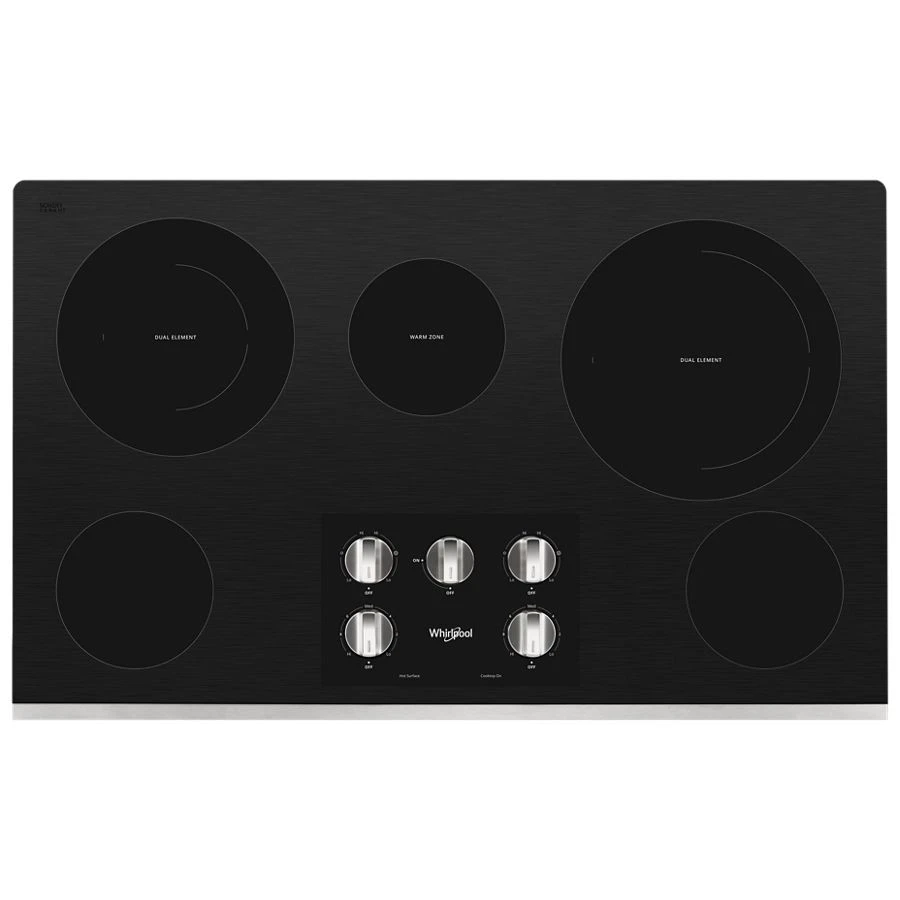

36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements

Model: WCE77US6HS

36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
+2more

Color : Stainless Steel

36-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements WCE77US6HS
Stainless Steel

Key Features

  • 5-Element Cooktop

  • Hot Surface Indicator Light

  • FlexHeat™ Dual Radiant Element

  • Easy-Wipe Ceramic Glass Cooktop

  • Warm Zone Element

  • Wall Oven Compatible

  • 6" Extra Element

  • ADA compliant

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications

Features

5-Element Cooktop

Provides five independent cooking surface areas.

Hot Surface Indicator Light

See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.

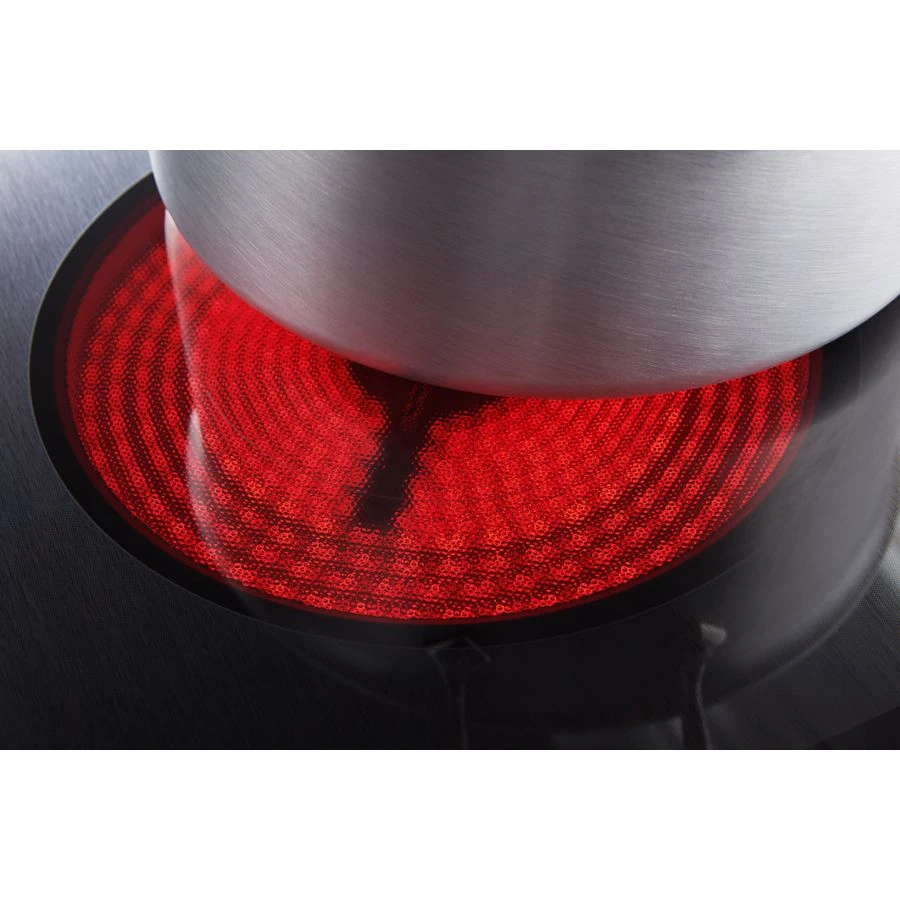

FlexHeat™ Dual Radiant Element

Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.

Easy-Wipe Ceramic Glass Cooktop

Wiping up spills is simple with the easy-to-clean cooktop.

Warm Zone Element

Keep food warm while you're finishing the rest of the meal using this low-powered element.

Wall Oven Compatible

Install this cooktop to work with a wall oven or on its own for more flexibility.

6" Extra Element

Cook small dishes like sides and sauces on the 6" Extra Element.

ADA compliant

This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

5 Element Cooktop

Cook more of your family's favorites and enjoy added versatility with a fifth element.

Specifications

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement2.52 ft³
Dimensional Weight31.37 lbs.
Total of Cubes2.52 ft³
Total of Dimensional Weight31.37 lbs.

Cooktop Details

Combination Match with OvenWOS11EM4, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS51ES4, WOS52EM4, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS97EC0, WOS97ES0, WOSA2EC0
Cooktop Surface ColorBlack
Cooktop Surface MaterialGlass
Digital DisplayNo
Griddle IncludedN/A
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Installs Over Built-In OvenYes

Exterior Details

Knob ColorStainless Steel
Knob TypeDishwasher-Safe Plastic

Electrical

208V CompatibleYes
Amps40
Hz60
Power Cord IncludedNo
Volts240

Details

Cooktop ConfigurationAll Burners
Digital DisplayNo
Fuel TypeElectric
Installs Over Built-In OvenYes
LP ConvertibleNo
Power Outage CompatibleNo

Element/Burner Details

Automatic Pan DetectionNo
Center Rear Element-Burner Power100W
Center Rear Element-Burner Size6in.
Center Rear Element-Burner TypeWarming
Cooktop Element StyleRadiant
Cooktop TypeStandard
Left Front Element-Burner Size6in.
Left Front Element-Burner TypeStandard
Left Rear Element-Burner Power3000/1900W
Left Rear Element-Burner Size10in./6in.
Left Rear Element-Burner TypeStandard
Number of Cooking Element-Burners5
Power BoostNo
Right Front Element-Burner Power1200W
Right Front Element-Burner Size6in.
Right Front Element-Burner TypeStandard
Right Rear Element-Burner Power3000/1900W
Right Rear Element-Burner Size12in./9in.
Right Rear Element-Burner TypeDual-Stacked Burner
Left Front Element-Burner Power1,200W

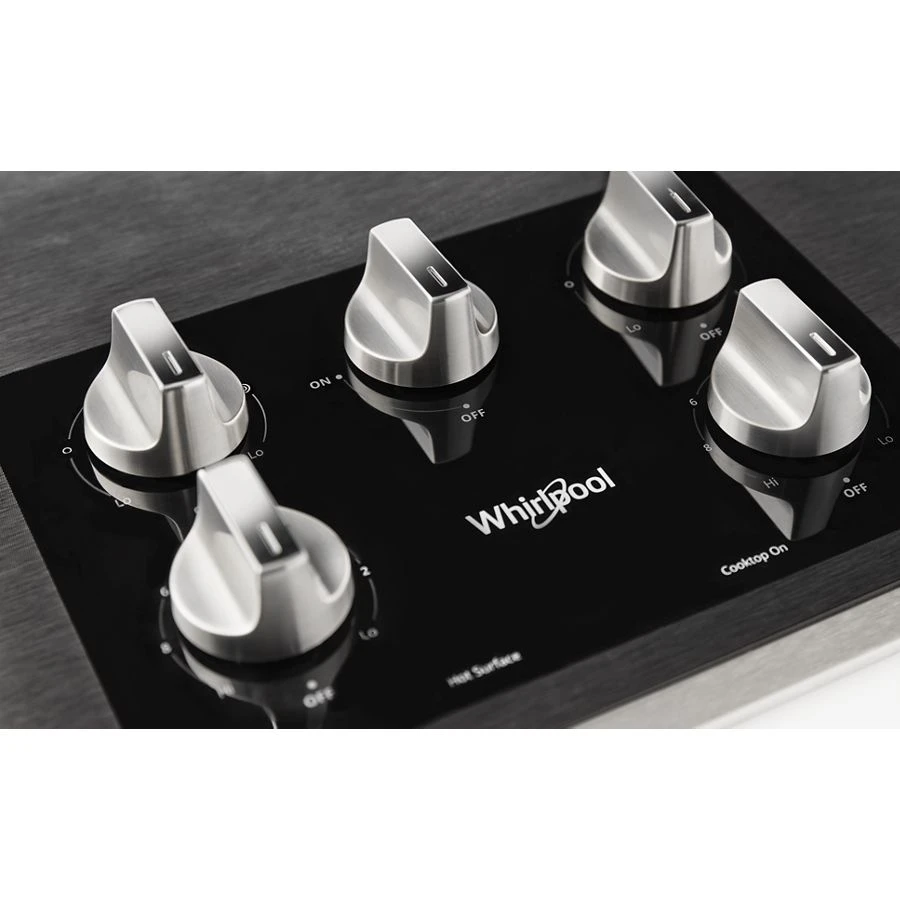

Controls

Control LocationFront
Control TypeKnobs

Ventilation Details

Downdraft VentNo

Refinements

FeaturesADA Compliant

Features

Cooktop FeaturesADA Compliant

Certifications

ADA CompliantADA Height and Operation Compliant
Energy Star® QualifiedENERGY STAR® Qualified

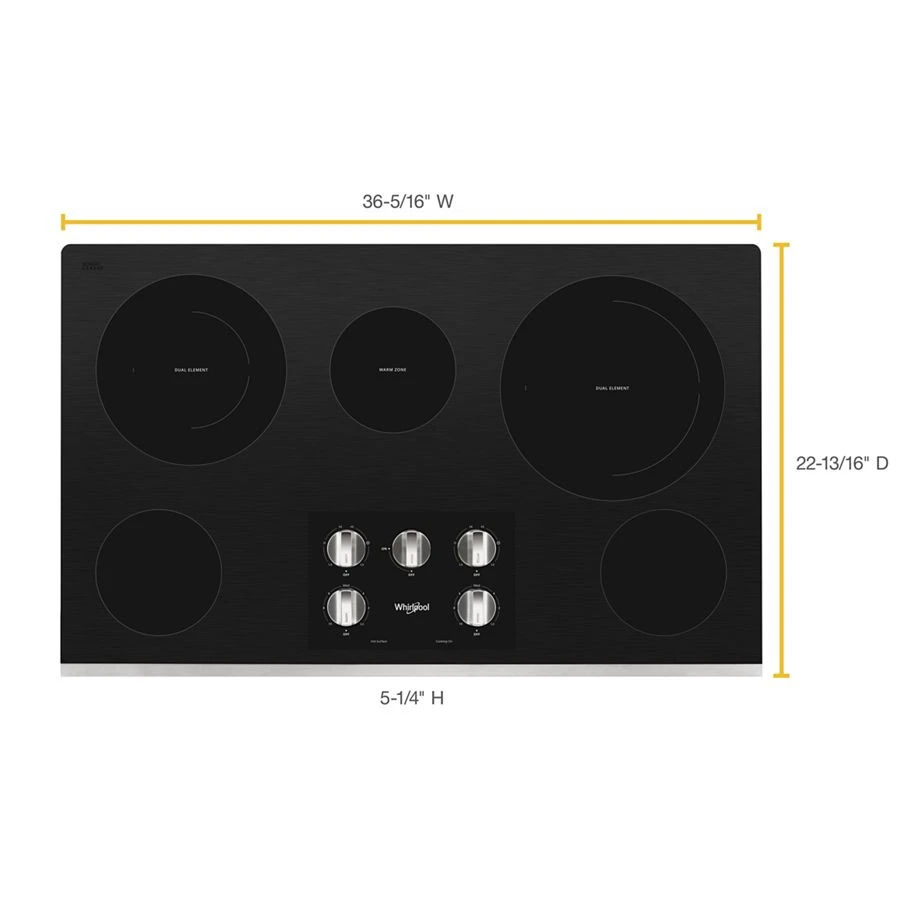

Dimensions & Weight

Width36.31 in.
Height5.25 in.
Length22.88 in.
Weight50 lbs.
Gross Weight50 lbs
Net Weight44 lbs
Cutout Depth20.375 in
Cutout Depth Max20.563 in
Cutout Depth Min20.375 in
Cutout Width34.563 in
Cutout Width Max35.563 in
Maximum Height5.25 in

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width40.75 in.
Shipping Height9.25 in.
Shipping Length27.88 in.
Shipping Weight90 lbs.
Total of Shipping Weight90 lbs.
SourceCalculation

Capacity

Volume5.453 Cu.Ft.
