30" Electric Cooktop With 5 Elements And Touch-activated Controls - KCES950KBL

This product has been discontinued by the manufacture and is no longer available.

30" Electric Cooktop With 5 Elements And Touch-activated Controls

Model: KCES950KBL

30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL
30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL
30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL
30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL
30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL
30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL
+2more
rebate iconRebate Available

Color : Black

30" Electric Cooktop With 5 Elements And Touch-activated Controls KCES950KBL
Black

Current Rebates

KitchenAid + NMG: Up to $4,000 Exclusive Rebate
Expires: July 08, 2026
KitchenAid Craft Your Dream Kitchen Promotion
Expires: July 08, 2026
KitchenAid Buy More Save More Delivery And Installation Allowance
Expires: June 10, 2026

Key Features

  • 8'' 1800-Watt Round Element

  • 6'' 1200-Watt Round Element

  • Touch-Activated Controls

  • Hot Surface Indicator

  • Control Lock

  • 10''/6'' Even-Heat™ Ultra Power™ Element with Simmer Setting

  • 10''/6'' Ultra Power™ Double-Ring Round Element

  • 6'' Even-Heat™ Element with Melt Setting

Description

This 30" electric cooktop delivers exceptional results with the performance offered by a 10'' Even-Heat™ UltraPower™ Element with Simmer Setting, a 6'' Even-Heat™ Elements with Melt Setting, and 10"/6" Ultra Power™ Double-Ring Round Element designed to accommodate both large stock pots and six-inch sauté pans with ease and handle rapid boiling, searing and wok cooking.
Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications

Features

8'' 1800-Watt Round Element

Efficiently heats a variety of pan sizes and can reach a power output of up to 1800-watts for every day use.

6'' 1200-Watt Round Element

Can reach a power output of up to 1200-watts to handle your daily cooking needs.

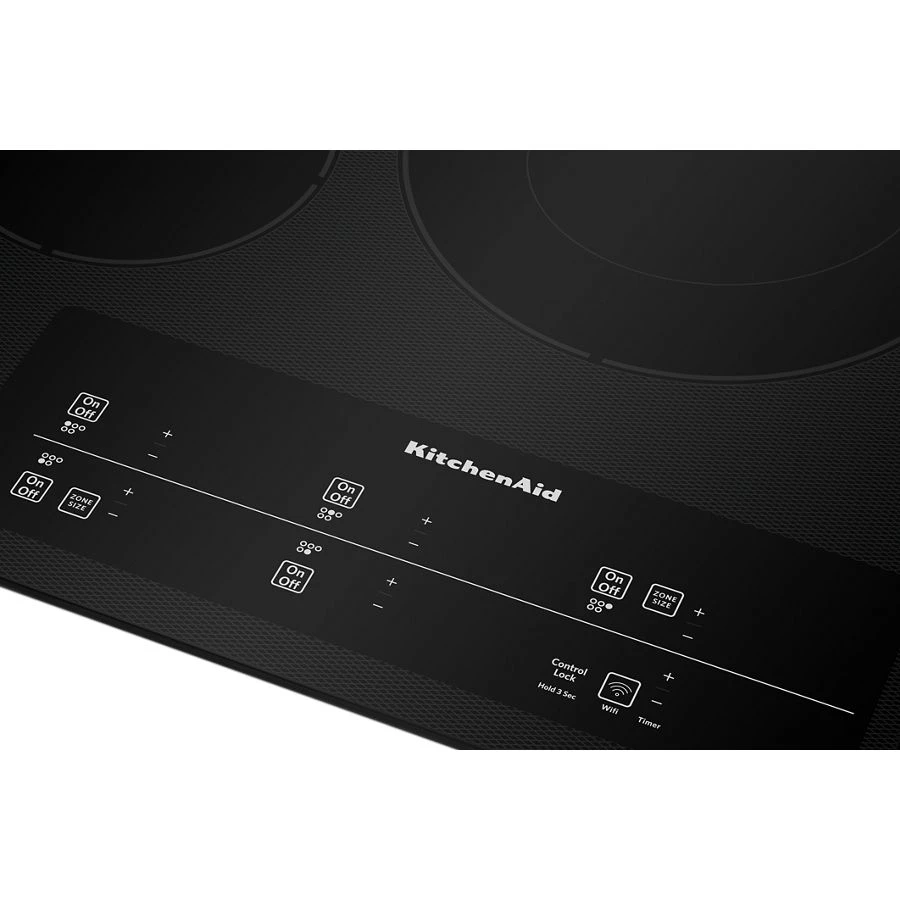

Touch-Activated Controls

Offer an intuitive, easy-to-use touch screen experience.

Hot Surface Indicator

Protects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.

Control Lock

Disables cooking mode for easy cleaning when not in use.

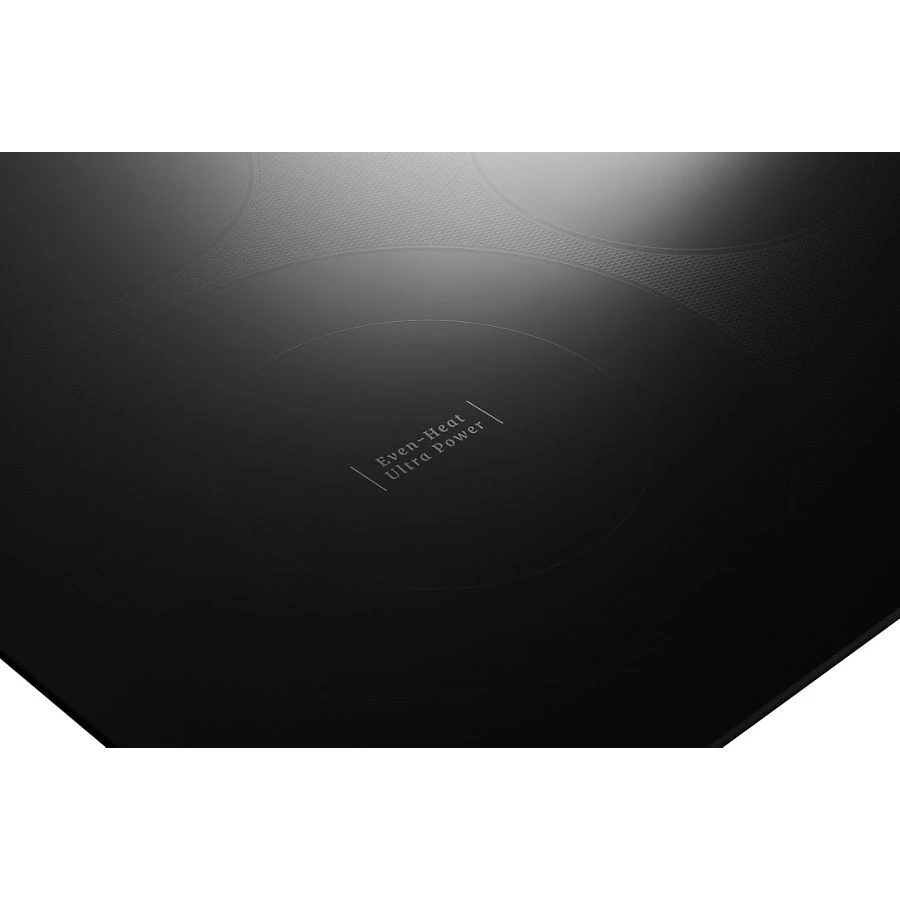

10''/6'' Even-Heat™ Ultra Power™ Element with Simmer Setting

Adds versatility for high and low temperature cooking. Even-Heat™ Technology delivers constant power and a range of simmer settings. Two element sizes in one make it ideal for boiling, yet also accept small pans for various cooking tasks.

10''/6'' Ultra Power™ Double-Ring Round Element

Combines two element sizes in one, making it a perfect fit for large stock pots or six-inch sauté pans alike, and ideal for a wide range of tasks from rapid boiling and searing to wok cooking.

6'' Even-Heat™ Element with Melt Setting

Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.

Specifications

Controls

Control LocationRight Front
Control TypeTap Touch
Infinite Heat ControlsNo

Certifications

ADA CompliantADA Height and Operation Compliant
ULYes
prop65Standard

Electrical

Power Cord IncludedNo
208V CompatibleYes

Dimensions & Weight

Width29 in.
Height3.63 in.
Length20.25 in.
Weight46 lbs.
Carton Depth25
Carton Height9 1/4
Carton Width35
Gross Weight46
Net Weight41.0
Cutout Depth Max(IN,inches)20.5625
Cutout Depth Min(IN,inches)20.3750
Cutout Width Max(IN,inches)29.5625
Cutout Width Min(IN,inches)29.0625
Minimum Height(IN,inches)3.8333
Net Weight(LB,pounds)41
Carton Depth(IN,inches)25.0000
Carton Height(IN,inches)9.2500
Carton Width(IN,inches)35.0000
Gross Weight(LB,pounds)46

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34 in.
Shipping Height8.63 in.
Shipping Length25.25 in.
Shipping Weight86 lbs.
Total of Shipping Weight86 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.23 ft³
Dimensional Weight15.34 lbs.
Total of Cubes1.23 ft³
Total of Dimensional Weight15.34 lbs.

Cooktop Details

Cooktop Surface MaterialGlass
Digital DisplayNo
Griddle IncludedN/A
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes

Details

Automatic Pan DetectionNo
Automatic Pan Size AdjustmentNo
Cooktop ConfigurationAll Burners
Fuel TypeElectric
Installs Over Built-In OvenYes
LP ConvertibleNo
Power Outage CompatibleNo

Dimensions

Cutout Depth Max20.563
Cutout Depth Min20.375
Cutout Width Max29.563
Cutout Width Min29.063
carton depth25
carton height9.25
carton width35
gross weight46
net weight41

Element/Burner Details

Center Front Element-Burner Power1, 200W
Center Front Element-Burner Size6in.
Center Front Element-Burner TypeStandard
Center Rear Element-Burner Power1, 300W
Center Rear Element-Burner Size6in.
Center Rear Element-Burner TypeEven Heat
Cooktop Element StyleRadiant
Cooktop TypeStandard
Left Front Element-Burner Power3200/2300W
Left Front Element-Burner Size10in./6in.
Left Front Element-Burner TypeEven Heat Dual
Left Rear Element-Burner Power1, 800W
Left Rear Element-Burner Size8in.
Left Rear Element-Burner TypeStandard
Number of Cooking Element-Burners5
Power BoostNo
Right Front Element-Burner Power3000W/1900W
Right Front Element-Burner Size10in./6in.
Right Front Element-Burner TypeDual

Ventilation Details

Downdraft VentNo

Product Details

Combination Match with OvenKOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
