30" Electric Downdraft Cooktop With 4 Elements - KCED600GSS

This product has been discontinued by the manufacture and is no longer available.

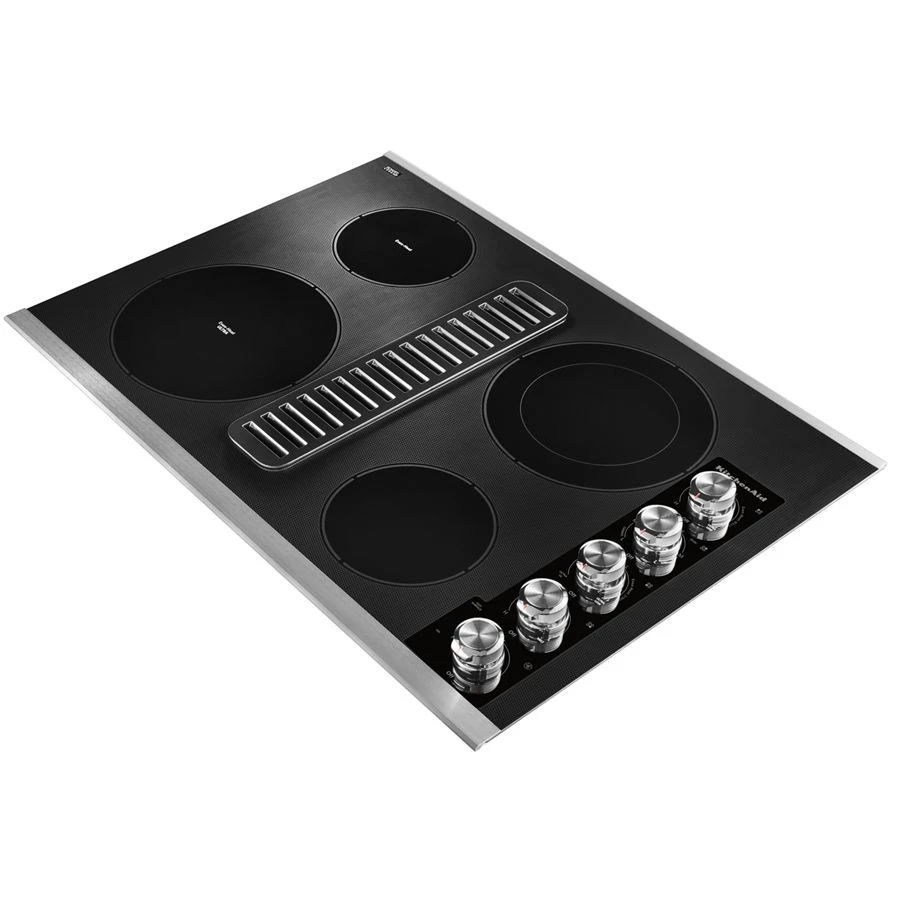

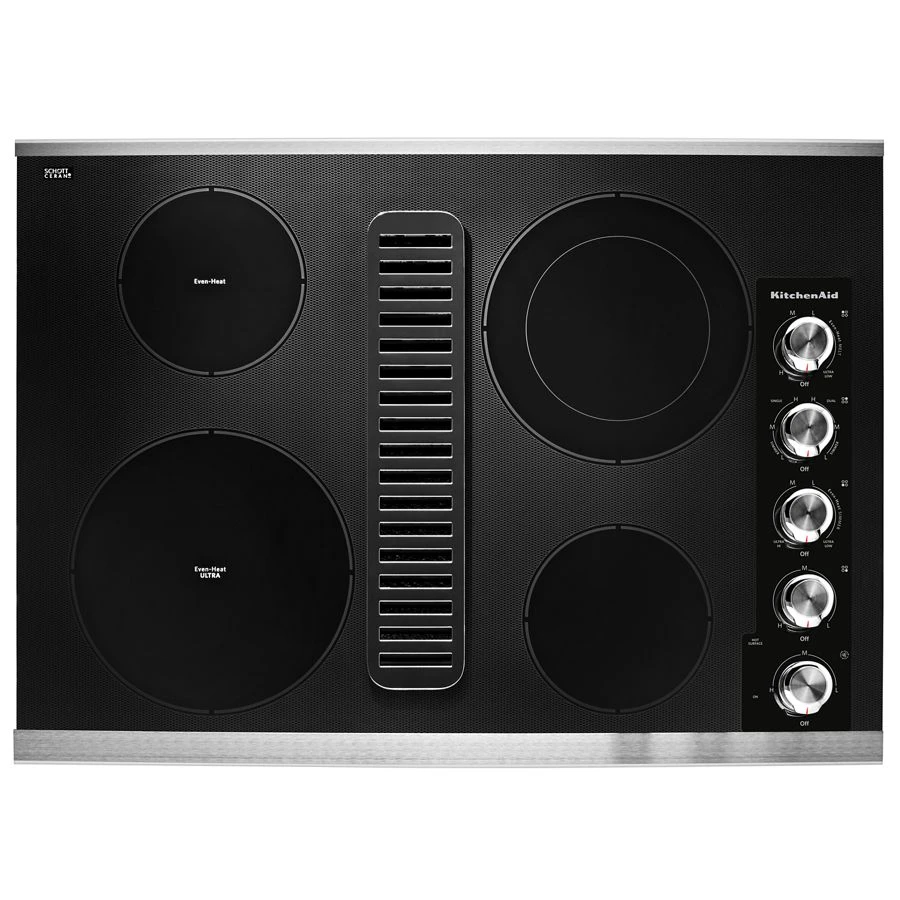

30" Electric Downdraft Cooktop With 4 Elements

Model: KCED600GSS

KCED600GSS KCED600GSSKCED600GSS KCED600GSSKCED600GSS KCED600GSSKCED600GSS KCED600GSSKCED600GSS KCED600GSS
KCED600GSS KCED600GSS
KCED600GSS KCED600GSS
KCED600GSS KCED600GSS
KCED600GSS KCED600GSS
KCED600GSS KCED600GSS
rebate iconRebate Available

Color : Stainless Steel

30" Electric Downdraft Cooktop With 4 Elements KCED600GSS
Stainless Steel

Current Rebates

KitchenAid + NMG: Up to $4,000 Exclusive Rebate
Expires: July 08, 2026
KitchenAid Craft Your Dream Kitchen Promotion
Expires: July 08, 2026
KitchenAid Buy More Save More Delivery And Installation Allowance
Expires: June 10, 2026

Key Features

  • Downdraft Ventilation

  • Hot-Surface Indicator

  • Pure Color Ceramic-Glass Surface

  • Stainless Steel Knobs

  • 6'' Round Element

  • 300 CFM Exhaust Rating

  • 3-Speed Fan Control

  • Convertible to Duct-Free Ventilation

Read More

Description

KitchenAid 30" Electric Cooktop with Downdraft Ventilation, 4 Elements, and CookShield Finish

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications

Features

Downdraft Ventilation

Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.

Hot-Surface Indicator

Provides a clear indication that lets you know if any cooking surface is on or still hot.

Pure Color Ceramic-Glass Surface

Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.

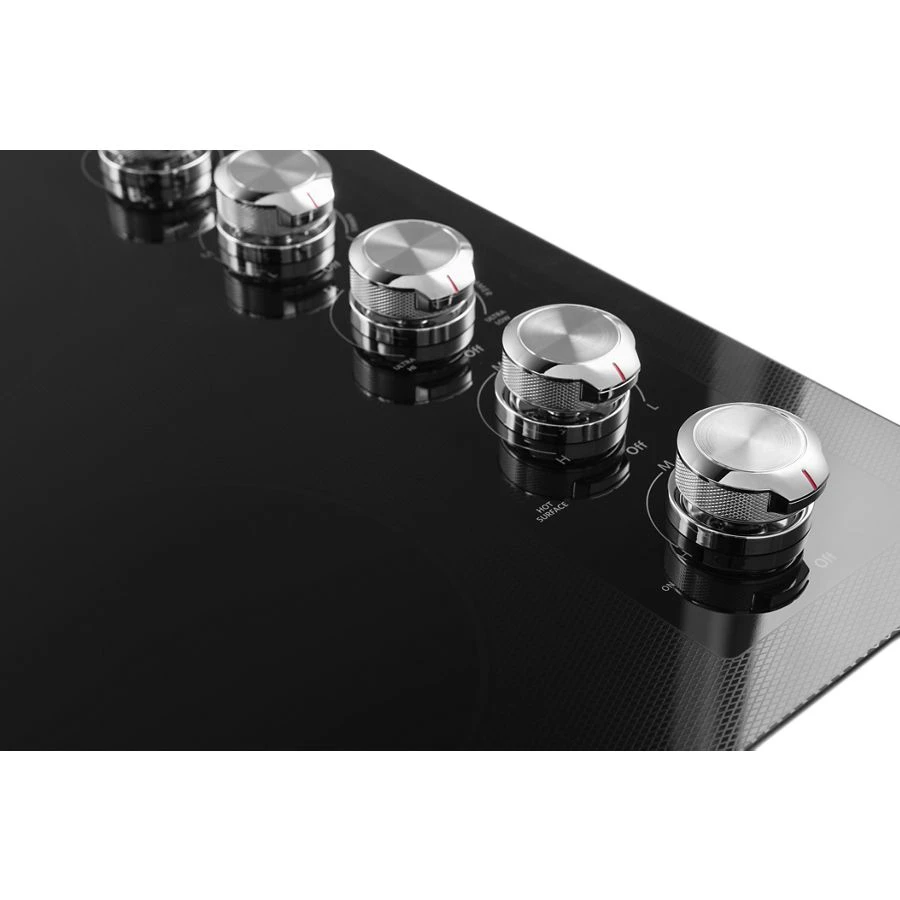

Stainless Steel Knobs

Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.

6'' Round Element

Can reach a power output of up to 1200 watts to handle your daily cooking needs.

300 CFM Exhaust Rating

Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.

3-Speed Fan Control

Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.

Convertible to Duct-Free Ventilation

Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.

Power-On Indicator Light

Lets you know at a glance when an element is on.

10'' Even-Heat™ Ultra Element with Simmer Setting

Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.

6'' Even-Heat™ Element with Melt Setting

Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.

9''/6'' Ultra Power™ Double-Ring Round Element

Two element sizes in one provide the ability to use it for large stock pots or six-inch sauté pans and handle tasks ranging from rapid boiling and searing to wok cooking.

Specifications

Controls

Control LocationRight Side
Control TypeKnobs
Infinite Heat ControlsYes

Cooktop Details

Number of Open BaysN/A
Cooktop Surface MaterialCeramic Glass
Digital DisplayNo
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes

Certifications

ADA CompliantNo
ULYes
Energy Rating (kWh/year)195
prop65Standard - Standard

Electrical

Power Cord IncludedNo

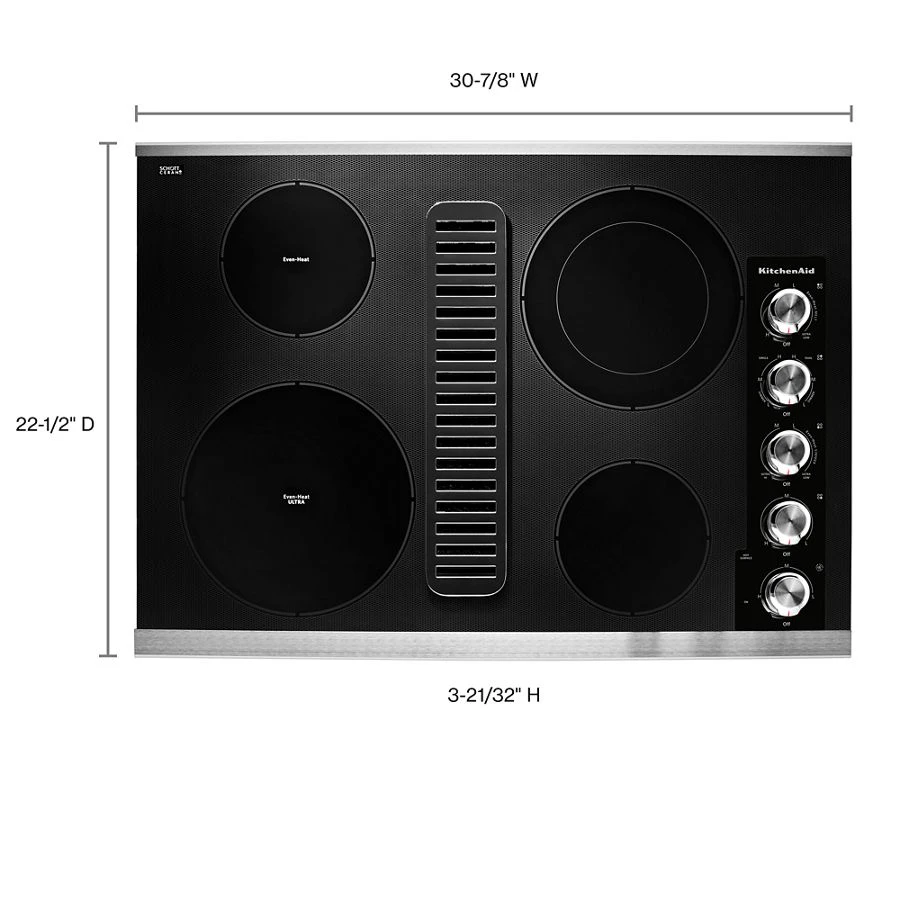

Dimensions & Weight

Width30.88 in.
Height3.63 in.
Length22.06 in.
Weight62 lbs.
Carton Depth26 7/16
Carton Height23 13/16
Carton Width35 1/8
Cutout Depth (in)21 1/8
Cutout Width (in)28 3/4
Gross Weight62
Maximum Height18 3/4
Net Weight50.0
Cutout Depth(IN,inches)21.1250
Cutout Width(IN,inches)28.7500
Maximum Height(IN,inches)18.7500
Net Weight(LB,pounds)50
Carton Depth(IN,inches)26.4375
Carton Height(IN,inches)23.8125
Carton Width(IN,inches)35.1250
Gross Weight(LB,pounds)62

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35.88 in.
Shipping Height8.63 in.
Shipping Length27.06 in.
Shipping Weight102 lbs.
Total of Shipping Weight102 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.43 ft³
Dimensional Weight17.76 lbs.
Total of Cubes1.43 ft³
Total of Dimensional Weight17.76 lbs.

Details

Automatic Pan DetectionNo
Fuel TypeElectric
Installs Over Built-In OvenNo
LP ConvertibleNo
Number of Vent Speeds3
Power Outage CompatibleNo

Dimensions

Cutout Depth21.125
Cutout Width28.75
carton depth26.38
carton height23.78
carton width35.12
gross weight62
net weight50

Element/Burner Details

Cooktop Element StyleRadiant
Cooktop TypeDowndraft
Left Front Element-Burner Power3, 200W
Left Front Element-Burner Size10in.
Left Front Element-Burner TypeEven-Heat™ Ultra
Left Rear Element-Burner Power1, 300W
Left Rear Element-Burner Size6in.
Left Rear Element-Burner TypeEven-Heat™
Number of Cooking Element-Burners4
Power BoostNo
Right Front Element-Burner Power1200W
Right Front Element-Burner Size6in.
Right Front Element-Burner TypeSingle
Right Rear Element-Burner Power3000W/1400W
Right Rear Element-Burner Size9in./6in.
Right Rear Element-Burner TypeDual-Stacked Burner

Grate Details

Grate DetailsDishwasher Safe

Ventilation Details

CFM Motor Class300
Downdraft VentYes

Product Details

Energy Star® QualifiedENERGY STAR® Qualified
