30" Built-In Knob Control Electric Cooktop - JP3030TWWW
30" Built-In Knob Control Electric Cooktop
Model: JP3030TWWW
Product Video
30" Built-In Knob Control Electric Cooktop
Model: JP3030TWWW
Rebate AvailableColor : White
Current Rebates
Key Features
Four radiant cooking elements
Melt Setting
Hot surface indicator lights
Cooktop "On" indicator light
Power Boil Elements
Keep Warm Setting
Fit Guarantee
Description
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active
Power Boil Elements
Get rapid heat from these 2 powerful 8" 2,500-watt elements
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting

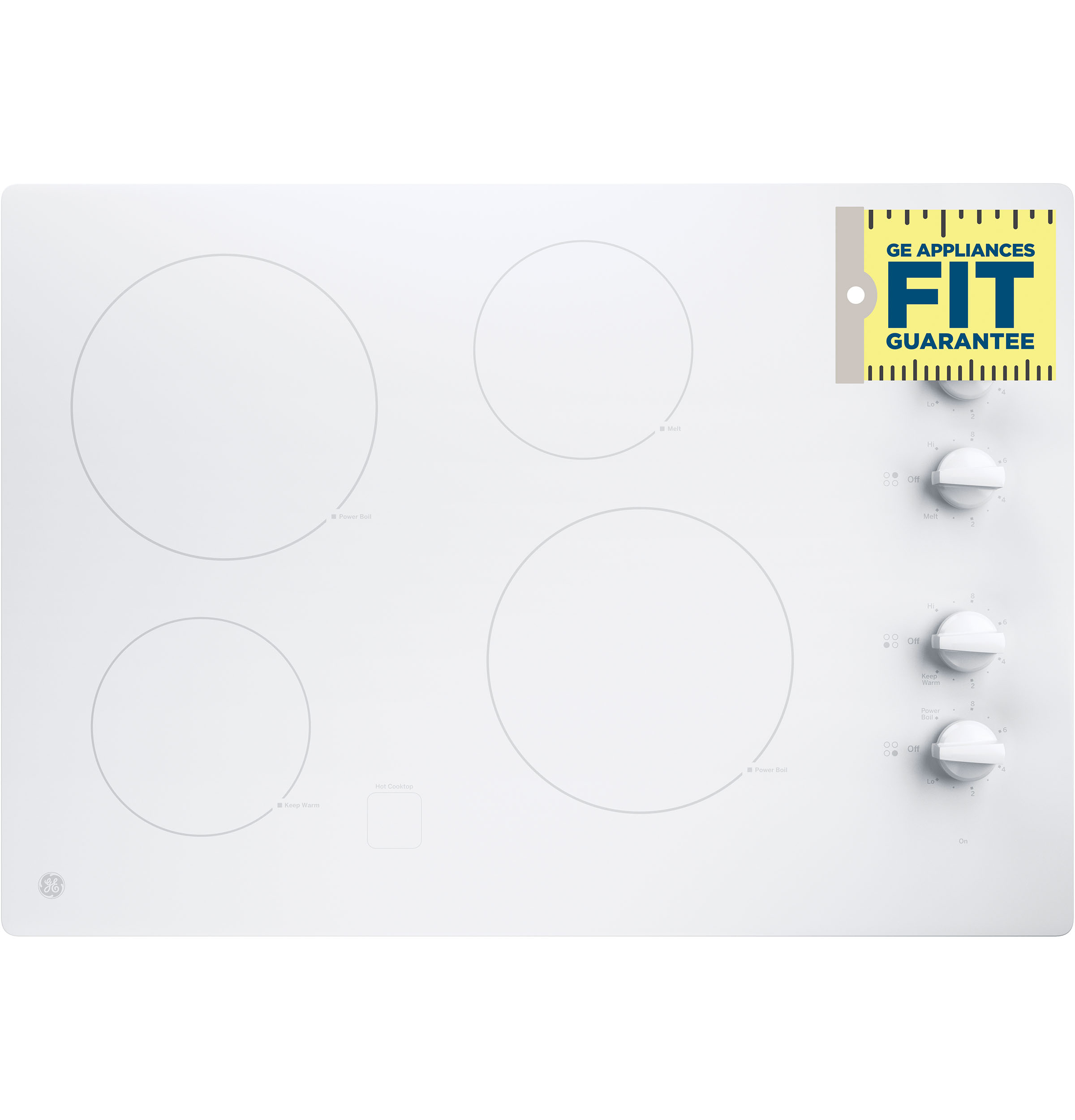

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Certifications
ADA Compliant
California Prop 65
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Height | 4 in |
| Overall Width | 29.75 in |
| Overall Depth | 20.875 in |
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 43 lb |
| Net Weight | 37 lb |

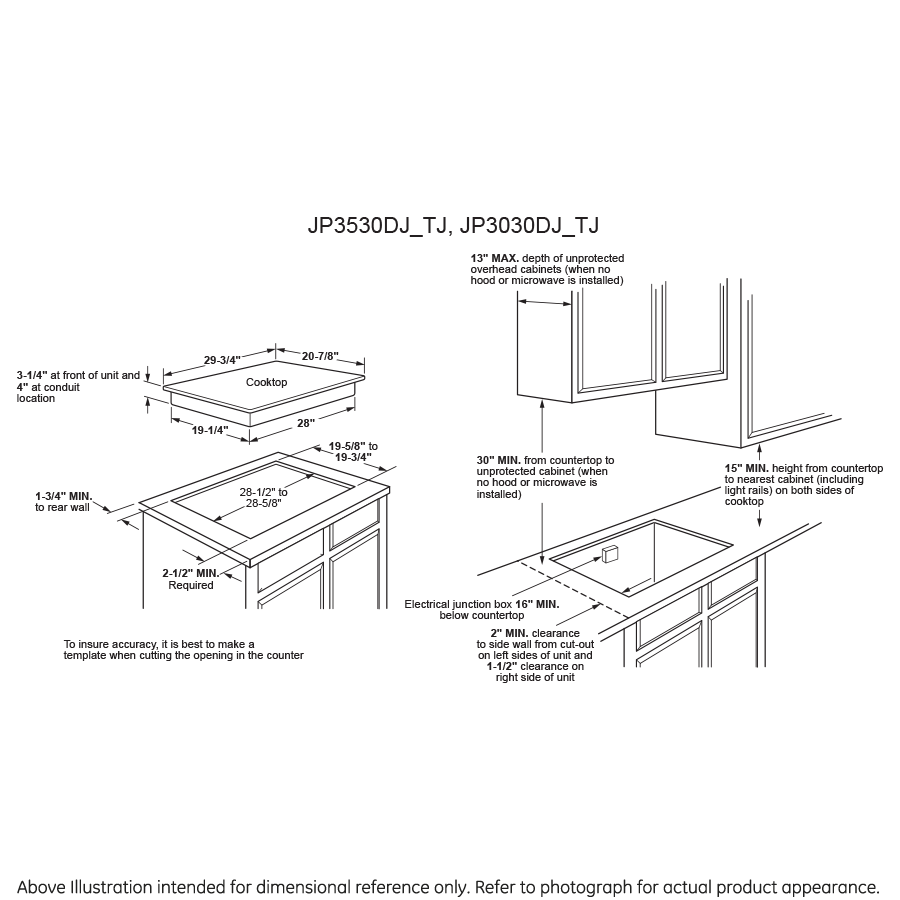

| Cutout Width (in) | 28.5 |
| Cutout Height (in) | 4 |
| Cutout Depth (in) | 19.625 |
FEATURES
| Dishwasher Safe Knobs | Yes |
| Filler trim kit | JXTR32W |
| Cooktop Burner Type | Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Power Boil Burner | Yes |
| Element - Left Front | 6" 1200W |
| Indicator Lights | Surface Element "ON" |
| Element - Right Front | 8" 2500W Power Boil |
| Control Location | Right Side |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | True White Ceramic Glass |
| Cooktop Control Features | Melt Setting |
| Element - Left Rear | 8" 2500W Power Boil |
| Control Type | Knob (Infinite switch) |
| Element - Right Rear | 6" 1200W |
| Product Type | Cooktop |
| Cooktop Burner Type | 4 Ribbon |
| Cooktop Control Features | Keep-Warm Setting |
| Indicator Lights | 4 Hot Surface |
| Indicator Lights | Red |
POWER / RATINGS
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 7.4 |
| Max. Current Draw (Amps) at 240V | 30.8 |
| Max. Connected Load (kW) at 208V | 5.6 |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Max. Current Draw (Amps) at 208V | 26.7 |
| Hertz | 60 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
APPEARANCE
| Color Appearance | White |
| Frameless | Yes |
| Control Knobs | Gloss White |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 4 in. |
| Length | 20.88 in. |
| Weight | 37 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 9 in. |
| Shipping Length | 25.88 in. |
| Shipping Weight | 77 lbs. |
| Total of Shipping Weight | 77 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.44 ft³ |
| Dimensional Weight | 17.87 lbs. |
| Total of Cubes | 1.44 ft³ |
| Total of Dimensional Weight | 17.87 lbs. |
