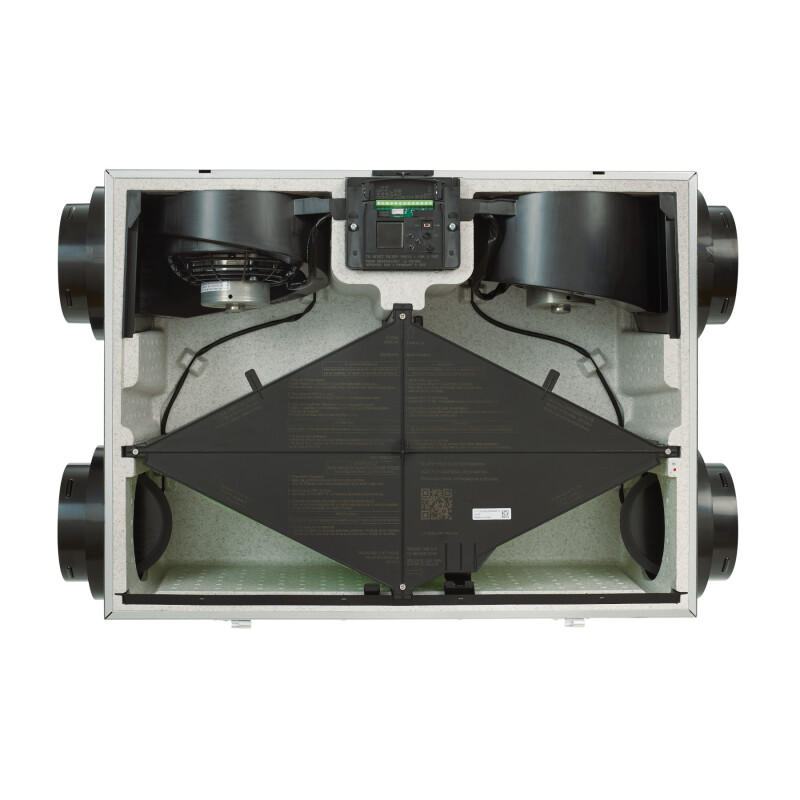

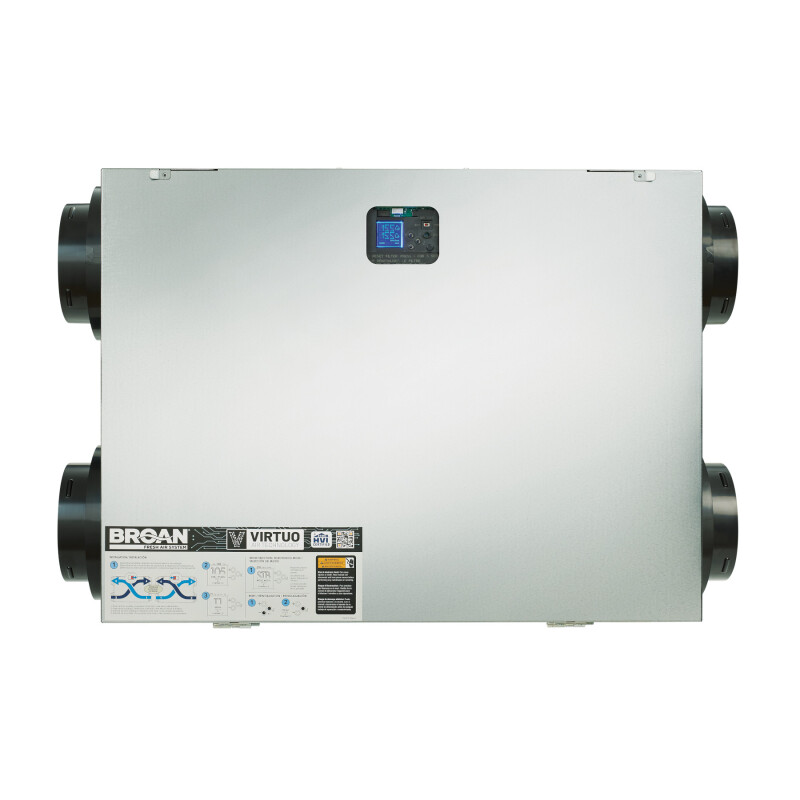

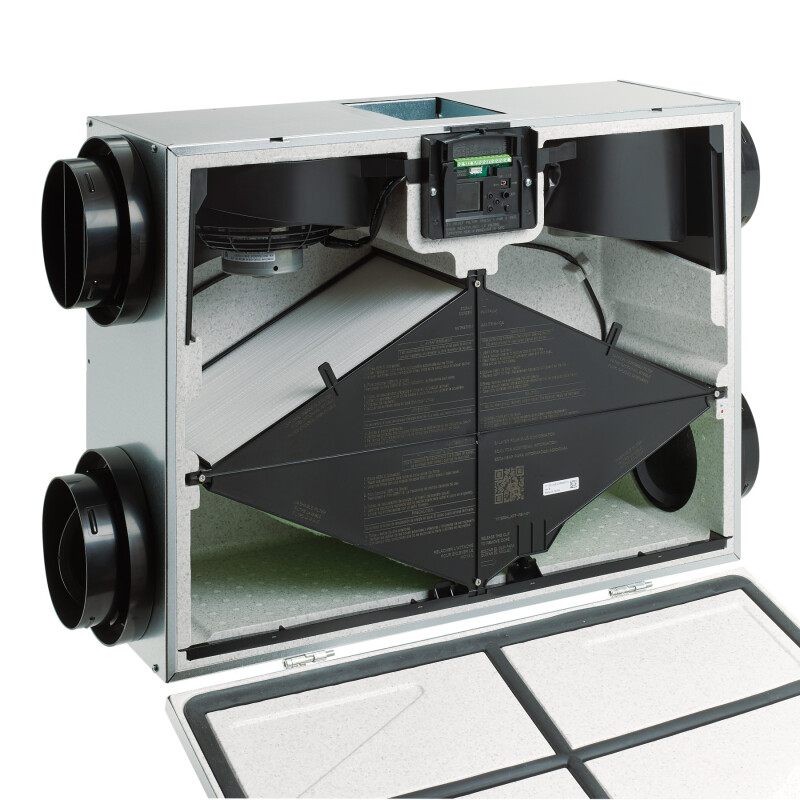

BLP150 Energy Recovery Ventilator (ERV), Hardwired - BLP150E75NSHW
BLP150 Energy Recovery Ventilator (ERV), Hardwired
Model: BLP150E75NSHW















BLP150 Energy Recovery Ventilator (ERV), Hardwired
Model: BLP150E75NSHW
Key Features
Airflow configuration can be swapped with the flip of an integrated selection switch**, eliminating the need for specifying different models to accommodate mirrored floor plans and providing simplicity throughout the design and installation processes **patent pending
ONE solution to meet your application needs. Specify, install, stock and maintain one ERV.
Equipped with powerful and energy efficient ECM PMSM motors delivering up to 155 CFM @ 0.2" w.g.

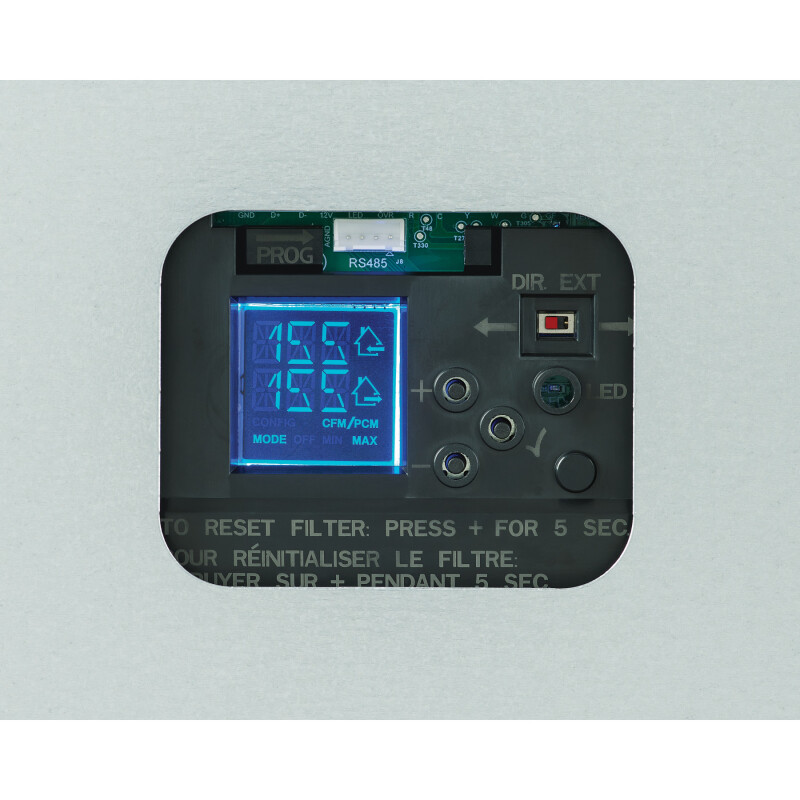

Integrated LCD screen provides intuitive CFM selection in 1 CFM increments throughout the airflow range providing real-time CFM and watt usage values
Horizontal and wall mount options provide location flexibility to accommodate various application needs
Delivers superior air quality with an included MERV 8 filter and optional MERV 13 filtration available
Compatible with a wide range of modern and user friendly controls to meet specific needs and different applications
Performance guaranteed from installation to inspection with TrueCFM™
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
Airflow configuration can be swapped with the flip of an integrated selection switch**, eliminating the need for specifying different models to accommodate mirrored floor plans and providing simplicity throughout the design and installation processes **patent pending
ONE solution to meet your application needs. Specify, install, stock and maintain one ERV.
Equipped with powerful and energy efficient ECM PMSM motors delivering up to 155 CFM @ 0.2" w.g.
Integrated LCD screen provides intuitive CFM selection in 1 CFM increments throughout the airflow range providing real-time CFM and watt usage values
Horizontal and wall mount options provide location flexibility to accommodate various application needs
Delivers superior air quality with an included MERV 8 filter and optional MERV 13 filtration available
Compatible with a wide range of modern and user friendly controls to meet specific needs and different applications
Performance guaranteed from installation to inspection with TrueCFM™
Once balanced. Always balanced. ONE uses our proprietary VIRTUO™ Technology to continually self-adjust and remain in balance
Quickest installation in its category saving the installer up to 20 minutes per unit, thanks to the auto-balancing and self-adjusting VIRTUO™ Technology
Can be used to comply with the latest energy code programs like 2021 IECC, ASHRAE 90.1-2019/2022, and a be critical component to meet the ENERGY STAR® certified new home program to earn 45L tax credits
With its superior recovery efficiency, Broan® ONE ERVs can lower HERS scores up to 6 points compared to other ventilation methods.
Specifications
Product Details
| Voltage | 120 |
| Min/max continuous airflow (CFM at 0.2 in. w.g.) | 35 - 155 CFM |
| Sensible recovery efficiency at 32°F | 84% |
| Apparent sensible efficiency at 32°F | 87% |
| Product Height | 9.97 |
| Product Width | 20.94 |
| Product Length | 32 |
| Weight | 39 |

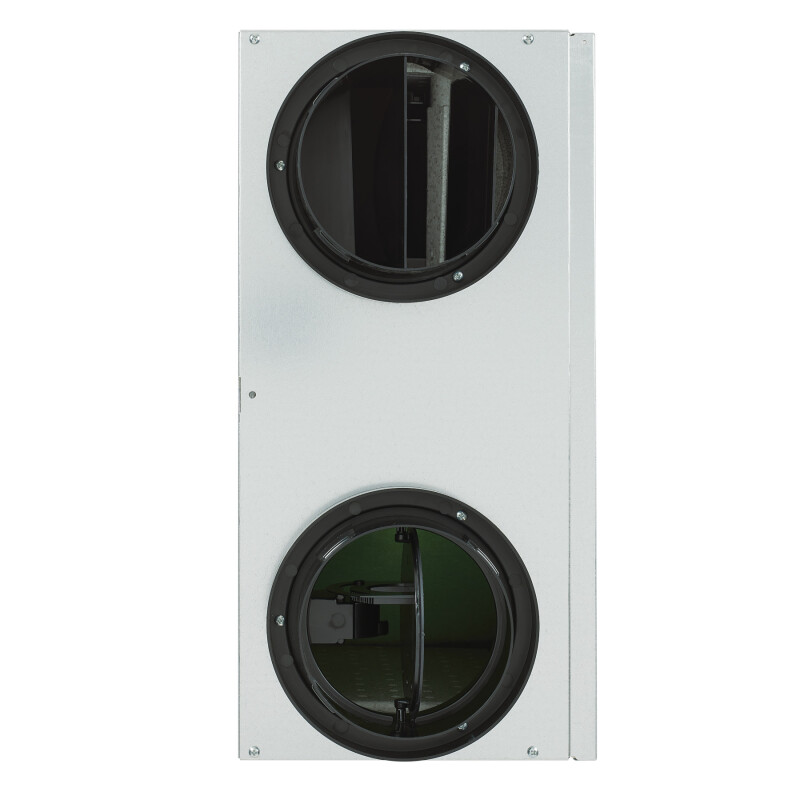

| Ports Location | Side |
| Ports Size | 6" |
| Core Type | ERV |
| Defrost Type | Exhaust |
| Filtration Level | MERV 8 |
| ENERGY STAR® certified | No |
| HVI Certified | Yes |
| cUL Listed | No |
| UL Listed | Yes |
| Core Warranty | 5 years |
| Parts Warranty | 5 years |
| Power Type | Hardwired |
Dimensions & Weight
| Width | 20.94 in. |
| Height | 9.97 in. |
| Length | - |
| Weight | 39 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 25.94 in. |
| Shipping Height | 14.97 in. |
| Shipping Length | - |
| Shipping Weight | 79 lbs. |
| Total of Shipping Weight | 79 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
