Project Pack w/ Built-In Thermostat - 165FT

This product has been discontinued by the manufacture and is no longer available.

Project Pack w/ Built-In Thermostat

Model: 165FT

Project Pack w/ Built-In Thermostat 165FTProject Pack w/ Built-In Thermostat 165FTProject Pack w/ Built-In Thermostat 165FTProject Pack w/ Built-In Thermostat 165FT
Project Pack w/ Built-In Thermostat 165FT
Project Pack w/ Built-In Thermostat 165FT
Project Pack w/ Built-In Thermostat 165FT
Project Pack w/ Built-In Thermostat 165FT

Color : White

product image
White

Key Features

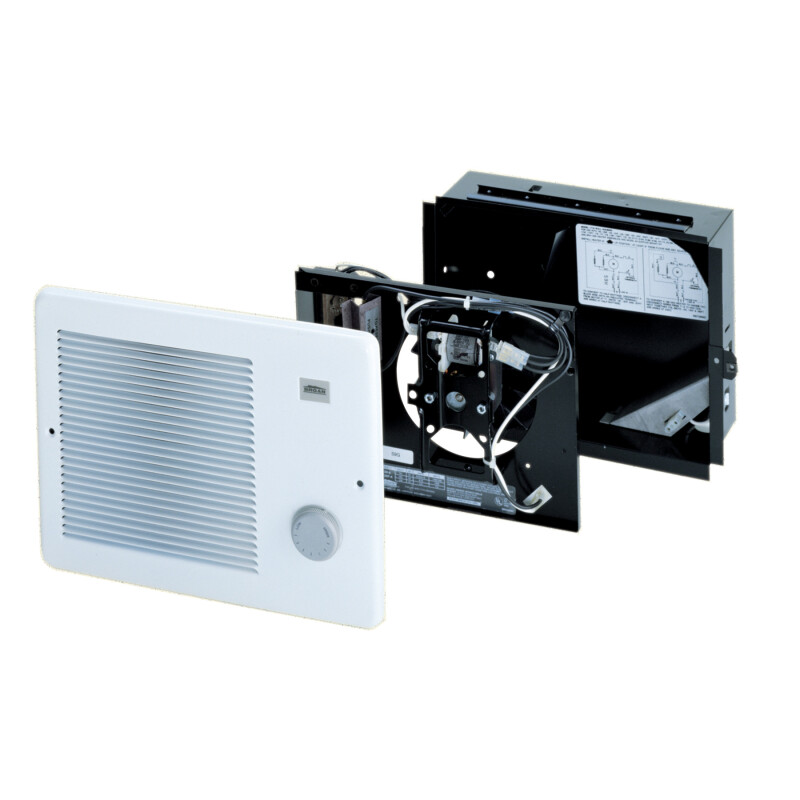

  • Finish kits are sold in single-pack quantities and are used in conjunction with a 171H Rough-In Housing Kit - sold separately.

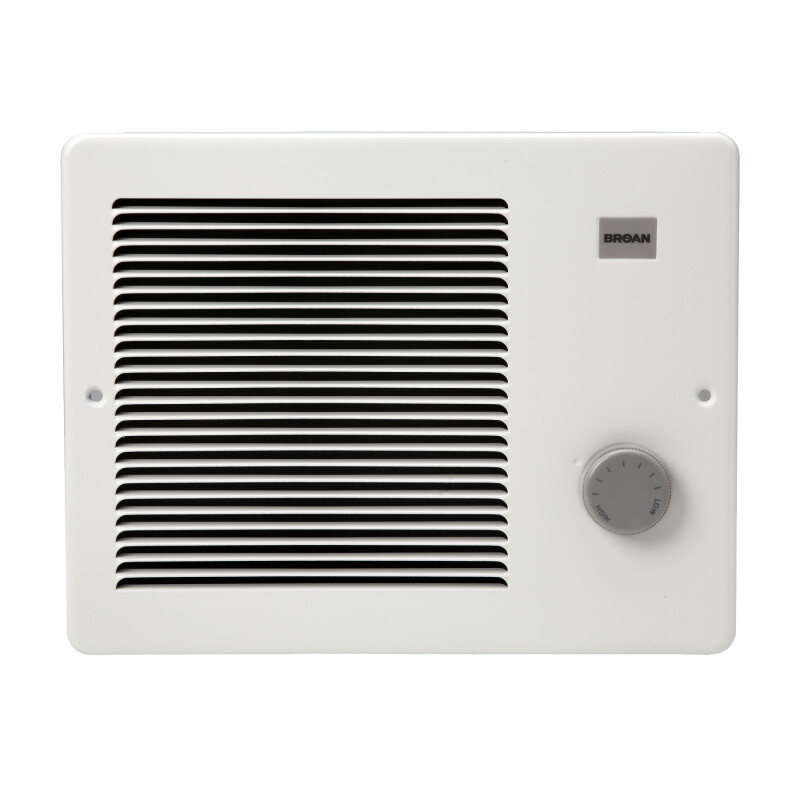

  • White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability

  • Adjustable, front-mounted thermostat offers a simple way to control the level of heat

  • Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds

  • Heater may be recessed or surface-mounted, depending on your application (surface mounting requires Model 84 surface mount kit sold separately)

  • Permanently lubricated motor, high efficiency blower wheel, Nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble free heating. UL Listed for safety.

  • Factory wired at 500W, at 240V AC, it can be easily converted to 500W at 120V AC for added versatility

  • Includes thermostat

Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications

Features

Finish kits are sold in single-pack quantities and are used in conjunction with a 171H Rough-In Housing Kit - sold separately.

White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability

Adjustable, front-mounted thermostat offers a simple way to control the level of heat

Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds

Heater may be recessed or surface-mounted, depending on your application (surface mounting requires Model 84 surface mount kit sold separately)

Permanently lubricated motor, high efficiency blower wheel, Nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble free heating. UL Listed for safety.

Factory wired at 500W, at 240V AC, it can be easily converted to 500W at 120V AC for added versatility

Includes thermostat

Wall heaters are intended to provide supplemental heat from a wall location and not to take the place of the home's main heat source

Specifications

Product Details

Auto Shut-offYes
cUL ListedNo
Heater TypeHousing Project Pack
Number Of Heat SettingsVariable (Infinite)
Project PackNo
ThermostatYes
UL ListedNo
Coverage Area (sq ft)35-50
BTU/hr at 120 Volts1707
BTU/hr at 208 Volts1280
BTU/hr at 240 Volts1707

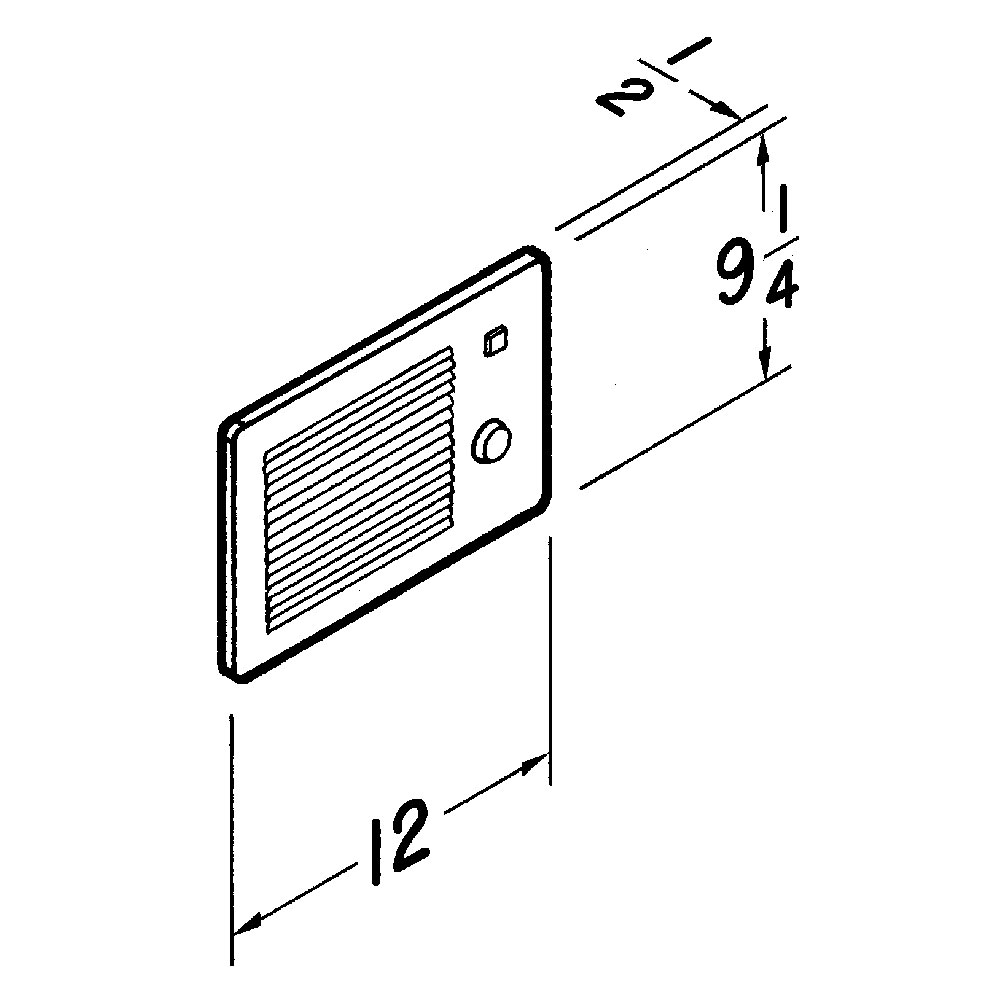

Grille Dimensions - Width12
Housing Length/Depth3.75
Watts And Amps At 120 Volts4.16
Watts And Amps At 208 Volts1.8
Watts And Amps At 240 Volts2.08
Watts at 120 VAC500
Watts at 208 VAC375
Watts at 240 VAC500
Manufacturer Warranty1 Year

Dimensions & Weight

Width12 in.
Height-
Length3.75 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width17 in.
Shipping Height-
Shipping Length8.75 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-
