LOSONE SELECT™ 514 CFM High Capacity Ventilation Fan, 3.3 Sones - L500

BroanBroan brand logo
This product has been discontinued by the manufacture and is no longer available.

LOSONE SELECT™ 514 CFM High Capacity Ventilation Fan, 3.3 Sones

Model: L500

LOSONE SELECT 514 CFM High Capacity Ventilation Fan L500LOSONE SELECT 514 CFM High Capacity Ventilation Fan L500LOSONE SELECT 514 CFM High Capacity Ventilation Fan L500LOSONE SELECT 514 CFM High Capacity Ventilation Fan L500
LOSONE SELECT 514 CFM High Capacity Ventilation Fan L500
LOSONE SELECT 514 CFM High Capacity Ventilation Fan L500
LOSONE SELECT 514 CFM High Capacity Ventilation Fan L500
LOSONE SELECT 514 CFM High Capacity Ventilation Fan L500

Color : White

LOSONE SELECT 514 CFM High Capacity Ventilation Fan L500
White

Key Features

  • 514 CFM, Powerful whole home or commercial ventilation

  • 3.3 Audible Sones for privacy while using your bathroom

  • Includes 8-way adjustable mounting brackets for easy ceiling-mount installation

  • Duct horizontally, vertically or in-line with separate adapter

  • Quiet automatic backdraft dampers

  • Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)

  • Not for use over tub or shower

  • UL listed and cUL listed for your safety and protection

Read More

Description

Broan® high capacity fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.
Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications

Features

514 CFM, Powerful whole home or commercial ventilation

3.3 Audible Sones for privacy while using your bathroom

Includes 8-way adjustable mounting brackets for easy ceiling-mount installation

Duct horizontally, vertically or in-line with separate adapter

Quiet automatic backdraft dampers

Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)

Not for use over tub or shower

UL listed and cUL listed for your safety and protection

AMCA licensed for air and sound performance

Powerful enough for rooms up to () sq. ft.

Heavy-gauge galvanized steel housing resists corrosion

Two impact-resistant centrifugal blower wheels

Specifications

Product Details

CFM514
ENERGY STAR® certifiedNo
Grille Length14
Grille Width23.25

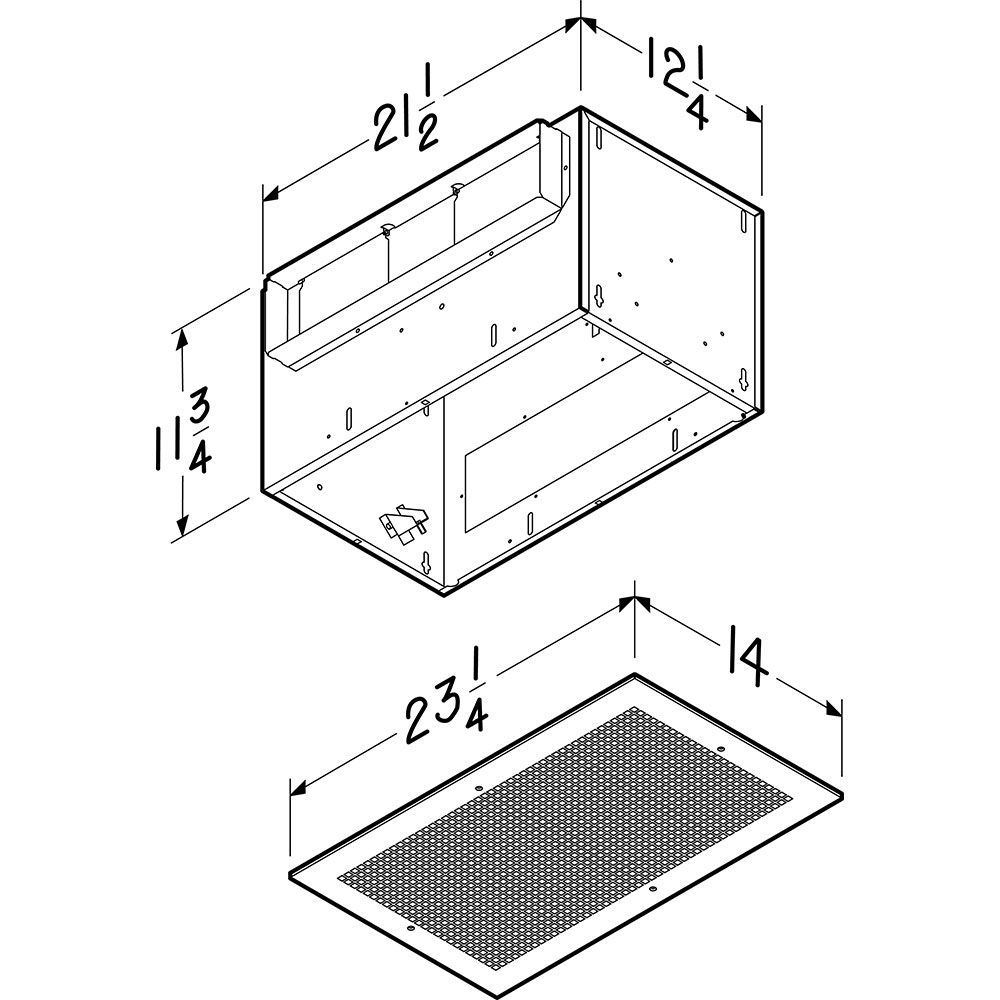

Housing Dimensions12-1/4" x 21-1/2" x 11-3/4"
Sound Level (Sones)3.3
UL ListedYes
Grille FinishWhite
Humidity SensingNo
Motion SensingNo
Motor Engineered For Continuous OperationYes
Night LightNo
Radiation Damper AvailableYes
Room Side InstallationNo
UL Listed for use over bathtubs or showers when connected to a GFCI circuitNo
Heater Wattage0
Rated Amps2.2
Voltage120
Can Be Used To Comply With Title 24No
Manufacturer Warranty1 Year
High Efficiency LuminaireNo

Dimensions & Weight

Width23.25 in.
Height12.25 in.
Length11.75 in.
Weight-
Housing Dimensions12-1/4" x 21-1/2" x 11-3/4"

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.25 in.
Shipping Height17.25 in.
Shipping Length16.75 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.94 ft³
Dimensional Weight24.08 lbs.
Total of Cubes1.94 ft³
Total of Dimensional Weight24.08 lbs.
