High-Capacity, Light Commercial 233 CFM InLine Ventilation Fan, certified - L250EL

BroanBroan brand logo
This product has been discontinued by the manufacture and is no longer available.

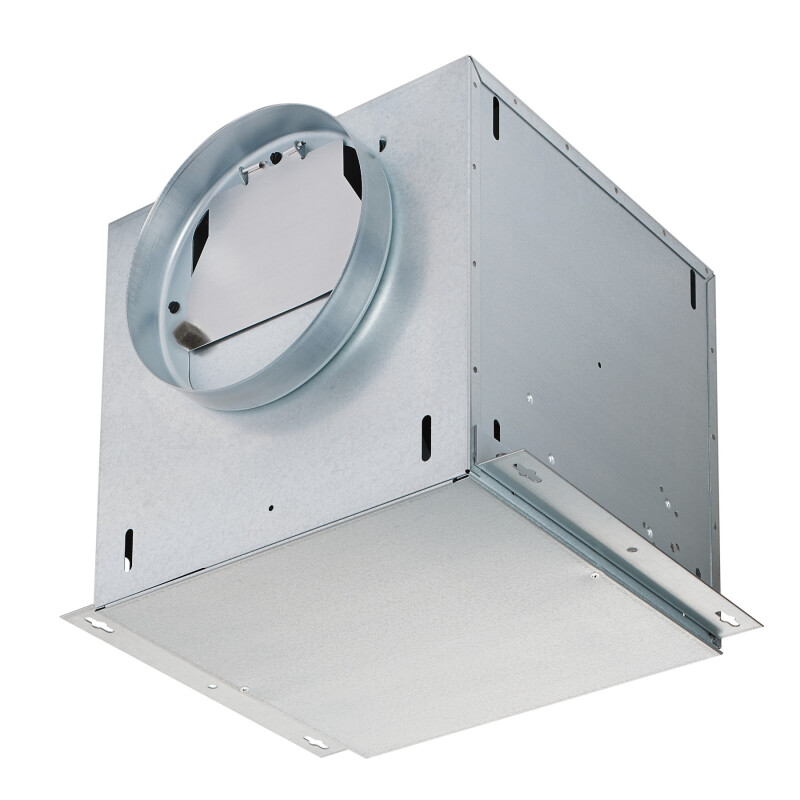

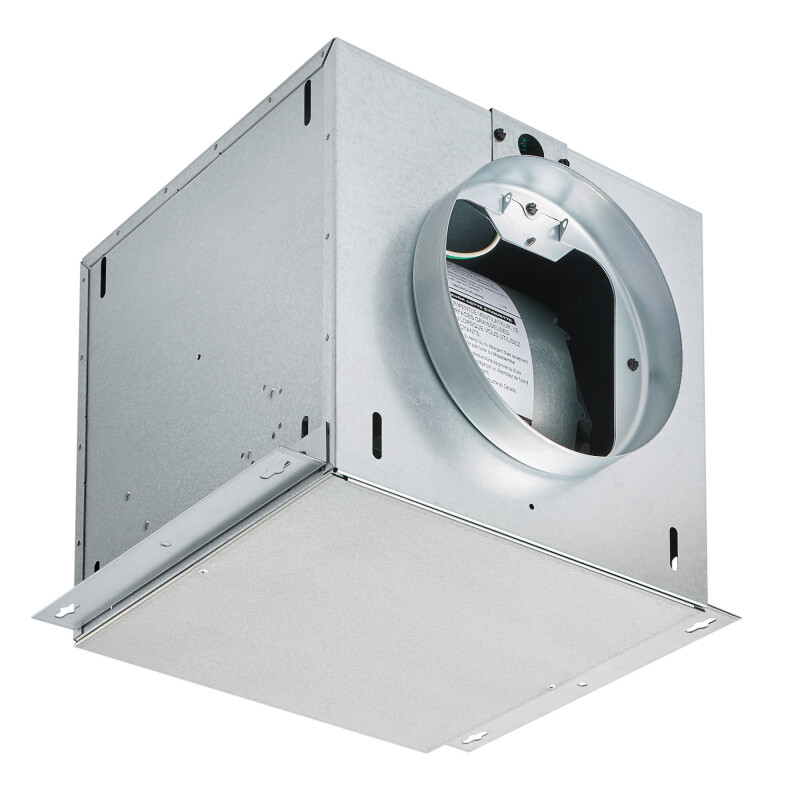

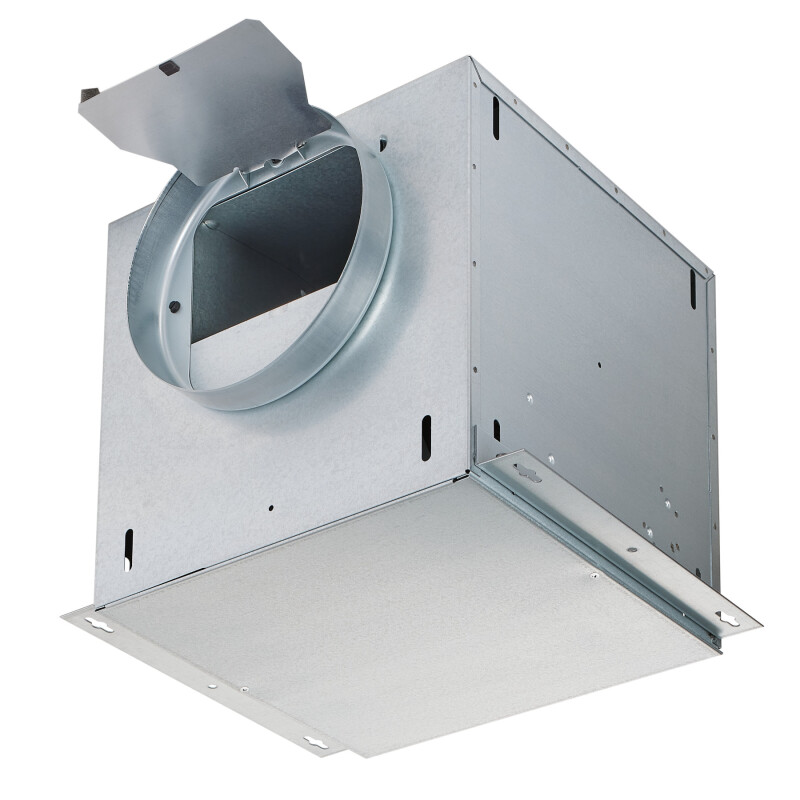

High-Capacity, Light Commercial 233 CFM InLine Ventilation Fan, certified

Model: L250EL

High-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250ELHigh-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250ELHigh-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250ELHigh-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250ELHigh-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250ELHigh-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250EL
High-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250EL
High-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250EL
High-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250EL
High-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250EL
High-Capacity, Light Commercial 233 CFM InLine Ventilation Fan L250EL
+1more

Color : Other

product image
Other

Key Features

  • ENERGY STAR certified

  • 233 CFM InLine commercial ventilation fan

  • AMCA and HVI air tested

  • Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)

  • Model 80L Variable speed control adjusts blower speed and sound level (available separately)

  • cULus Listed for safety and protection

  • Standard 8" round ducting for all ENERGY STAR® certified models

  • ENERGY STAR® certified

Description

Broan® High-Capacity, Light Commercial ENERGY STAR® certified fans are an exceptionally quiet solution to continuous ventilation. With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation. These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.
Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications

Features

ENERGY STAR certified

233 CFM InLine commercial ventilation fan

AMCA and HVI air tested

Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)

Model 80L Variable speed control adjusts blower speed and sound level (available separately)

cULus Listed for safety and protection

Standard 8" round ducting for all ENERGY STAR® certified models

ENERGY STAR® certified

Specifications

Product Details

CFM233
Duct Size8
ENERGY STAR® certifiedYes
Sound Level (Sones)0
UL ListedYes
Humidity SensingNo
Motion SensingNo
Motor Engineered For Continuous OperationYes
Night LightNo
Radiation Damper AvailableNo
Room Side InstallationNo
UL Listed for use over bathtubs or showers when connected to a GFCI circuitNo
Rated Amps0.6
Voltage120
Can Be Used To Comply With Title 24No
Manufacturer Warranty1 Year
High Efficiency LuminaireNo

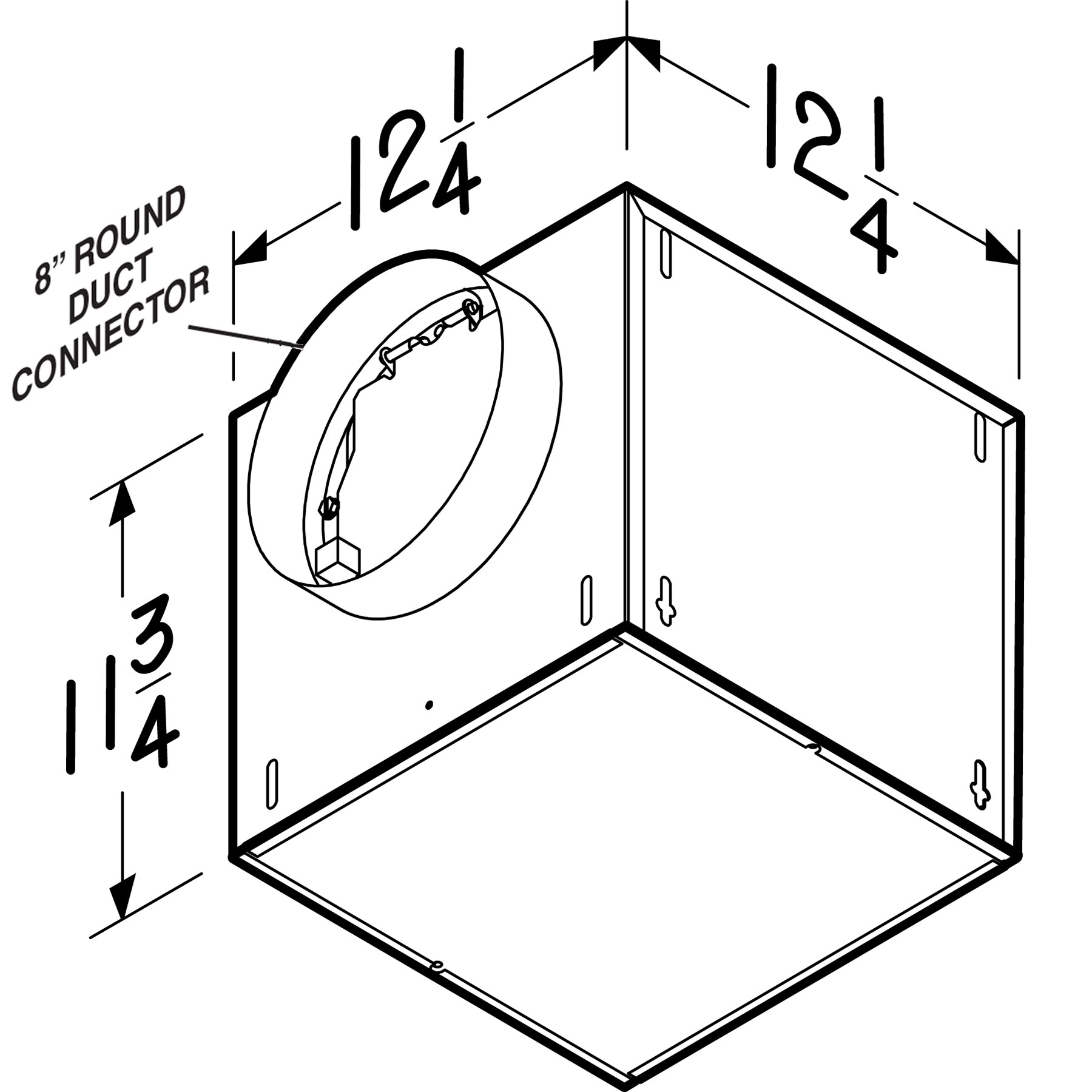

Housing Dimensions12.25” x 12.25” x 11.75”

Dimensions & Weight

Width12.25 in.
Height12.25 in.
Length11.75 in.
Weight-
Housing Dimensions12.25" x 12.25" x 11.75"

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width17.25 in.
Shipping Height17.25 in.
Shipping Length16.75 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.02 ft³
Dimensional Weight12.69 lbs.
Total of Cubes1.02 ft³
Total of Dimensional Weight12.69 lbs.
