Roomside Series 110 CFM 3.0 Sones Ventilation Fan - AR110
Roomside Series 110 CFM 3.0 Sones Ventilation Fan
Model: AR110
Roomside Series 110 CFM 3.0 Sones Ventilation Fan
Model: AR110
Color : White
Key Features
110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
3 Sones for Quiet performance, enough sound to know your fan is on.
Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Description
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
3 Sones for Quiet performance, enough sound to know your fan is on.
Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications

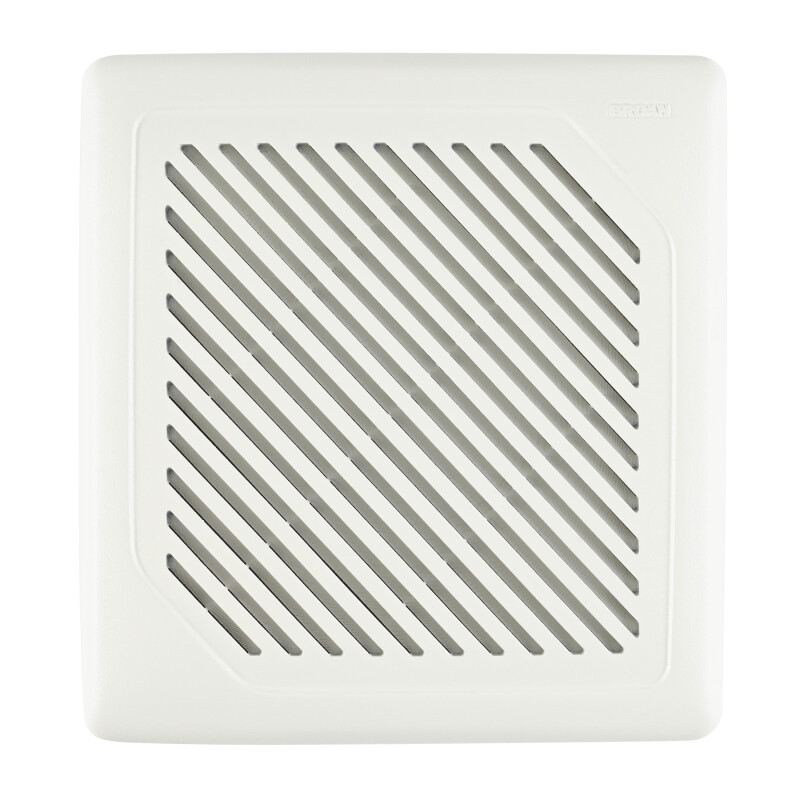

Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
EzDuct™ connector can be installed from the room side, with no attic access required
TrueSeal™ Damper technology reduces air leakage up to 50%
Specifications
Product Details
| CFM | 110 |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 12.25 |

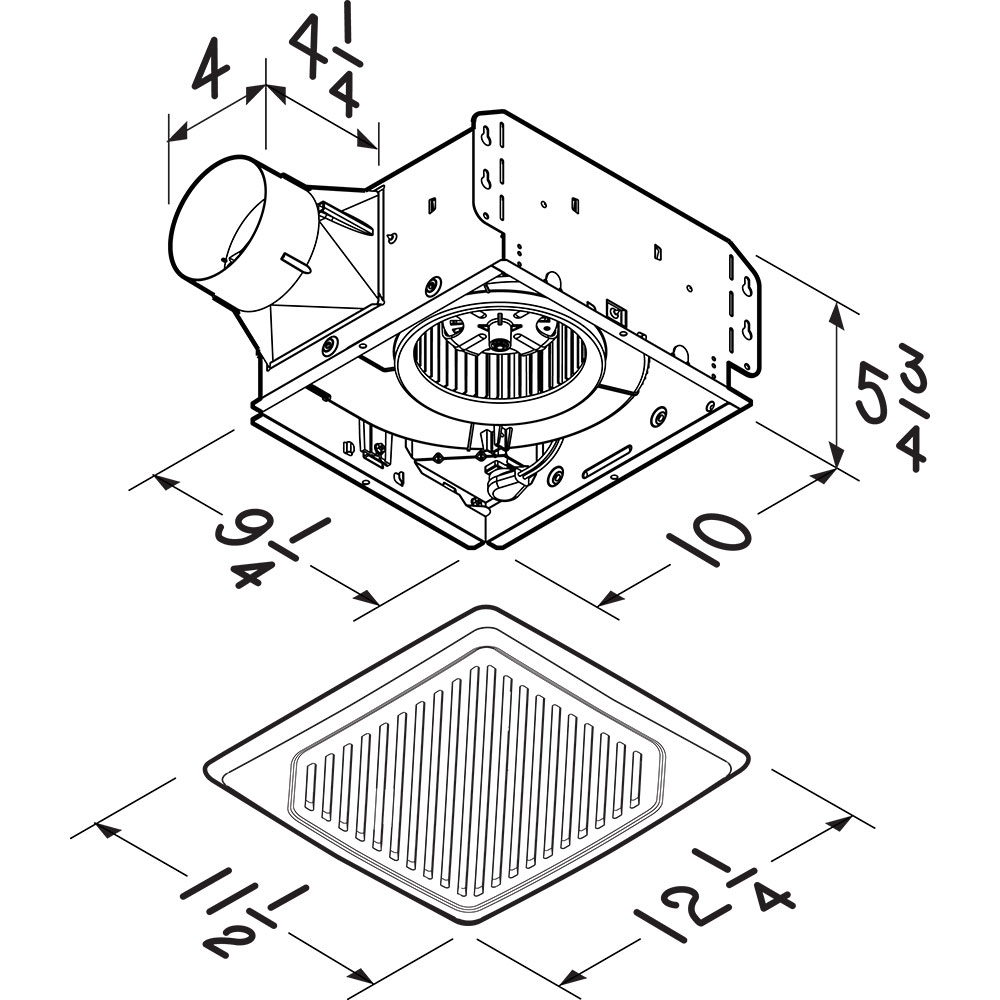

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12.25 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.25 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.38 ft³ |
| Dimensional Weight | 3.92 lbs. |
| Total of Cubes | 0.38 ft³ |
| Total of Dimensional Weight | 3.92 lbs. |
