Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Humidity Sensing Ventilation Fan - AE50110DCS
Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Humidity Sensing Ventilation Fan
Model: AE50110DCS
Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Humidity Sensing Ventilation Fan
Model: AE50110DCS
Color : White
Key Features
Quiet operation at <0.3-0.4-0.9 sones
Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
FlexFlow™ technology, select between 50, 80 or 110 CFM
Sensaire™ Humidity control automatically turns fans ON when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user-adjustable set-point (50% to 80% RH)
Description
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
Quiet operation at <0.3-0.4-0.9 sones
Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
FlexFlow™ technology, select between 50, 80 or 110 CFM
Sensaire™ Humidity control automatically turns fans ON when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user-adjustable set-point (50% to 80% RH)
ENERGY STAR® certified product
Specifications
Product Details
| CFM | 50-80-110 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12.25 |

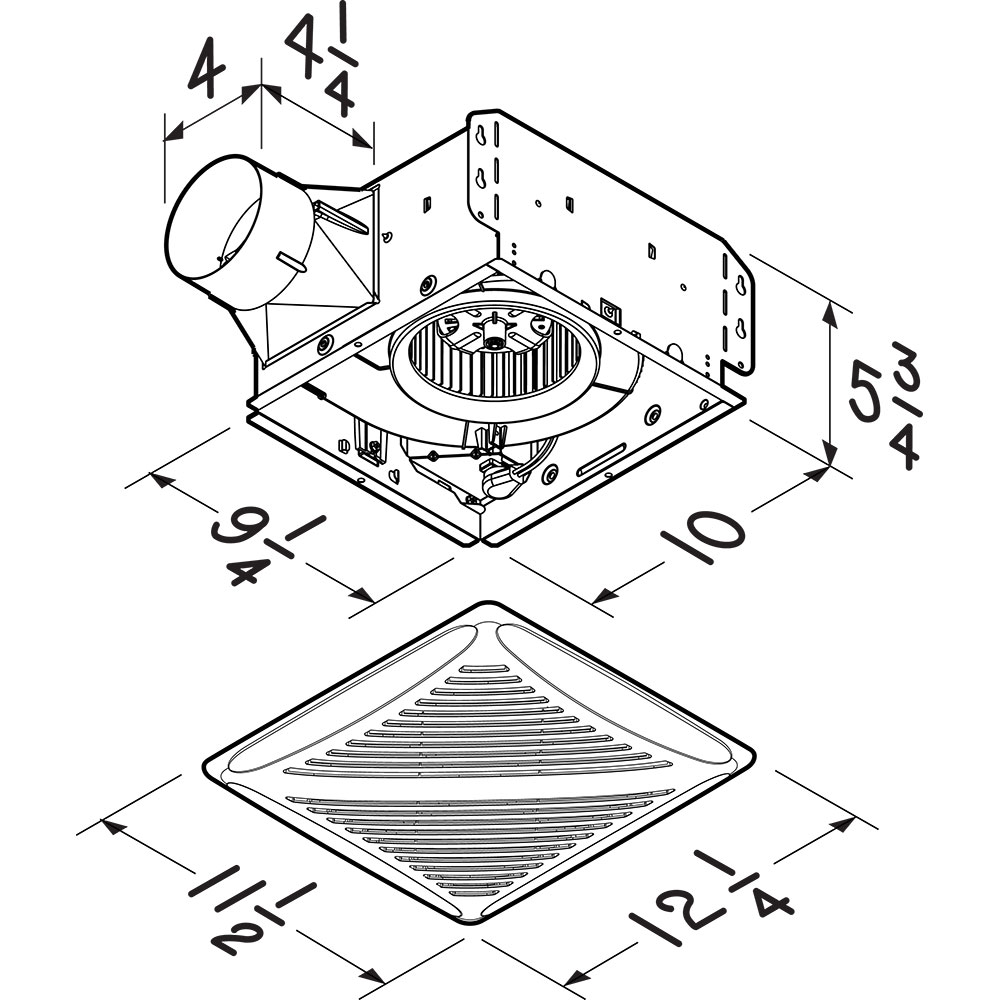

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12.25 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.25 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.38 ft³ |
| Dimensional Weight | 3.92 lbs. |
| Total of Cubes | 0.38 ft³ |
| Total of Dimensional Weight | 3.92 lbs. |
