Bath Exhaust Fan w/LED Light, 50 CFM, , 2.0 Sones - 688ESL
Bath Exhaust Fan w/LED Light, 50 CFM, , 2.0 Sones
Model: 688ESL
Bath Exhaust Fan w/LED Light, 50 CFM, , 2.0 Sones
Model: 688ESL
Color : White
Key Features

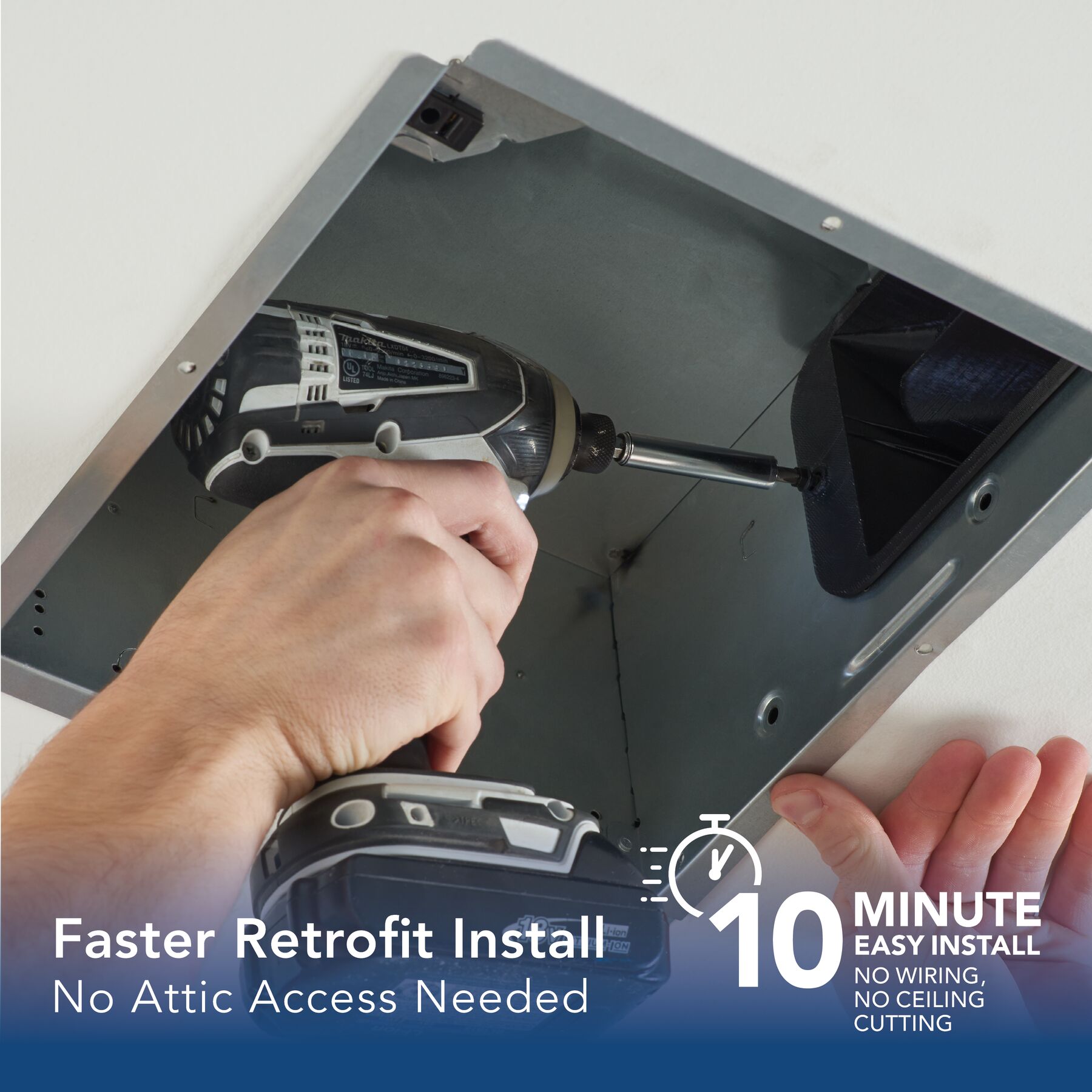

10 Min Install: Easy installation without the need for attic access or additional drywall cutting.
Efficient Ventilation: 50 CFM offering efficient exhaust ventilation to remove odors and pollutants from rooms up to 45 sq. ft.
ENERGY STAR Certified: Reduces energy consumption by over 50% compared to standard bath fans.
No Cut Install: Compact housing with foldable mounting brackets for no cut and versatile installation.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Double strength mounting flanges with keyhole slots
Description
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
10 Min Install: Easy installation without the need for attic access or additional drywall cutting.
Efficient Ventilation: 50 CFM offering efficient exhaust ventilation to remove odors and pollutants from rooms up to 45 sq. ft.
ENERGY STAR Certified: Reduces energy consumption by over 50% compared to standard bath fans.
No Cut Install: Compact housing with foldable mounting brackets for no cut and versatile installation.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Double strength mounting flanges with keyhole slots
Quiet polymeric damper prevents cold backdrafts with no metallic clatter
No electrical knockout to remove
Removable wiring cover – make connections away from tight corners
U.L. listed for tub or shower enclosure with GFCI branch wiring
Specifications
Product Details
| CFM | 50 |
| Duct Size | 3 |
| ENERGY STAR® certified | Yes |
| Grille Length | 9.25 |
| Grille Width | 9.75 |
| Housing Dimensions | 7-1/2" x 7-1/4" x 3-5/8" |

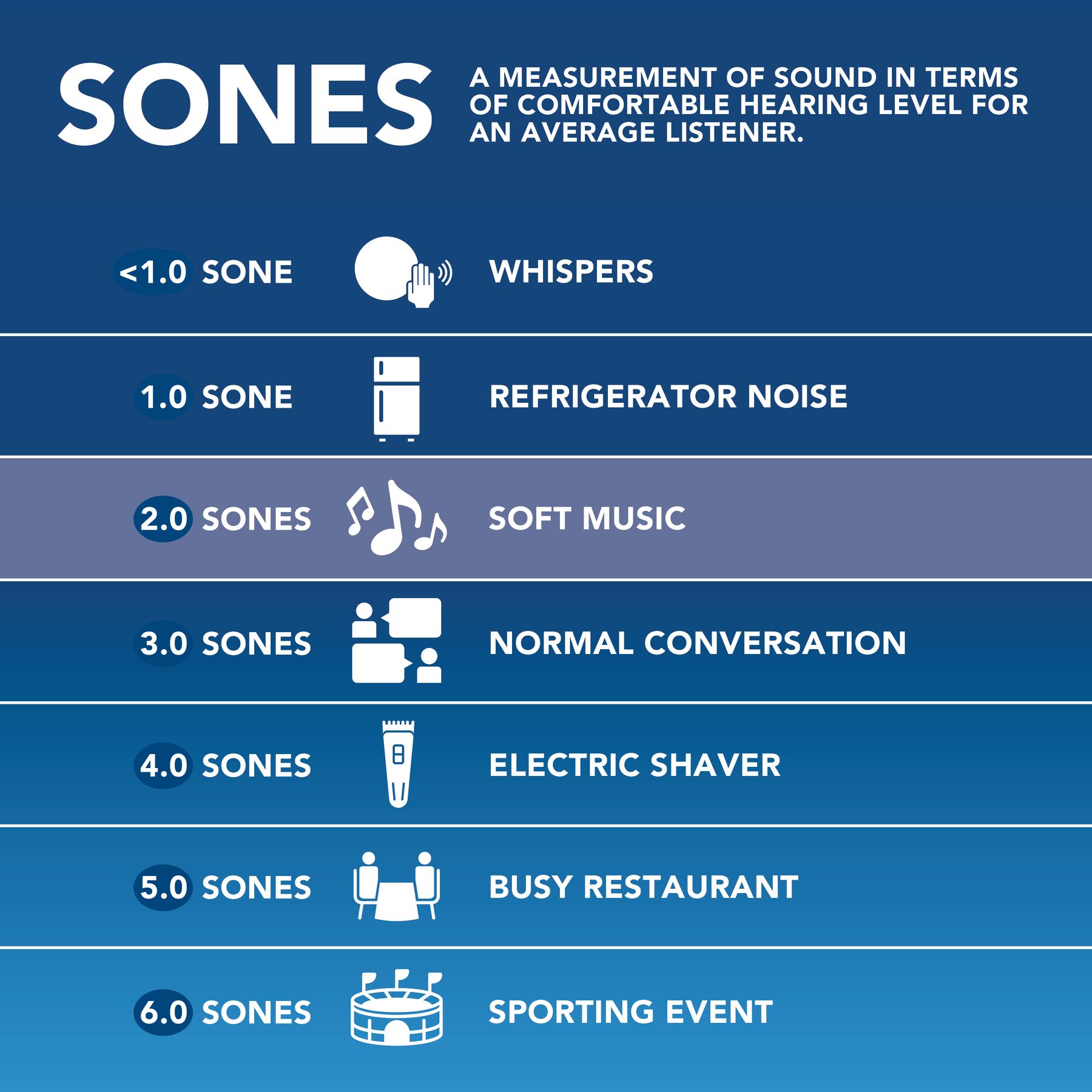

| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Recommended Room Size (Sq Ft) | 45 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
