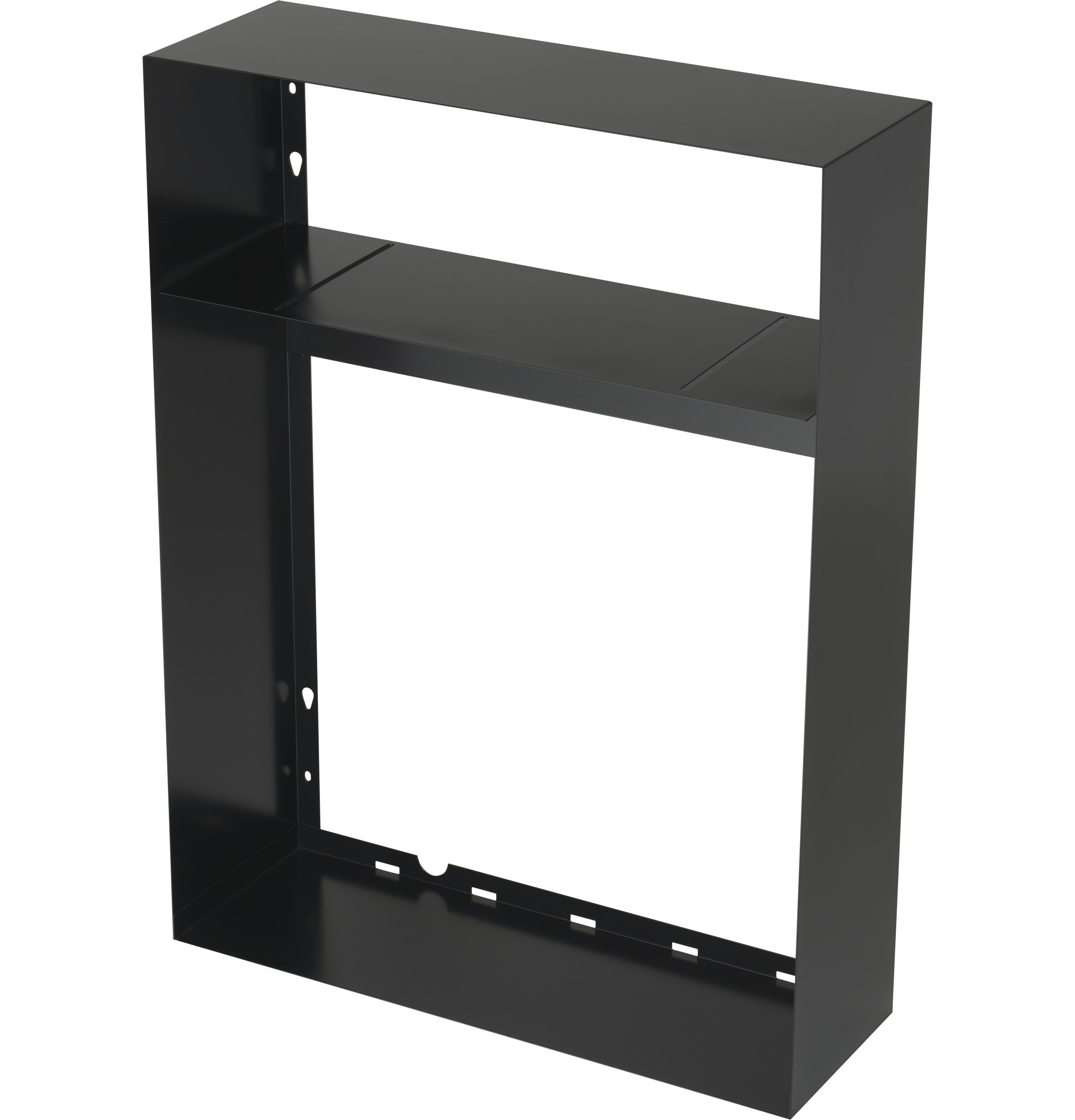

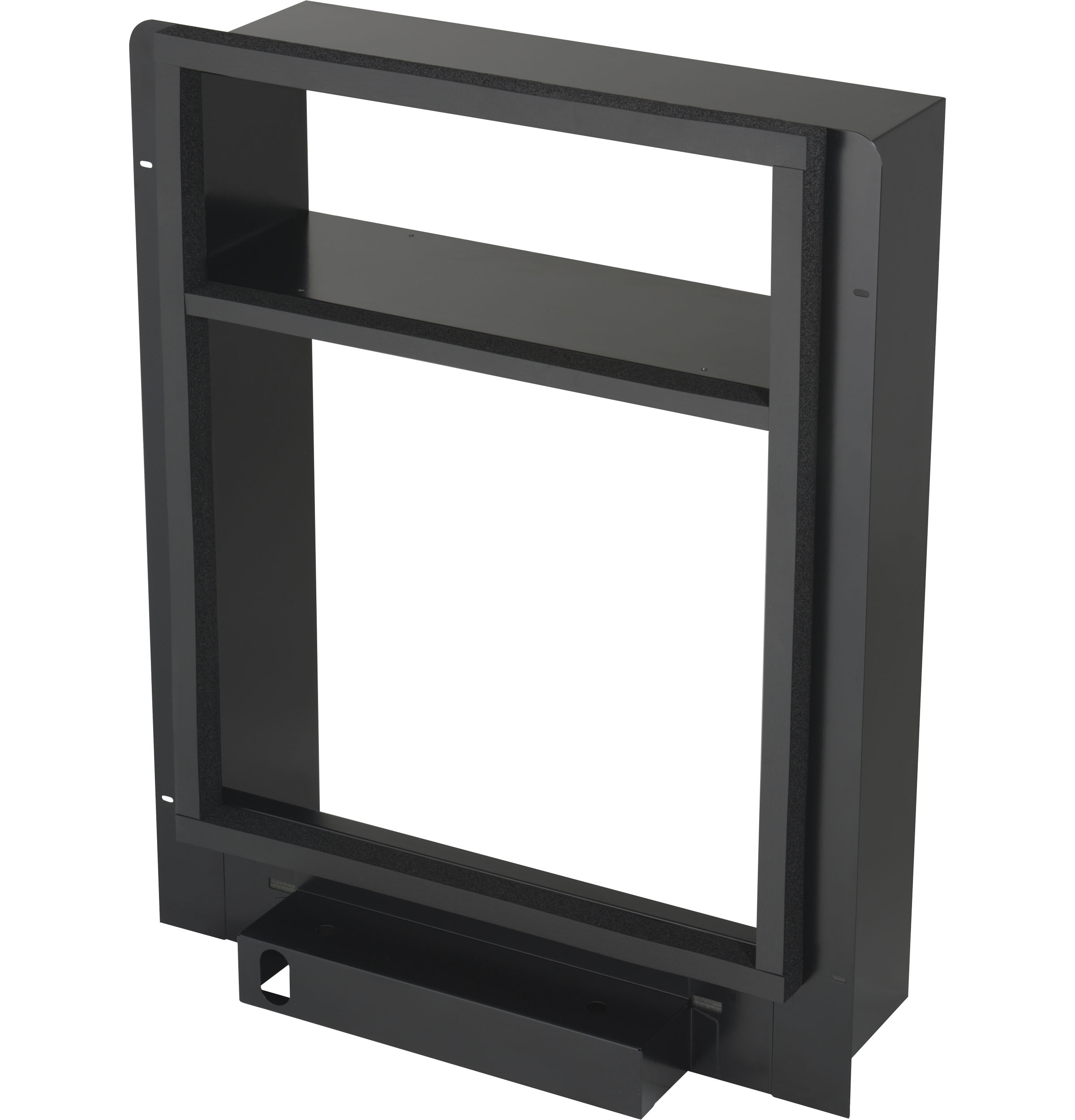

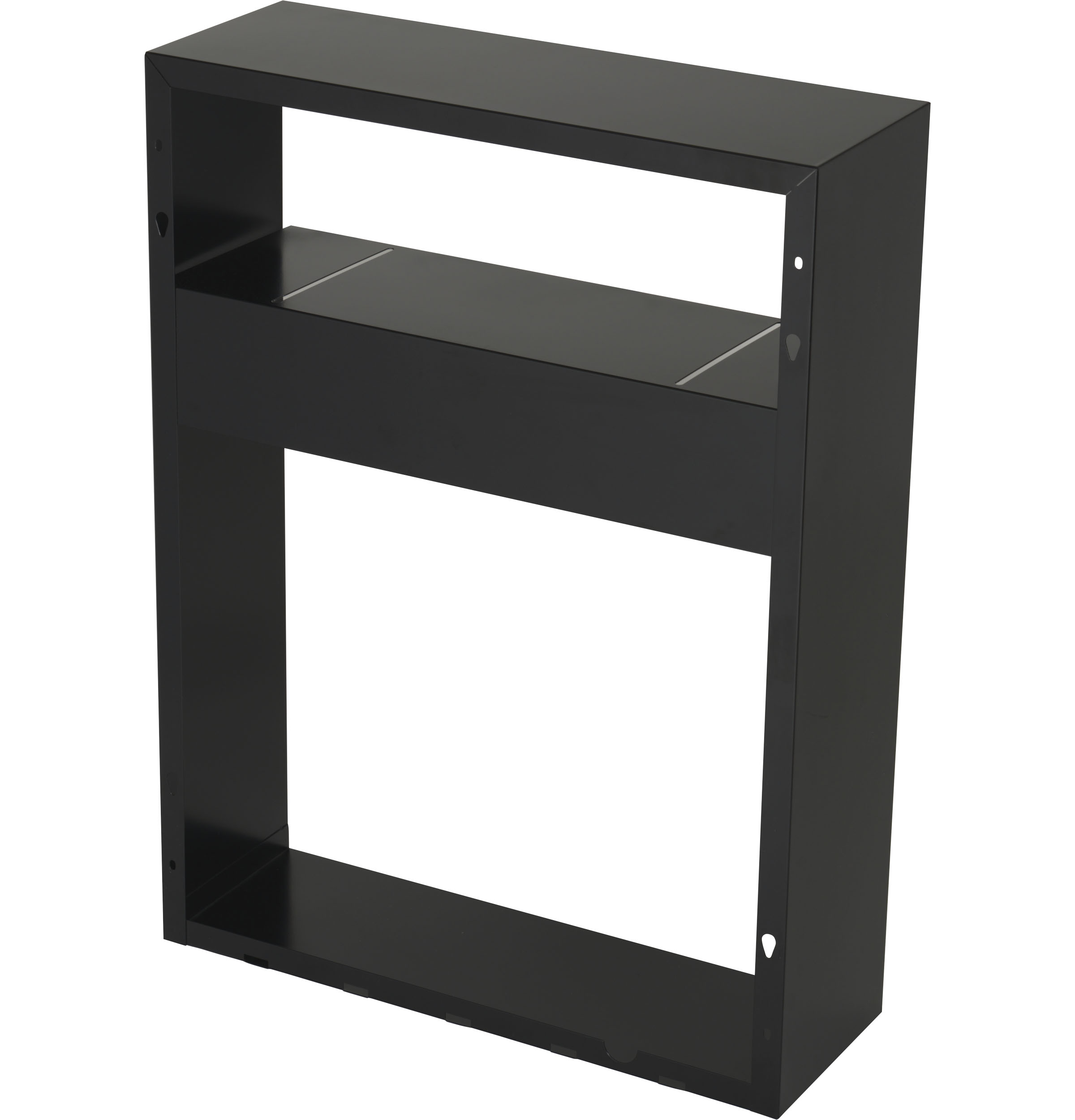

Telescopic Wall Plenum (for wall thicknesses 5” to 9”) - RAVWPT9
Telescopic Wall Plenum (for wall thicknesses 5” to 9”)
Model: RAVWPT9
Telescopic Wall Plenum (for wall thicknesses 5” to 9”)
Model: RAVWPT9
Color : Black
Key Features
Telescopic design
Quick Install 2-piece Plenum
Easy interior installation
Positive gasket seal
Available from Appliance Outlet Superstore, serving customers throughout Cuba.
Features
Telescopic design
An integral part of the installation, the universal plenum design can accommodate a range of different wall thickness (5” to 9”)
Quick Install 2-piece Plenum
Two-piece design that allows assembling the plenum before installing in the wall by measuring the wall thickness to determine the right depth and reduces overall installation time
Easy interior installation
Plenum is easily installed from the interior of building. No need for exterior handling (*only caulking needs to be applied from exterior)
Positive gasket seal
A 1.25" thick gasket assures a complete seal between the plenum and unit eliminating outdoor air or moisture from entering the space
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 26.5 in |
| Overall Depth | 9 in |
| Overall Height | 32.625 in |
| Approximate Shipping Weight | 41 lb |
| Cutout Depth (in) | 32 |
| Cutout Width (in) | 24 |
| Net Weight | 40 lb |
| Adjustable Depth | 4.75 to 9 in |
APPEARANCE
| Color Appearance | Black |
Dimensions & Weight
| Width | 26.5 in. |
| Height | 32.63 in. |
| Length | 9 in. |
| Weight | 40 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31.5 in. |
| Shipping Height | 37.63 in. |
| Shipping Length | 14 in. |
| Shipping Weight | 80 lbs. |
| Total of Shipping Weight | 80 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.5 ft³ |
| Dimensional Weight | 55.98 lbs. |
| Total of Cubes | 4.5 ft³ |
| Total of Dimensional Weight | 55.98 lbs. |
WARRANTY
| Labor Warranty | No Warranty |
| Parts Warranty | 1-Year Replacement |
