Dishwasher with Front Controls - GDF510PMJSA

This product has been discontinued by the manufacture and is no longer available.

Dishwasher with Front Controls

Model: GDF510PMJSA

Dishwasher with Front Controls GDF510PMJSADishwasher with Front Controls GDF510PMJSADishwasher with Front Controls GDF510PMJSADishwasher with Front Controls GDF510PMJSADishwasher with Front Controls GDF510PMJSADishwasher with Front Controls GDF510PMJSADishwasher with Front Controls GDF510PMJSADishwasher with Front Controls GDF510PMJSADishwasher with Front Controls GDF510PMJSADishwasher with Front Controls GDF510PMJSA
Dishwasher with Front Controls GDF510PMJSA
Dishwasher with Front Controls GDF510PMJSA
Dishwasher with Front Controls GDF510PMJSA
Dishwasher with Front Controls GDF510PMJSA
Dishwasher with Front Controls GDF510PMJSA
+5more

Color : Silver

Dishwasher with Front Controls GDF510PMJSA
Silver

Key Features

  • Piranhaā„¢ hard food disposer with removable filter

  • Dedicated Silverware Jets

  • SpaceMakerĀ® silverware basket

  • Cabinet depth installation

  • Clean design inner door

  • Built-up floor capable

  • 55 dBA with status light on door

  • American gray plastic interior

Read More

Description

Get table-ready silverware thanks to powerful jets that focus on silverware baskets in multiple locations.Enjoy table-ready silverware and loading flexibility with this unique basket that can be placed on the rack or onto the door.34 H x 23 3/4 W x 24 D
Read More

Available from Appliance Outlet Superstore, serving customers throughout Cuba.

Features
Specifications
Certifications

Features

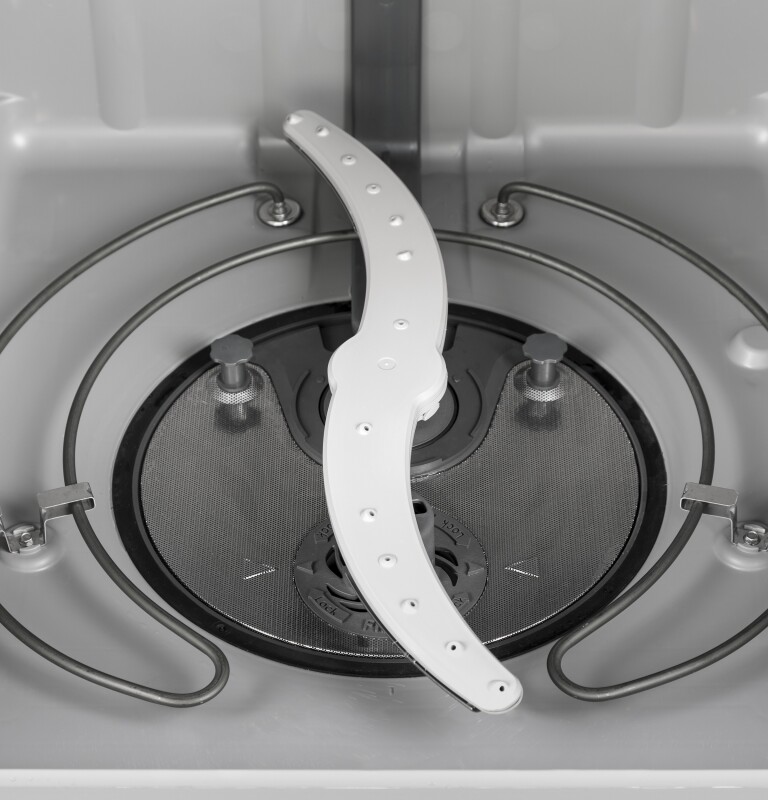

Piranhaā„¢ hard food disposer with removable filter

To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms

Dedicated Silverware Jets

Get table-ready silverware thanks to powerful jets that focus on silverware baskets in multiple locations

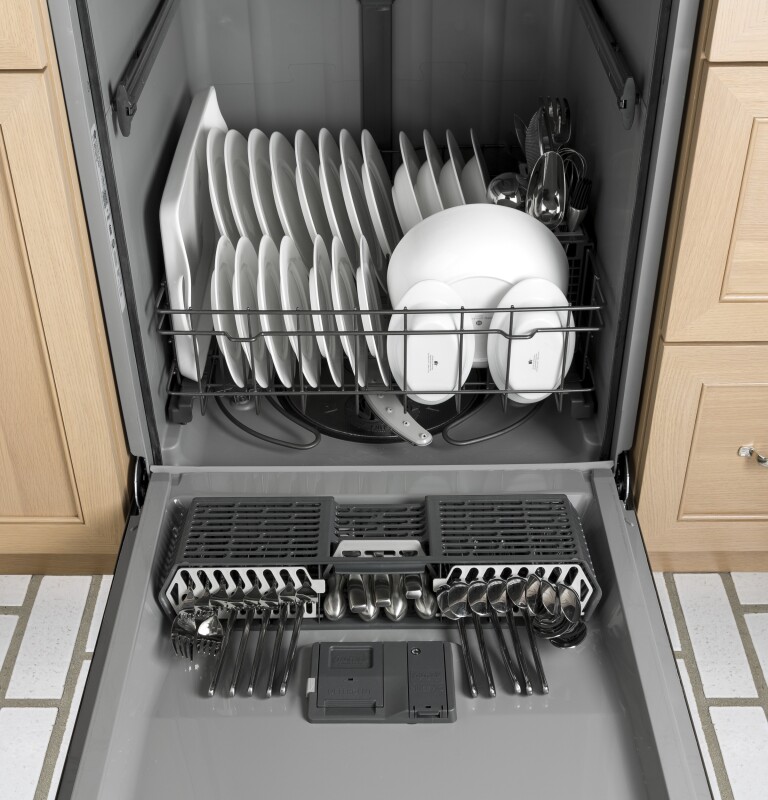

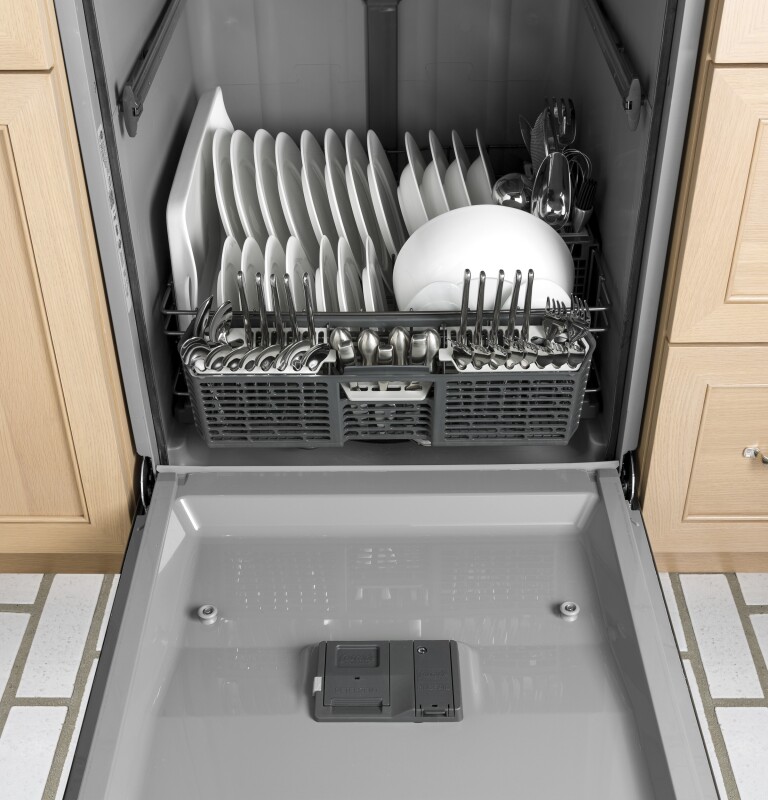

SpaceMakerĀ® silverware basket

Enjoy table-ready silverware and loading flexibility with this unique basket that can be placed on the rack or onto the door

Cabinet depth installation

Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity

Clean design inner door

The clean, attractive appearance features no visible hardware, so it’s also easy to maintain

Built-up floor capable

Installation over built-up floors is simple with the ability to adjust the dishwasher height

55 dBA with status light on door

A dishwasher this quiet has a status light to let you know it is running

American gray plastic interior

Heavy-duty material is designed for years of dependability and has an attractive finish

4-pass wash and dry element

Items come out consistently clean and dry with the help of this element, which evenly heats water for washing and air for drying

Top or side mount installation brackets

Enjoy flexible installation options with brackets that can be used to mount the dishwasher under the countertop or to the cabinets on the side

Two-pump system

One efficient pump for washing/rinsing and one powerful low-energy pump to remove soils provide excellent wash performance with reduced sound

Audible end-of-cycle signal

The dishwasher makes a sound to tell you when the load is complete and dishes are ready to unload

ENERGY STARĀ® qualified / CEE qualified

Meets or exceeds federal guidelines for energy efficiency for year-round energy and money savings

Certifications

CEE Tier I certification

CEE Tier I

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

MADE IN AMERICA:  70 to 90% U.S. Content certification

MADE IN AMERICA: 70 to 90% U.S. Content

NSF Certified certification

NSF Certified

Specifications

Warranty

Parts1 Year
Labor1 Year

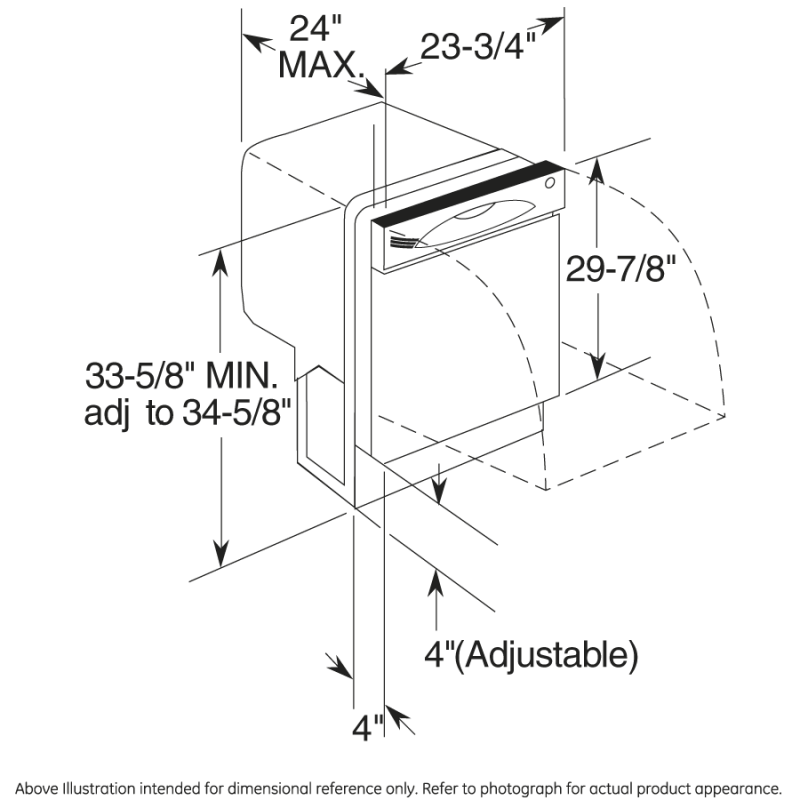

WEIGHTS & DIMENSIONS

Overall Height34 in
Overall Depth24 in
Height w/ Legs Retracted - Minimum Height33.375 in
Cabinet Width24 in
Net Weight59 lb
Approximate Shipping Weight75 lb
Height w/Legs Extended - Maximum Height34.625 in
Overall Width23 3/4 in

Dimensions & Weight

Width23.75 in.
Height34 in.
Length24 in.
Weight59 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.75 in.
Shipping Height39 in.
Shipping Length29 in.
Shipping Weight99 lbs.
Total of Shipping Weight99 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement11.22 ft³
Dimensional Weight139.42 lbs.
Total of Cubes11.22 ft³
Total of Dimensional Weight139.42 lbs.

FEATURES

Wash System500 Series
Lower RackBall-Tip Tines
Tub TypeTall Tub
Leveling System4 Leveling Legs
Number of Place Settings14
Tub LinerPlastic
LatchCenter Pull
Number of Options3
StyleBuilt-In
Water Filtration System100% Filtration with Piranha Hard Food Disposer and Removable Filter
Rack FeaturesSpaceMaker Silverware Basket in door with cell covers
Door LinerClean Design with Plastic
Rack ColorPearlescent Dark Gray
DispenserRinse Aid with Indicator and Adjustment
Racking SystemTowerless
Dishwasher Drying FeaturesHeated Dry - On/Off
Wash ArmsMiddle
Exterior StyleTraditional
Upper RackRemovable
Dishwasher Control FeaturesLast Cycle Memory
Number of Cycles4
Tub and Door LinerAmerican Gray Plastic Tub Interior
Showroom Power ModeYes

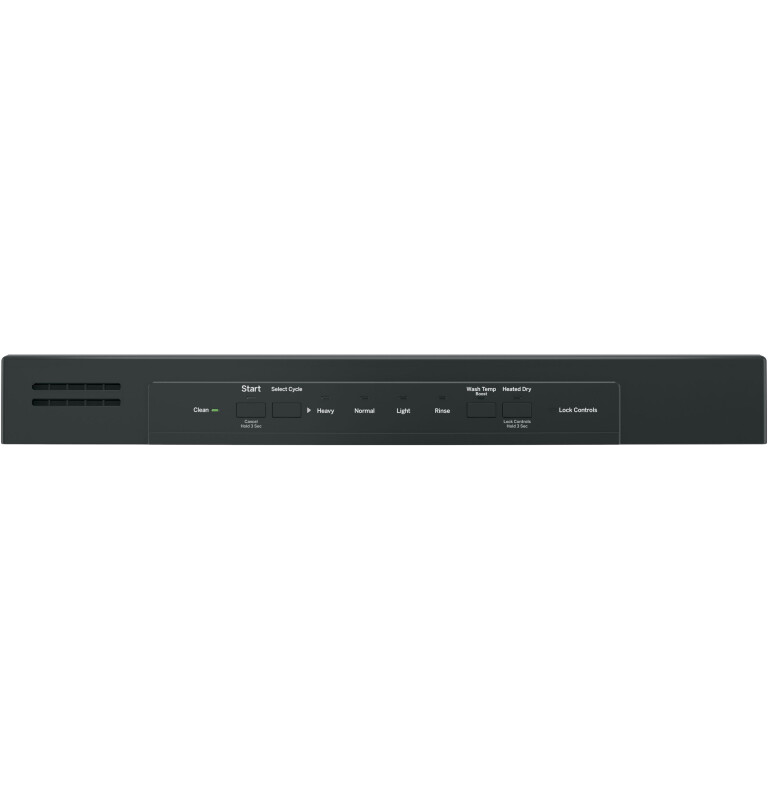

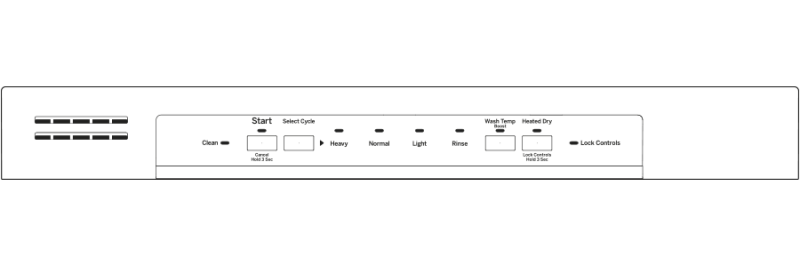

Control TypeElectronic Tactile Buttons
Dishwasher CyclesLight Wash
Dishwasher OptionsHeated Dry
Wash System FeaturesAutomatic Temperature Control
Dishwasher OptionsWash TempBoost
Dishwasher CyclesRinse
Control TypeFront Controls
Wash System FeaturesPiranhaā„¢ Hard Food Disposer with removable filter
Control Type4 Touchpads
Dishwasher Control Features1 "Clean" Cycle Progress Indicator
Dishwasher CyclesHeavy Wash
Dishwasher CyclesNormal Wash
Dishwasher OptionsChild Lock
Dishwasher OptionsStart/Reset

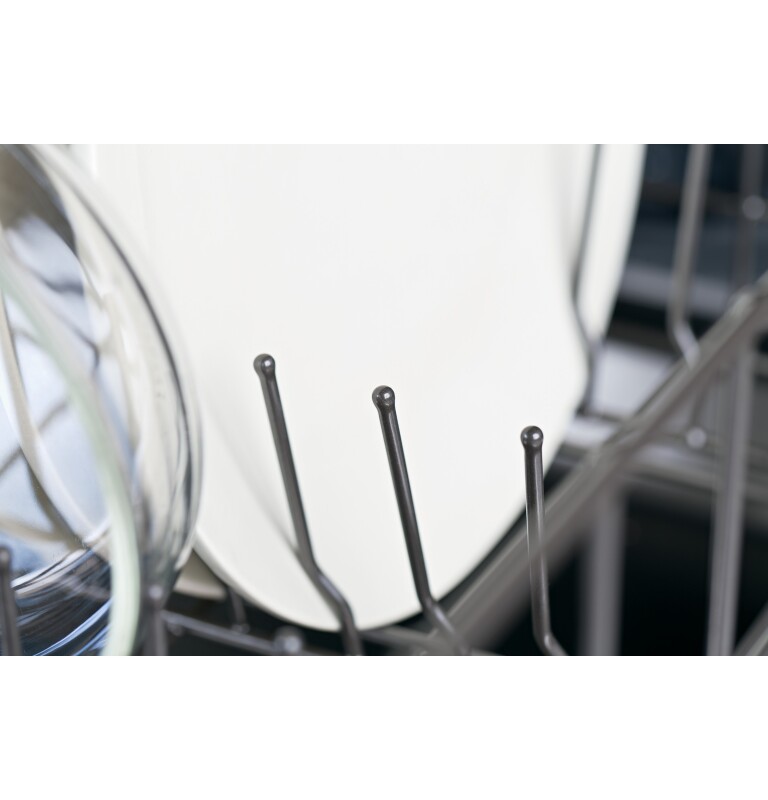

Rack FeaturesBall-Tipped Tines
Racking SystemPearlescent Dark Gray
Upper RackBall-Tip Tines
Wash ArmsLower
Wash System FeaturesDual Pumps and Motors
Wash System FeaturesDrain Pump
Wash System FeaturesAutomatic HotStart

ECONOMICAL / QUIET

Door InsulationInsulation
Quiet Package55 dBA
Motor TypeSingle Speed
Quiet FeaturesSealed Toe Kick
Quiet FeaturesQuiet Water Valve

WARRANTY

Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 1-year entire appliance

APPEARANCE

Handle ColorColor-Matched
Door StyleLong Door
Door AppearanceContour door
Color AppearanceSilver
Control Panel ColorBlack
Handle DesignRecessed
InstallationFlush Cabinet Installation
InstallationSide or Top Mount Install Brackets Included
InstallationBuilt-Up Floor Capable

POWER / RATINGS

Calrod Heater Watts415/800
Volts/Hertz/Amps120v; 60Hz; 7.1A
